Home >> GMC >> 1983 >> Jimmy 6.2 C >> Repair and Diagnosis >> Engine Performance >> System >> Feedback Carburetor Tests W/Codes >> System Performance Check

System Performance Check

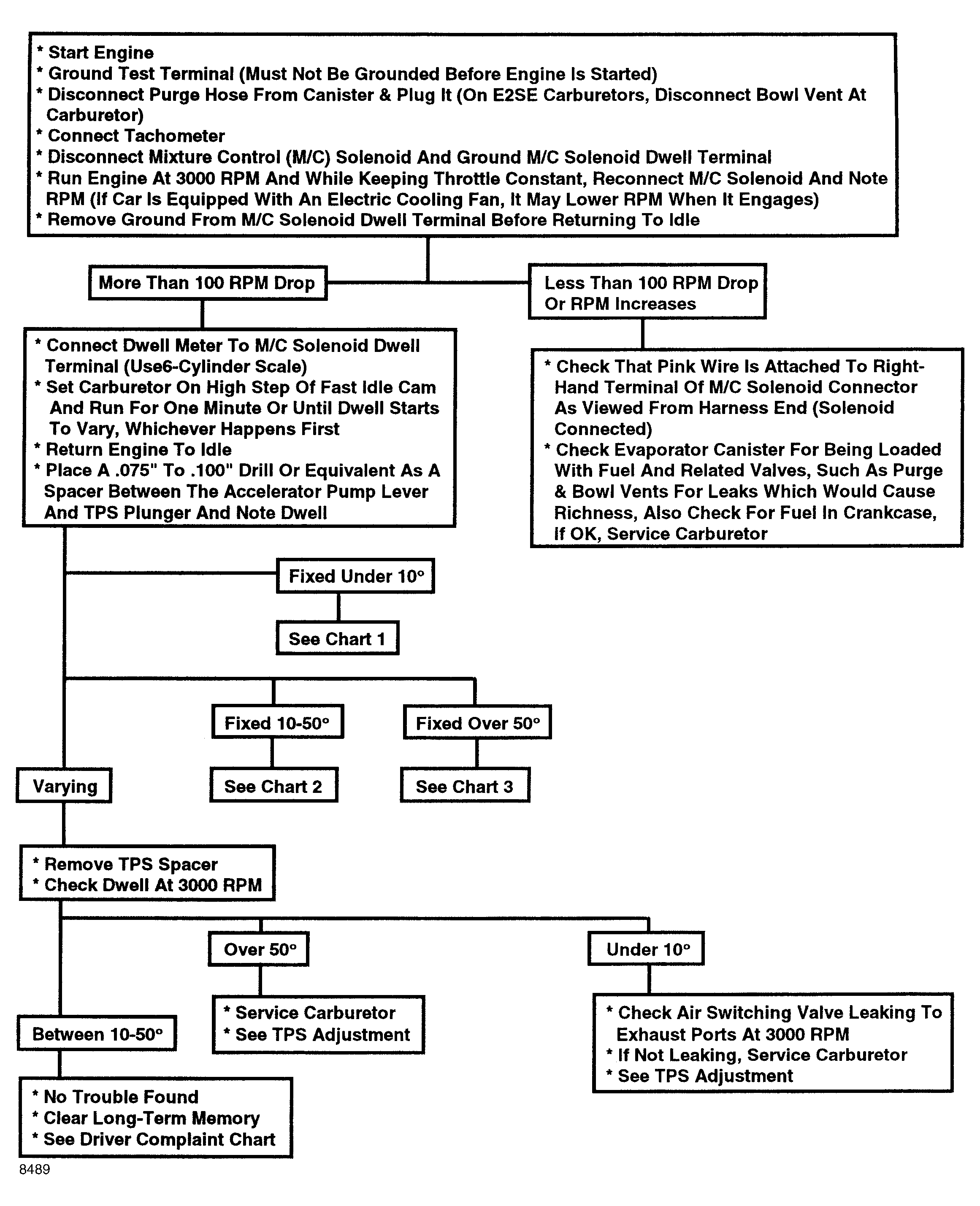

Fig 1: Flow Chart - System Performance Check

G8489

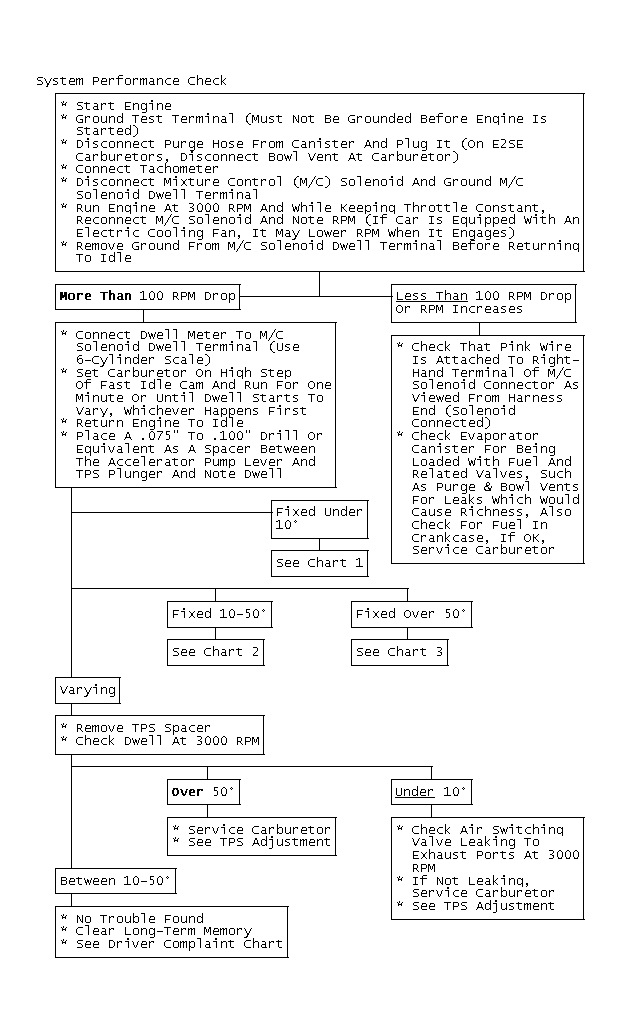

Fig 2: Flow Chart - System Performance Check

GB0048216
