Component Locations

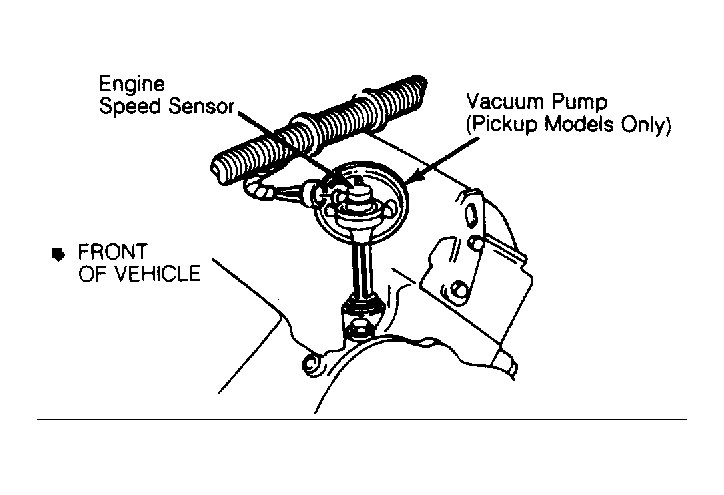

Fig 1: Engine Speed Sensor Location. This applies to pickup models only.

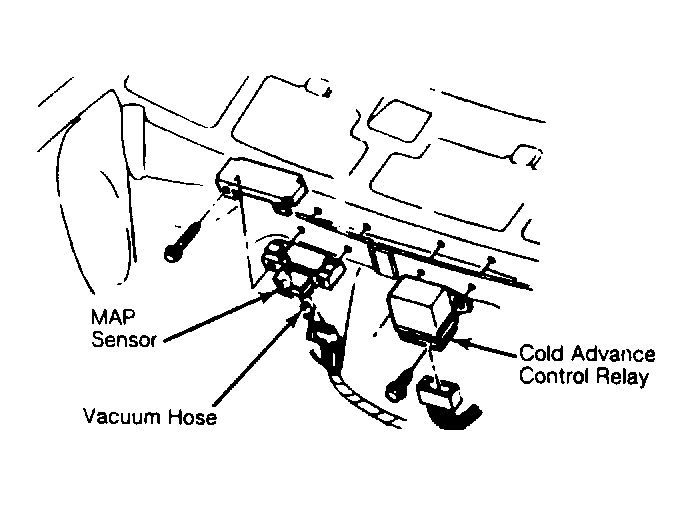

Fig 2: MAP Sensor Location

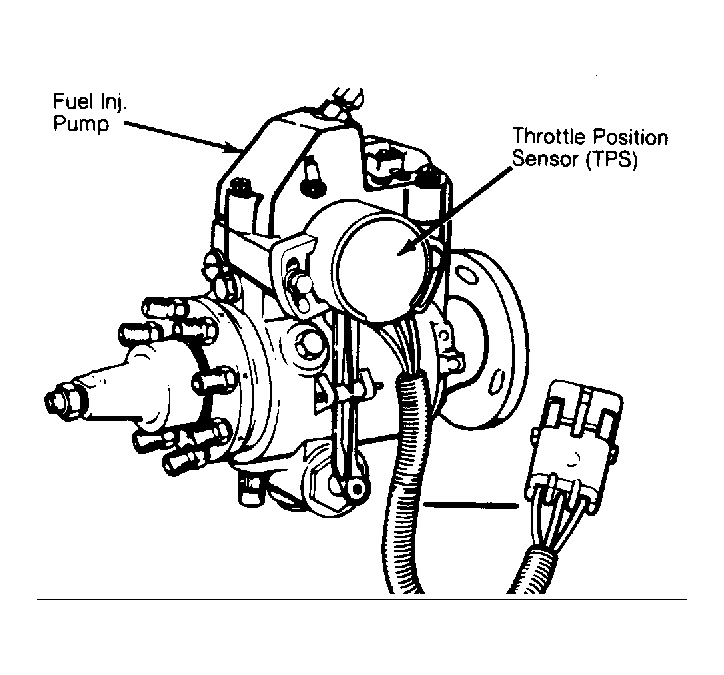

Fig 3: Throttle Position Sensor (TPS) Location

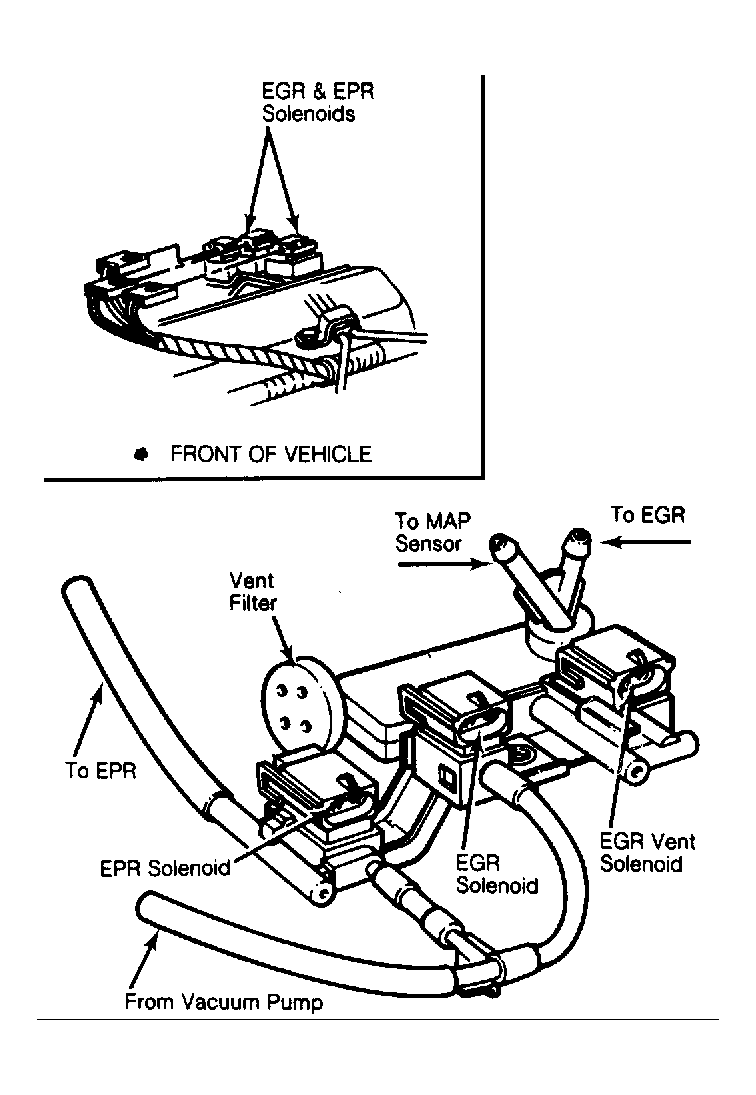

Fig 4: EGR System Components & Locations. Inset shows location of components.
