Jacking & Hoisting: Jacking

To raise front end of vehicle, position jack under front end jacking point. To raise rear of vehicle, position jack under rear end jacking point.

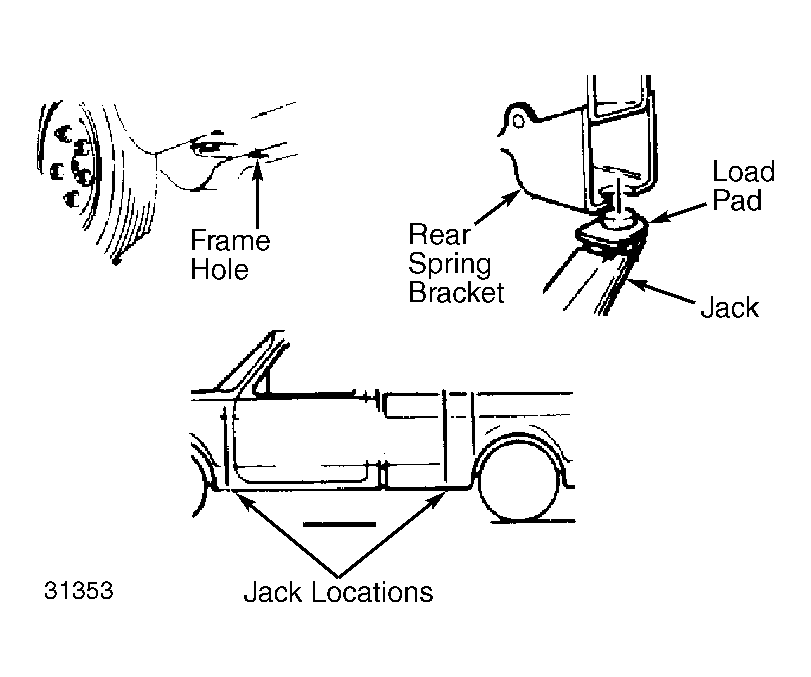

Fig 1: Jacking Points (Astro Van & Safari Van)

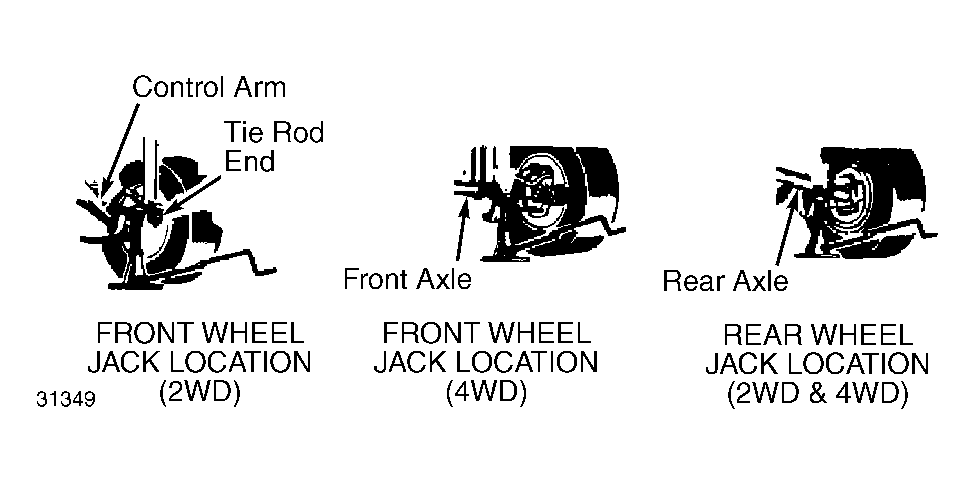

Fig 2: Jacking Points (Blazer & Suburban)

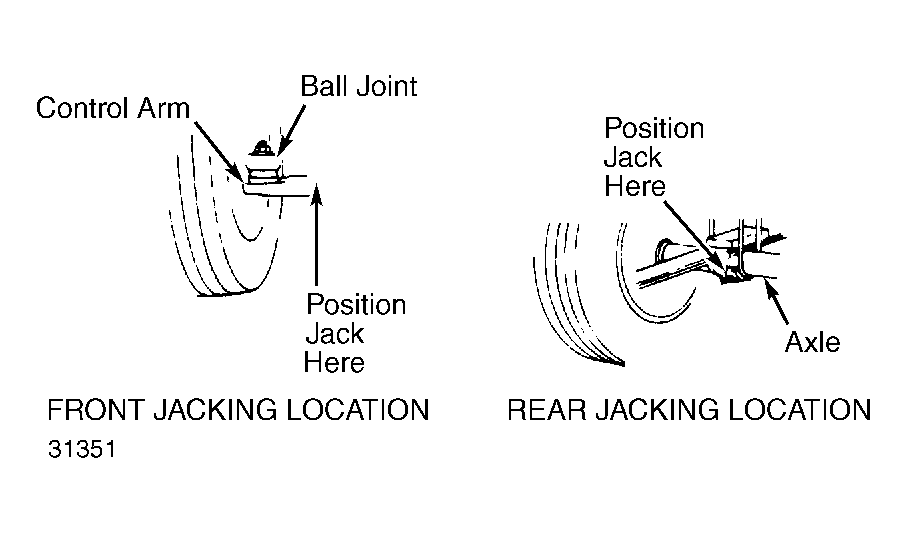

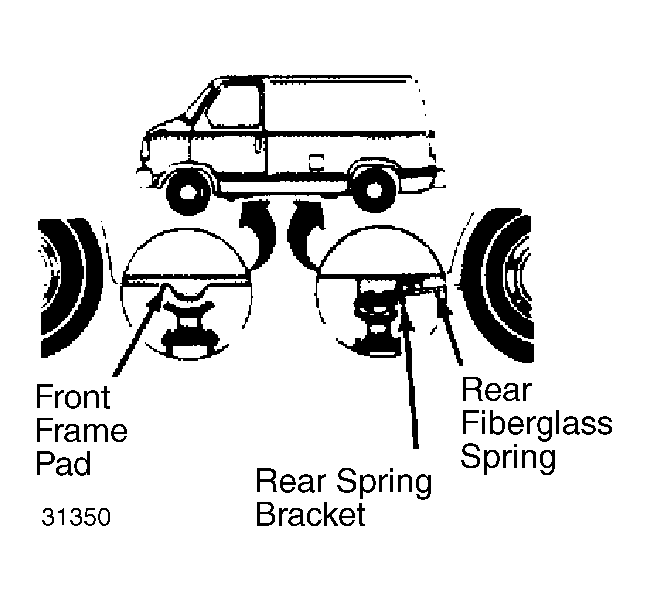

Fig 3: Jacking Points (Chevy & GMC Van)

Fig 4: Jacking Points (Chevy & GMC Truck)

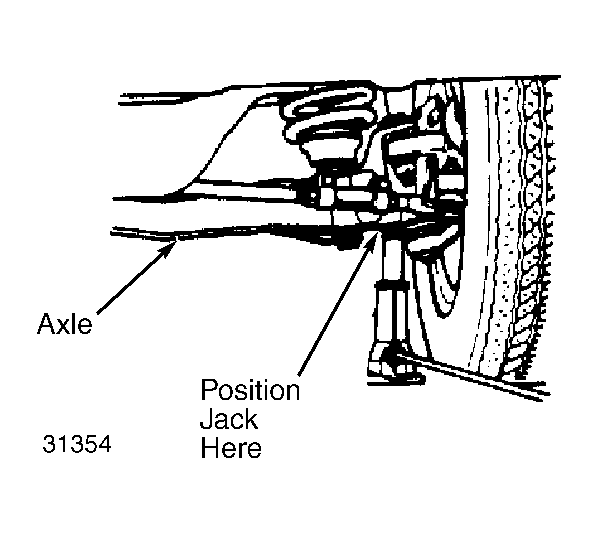

Fig 5: Jacking Points (S-10 & S-15)

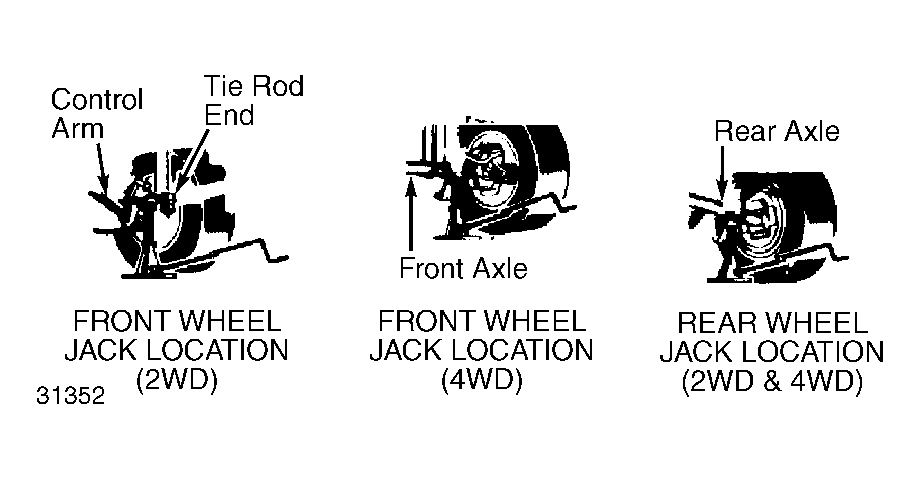

Fig 6: Jacking Points (S-10 Blazer)
