Control Units
CONTROL UNITS LOCATION
| Component | Location | |
|---|---|---|
| Audio Alarm Module | On convenience center. | |
| Cruise Control Module | On left side of brake pedal bracket. | |
| Digital Ratio Adapter Controller | Under right side of dash, next to ECM. | |
| Elapsed Timer Module | Under right side of dash, next to ECM. See Figure . | |
| Electronic Control Module (ECM) | ||

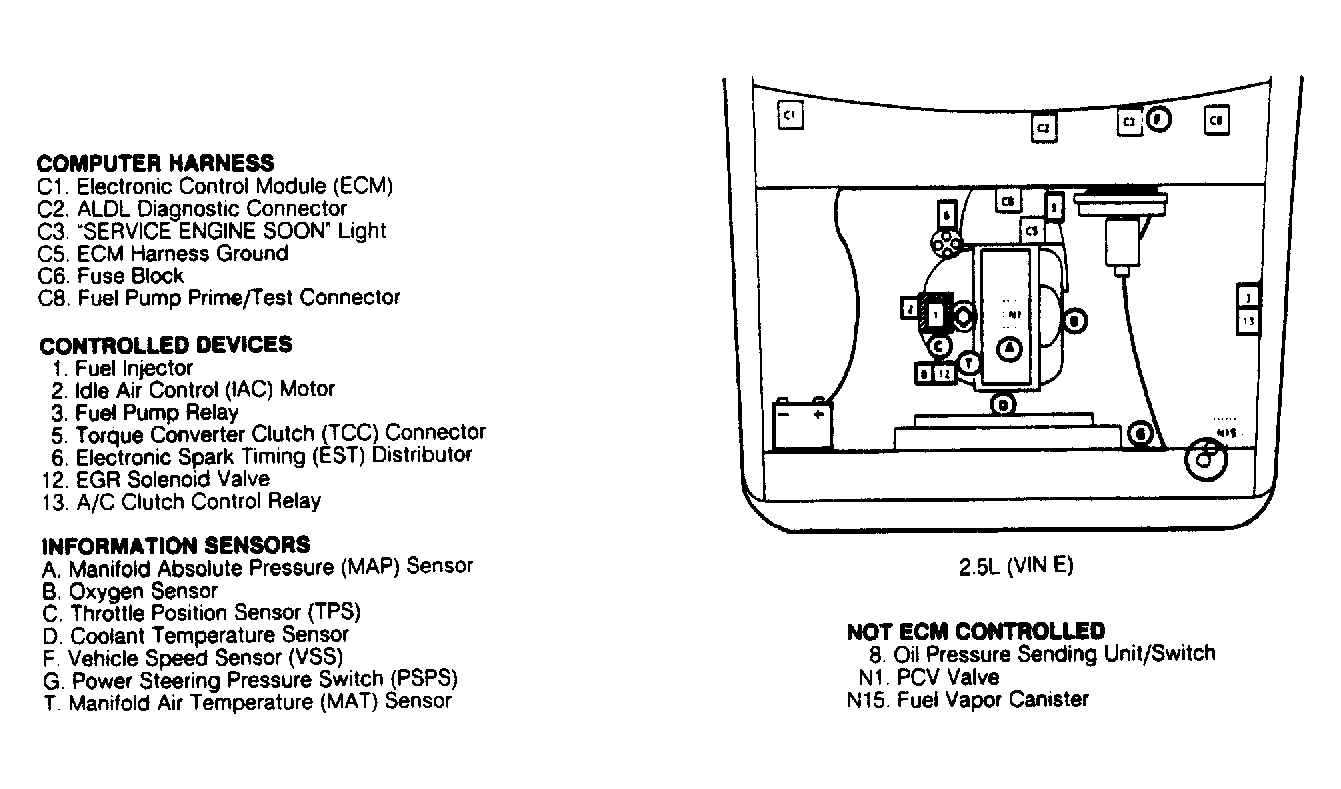

| 2.5L | Under right side of dash. See Figure . | |

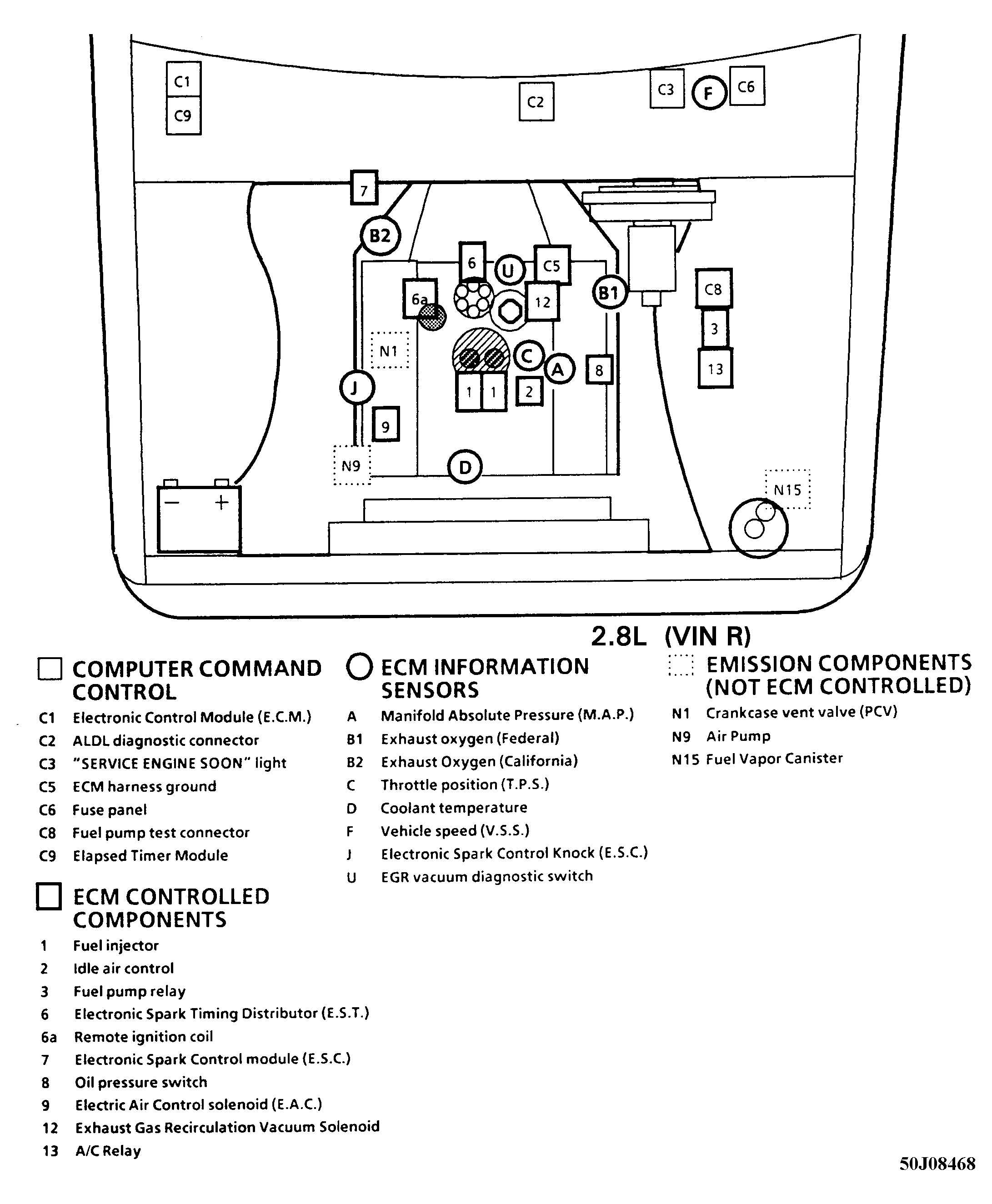

| 2.8L | Under right side of dash. See Figure . | |
| 4.3L | Under right side of dash. See Figure . | |
| Electronic Spark Control (ESC) Module | ||
| 2.8L | On center of firewall. See Figure . | |
| 4.3L | On center of firewall. See Figure . | |
| RABS Electronic Control Unit | On bracket, at master cylinder. | |
| Windshield Wiper Module | Inside windshield wiper motor. | |
