Door Module: Notes

  1. Remove door trim panel. See DOOR TRIM PANEL  .
  2. Remove screws holding module to the door.
  3. Remove lock and handle rods from the back of the module.
  4. Disconnect module wiring connector, if equipped.
  5. Remove Upper belt through window run channel.

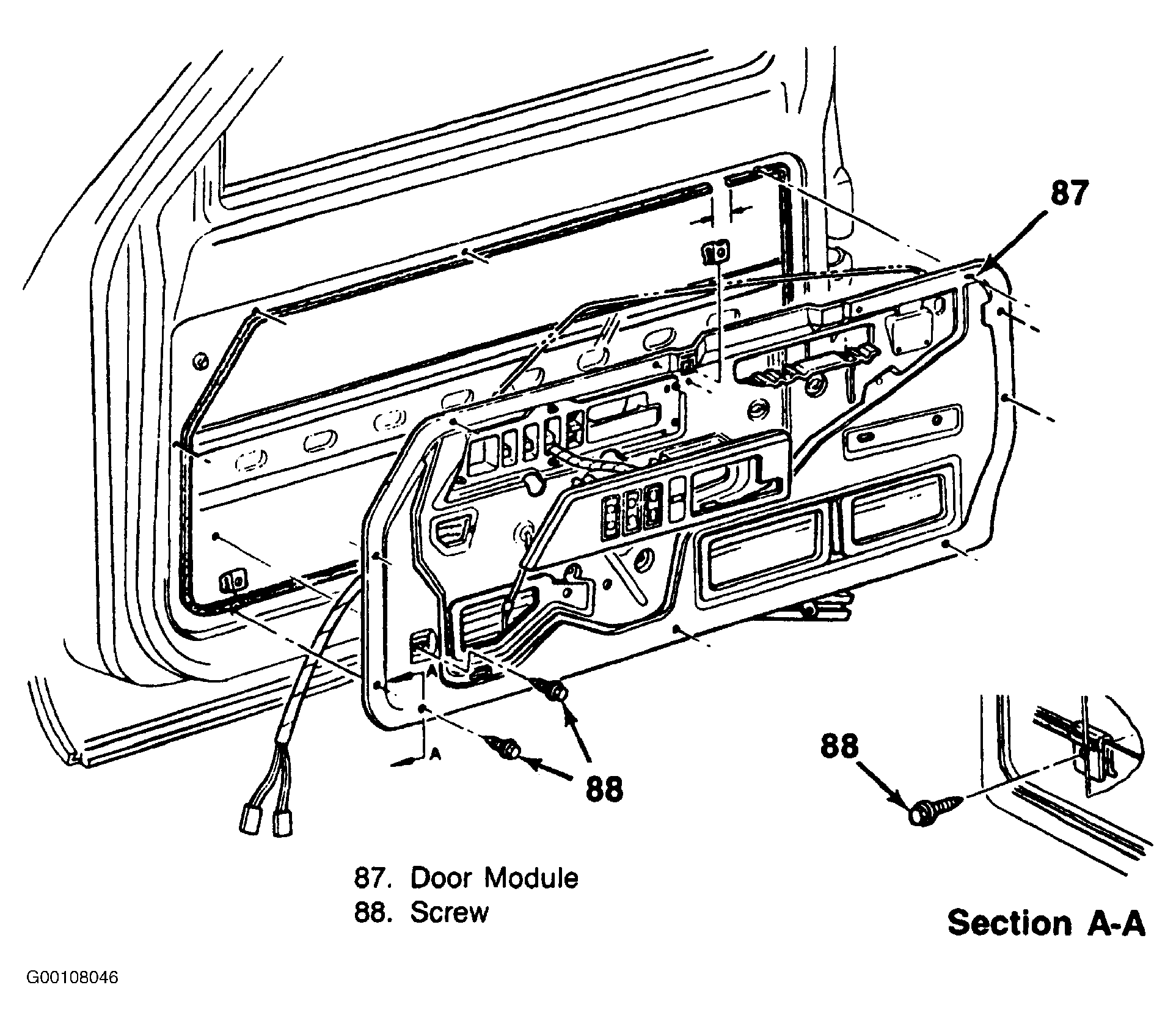

    Fig 1: Locating Door Module
    G00108046Courtesy of GENERAL MOTORS CORP.
