Component Locations

Fig 1: Component Loc. for 6.5L "C" & "K" Series
G94D43516Courtesy of GENERAL MOTORS CORP.

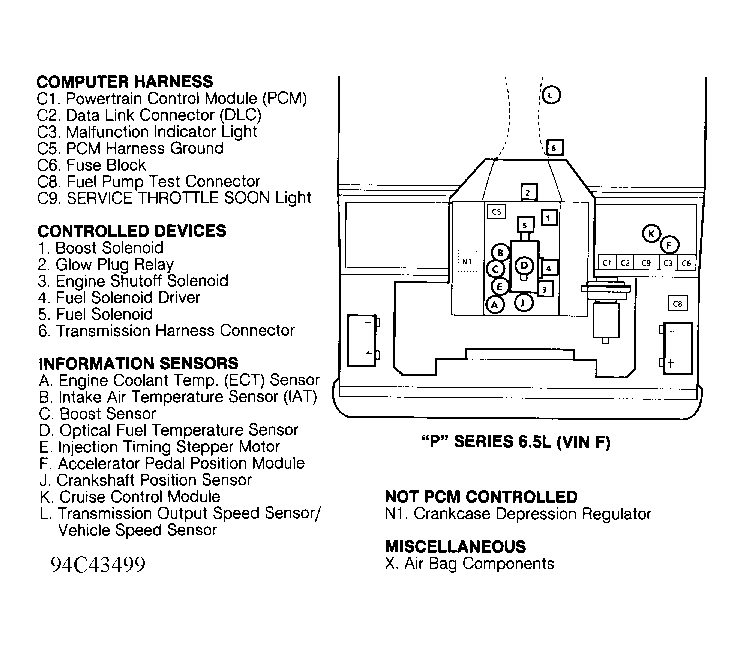

Fig 2: Component Location for 6.5L Diesel (VIN F) "P" Series
G94C43499Courtesy of GENERAL MOTORS CORP.

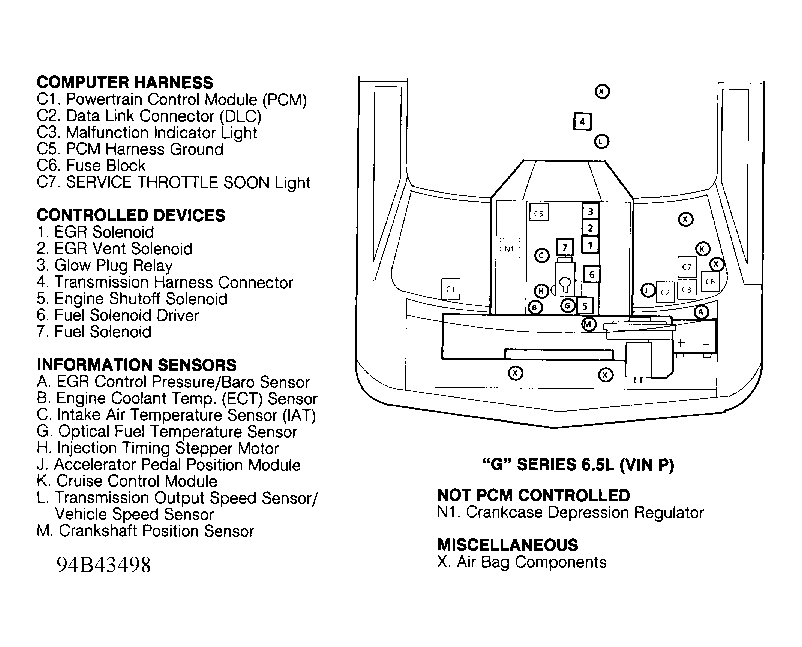

Fig 3: Component Location for 6.5L Diesel (VIN P) "P" Series
G94B43498Courtesy of GENERAL MOTORS CORP.
