Component Locations

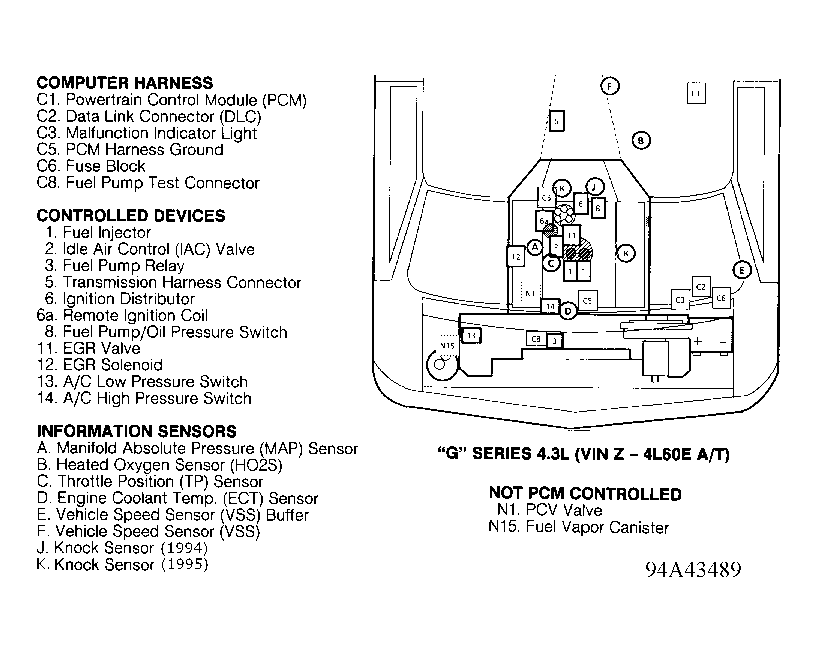

Fig 1: Component Location For 4.3L (VIN Z) "G" Series With 4L60E A/T

Courtesy of GENERAL MOTORS CORP.

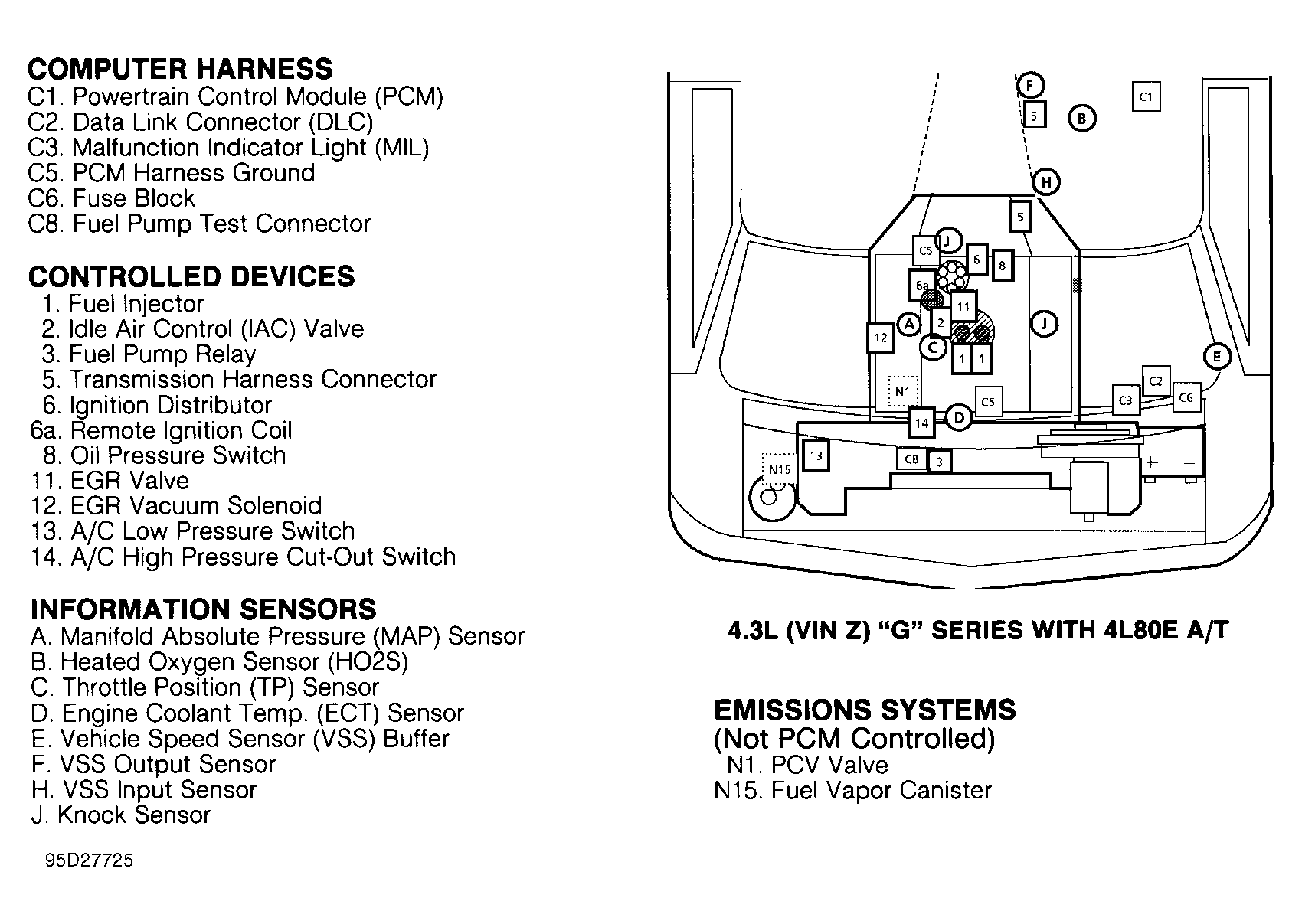

Fig 2: Component Location For 4.3L (VIN Z) "G" Series With 4L80E A/T

Courtesy of GENERAL MOTORS CORP.

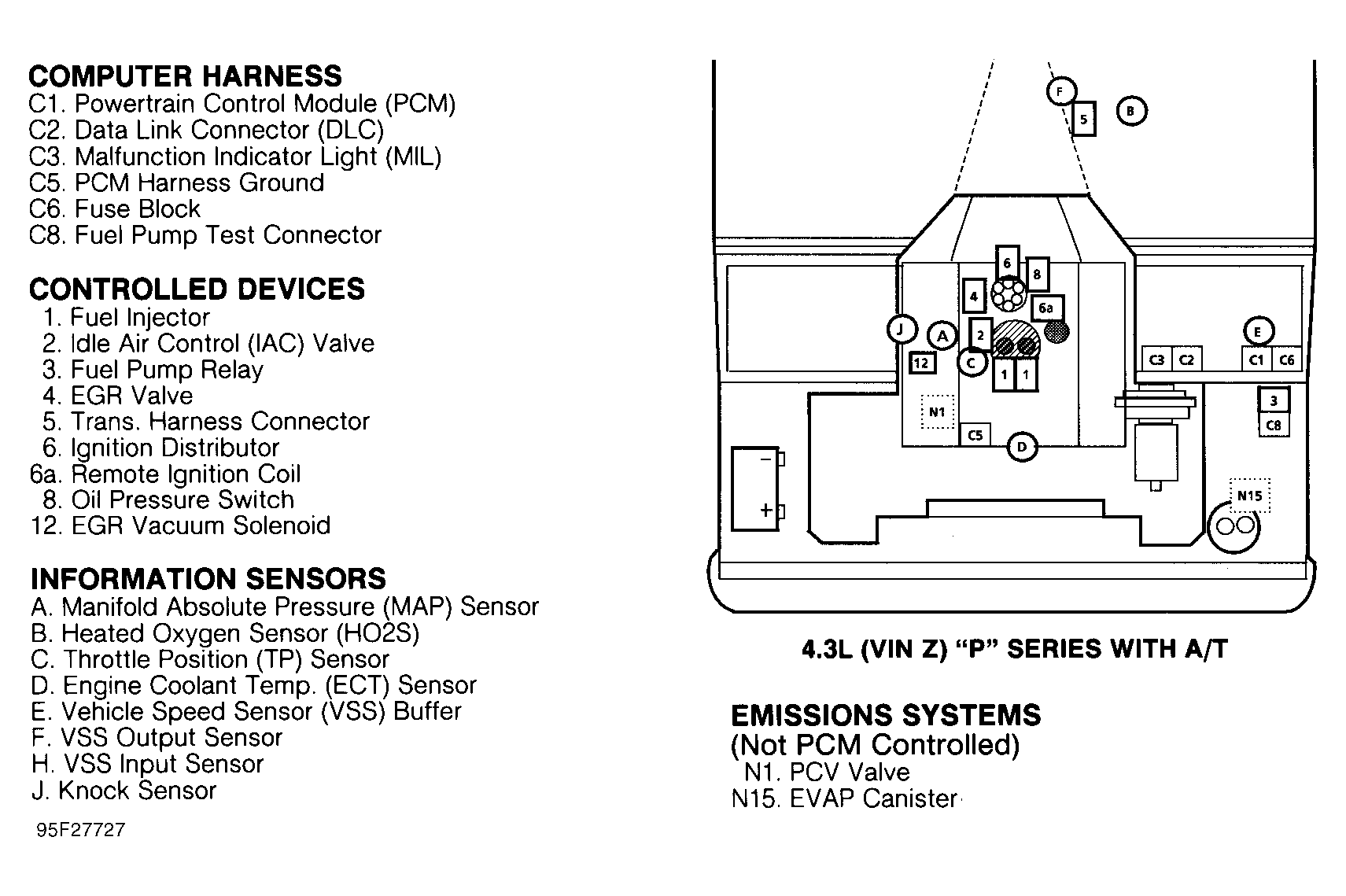

Fig 3: Component Location For 4.3L (VIN Z) "P" Series With A/T

Courtesy of GENERAL MOTORS CORP.

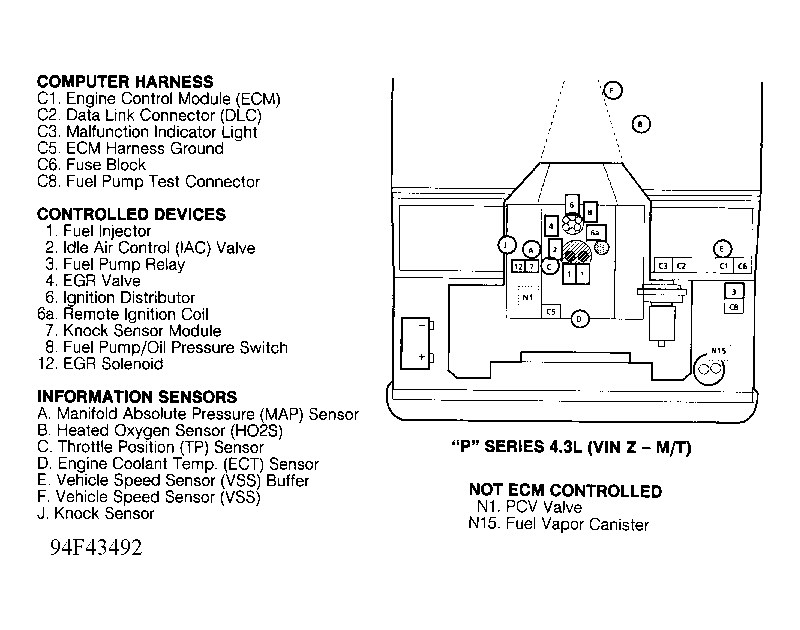

Fig 4: Component Location For 4.3L (VIN Z) "P" Series With M/T

Courtesy of GENERAL MOTORS CORP.

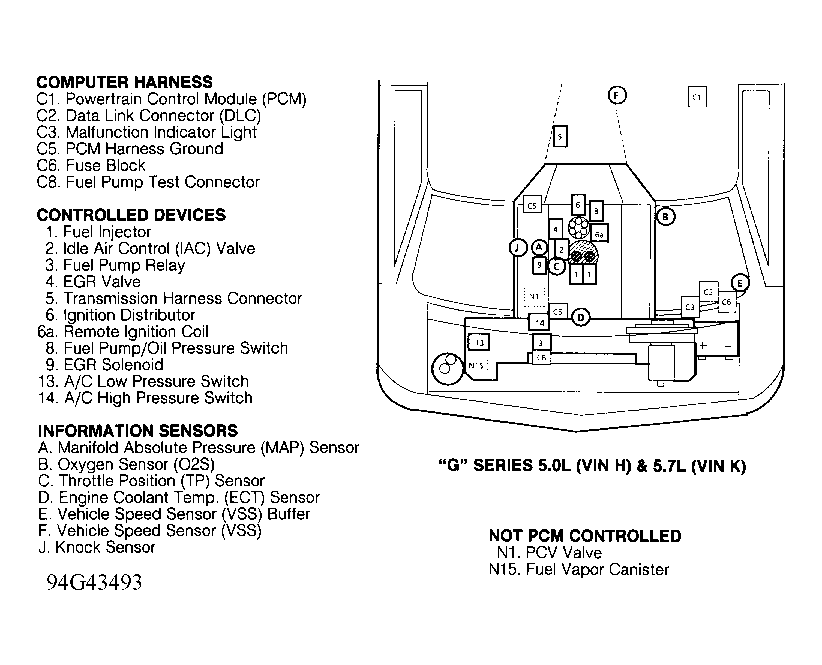

Fig 5: Component Location For 5.0L (VIN H) & 5.7L (VIN K) "G" Series With 4L60E A/T

Courtesy of GENERAL MOTORS CORP.

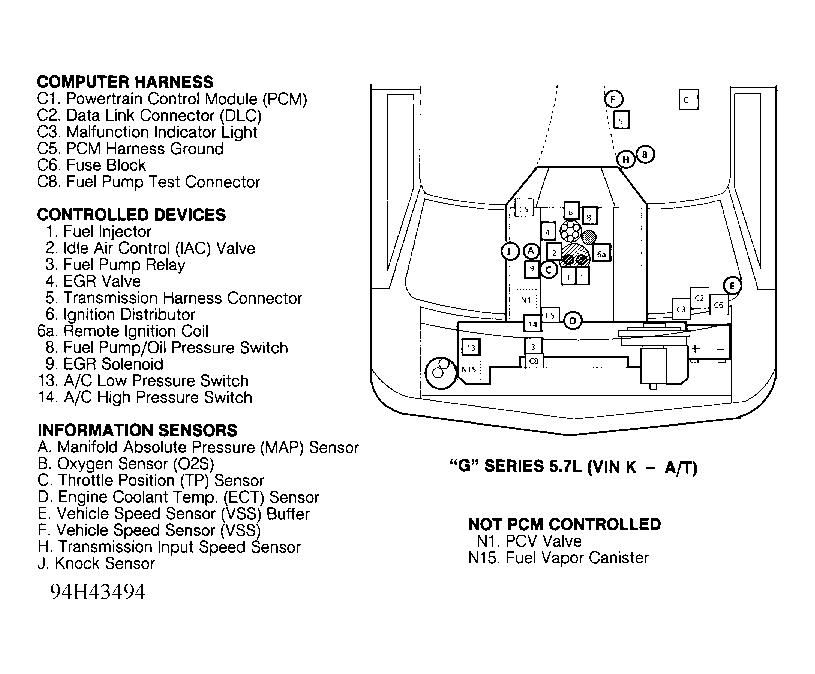

Fig 6: Component Location For 5.7L (VIN K) "G" Series With A/T With 4L80E A/T

Courtesy of GENERAL MOTORS CORP.

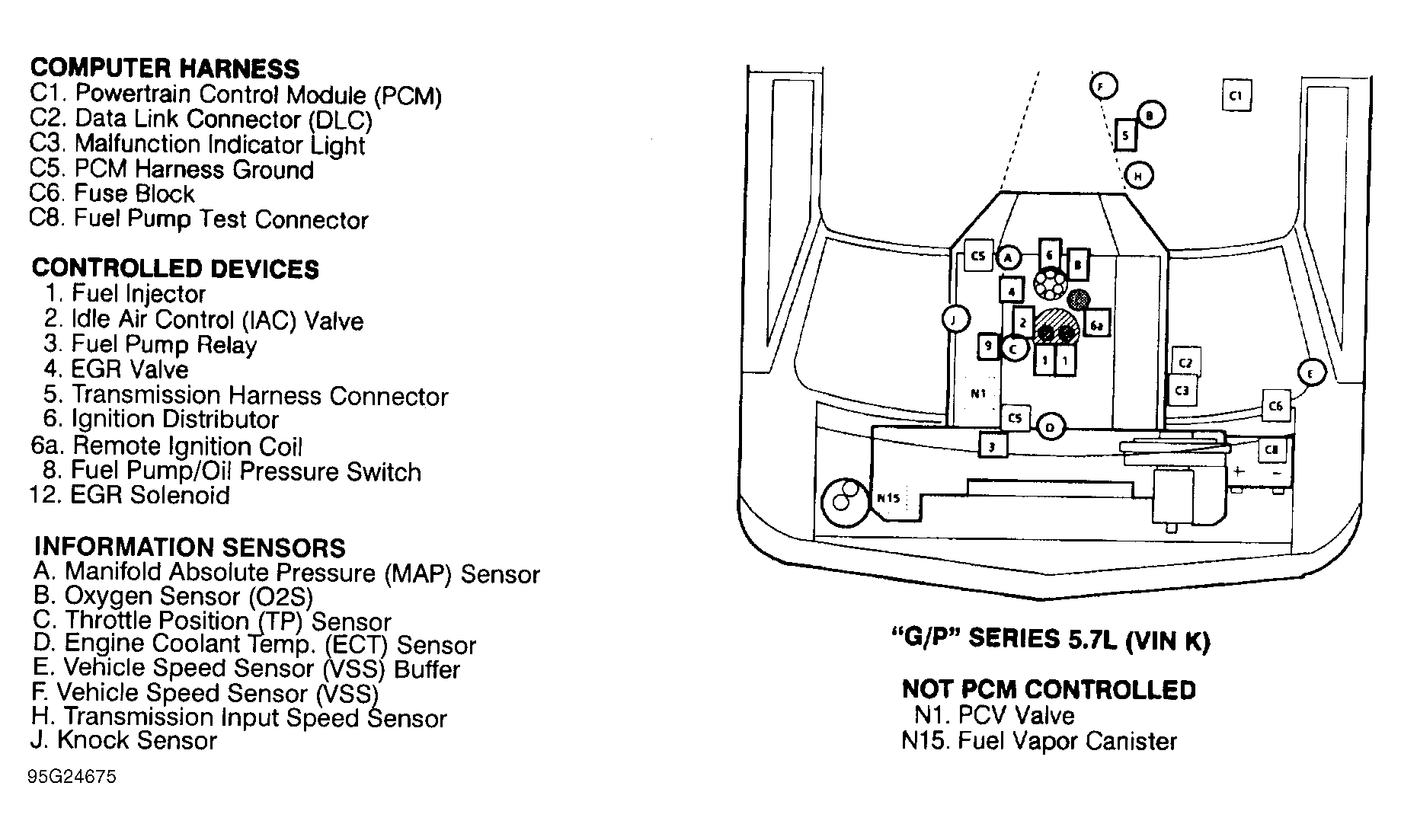

Fig 7: Component Location For 5.7L (VIN K) "G/P" Series

Courtesy of GENERAL MOTORS CORP.

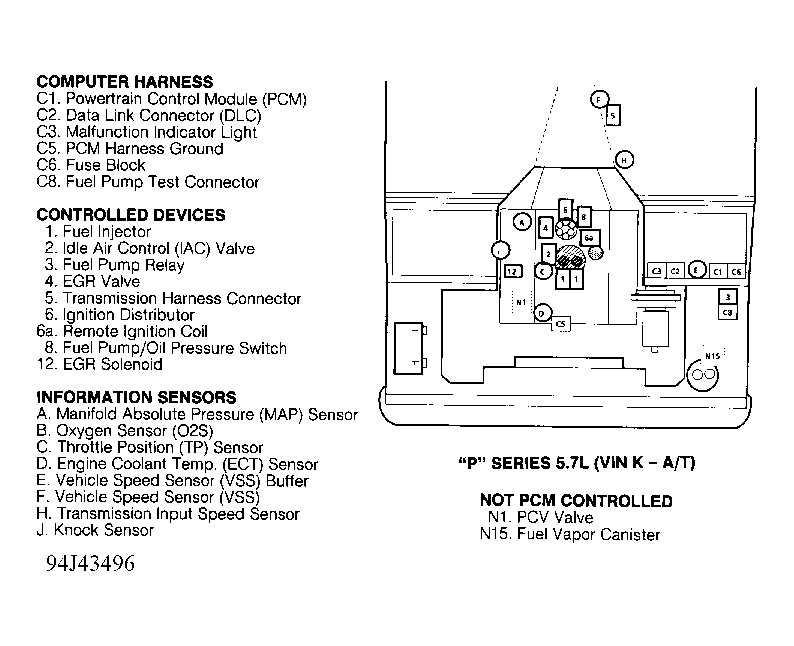

Fig 8: Component Location For 5.7L (VIN K) "P" Series With A/T

Courtesy of GENERAL MOTORS CORP.

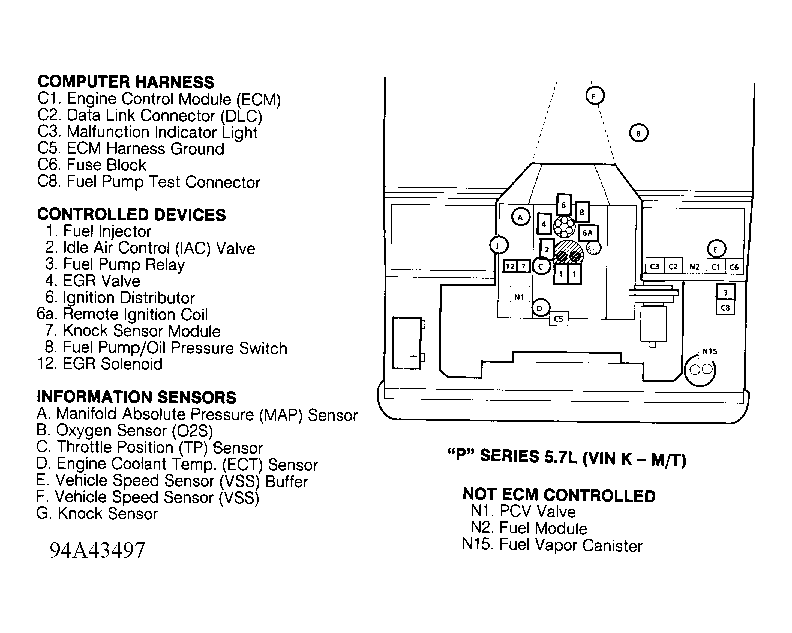

Fig 9: Component Location For 5.7L (VIN K) "P" Series With M/T

Courtesy of GENERAL MOTORS CORP.

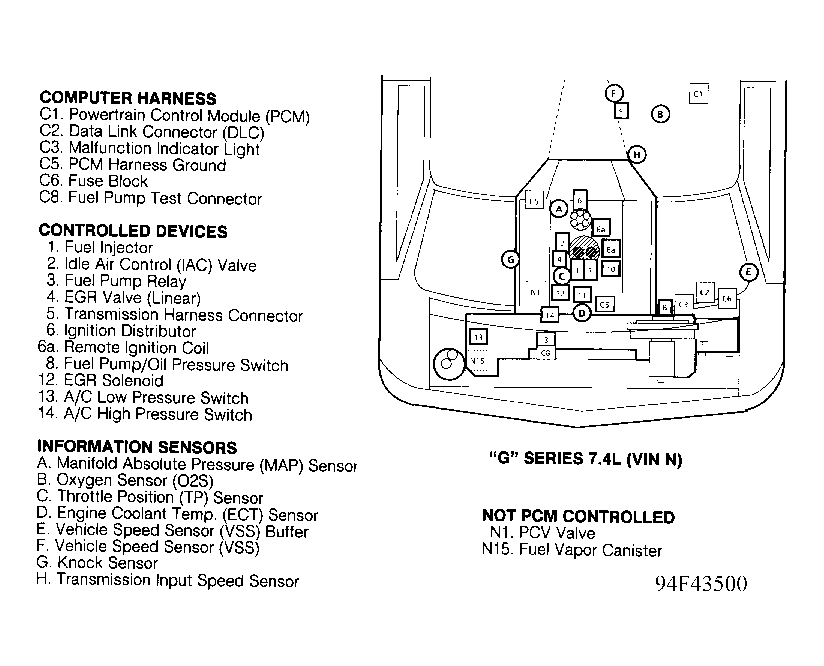

Fig 10: Component Location For 7.4L (VIN N) "G" Series

Courtesy of GENERAL MOTORS CORP.

Fig 11: Component Location For 7.4L (VIN N) "G/P" Series

Courtesy of GENERAL MOTORS CORP.
