Component Locations

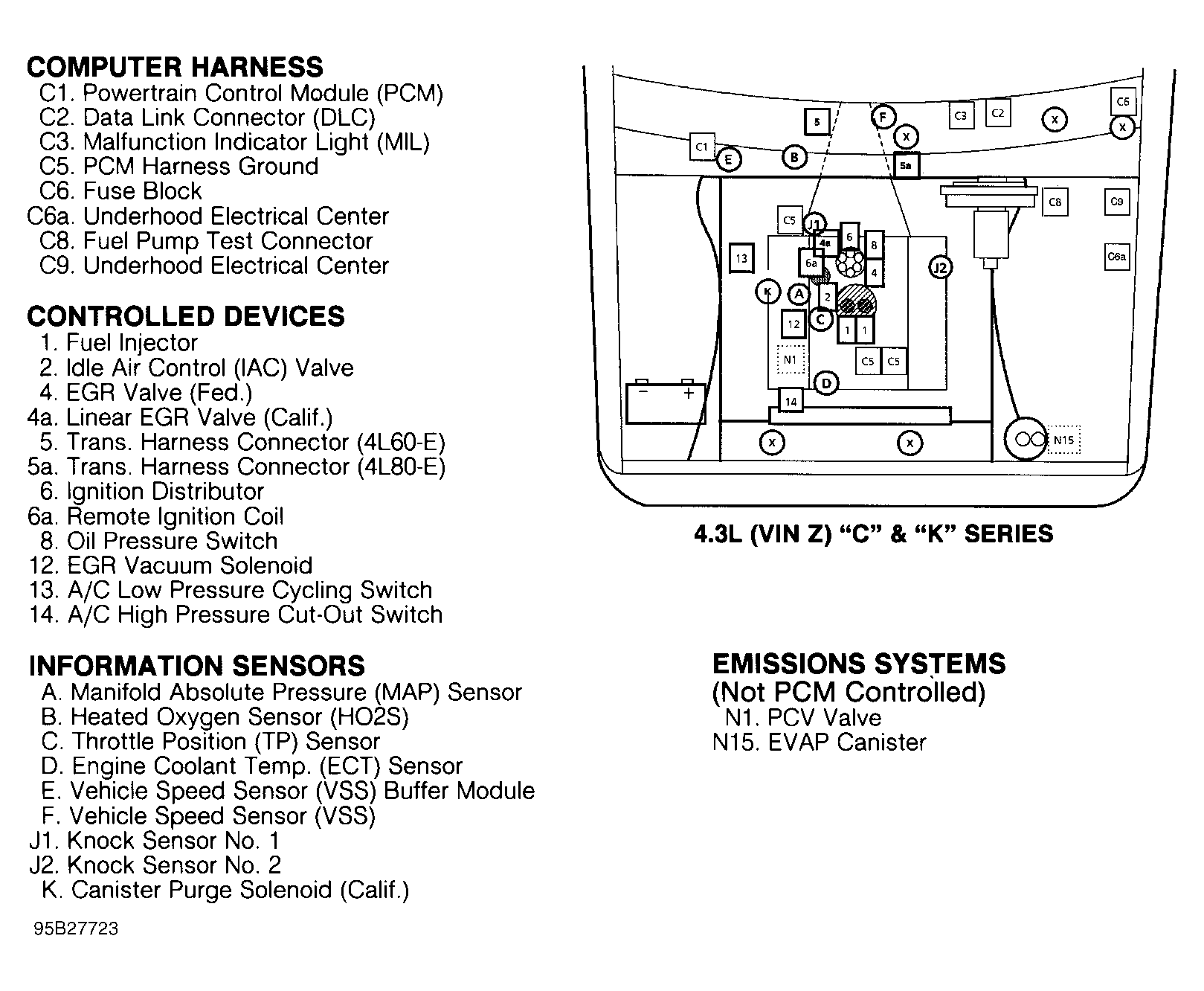

Fig 1: Component Location For 4.3L (VIN Z) "C" & "K" Series

Courtesy of GENERAL MOTORS CORP.

Fig 2: Component Location For 4.3L (VIN Z) "G" Series W/ 4L60E A/T

Courtesy of GENERAL MOTORS CORP.

Fig 3: Component Location For 4.3L (VIN Z) "G" Series W/ 4L80E A/T

Courtesy of GENERAL MOTORS CORP.

Fig 4: Component Location For 4.3L (VIN Z) "P" Series With A/T

Courtesy of GENERAL MOTORS CORP.

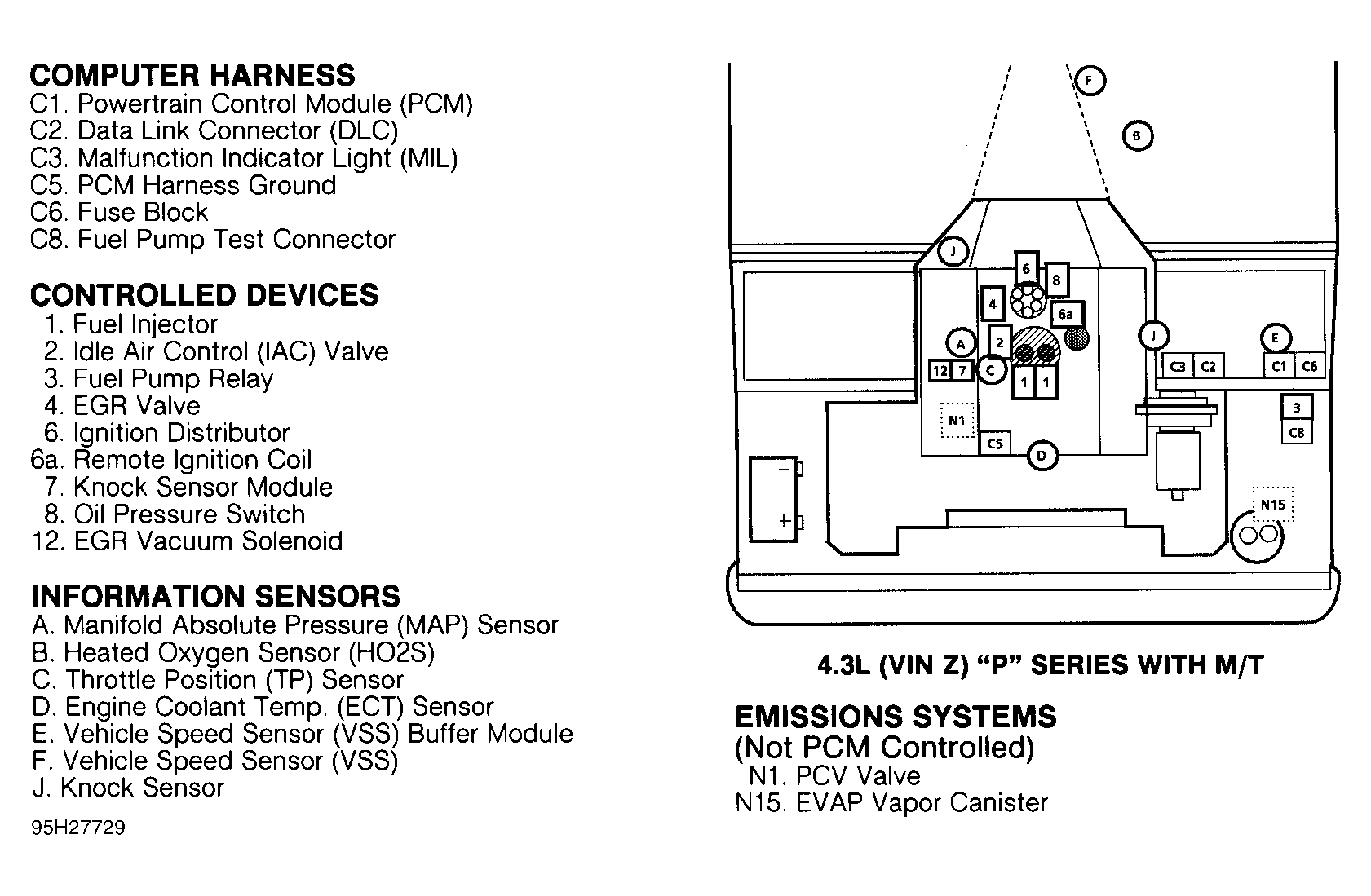

Fig 5: Component Location For 4.3L (VIN Z) "P" Series With M/T

Courtesy of GENERAL MOTORS CORP.

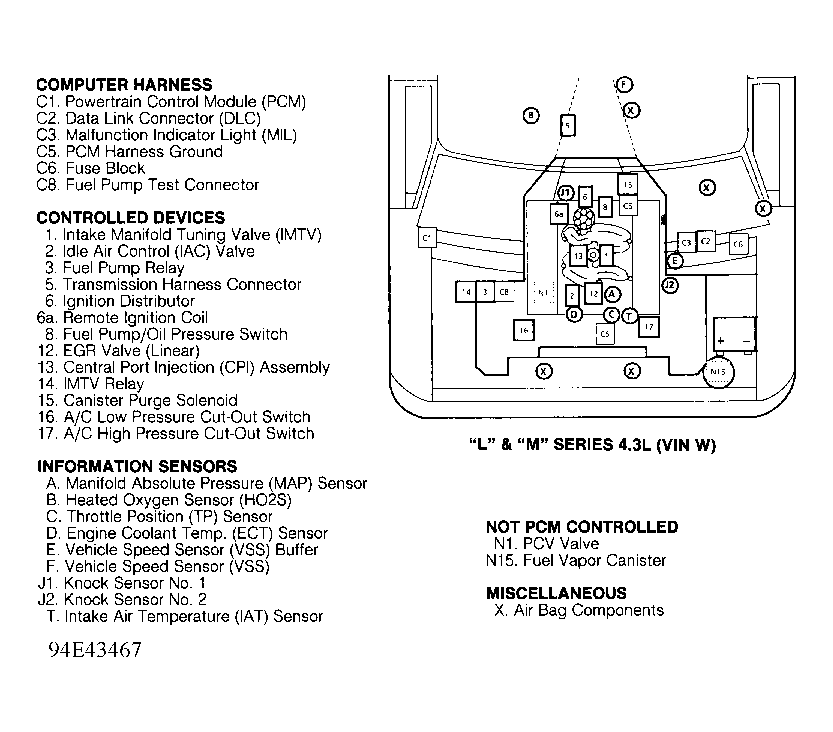

Fig 6: Component Location For 4.3L (VIN W) "L" & "M" Series

Courtesy of GENERAL MOTORS CORP.

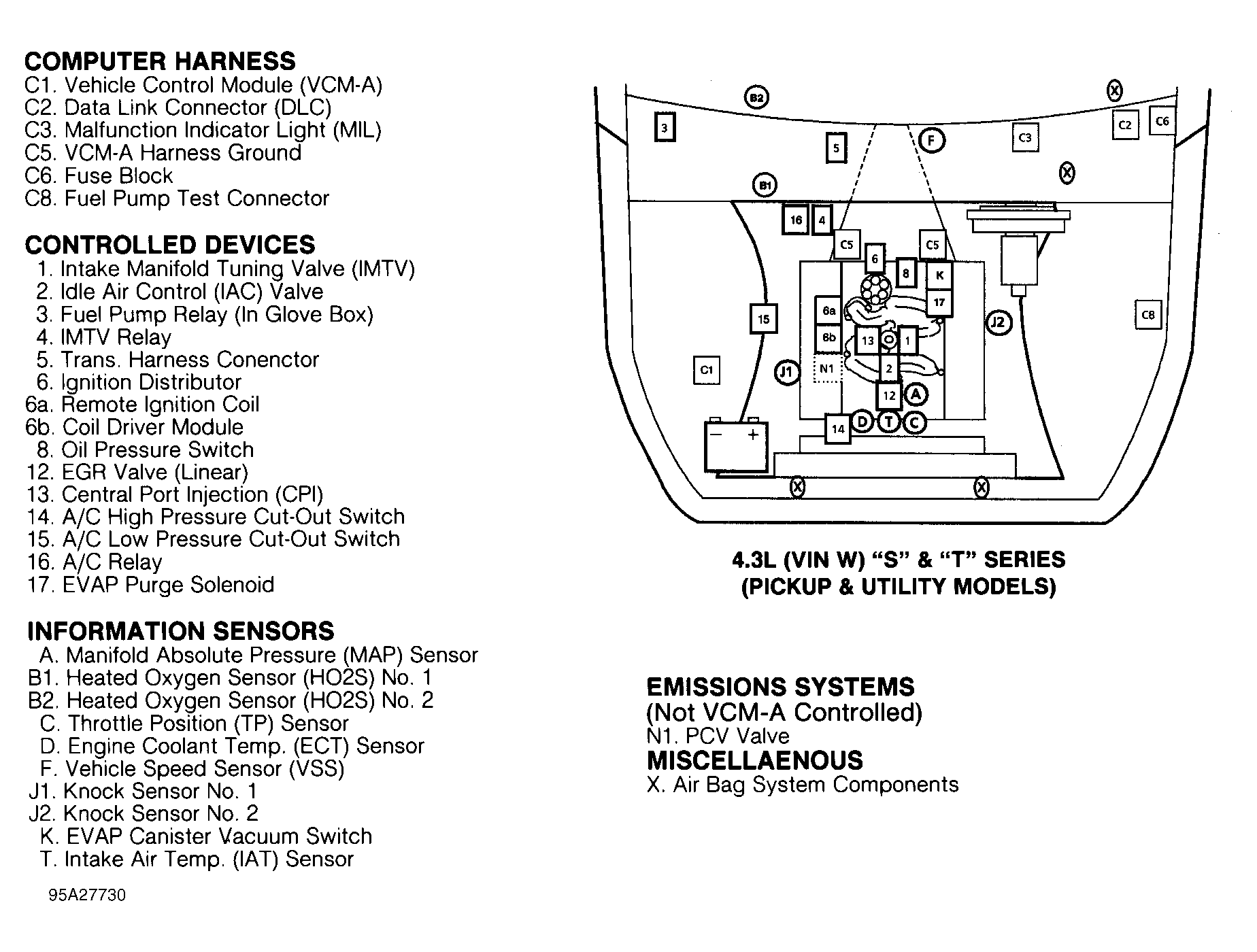

Fig 7: Component Location For 4.3L (VIN W) "S" & "T" Series (Pickup & Utility Models)

Courtesy of GENERAL MOTORS CORP.

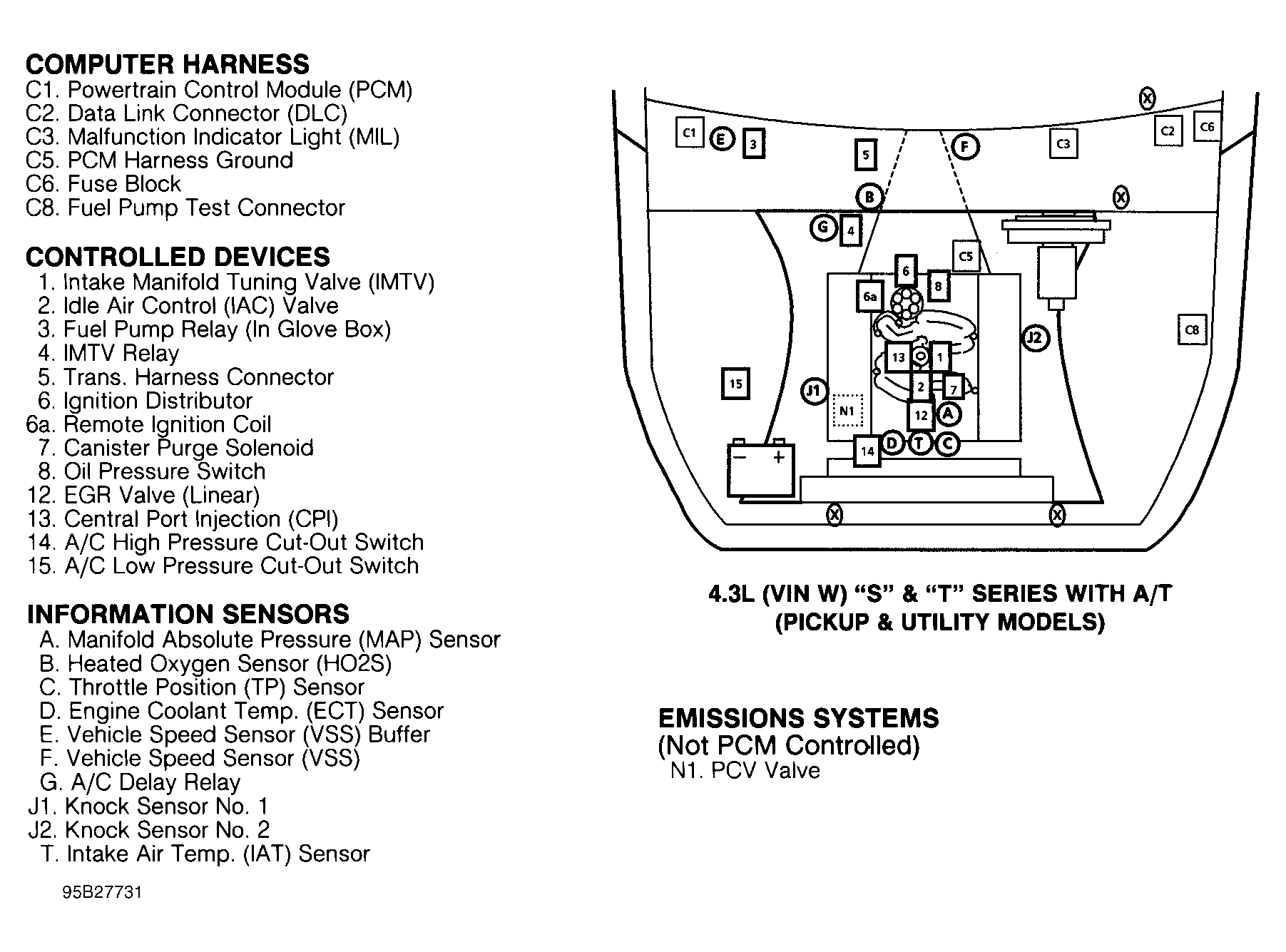

Fig 8: Component Location For 4.3L (VIN W) "S" & "T" Series W/ A/T (Pickup & Utility Models)

Courtesy of GENERAL MOTORS CORP.

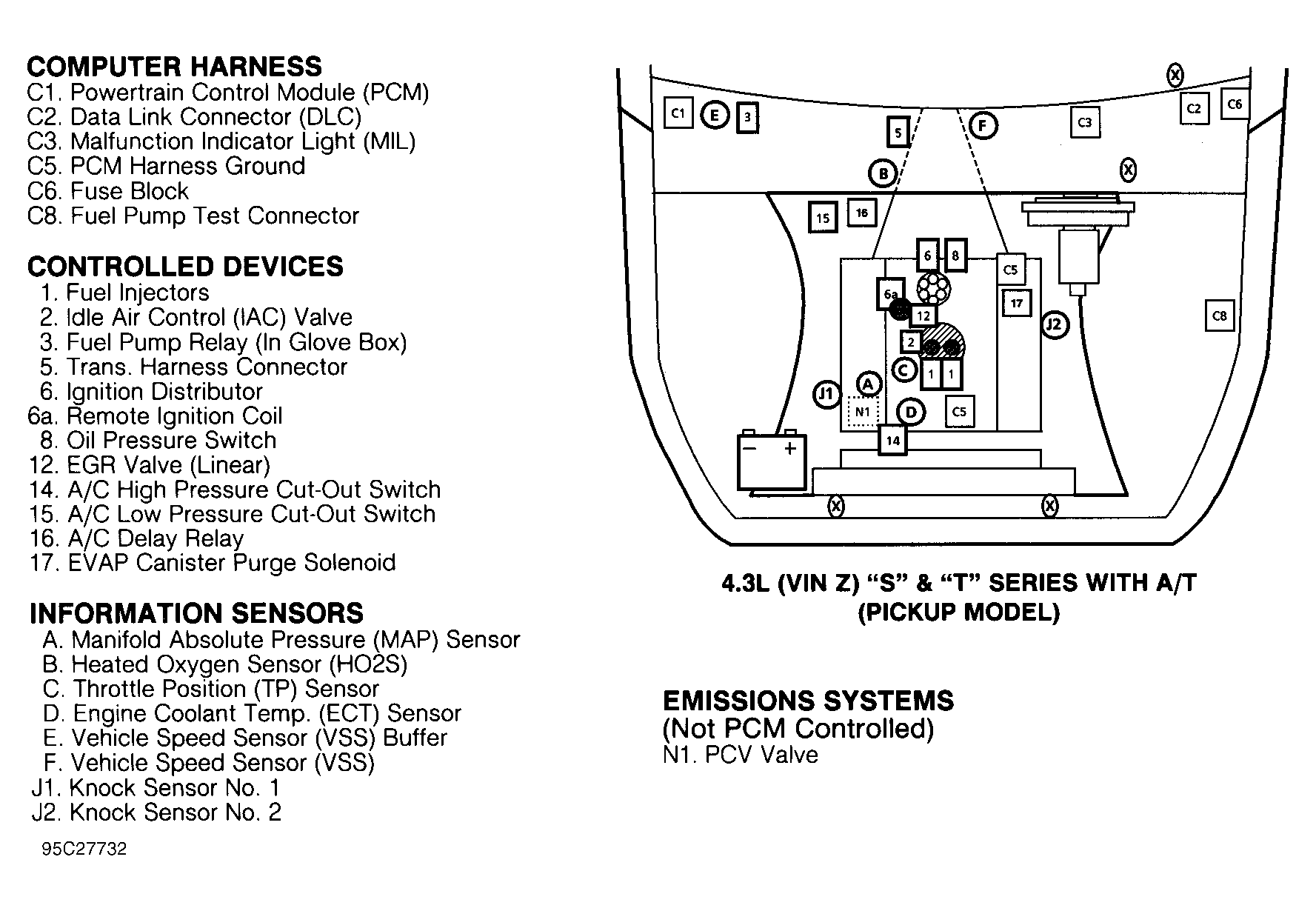

Fig 9: Component Location For 4.3L (VIN Z) "S" & "T" Series W/ A/T (Pickup)

Courtesy of GENERAL MOTORS CORP.

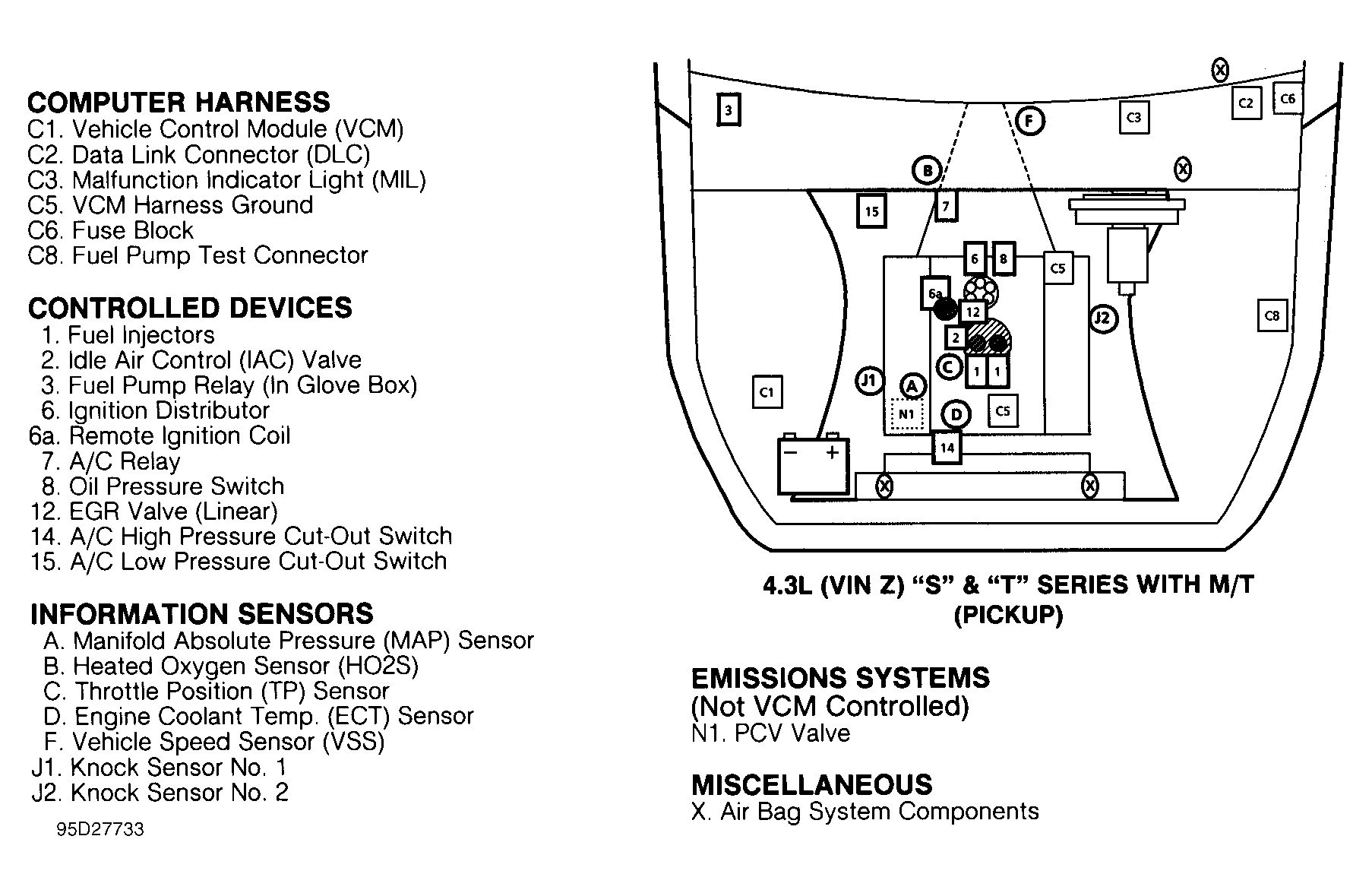

Fig 10: Component Location For 4.3L (VIN Z) "S" & "T" Series W/ M/T (Pickup)

Courtesy of GENERAL MOTORS CORP.
