Component Locations

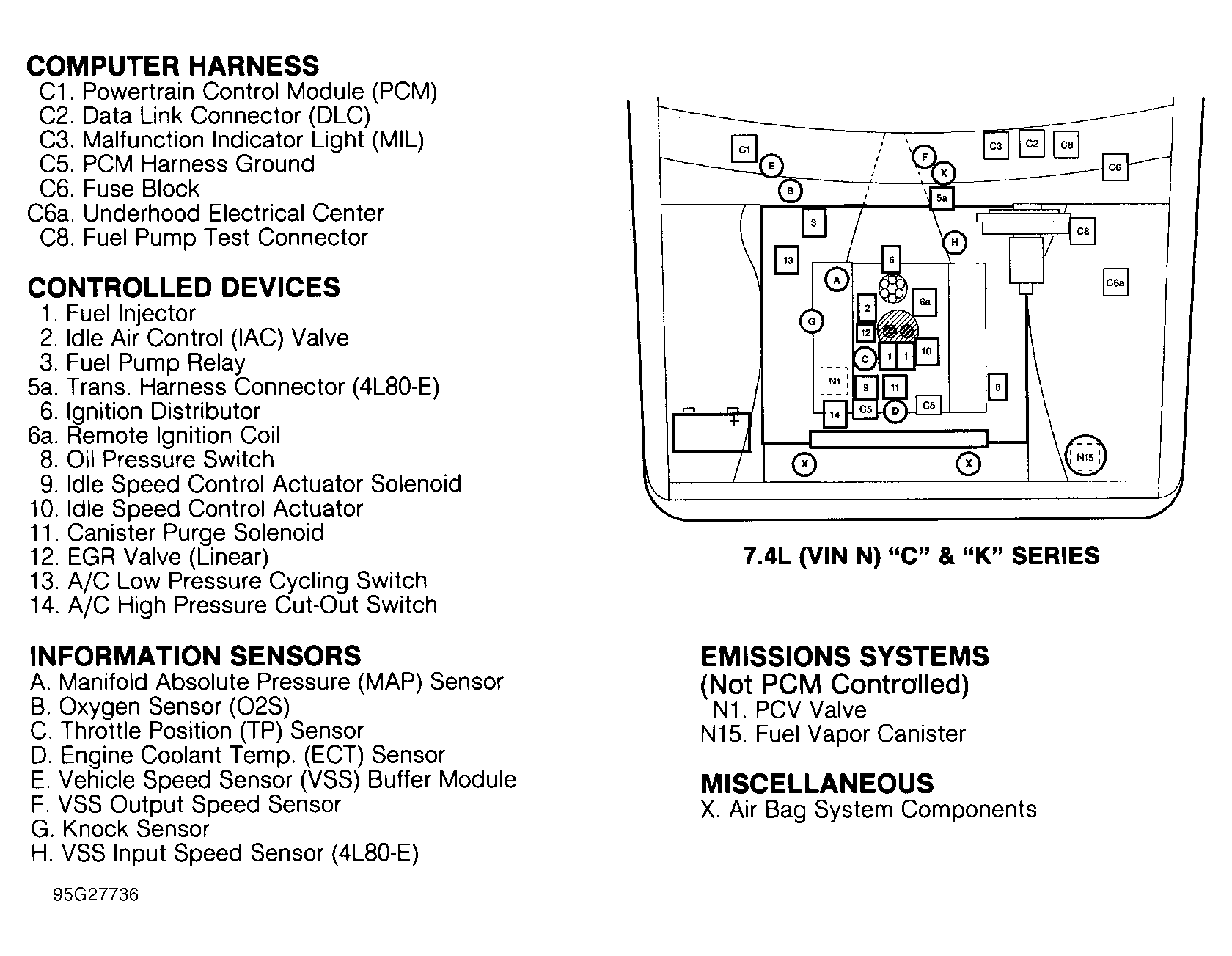

Fig 1: Component Location For 7.4L (VIN N) "C" & "K" Series
G95G27736Courtesy of GENERAL MOTORS CORP.
Fig 2: Component Location For 7.4L (VIN N) "G" Series
G94F43500Courtesy of GENERAL MOTORS CORP.
Fig 3: Component Location For 7.4L (VIN N) "G/P" Series
G94G43501Courtesy of GENERAL MOTORS CORP.

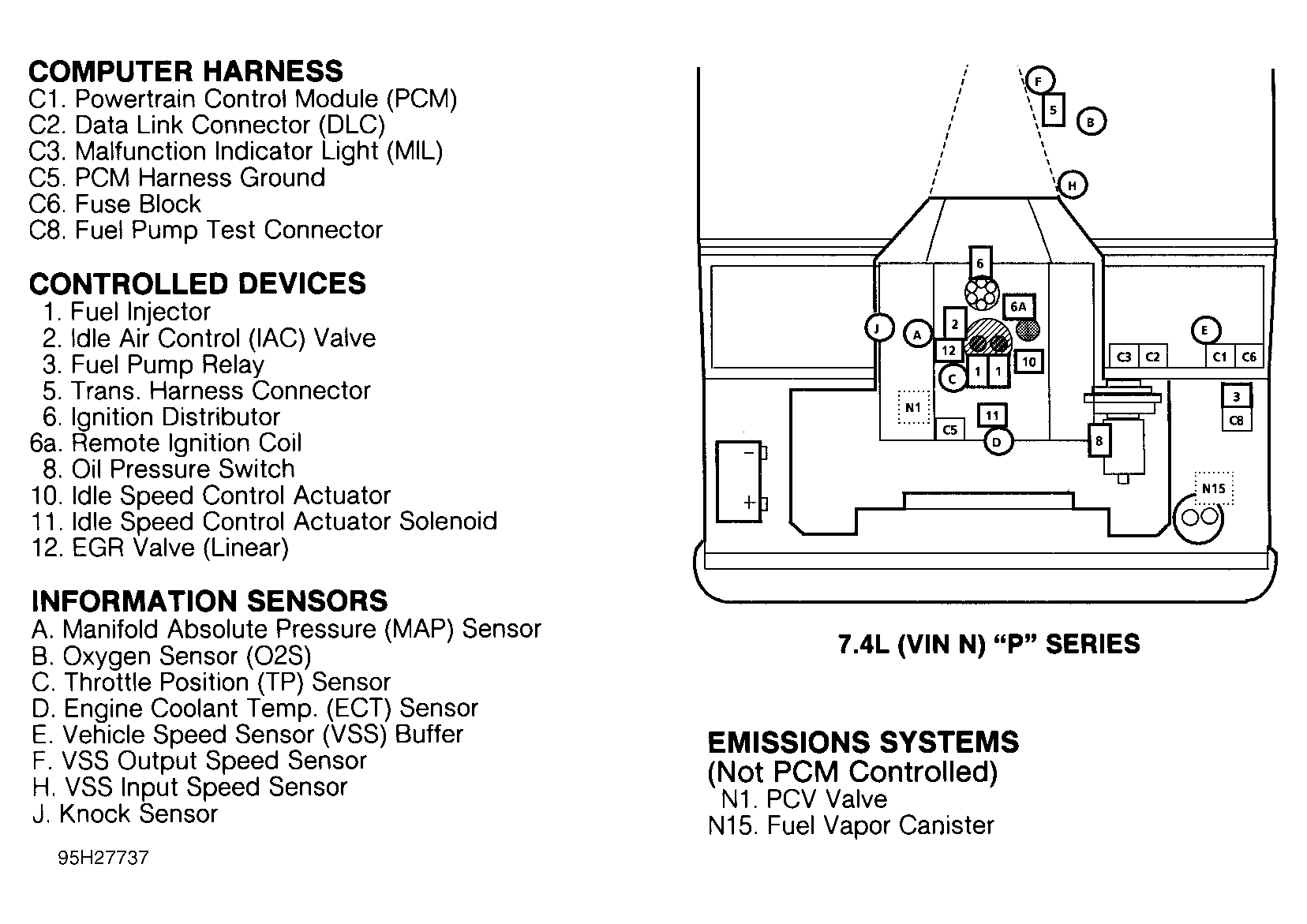

Fig 4: Component Location For 7.4L (VIN N) "P" Series
G95H27737Courtesy of GENERAL MOTORS CORP.
