Alignment Specifications

NOTE: For alignment specifications, refer to Figs. Fig 1-5.

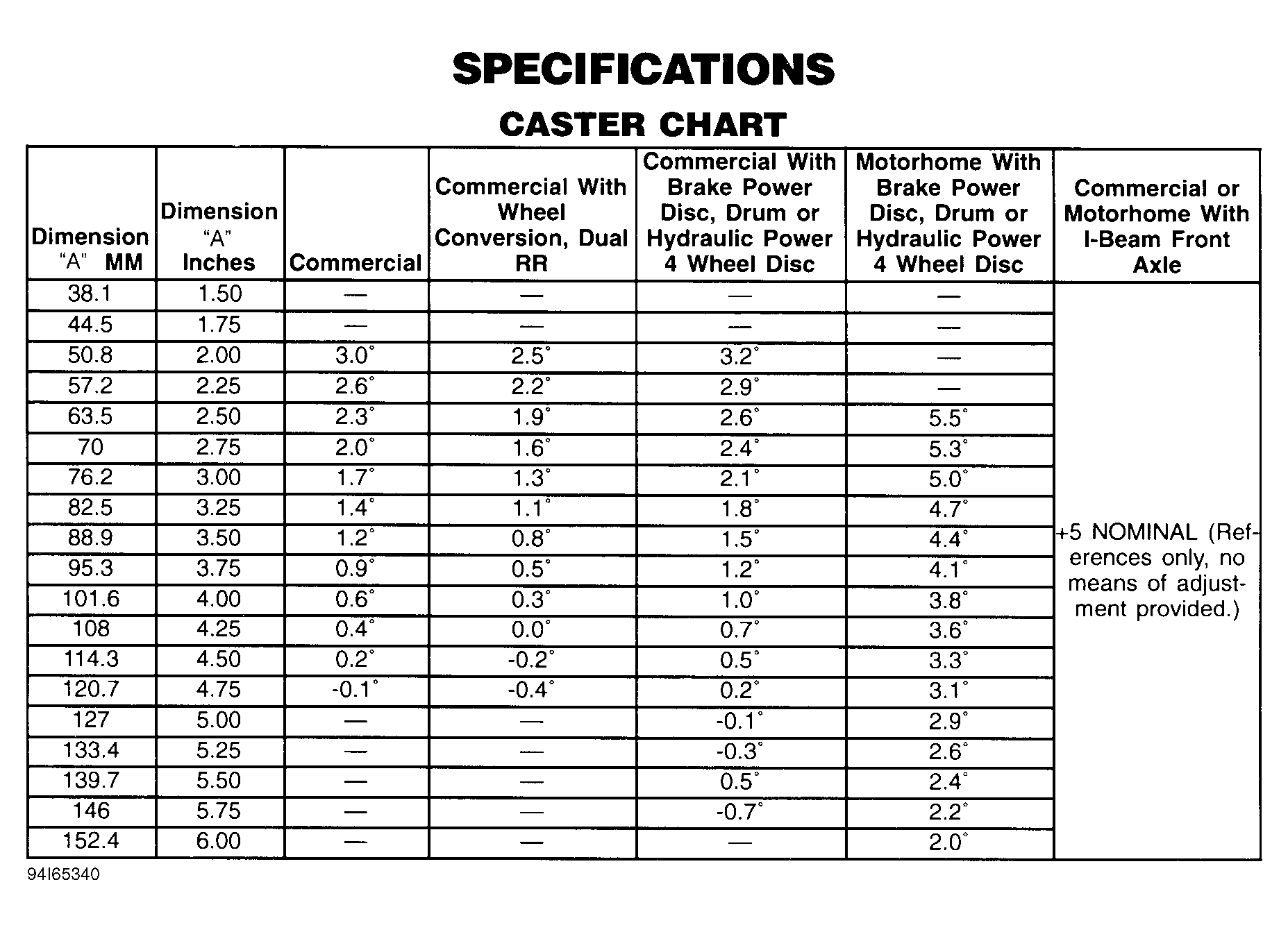

Fig 1: Caster Specifications Chart

Courtesy of GENERAL MOTORS CORP.

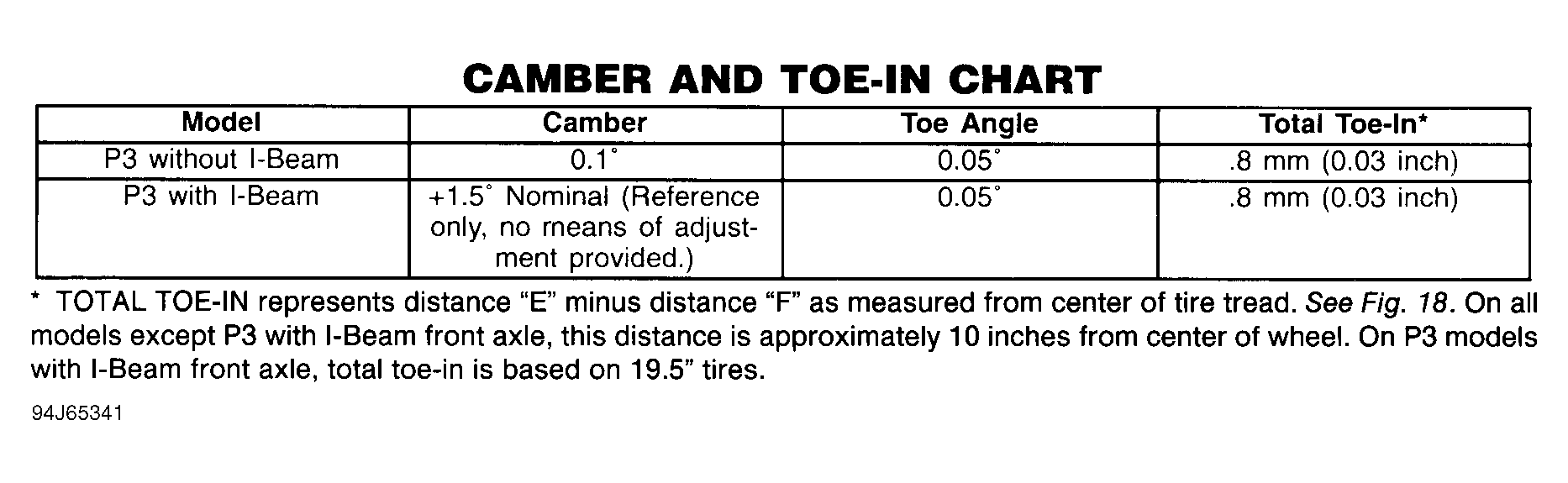

Fig 2: Camber & Toe-in Specifications Chart

Courtesy of GENERAL MOTORS CORP.

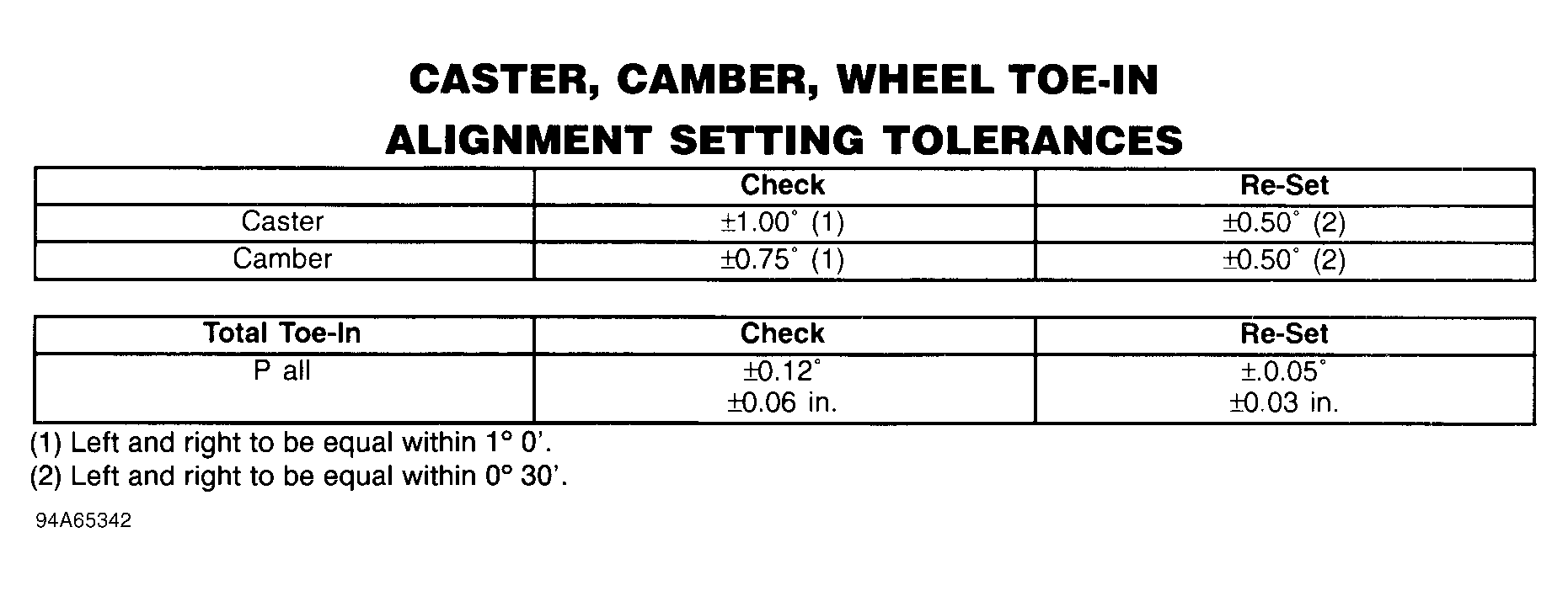

Fig 3: Caster, Camber & Toe-in Alignment Setting Tolerances Chart

Courtesy of GENERAL MOTORS CORP.
