Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Audio Alarm Module | In power distribution center. |
| Cruise Control Module | On left side of firewall. |
| Daytime Running Lamps (DRL) Module | Between HVAC module & glove box. |
| Diagnostic Energy Reserve Module (DERM) | Behind right kick panel. |

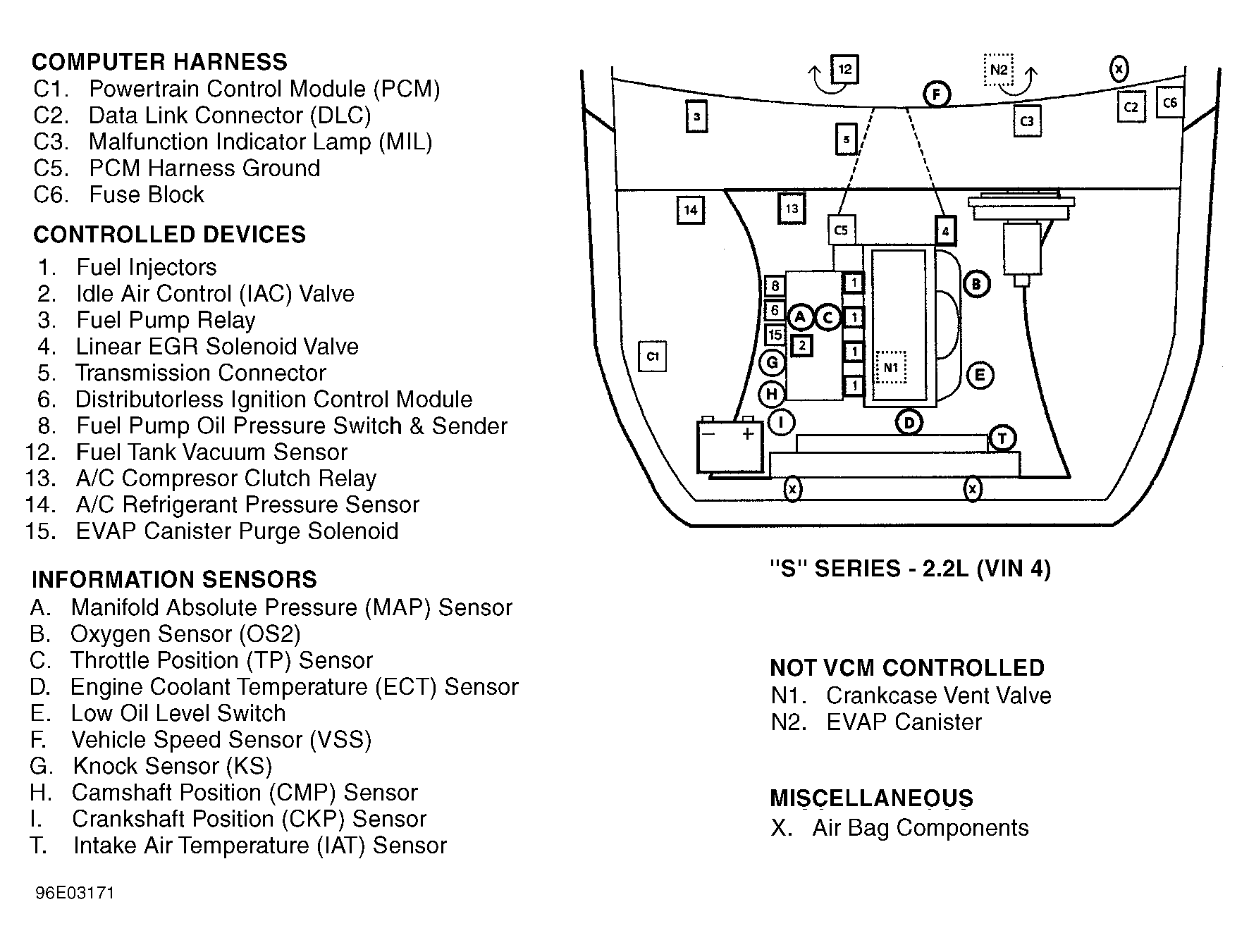

| Distributorless Ignition Control Module (2.2L VIN 4) | On right side of engine, near camshaft position sensor. See Figure. |

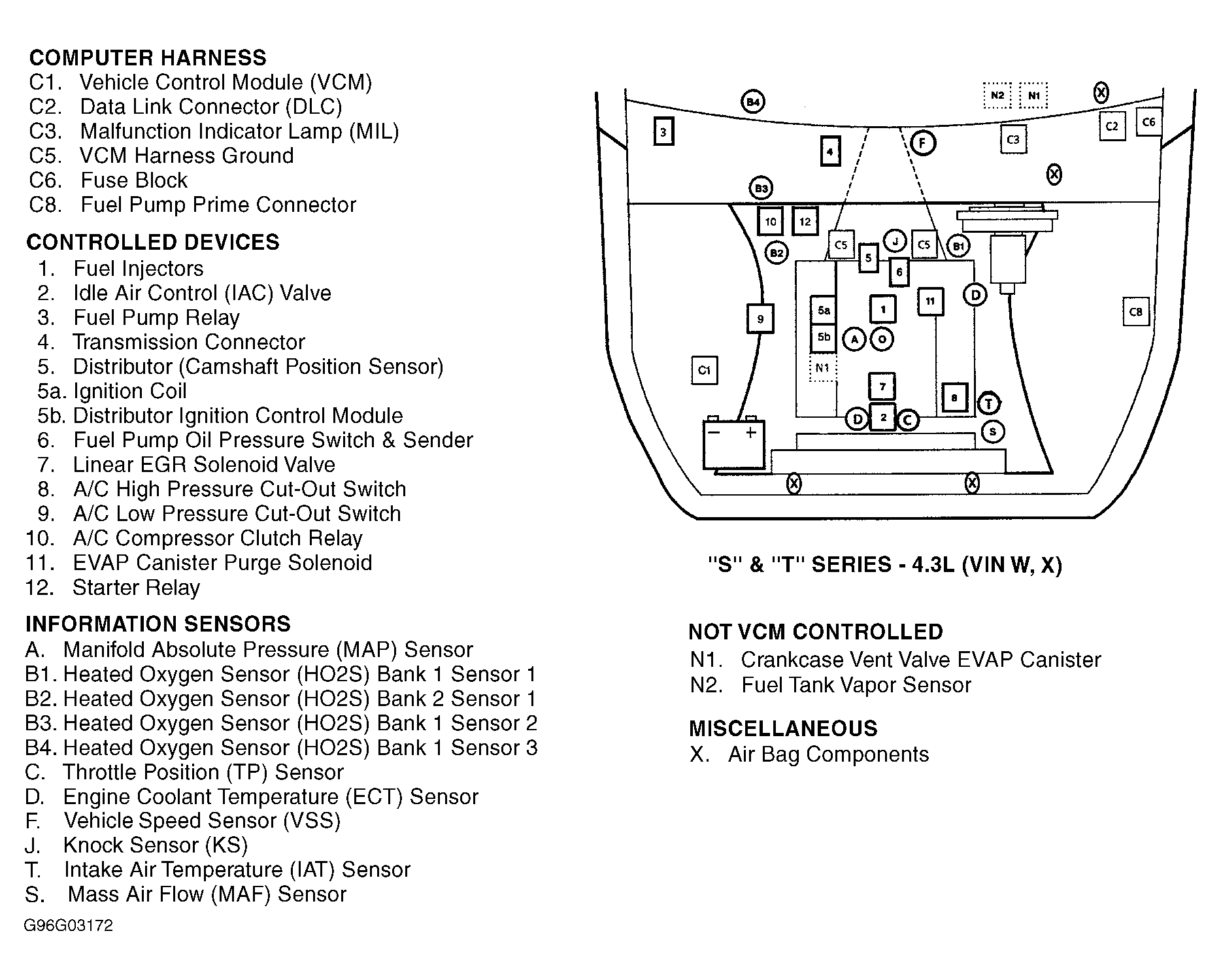

| Distributor Ignition Control Module (4.3L VIN W, X) | Top right side of engine. See Figure. |
| HVAC Control Module | Under center of dash. |
| Interior Lamp Control Module | Behind lower left side of instrument panel, near parking brake. |
| Powertrain Control Module (PCM) (2.2L VIN 4) | On right front of engine compartment. See Figure. |
| Remote Keyless Entry Module | Behind lower left side of dash, near park brake. |
| Transfer Case Control Module | Behind center of dash. |
| Vehicle Control Module (VCM) (4.3L VIN W, X) | On right front of engine compartment. See Figure. |
| Wiper Module (Front) | On center of firewall. |
| Wiper Module (Rear) | Inside end gate. |
