Connector Terminal Identification - C/K Series
>>
Power Steering Control Module
Power Steering Control Module

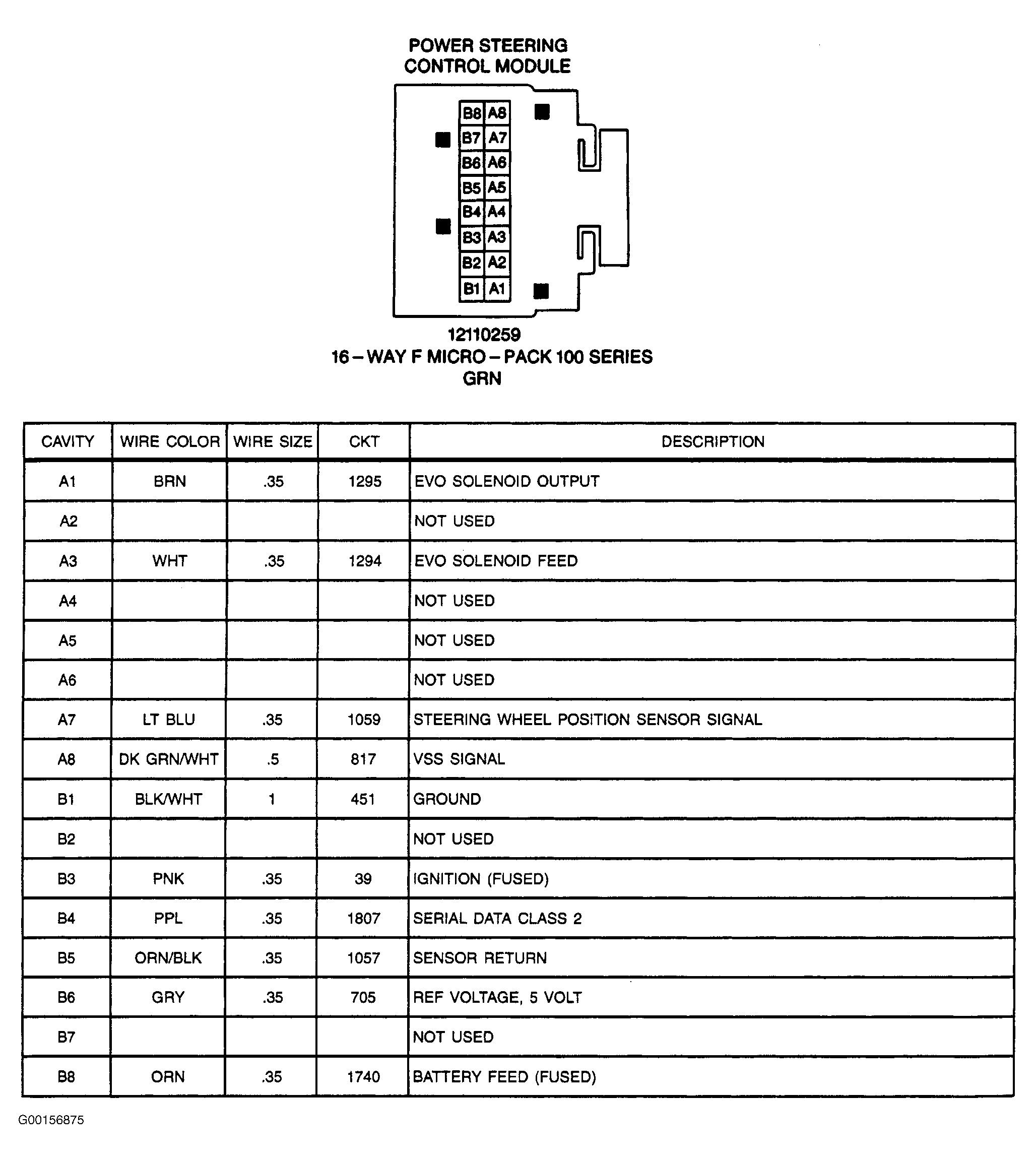

Fig 1: Power Steering Control Module - 16-Pin Connector, Green
Courtesy of GENERAL MOTORS CORP.
