Electronic Brake Control Module C3 (Motor Home Chassis)

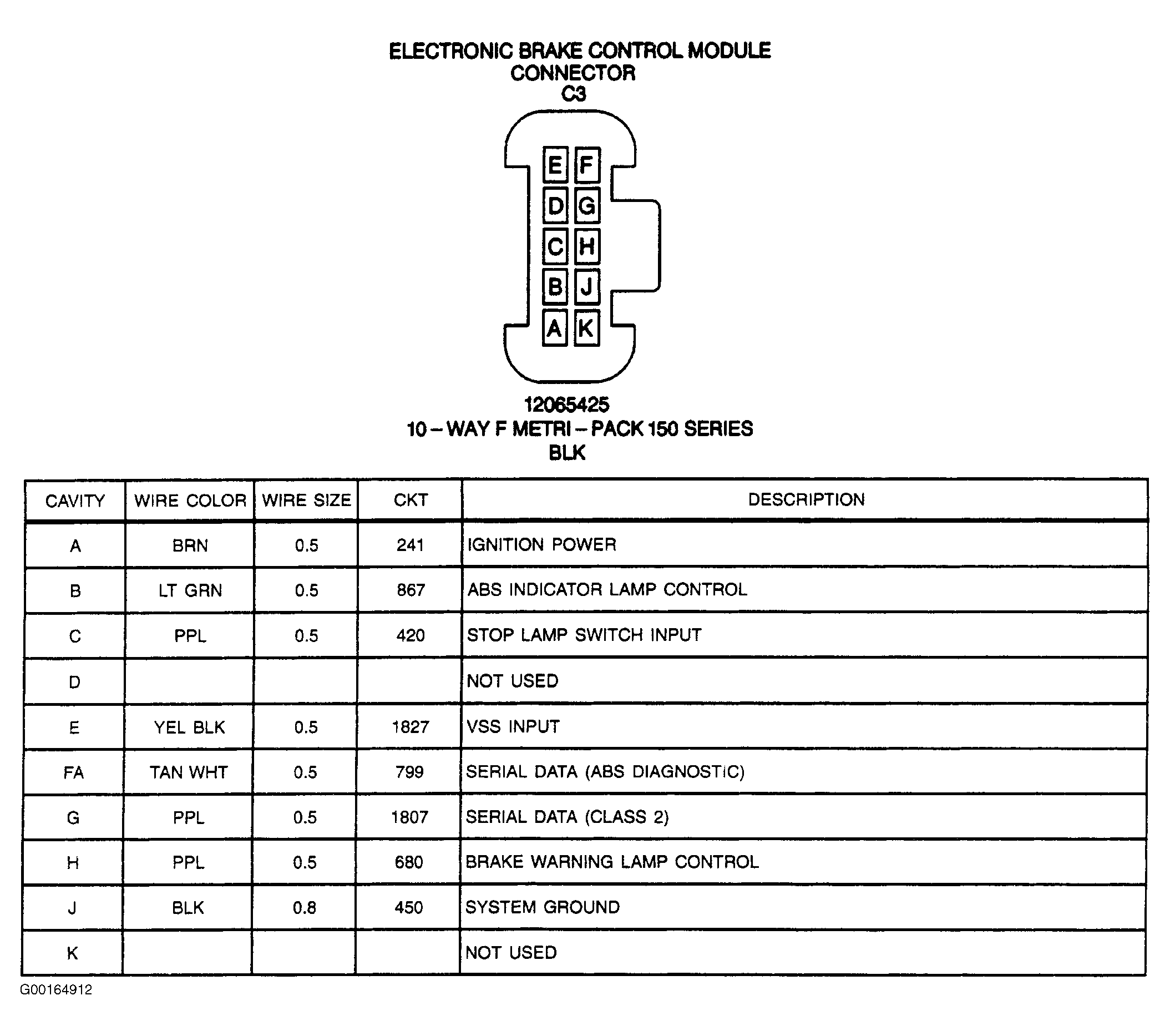

Fig 1: Electronic Brake Control Module C3 (Motor Home Chassis) - 10-Pin Connector, Black

G00164912

Courtesy of GENERAL MOTORS CORP.
