Control Units
CONTROL UNITS
| Component | Component Location |
|---|---|
| Alarm Module | In power distribution center. |
| Chime Module | In power distribution center. |
| Cruise Control Module | On left side of firewall. |
| Daytime Running Lamps (DRL) Module | Between HVAC module & glove box. |
| Inflatable Restraint Diagnostic Energy Reserve Module | Behind right kick panel. |

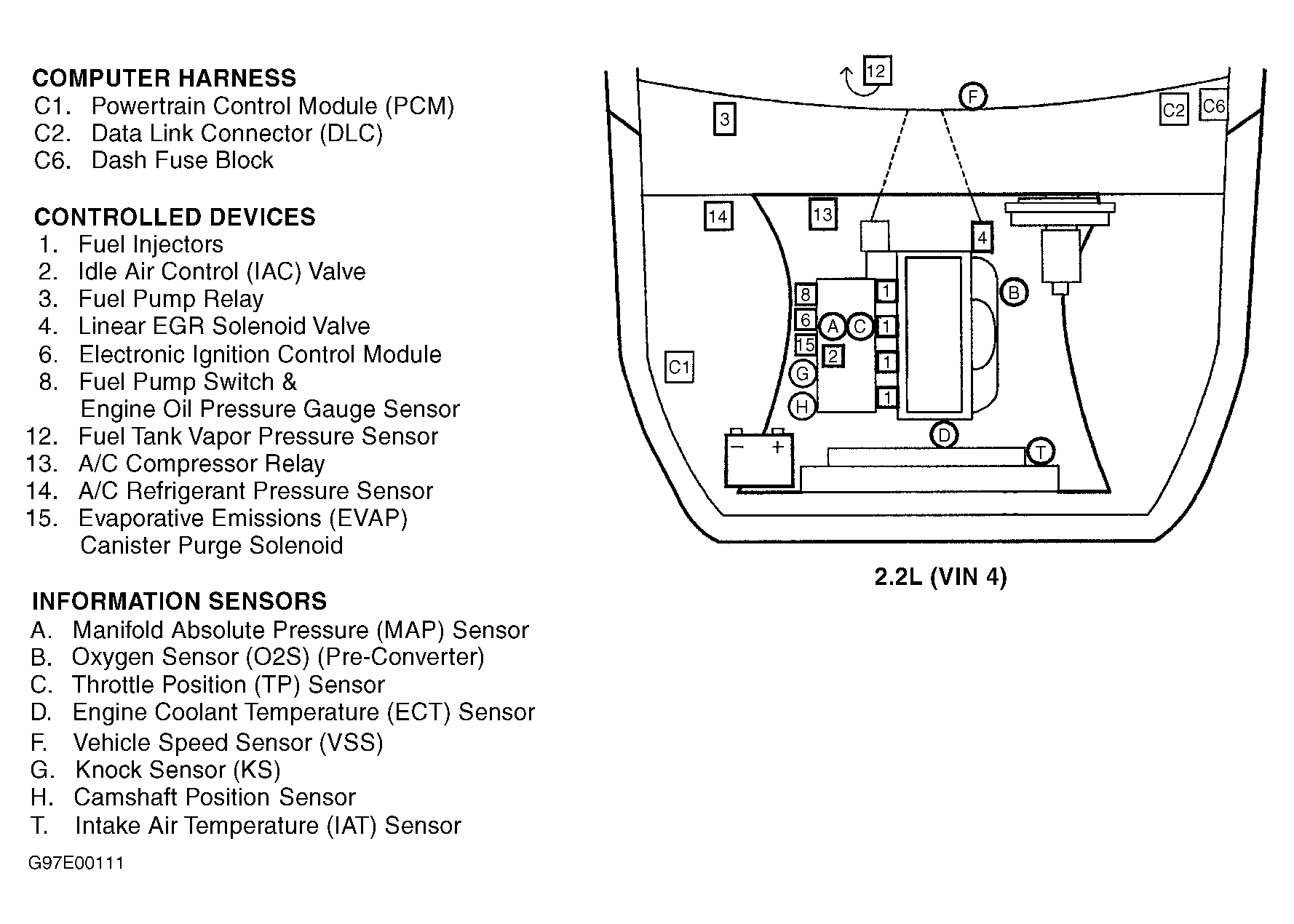

| Electronic Ignition Control Module (2.2L VIN 4) | On right side of engine, near camshaft position sensor. See Figure. |

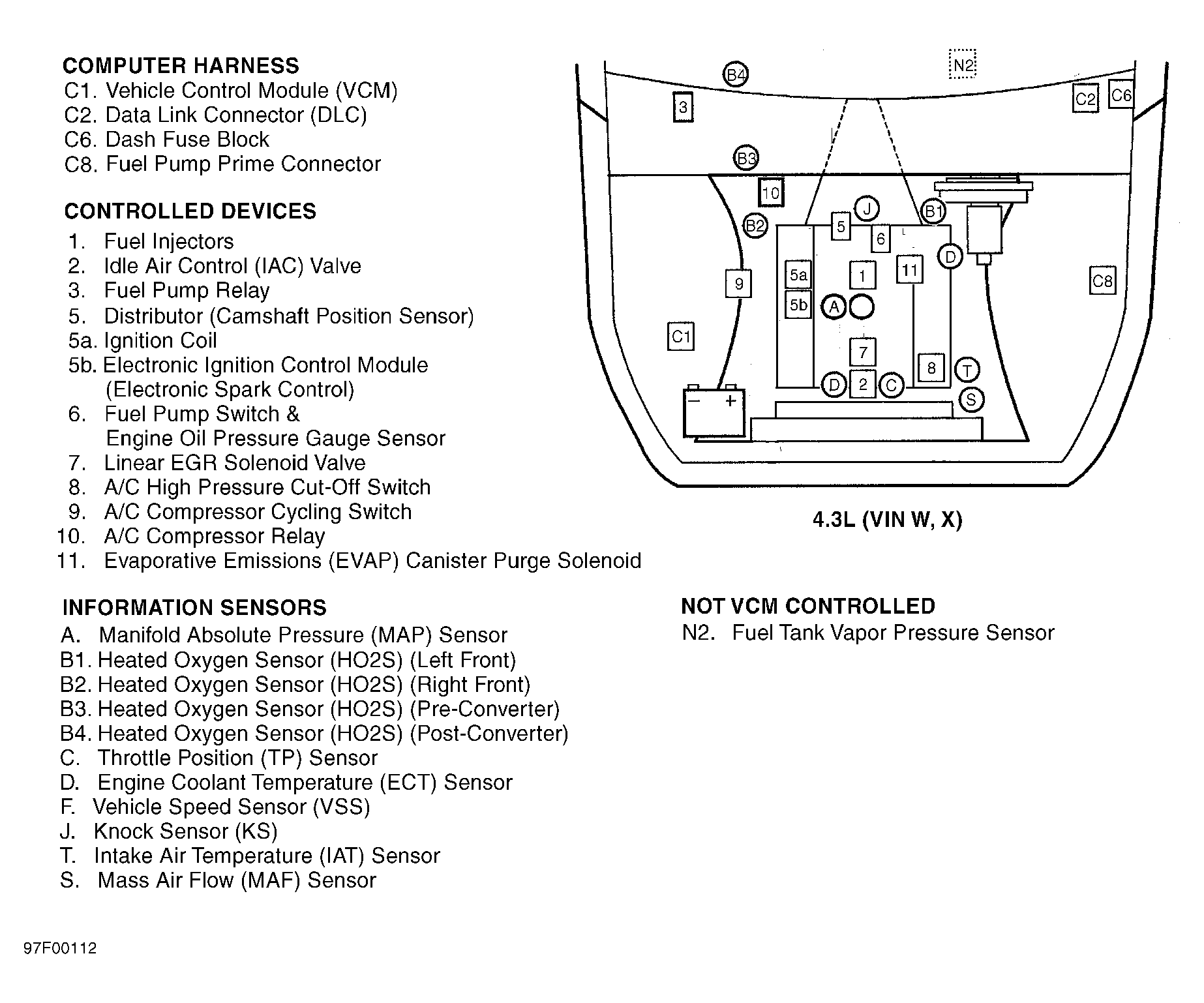

| Electronic Ignition Control Module (Electronic Spark Control) (4.3L VIN W, X) | On top right side of engine. See Figure. |
| Fuel Level Buffer Module | Under glove box. |
| Heater & A/C Controller | Under center of dash. |
| Interior Lamp Control Module | Behind left side of dash. |
| Powertrain Control Module (PCM) (2.2L VIN 4) | On right front of engine compartment. See Figure. |
| Remote Keyless Entry Module | Behind lower left side of dash, near park brake. |
| Sun Roof Express Module | Part of sun roof assembly. |
| Transfer Case Control Module | Behind center of dash. |
| Vehicle Control Module (VCM) (4.3L VIN W, X) | On right front of engine compartment. See Figure. |
| Windshield Wiper Pulse Control Module | On center of firewall. |
