Installation Procedure

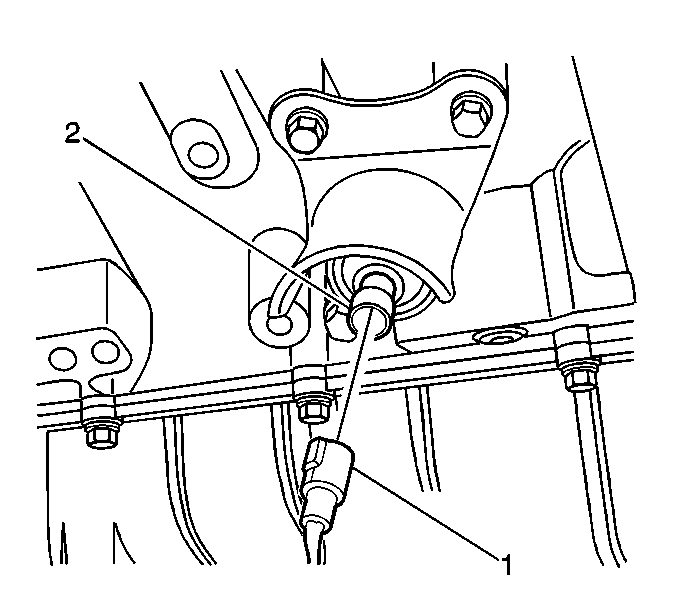

    Fig 1: Locating Knock Sensor 1
    GM678815Courtesy of GENERAL MOTORS COMPANY
  1. Refer to FASTENER NOTICE in Cautions and Notices.

    Install the KS (2) into the engine block.

    Tighten

    Tighten the KS to 19 N.m (14 lb ft)

  2. Connect the knock sensor harness connector (1) to the KS (2).
