Component Location Graphics

NOTE: Figures may show multiple component locations. Refer to appropriate table for proper figure references.

Fig 1: Rear Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Lower Front Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Left Side Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

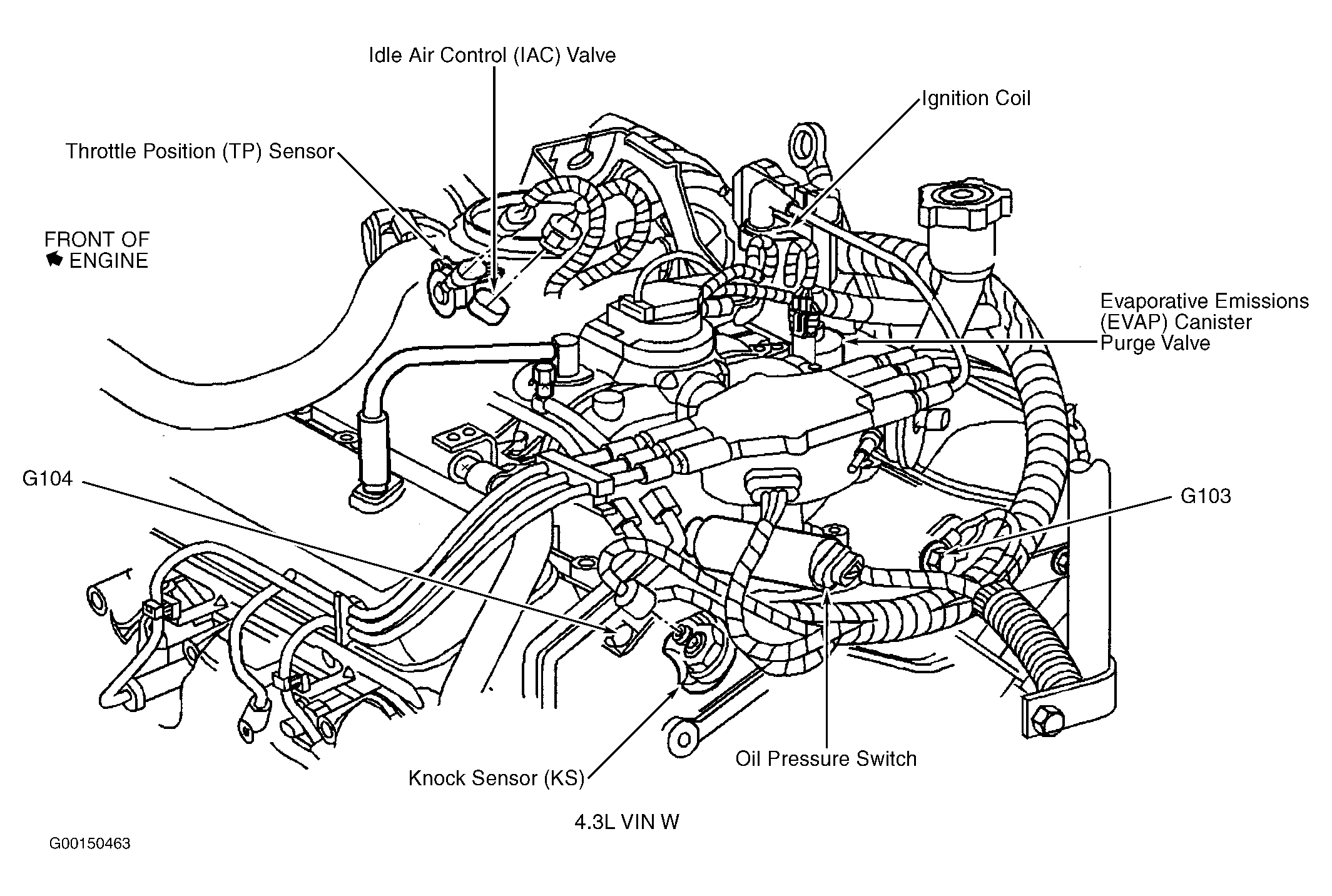

Fig 4: Top Of Engine (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 5: Left Side Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

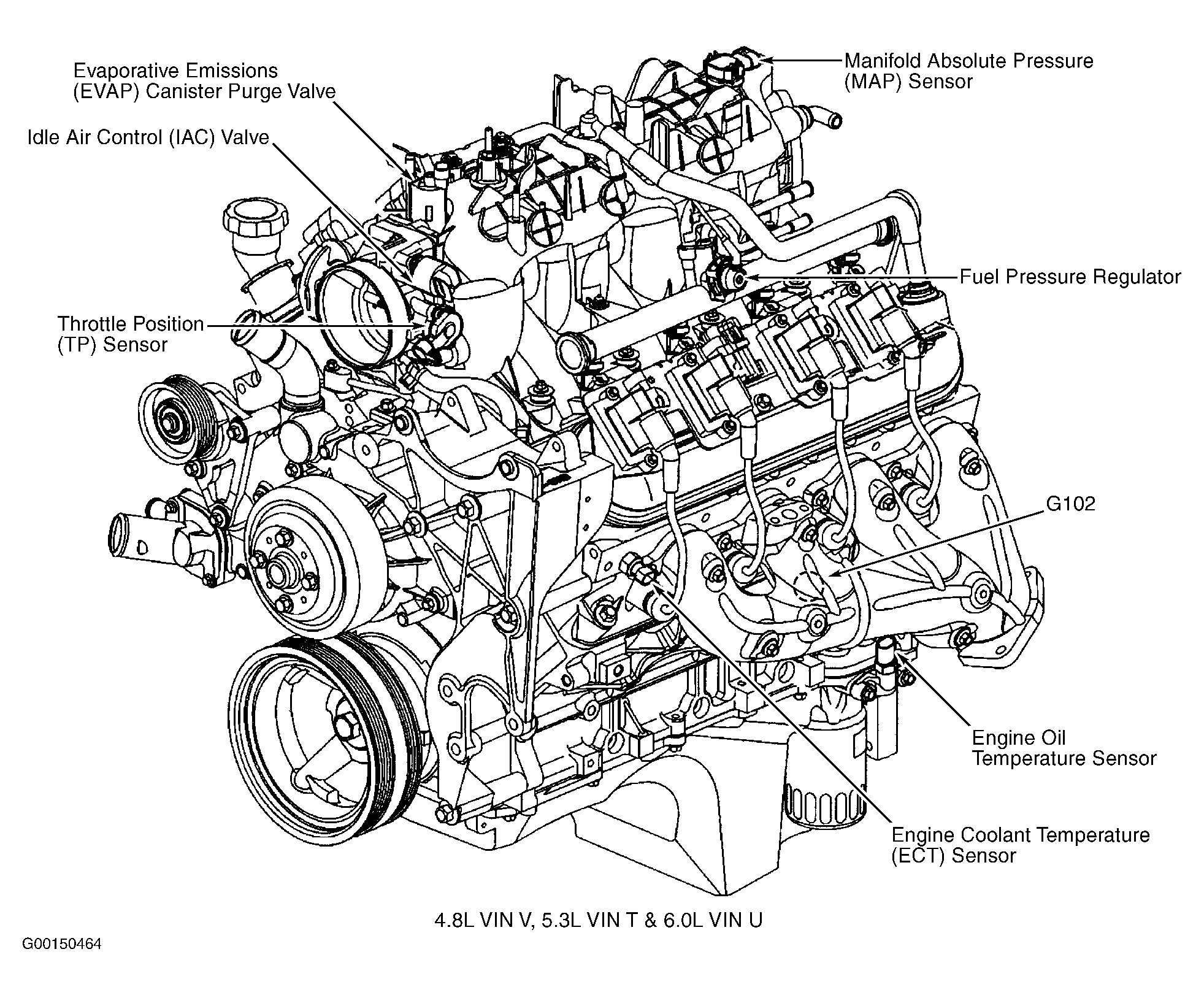

Fig 6: Center Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

Fig 7: Lower Right Rear Of Engine (4.8L VIN V, 5.3L VIN T & 6.0L VIN U)

Courtesy of GENERAL MOTORS CORP.

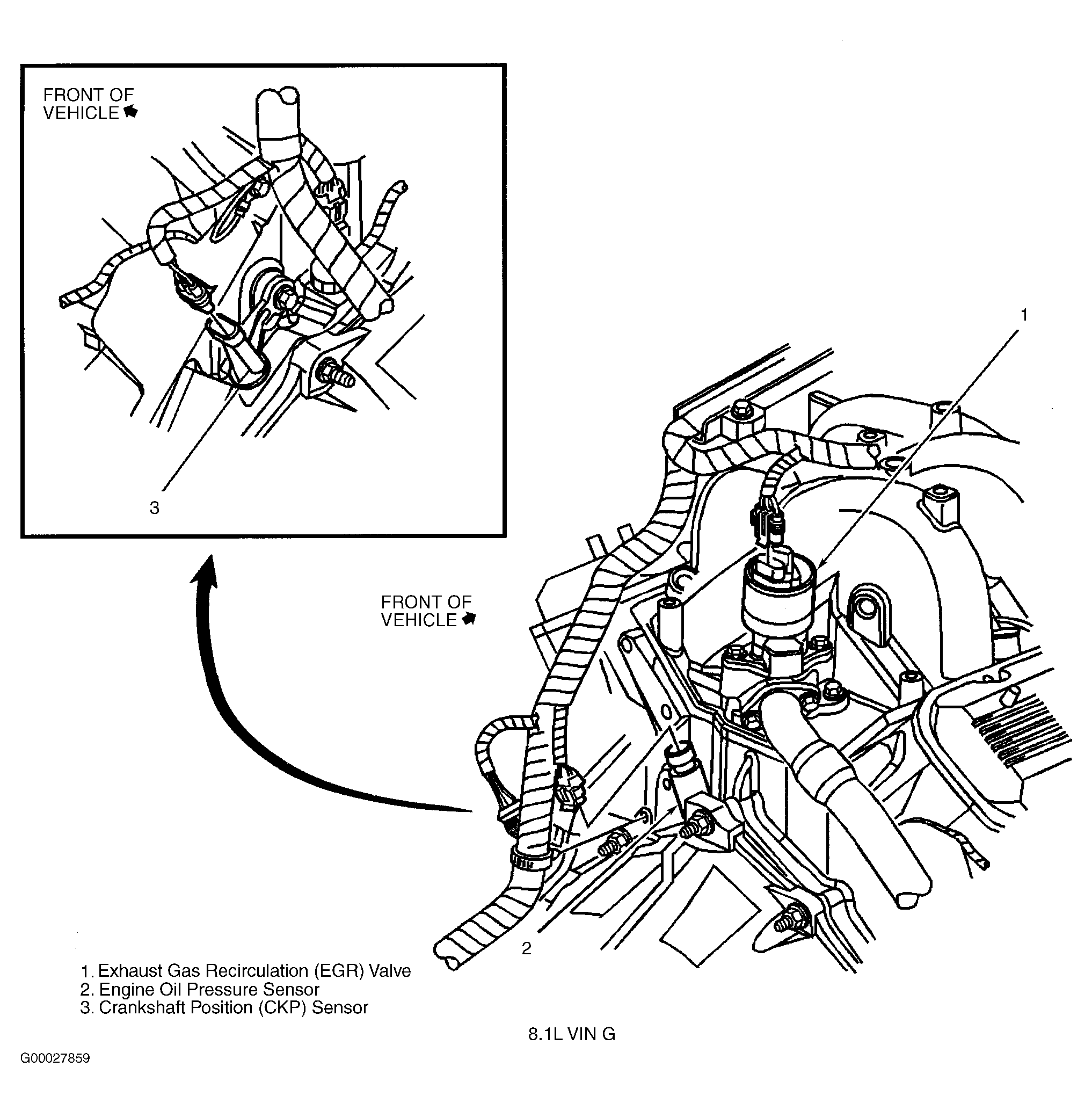

Fig 8: Rear Of Engine (8.1L VIN G)

Courtesy of GENERAL MOTORS CORP.

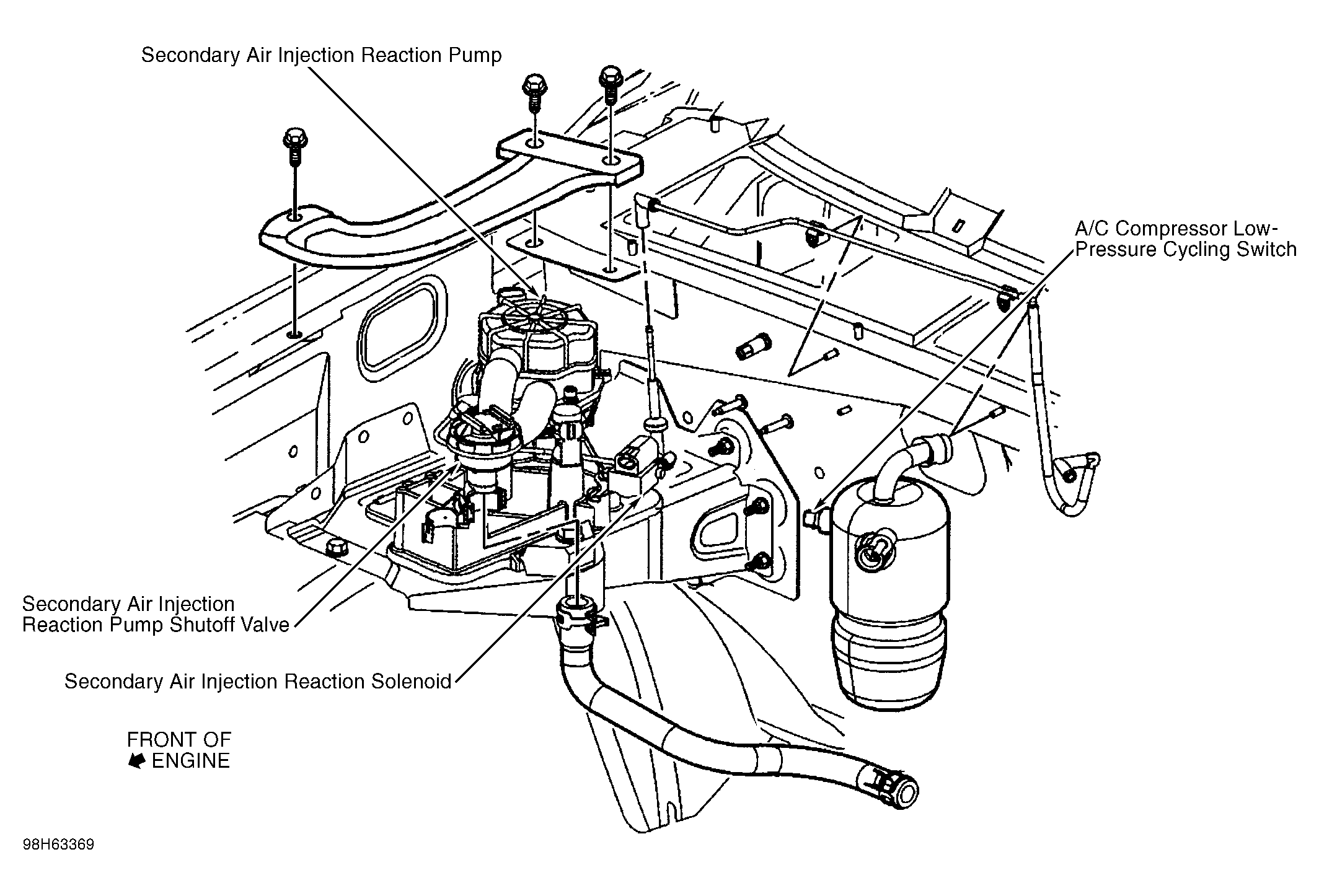

Fig 9: Right Rear Of Engine Compartment

Courtesy of GENERAL MOTORS CORP.

Fig 10: Left Front Of Engine Compartment (4.8L VIN V, 5.3L VIN T, 6.0L VIN U & 8.1L VIN G)

Courtesy of GENERAL MOTORS CORP.

Fig 11: Left Front Of Engine Compartment (4.3L VIN W)

Courtesy of GENERAL MOTORS CORP.

Fig 12: Top Rear Of Engine (4.8L, 5.3L & 6.0L)

Courtesy of GENERAL MOTORS CORP.

Fig 13: Camshaft Sensor (6.6L) (LB7)

Courtesy of GENERAL MOTORS CORP.

Fig 14: Camshaft Position (CMP) Sensor (8.1L)

Courtesy of GENERAL MOTORS CORP.
