C3500 HD 6.5 F, Automatic
>>
Repair and Diagnosis
>>
Body & Frame
>>
Door Locks
>>
Keyless Entry
>>
Component Locator
>>
Keyless Entry Component Views
Keyless Entry Component Views

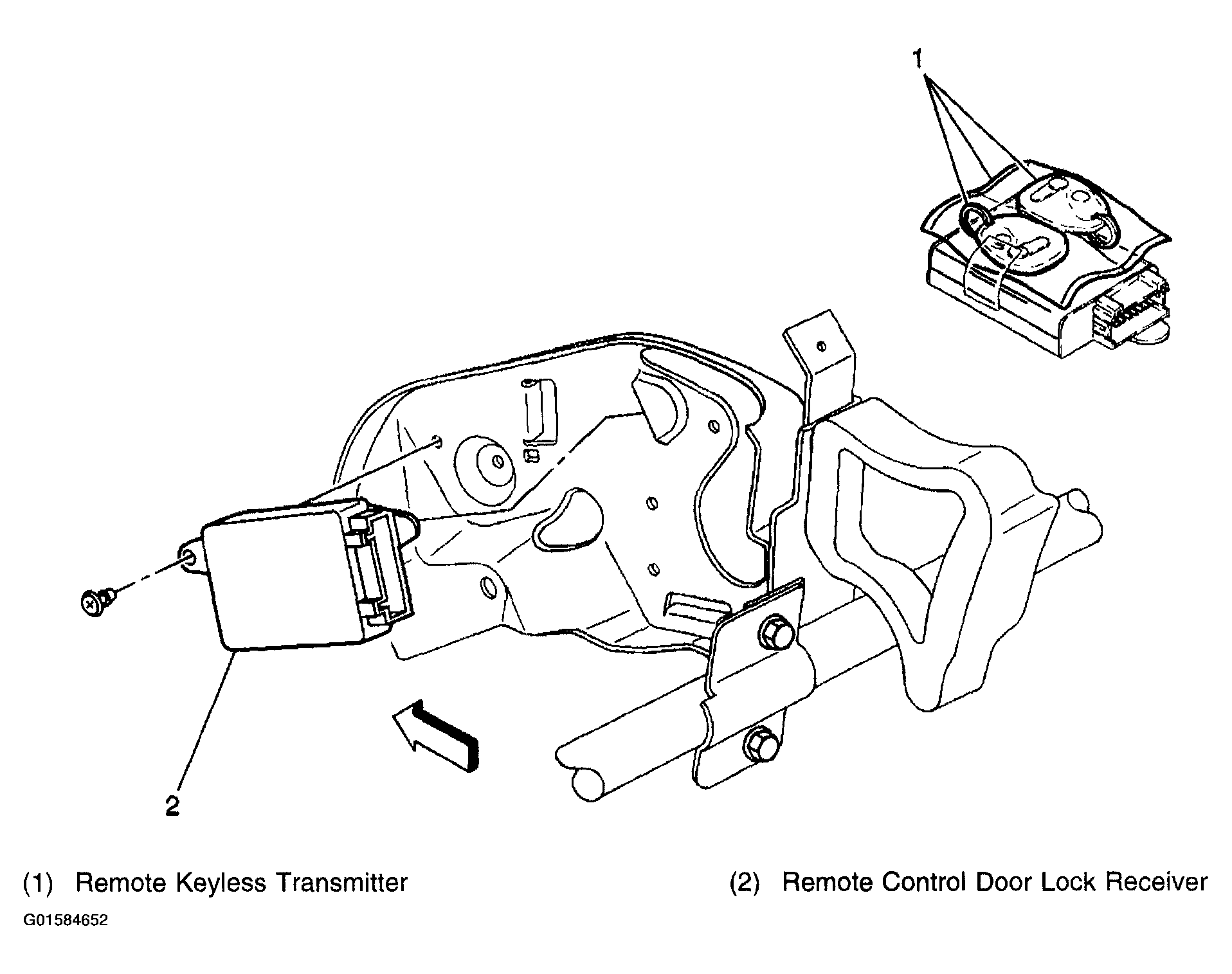

Fig 1: Remote Keyless Door Lock Receiver - Keyless Entry Module
Courtesy of GENERAL MOTORS CORP.

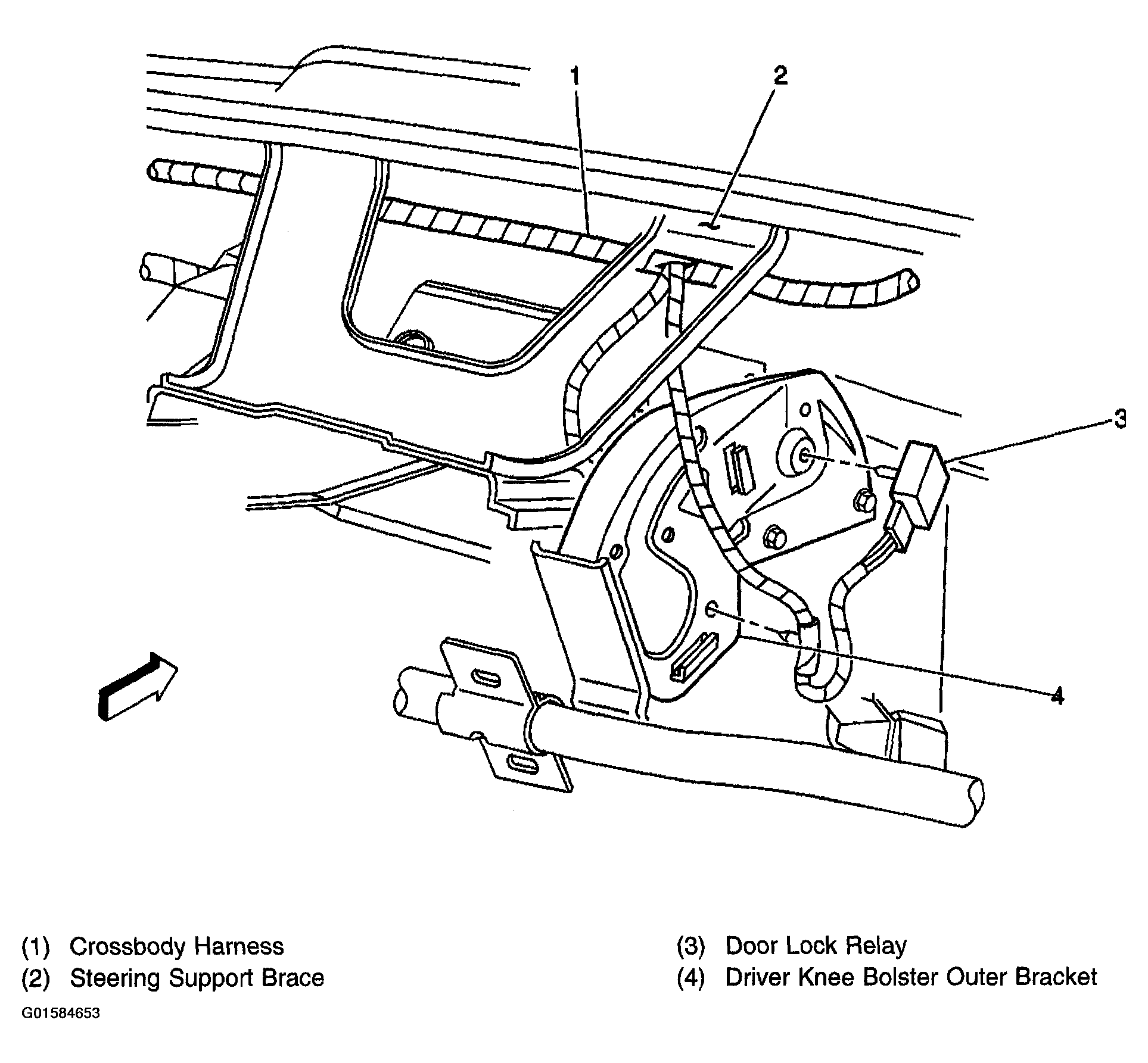

Fig 2: Door Lock Relay
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
