ABS Component Views

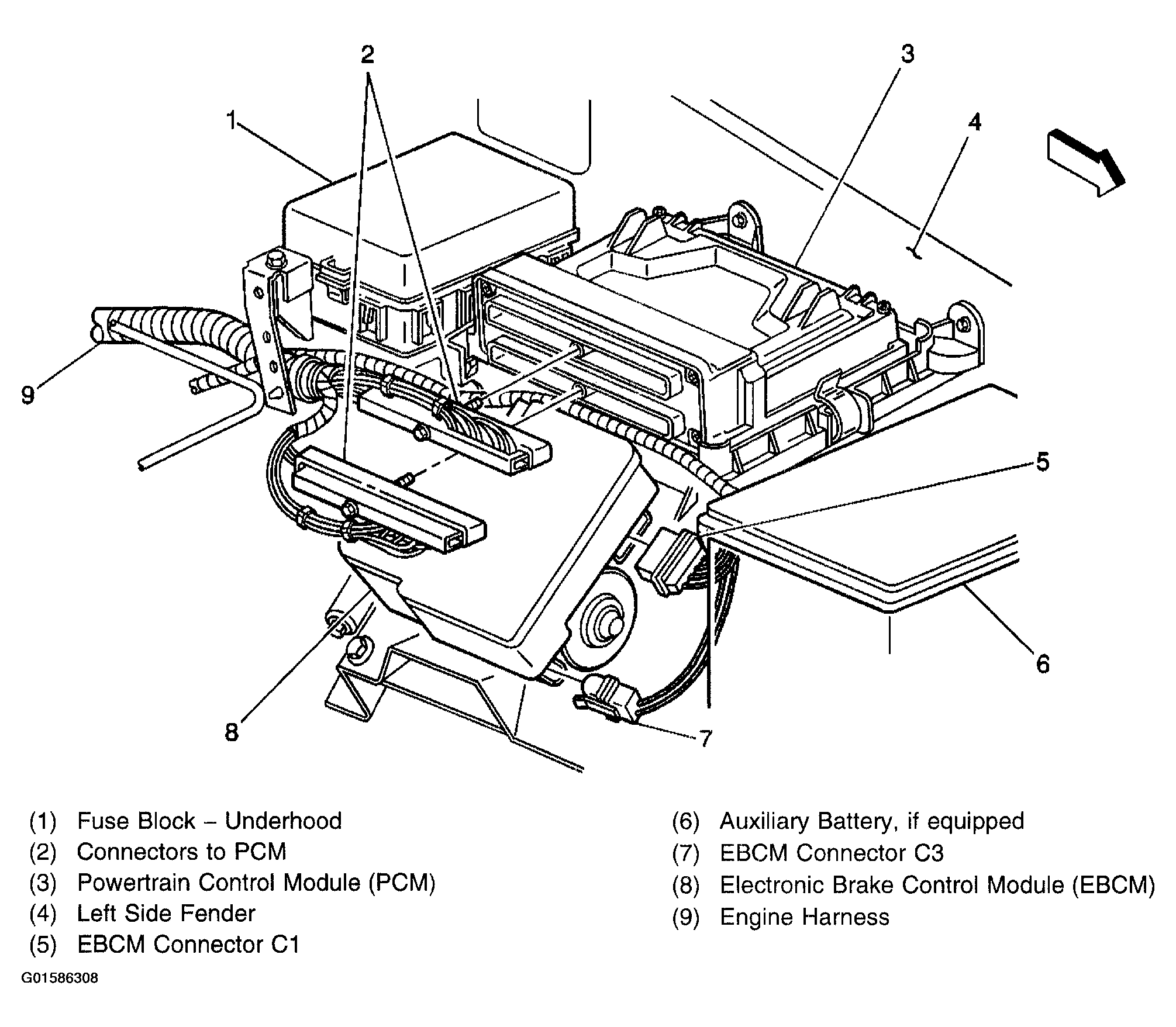

Fig 1: Fuse Block - Underhood, PCM, EBCM, & Aux Battery Component Views
G01586308Courtesy of GENERAL MOTORS CORP.

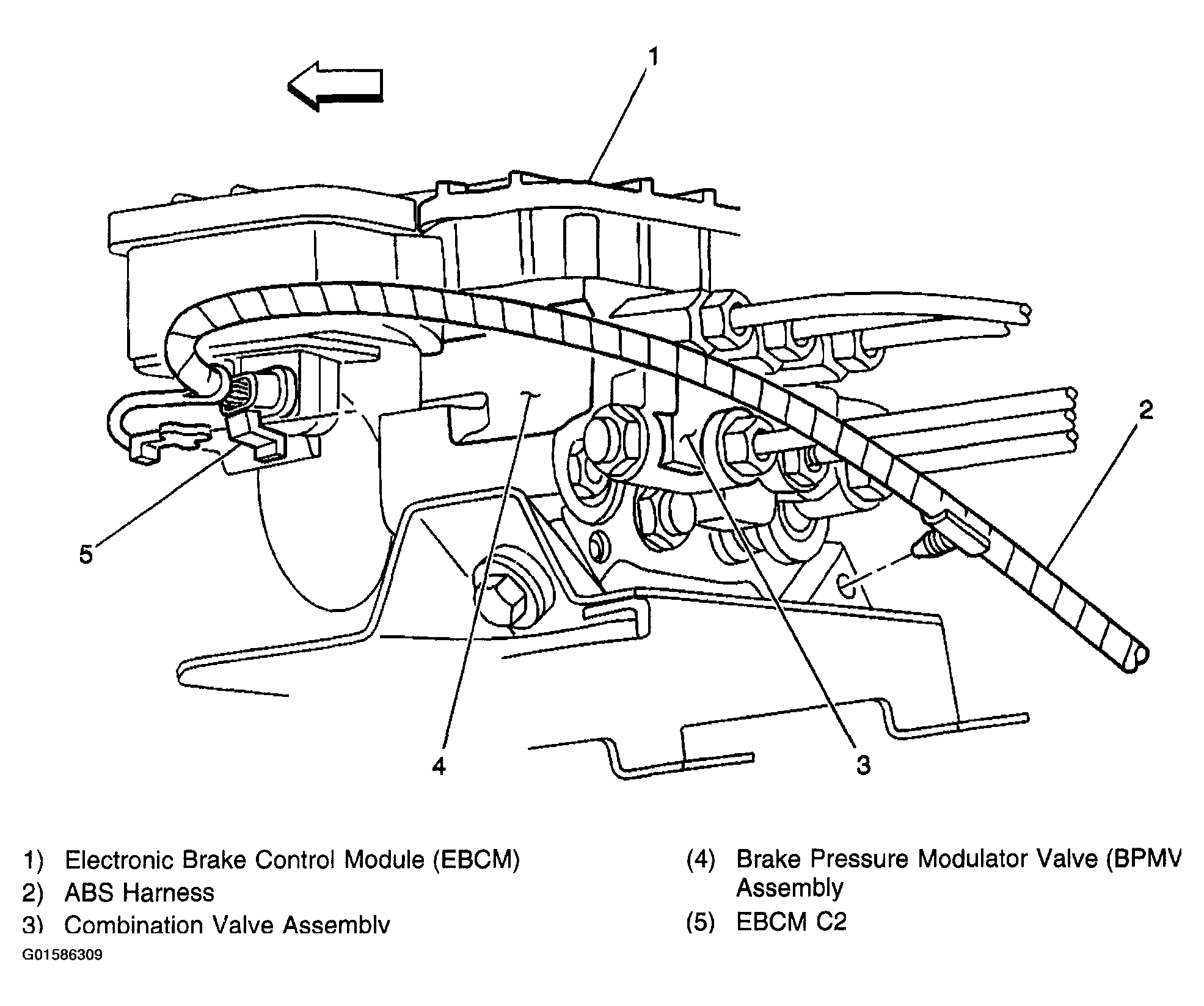

Fig 2: EBCM C2 & ABS Harness Component Views
G01586309Courtesy of GENERAL MOTORS CORP.

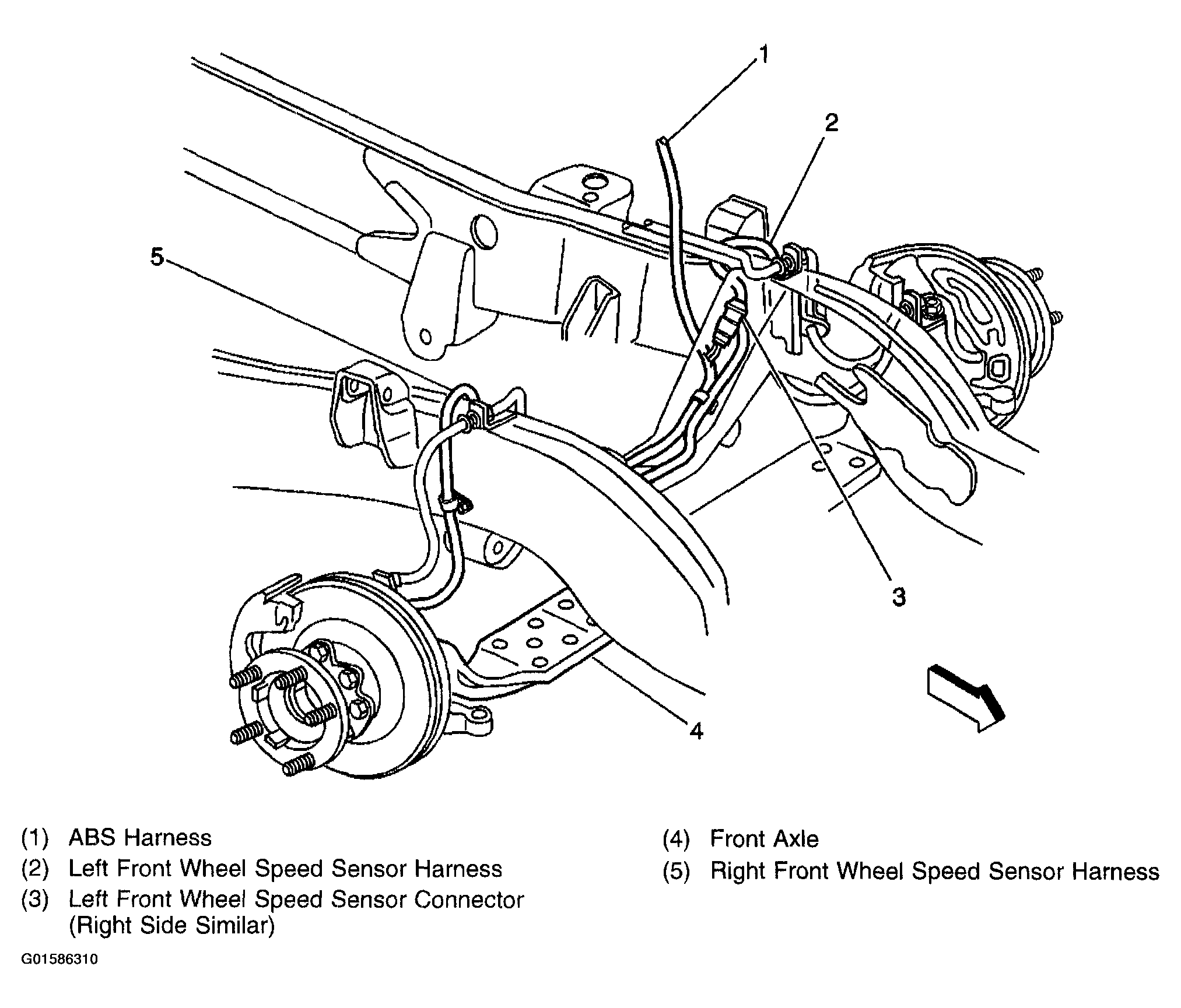

Fig 3: ABS Harness To Front Wheel Speed Sensors Component Views
G01586310Courtesy of GENERAL MOTORS CORP.

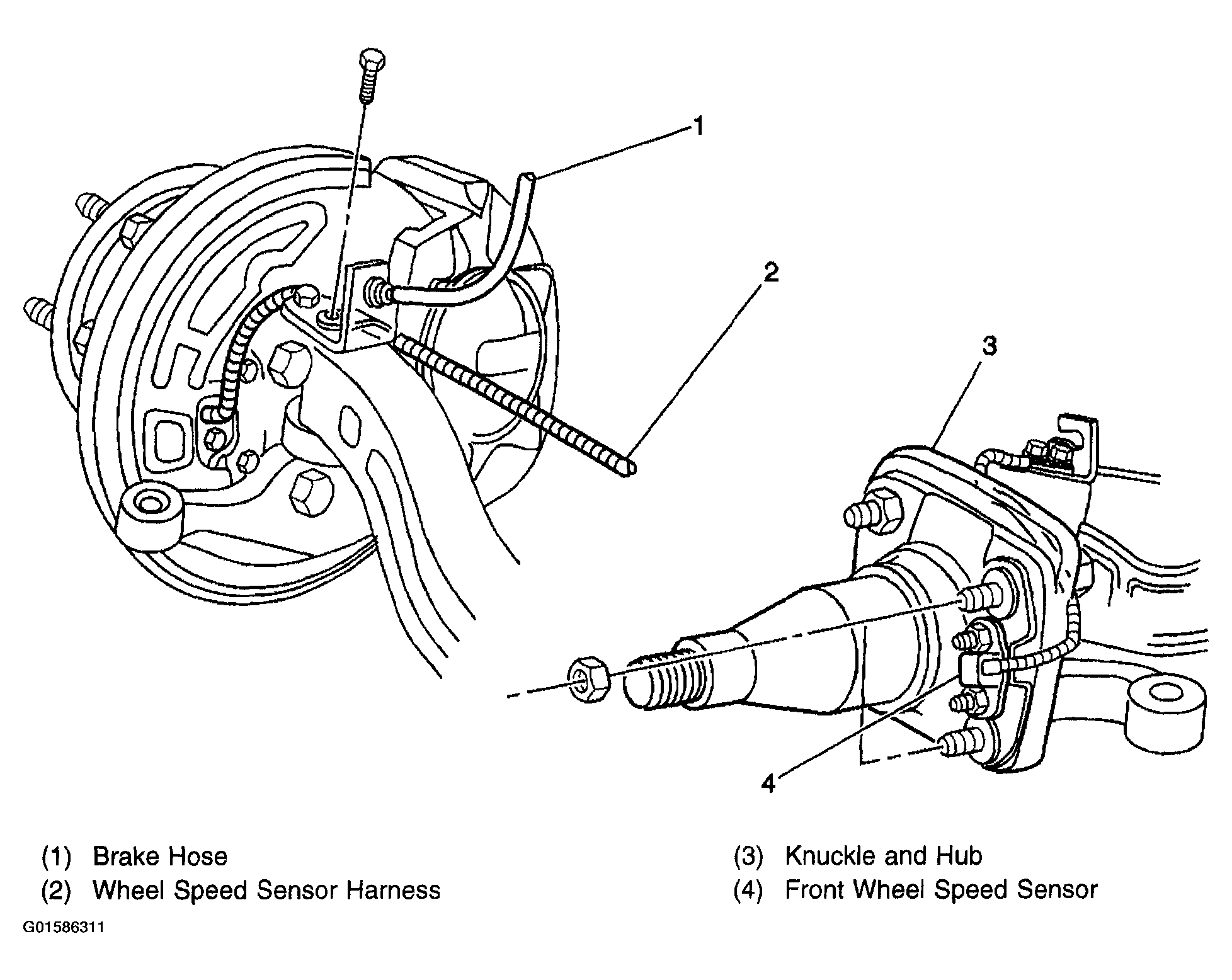

Fig 4: Front Wheel Speed Sensor Component Views
G01586311Courtesy of GENERAL MOTORS CORP.
