Installation Procedure

  1. Install a stationary window into the opening. Refer to Urethane Adhesive Installation of Stationary Windows .
    2. Fig 1: Window Side Reveal Molding
    GM398501Courtesy of GENERAL MOTORS CORP.
  2. Install the windshield side reveal moldings.
    3. Fig 2: Removing Window Side Reveal Molding Screws
    GM398502Courtesy of GENERAL MOTORS CORP.
    NOTE: Refer to Fastener Notice in CAUTIONS & NOTICES .
  3. Install the windshield side reveal moldings screws.

    Tighten:  Tighten the windshield side reveal moldings screws to 2 N.m (18 lb in).

    4. Fig 3: View Of Front Door Sealing Weatherstrip
    GM441415Courtesy of GENERAL MOTORS CORP.
  4. Install the front door sealing weatherstrips (1) to the retainer (2).

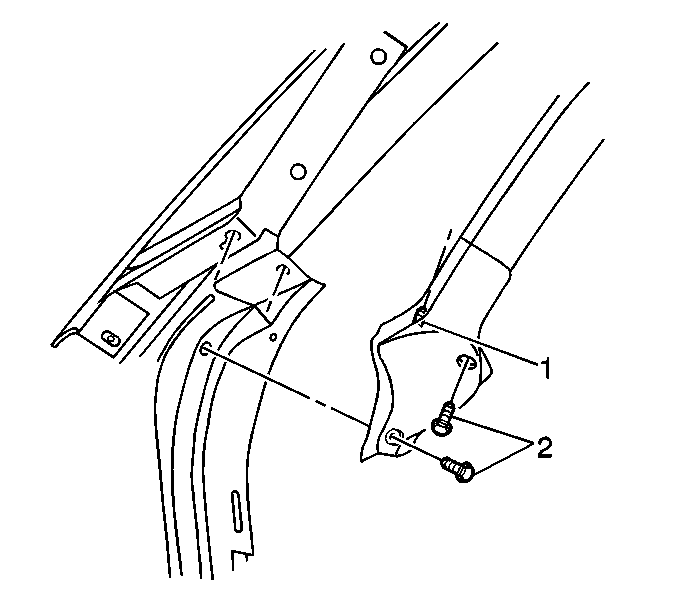

    5. Fig 4: Removing/Installing Weather-Strip Retainers
    GM588275Courtesy of GENERAL MOTORS CORP.
  5. Install the push pin retainers (2) to the front door sealing weatherstrips located at the base of the pillar.
  6. Install the cowl air inlet grille panel. Refer to AIR INLET GRILLE PANEL REPLACEMENT (ENVOY, TRAILBALZER) in Body Front End.
  7. Install the windshield wiper arms. Refer to WIPER ARM REPLACEMENT in Wipers/Washer Systems.
  8. Install the antenna mast if equipped. Refer to FIXED ANTENNA MAST REPLACEMENT in Entertainment.
  9. Install the rear view mirror. Refer to Rearview Mirror Replacement .
  10. Install the rain sensor. Refer to WINDSHIELD OUTSIDE MOISTURE SENSOR REPLACEMENT in Wipers/Washer Systems.
  11. Close the hood.
  12. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
