Removal Procedure

  1. Remove the accessory trim plate. Refer to TRIM PLATE REPLACEMENT - INSTRUMENT PANEL (I//P) ACCESSORY (OLDSMOBILE) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (CHEVROLET) or BEZEL REPLACEMENT - INSTRUMENT PANEL (I/P) CLUSTER (GMC/OLDSMOBILE) .
  2. Disconnect the electrical connector from the traction control switch.
  3. Release the traction control switch locking tabs located behind the trim plate.
  4. Remove the traction control switch from the trim plate.

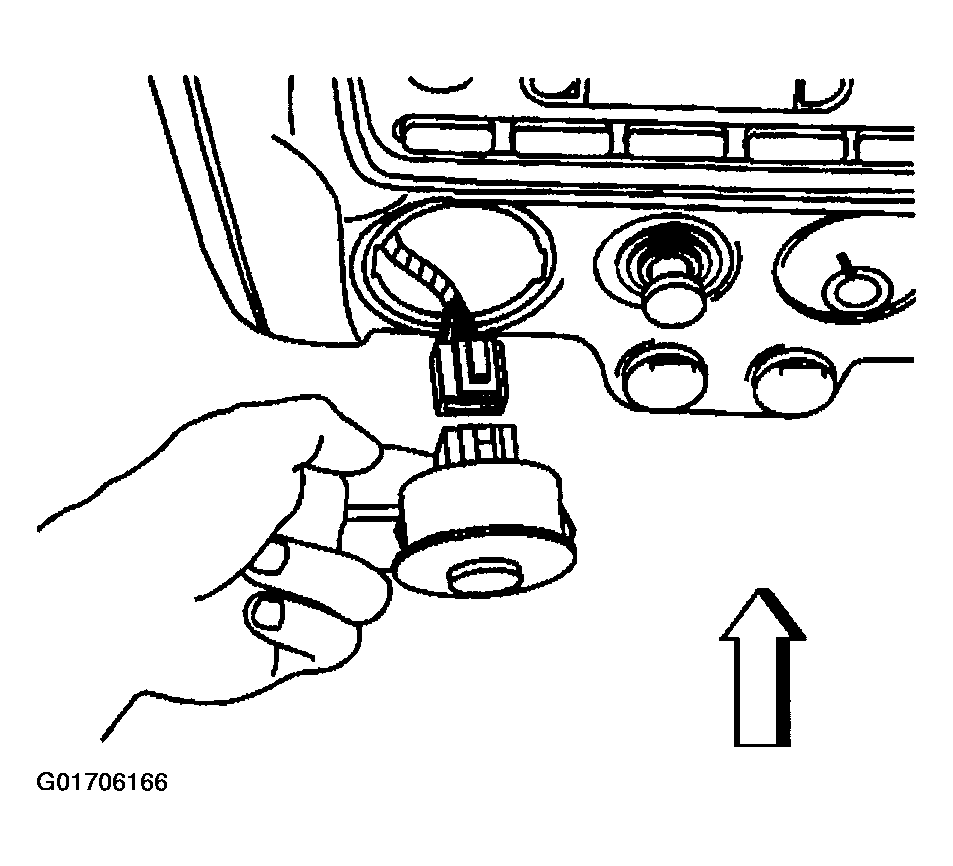

    5. Fig 1: Removing Traction Control Switch
    G01706166Courtesy of GENERAL MOTORS CORP.
