Jimmy 2D Utility, Automatic, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Charging Systems
>>
Battery
>>
Component Locator
>>
Engine Electrical Component Views
Engine Electrical Component Views

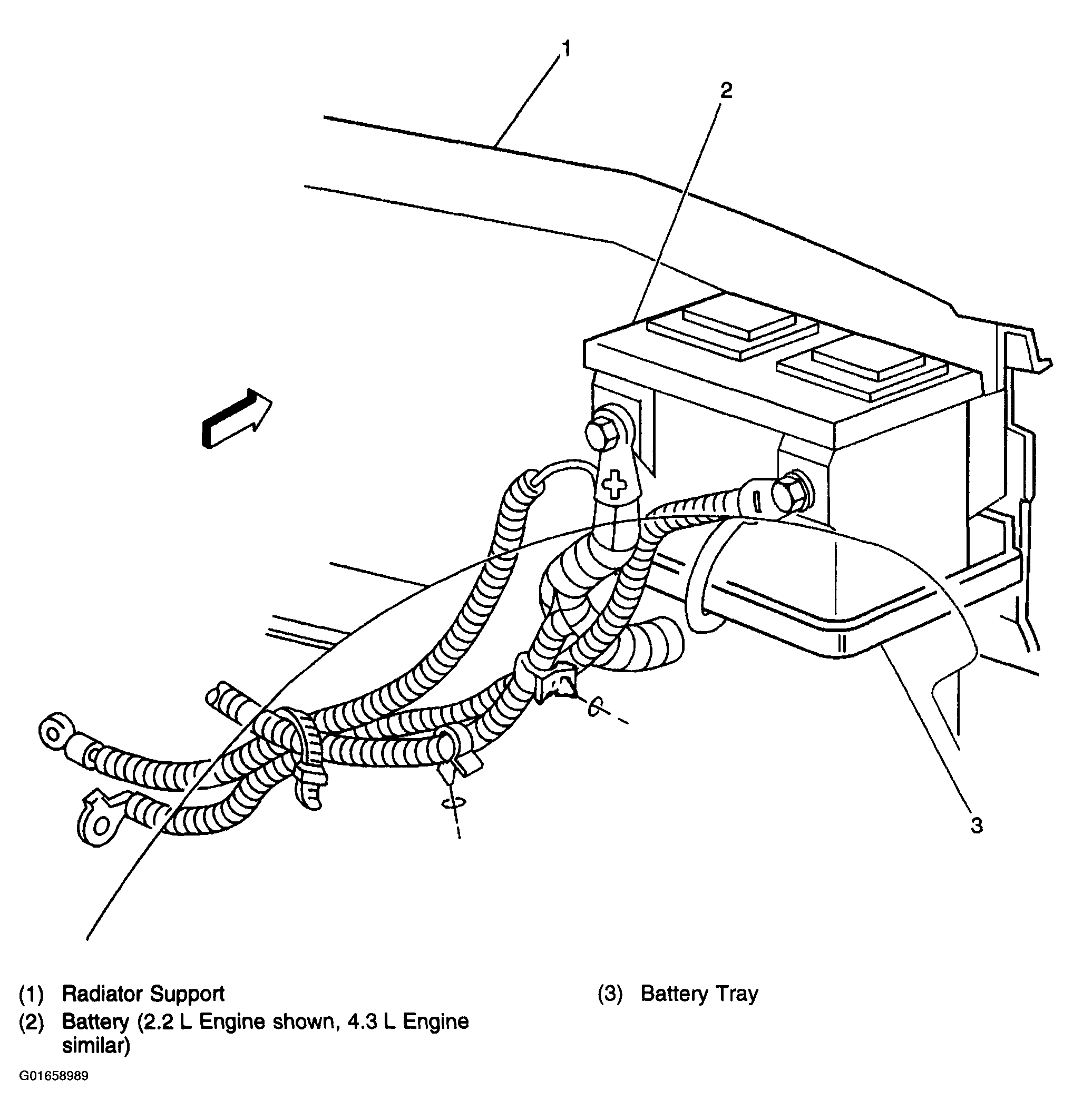

Fig 1: Battery Component View
Courtesy of GENERAL MOTORS CORP.

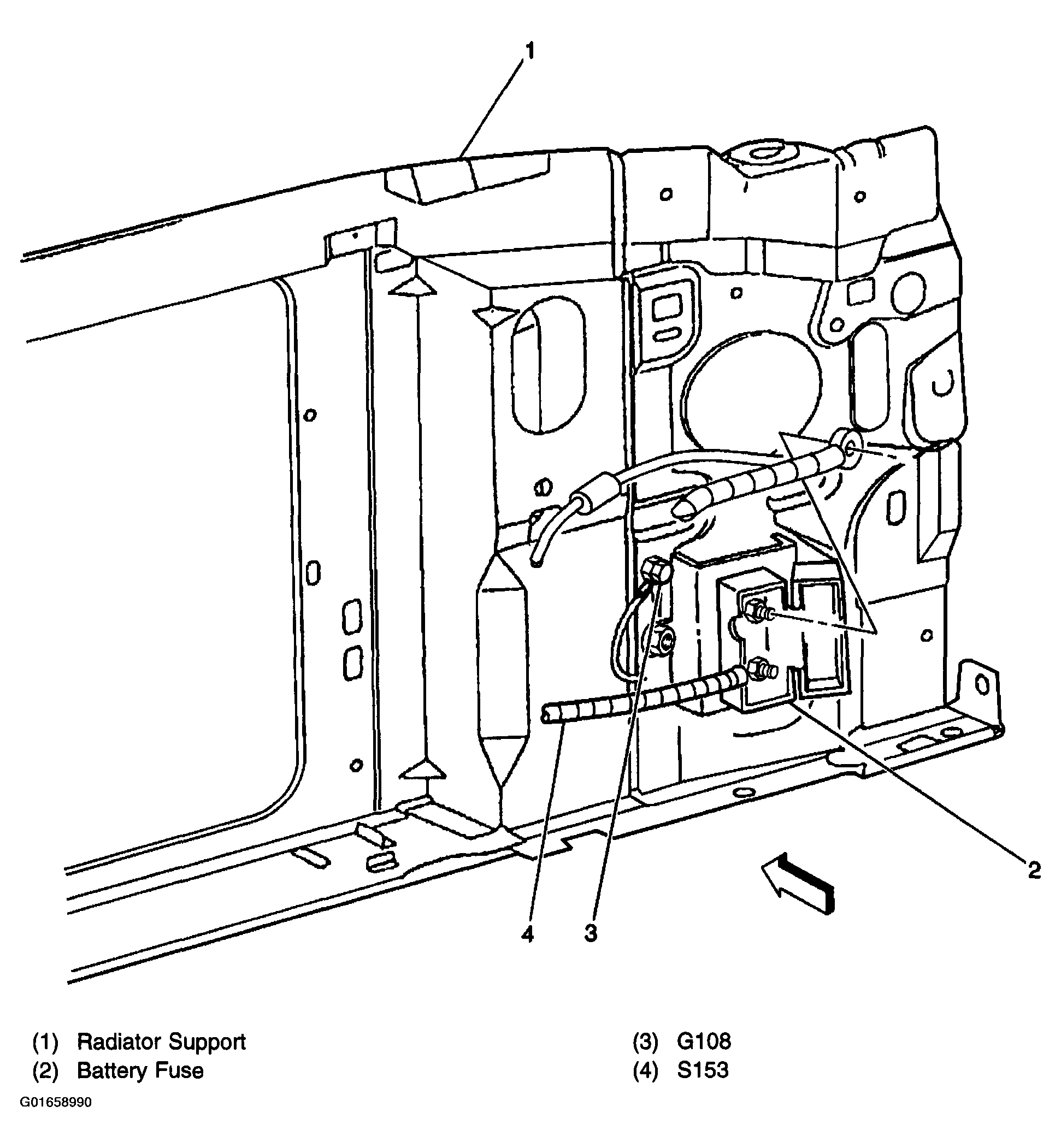

Fig 2: Battery Fuse Component View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
