Controlled/Monitored Subsystem References

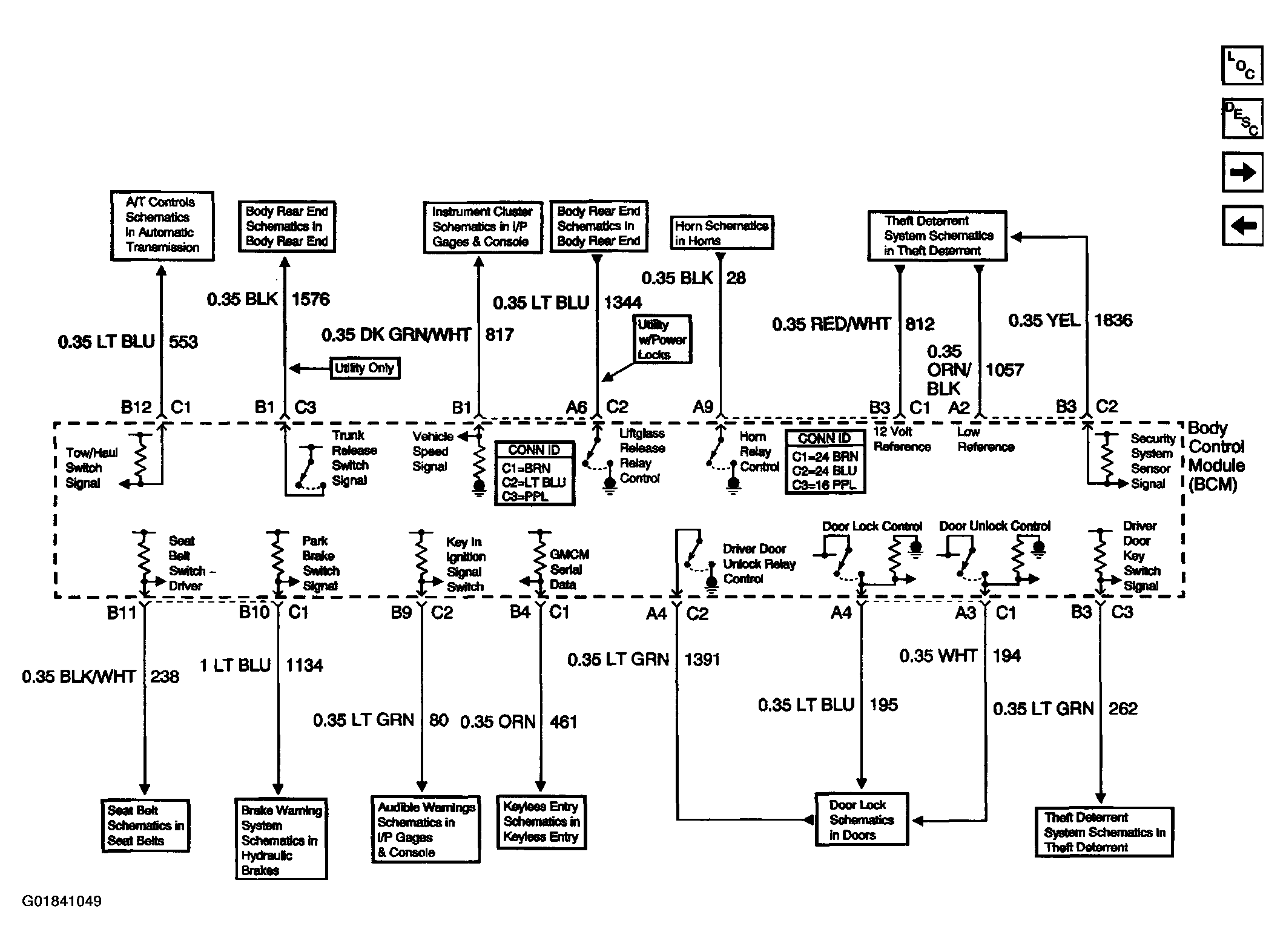

Fig 1: Body Control Module Schematics (Controlled/Monitored Subsystem References)

G01841049

Courtesy of GENERAL MOTORS CORP.
