Installation Procedure

  1. Install the new gasket (2) on the tube adapter (1).
    NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.

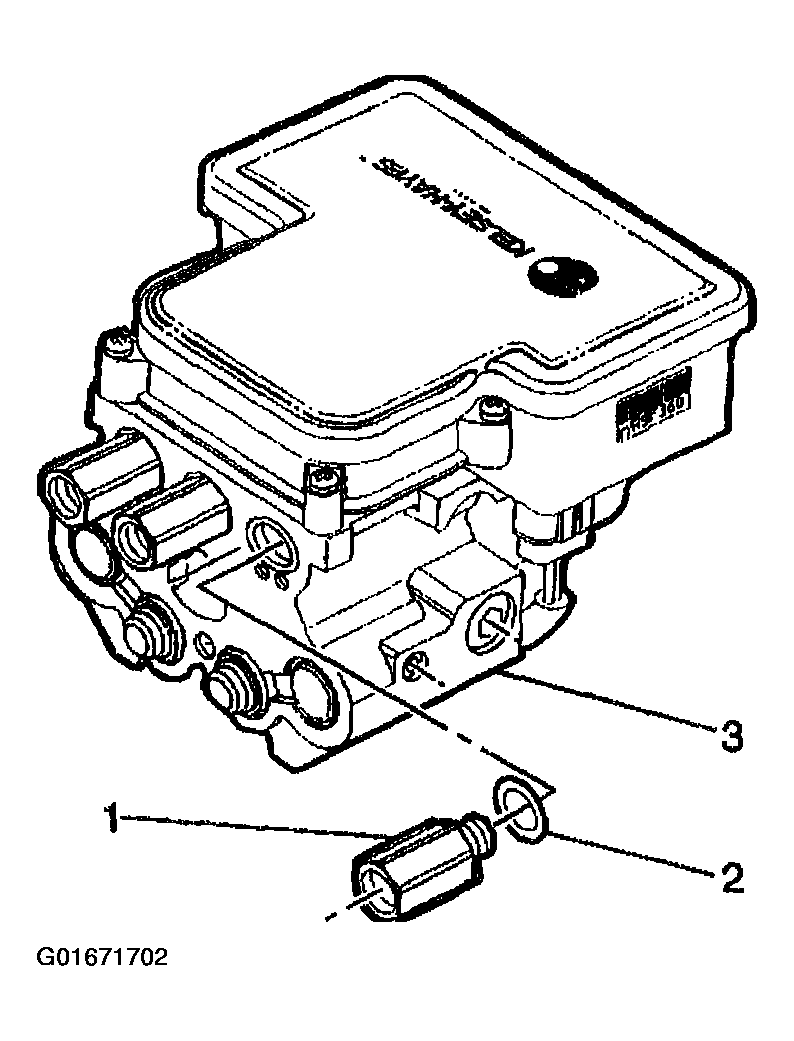

    2. Fig 1: Tube Adapter
    G01671702Courtesy of GENERAL MOTORS CORP.
  2. Install the new tube adapter (1) into the BPMV (3).

    Tighten

    Tighten the tube adapter to 31 N.m (23 lb ft).

  3. Install the brake line.

    Tighten

    Tighten the brake line to 29 N.m (22 lb ft).

  4. Bleed the system. Refer to ABS Automated Bleed Procedure .
