Home >> GMC >> 2002 >> Jimmy 2D Utility, Part Time, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Body Control Module Connector End View C1

Body Control Module Connector End View C1

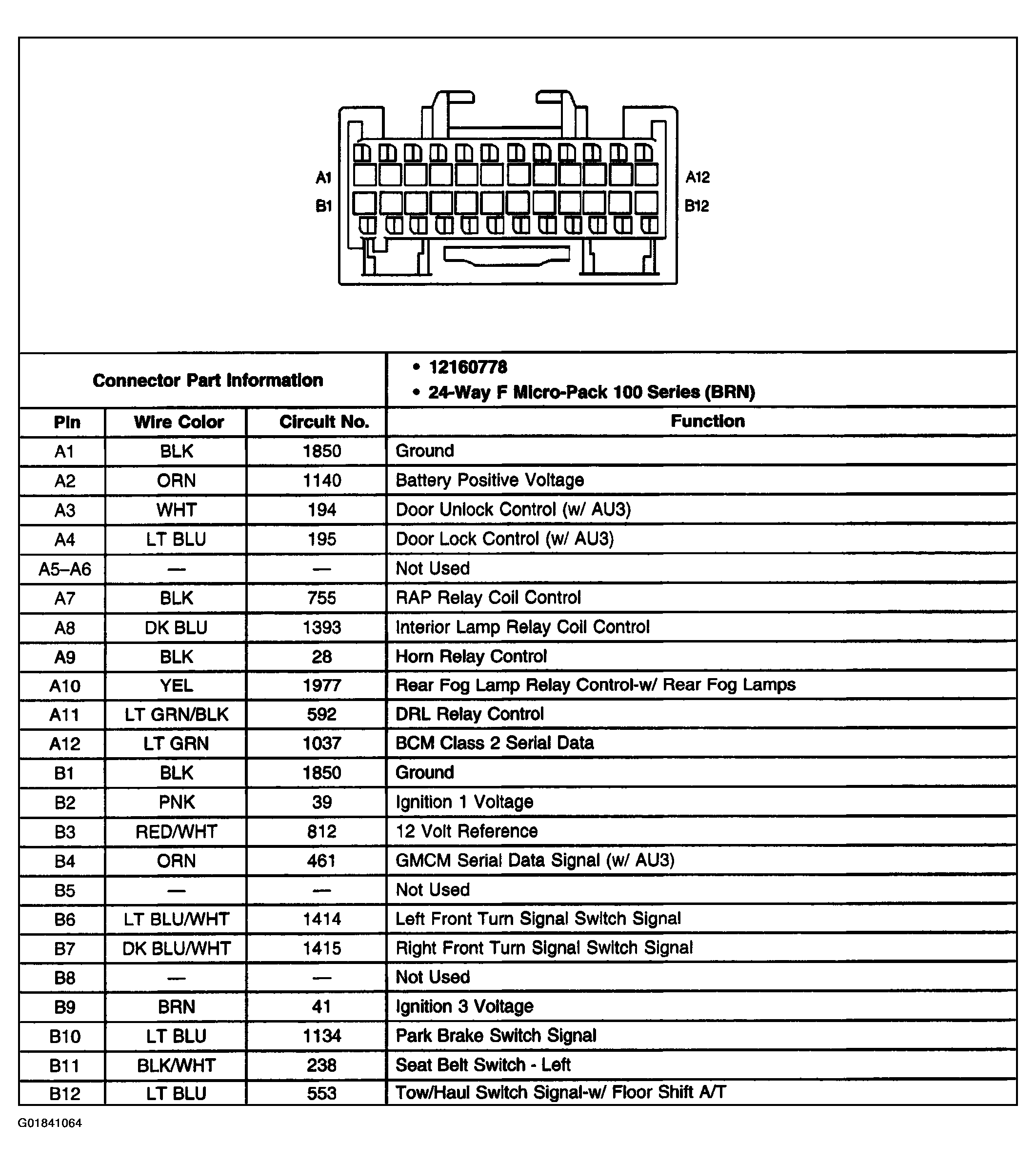

Fig 1: Body Control Module Connector End View C1

G01841064

Courtesy of GENERAL MOTORS CORP.
