Body Control Module Connector End View C2

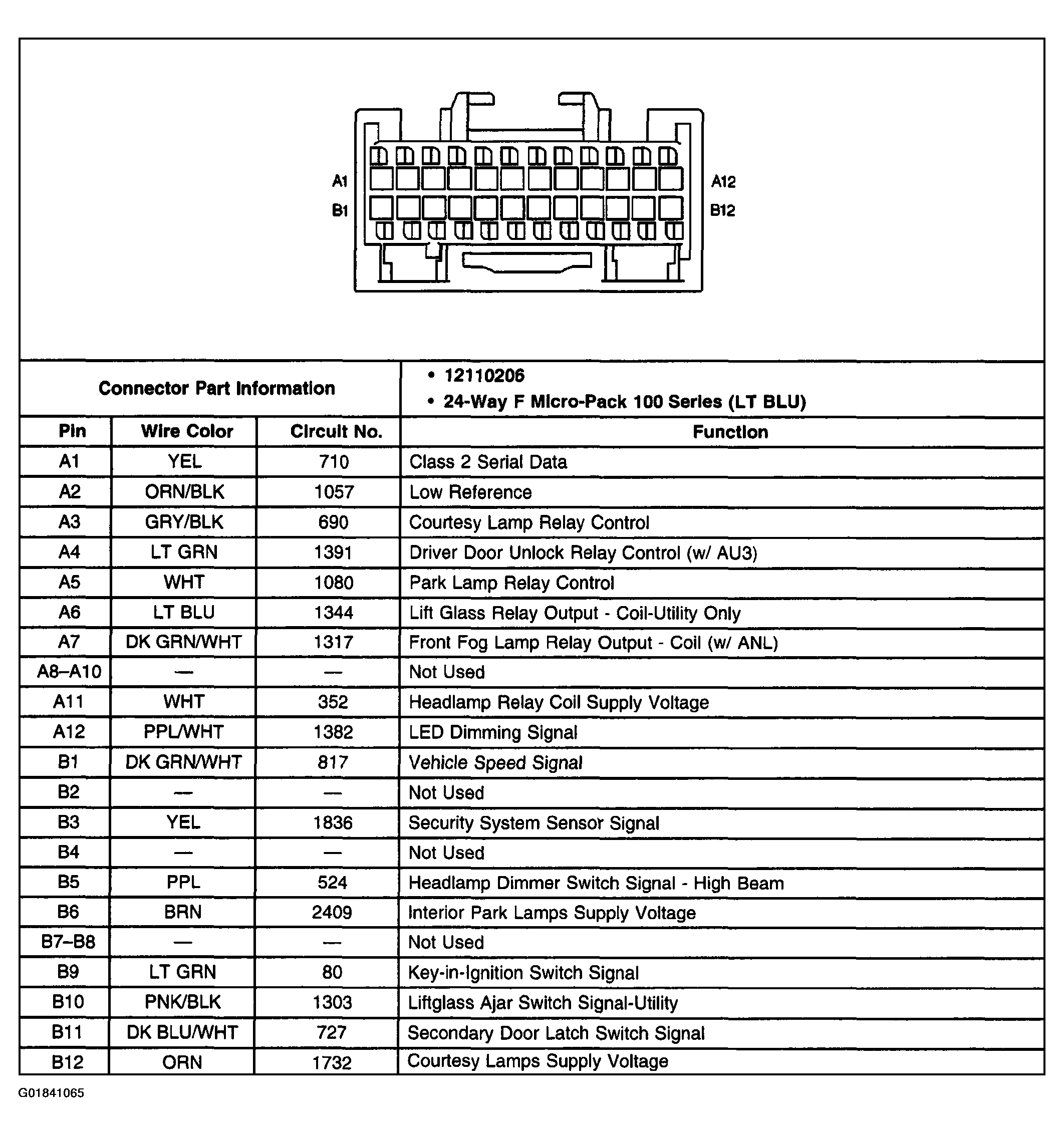

Fig 1: Body Control Module Connector End View C2

G01841065

Courtesy of GENERAL MOTORS CORP.
