Transfer Case Encoder Motor Connector End View

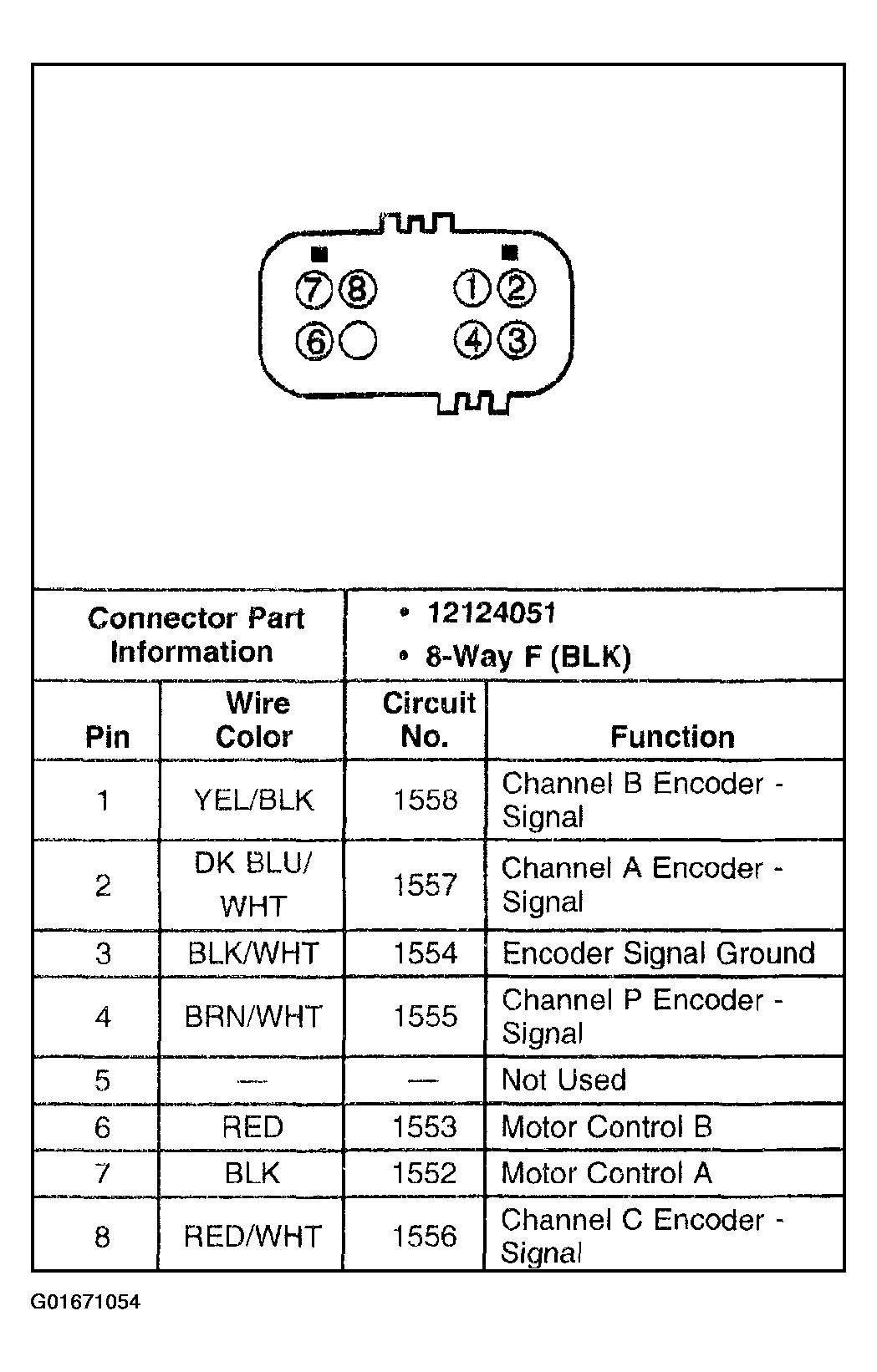

Fig 1: Transfer Case Encoder Motor Connector End View

G01671054

Courtesy of GENERAL MOTORS CORP.
