Home >> GMC >> 2002 >> Jimmy 2D Utility, Part Time, Automatic >> Repair and Diagnosis >> Electrical >> Body Electrical >> OEM Connector End Views >> Connector End Views >> Transfer Case Shift Control Module Connector End View C2

Transfer Case Shift Control Module Connector End View C2

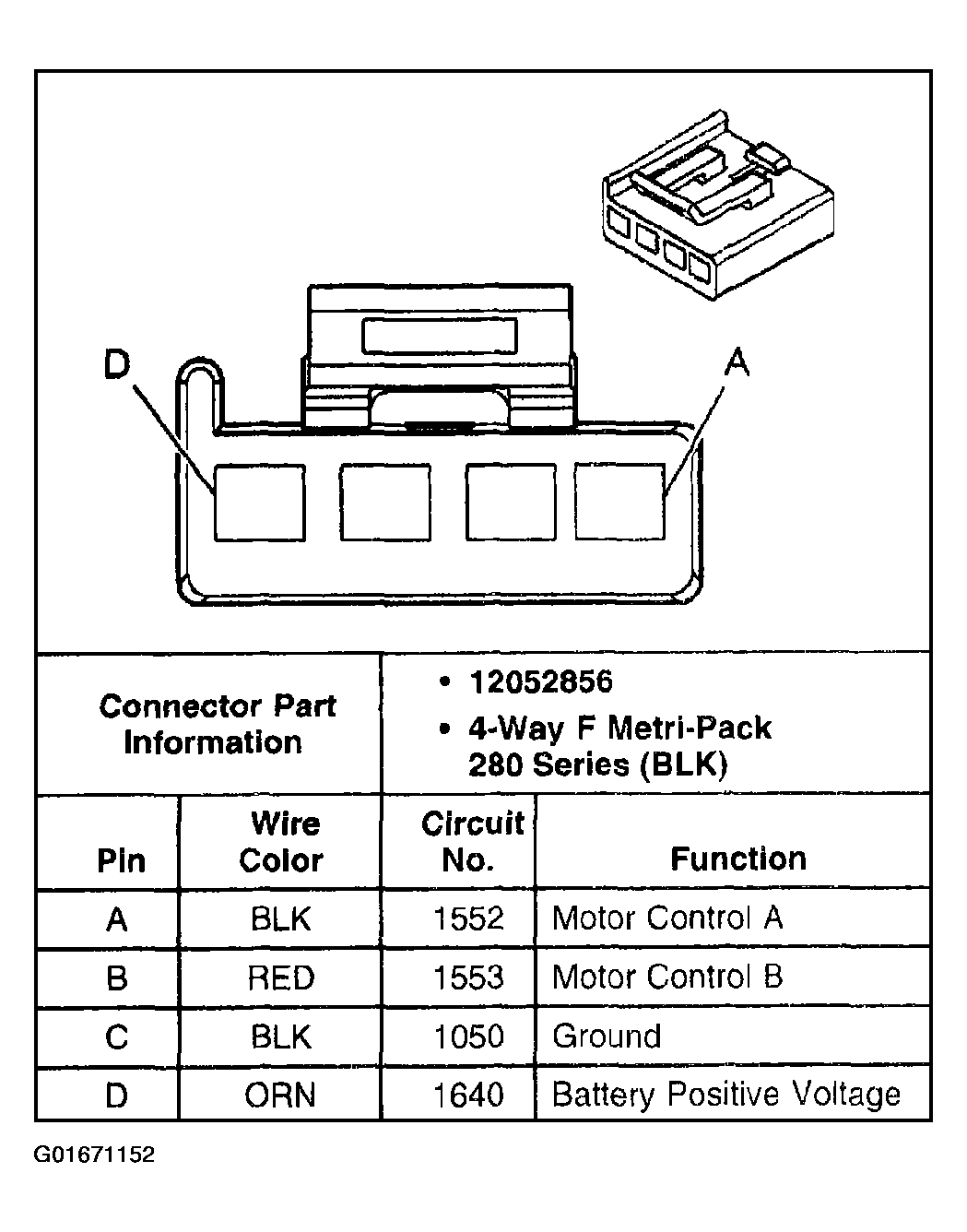

Fig 1: Transfer Case Shift Control Module Connector End View C2

G01671152

Courtesy of GENERAL MOTORS CORP.
