GMC
>>
2002
>>
Jimmy 2D Utility, Part Time, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Starter
>>
Starting System
>>
Connector Identification
Connector Identification

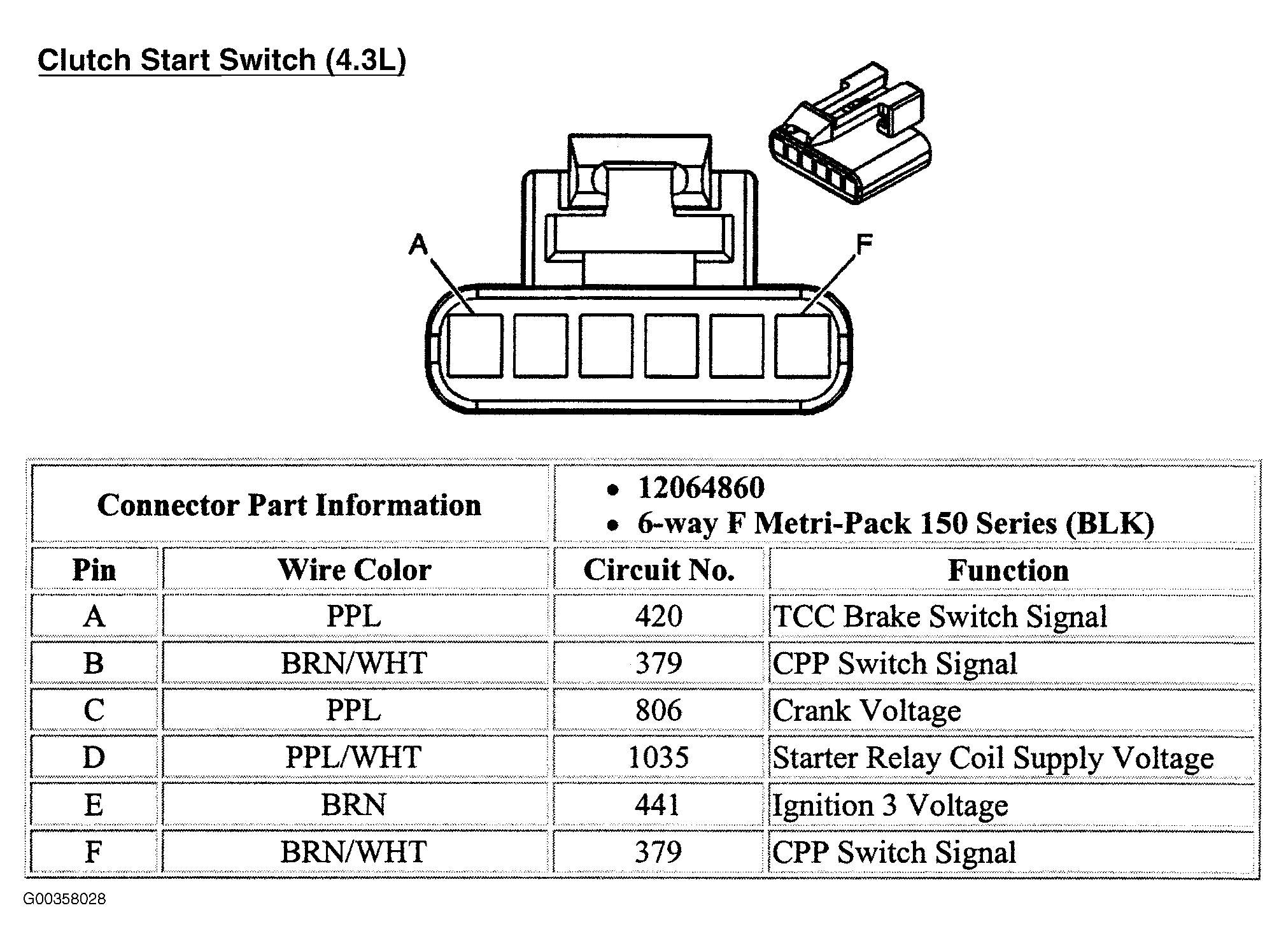

Fig 1: Identifying Clutch Start Switch Connector (4.3L)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
