ABS Component Views

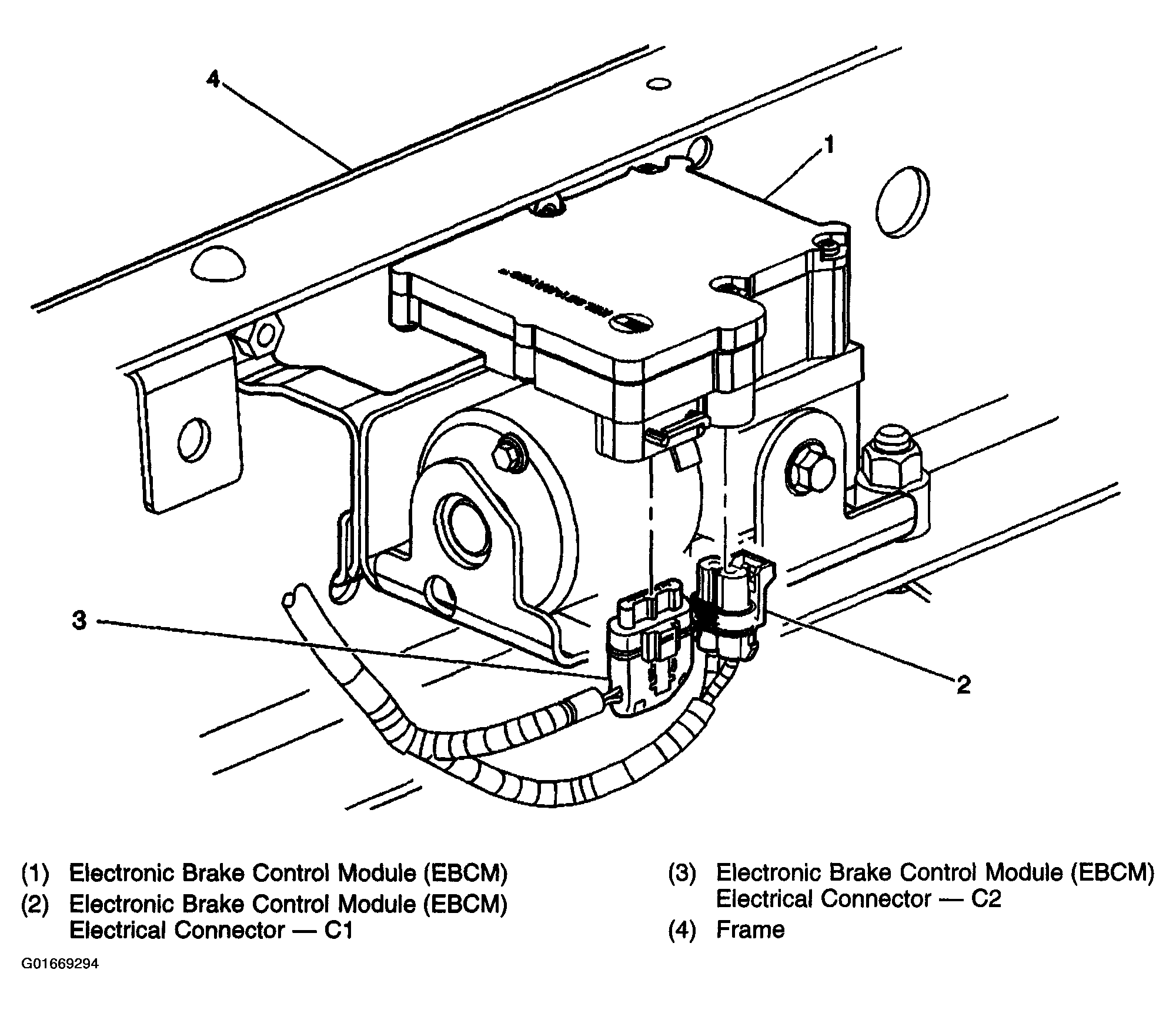

Fig 1: Locating Electronic Brake Control Module (EBCM)

Courtesy of GENERAL MOTORS CORP.

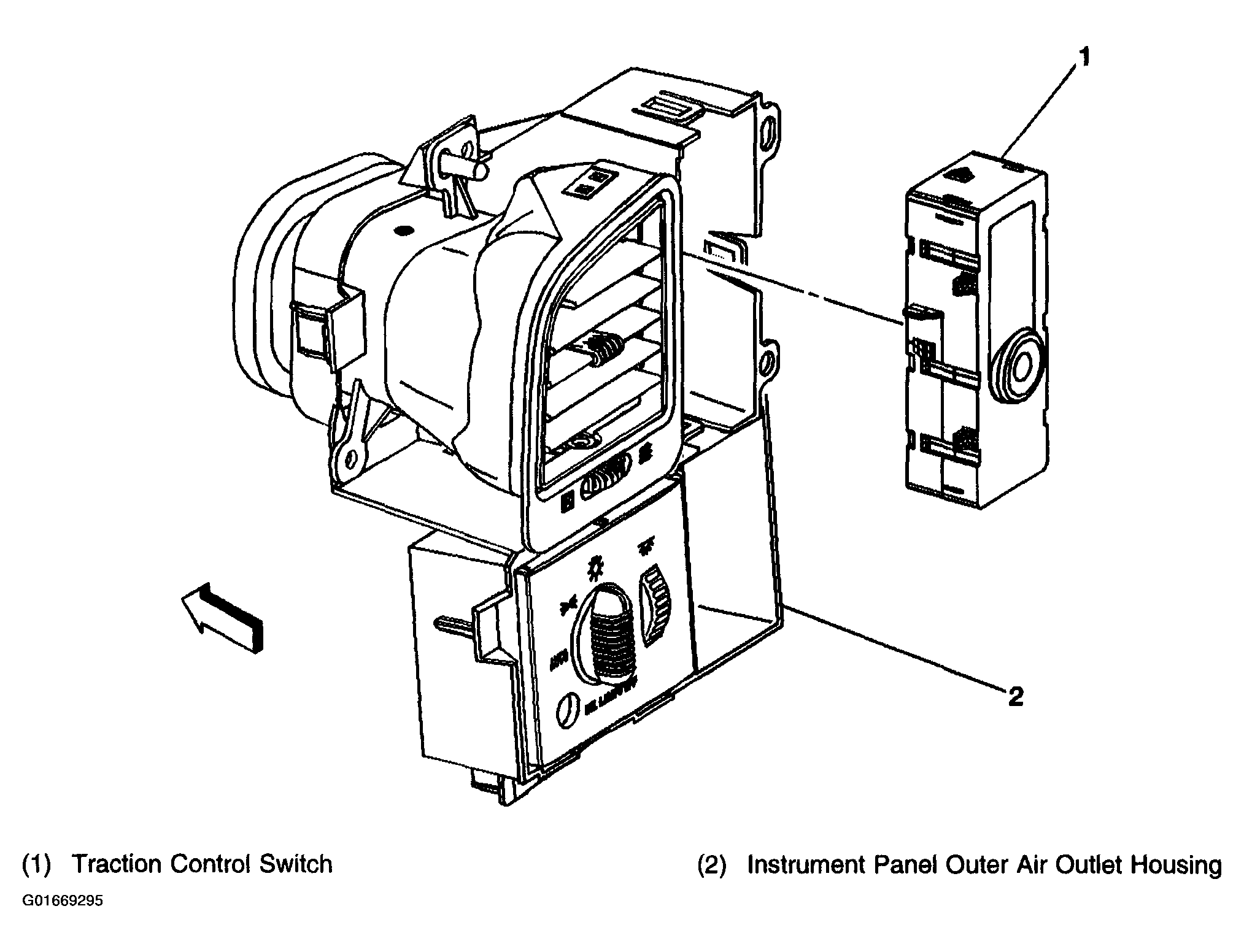

Fig 2: Locating Traction Control Switch

Courtesy of GENERAL MOTORS CORP.

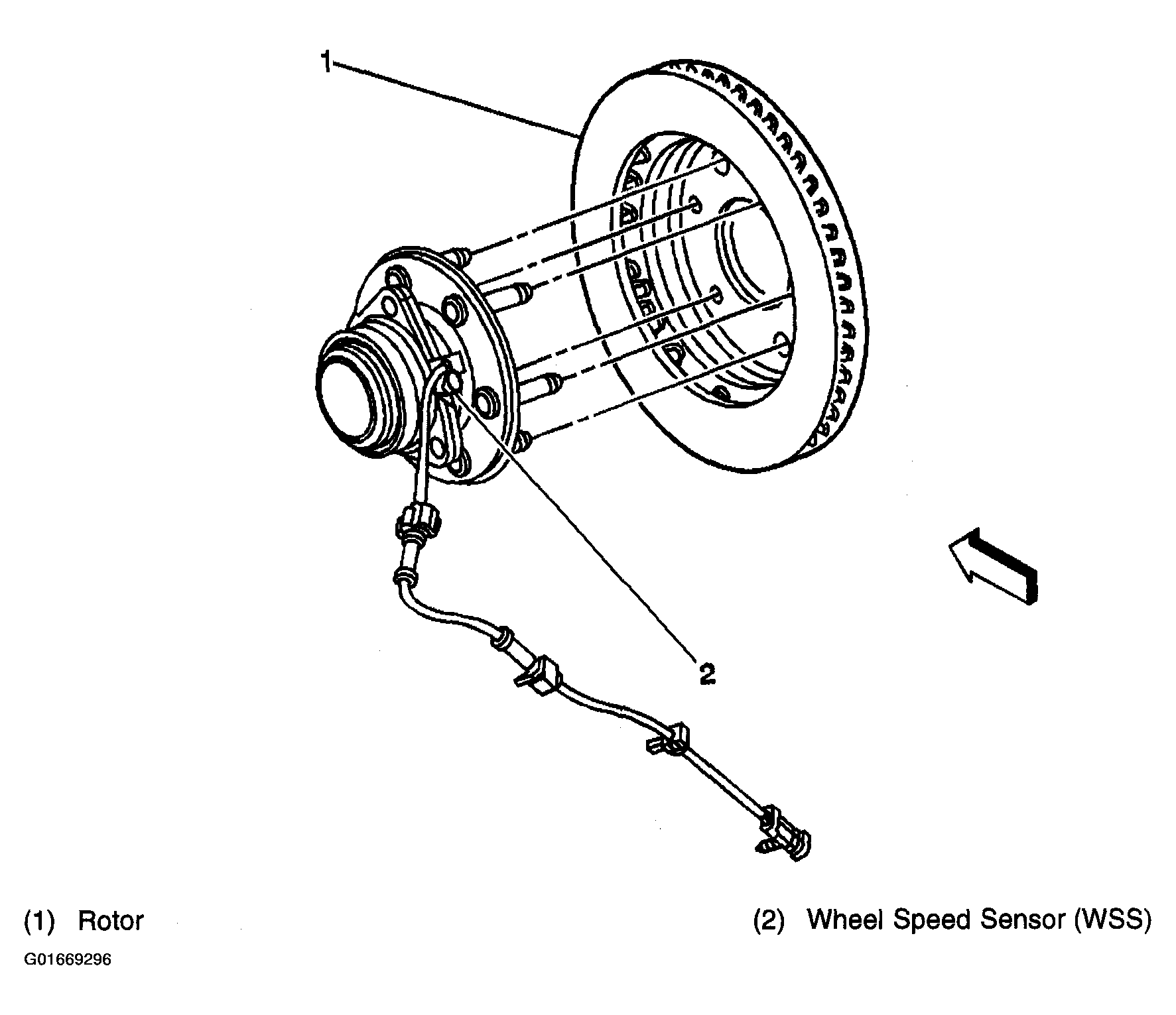

Fig 3: Locating Wheel Speed Sensor - RF (2WD)

Courtesy of GENERAL MOTORS CORP.

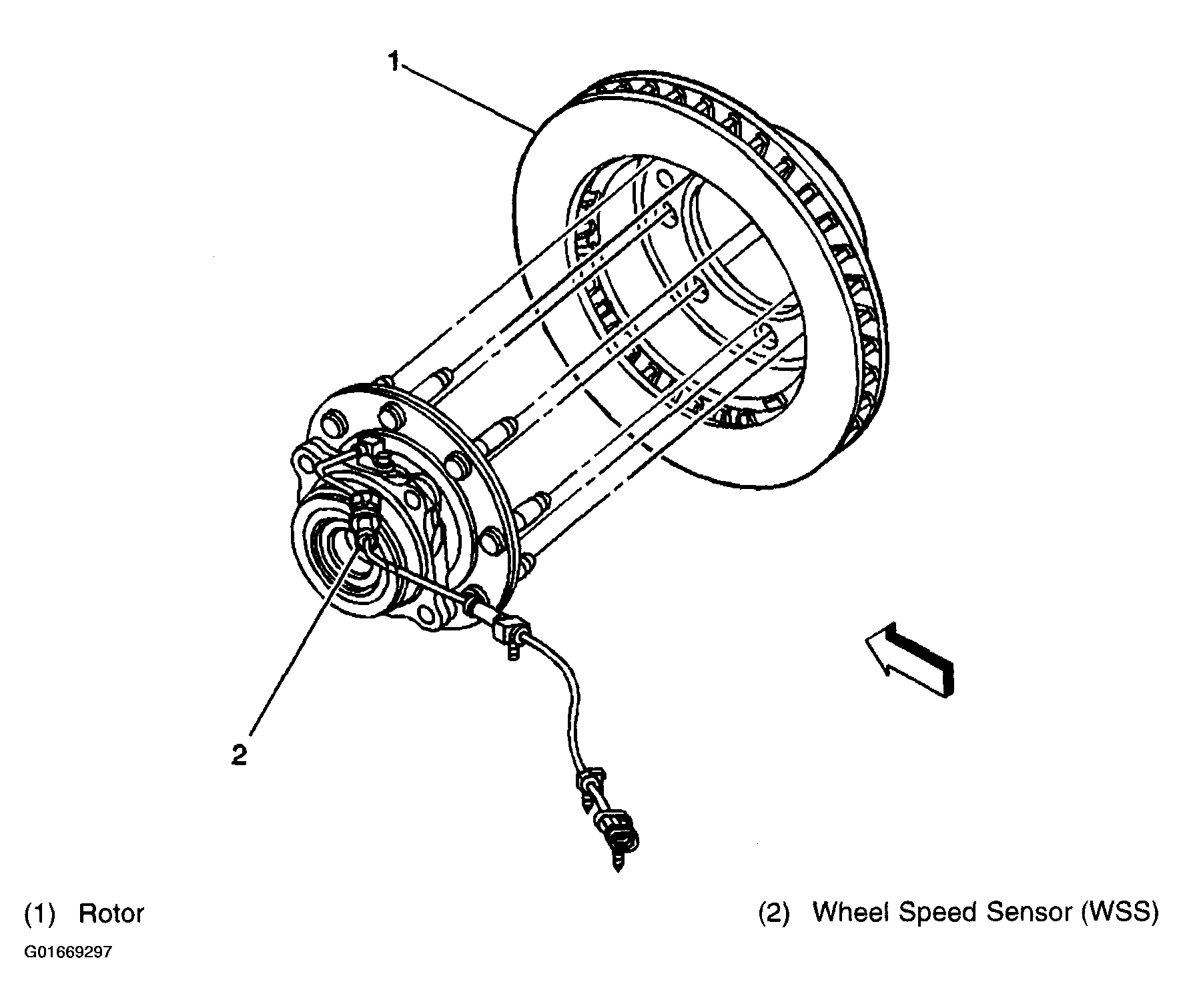

Fig 4: Locating Wheel Speed Sensor - RF (4WD)

Courtesy of GENERAL MOTORS CORP.

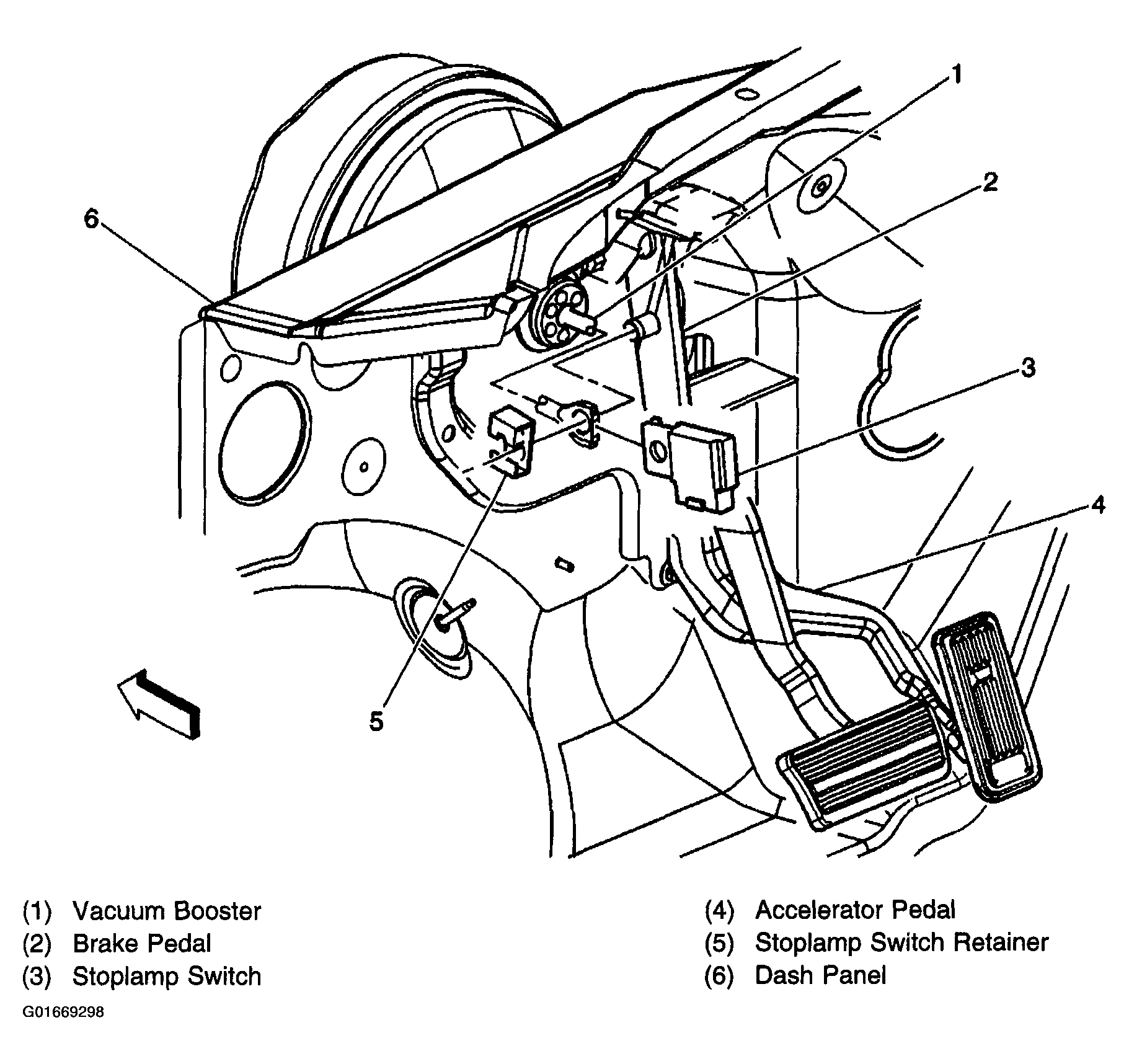

Fig 5: Locating Stoplamp Switch

Courtesy of GENERAL MOTORS CORP.
