Removal Procedure

  1. Remove instrument panel (IP) bezel.

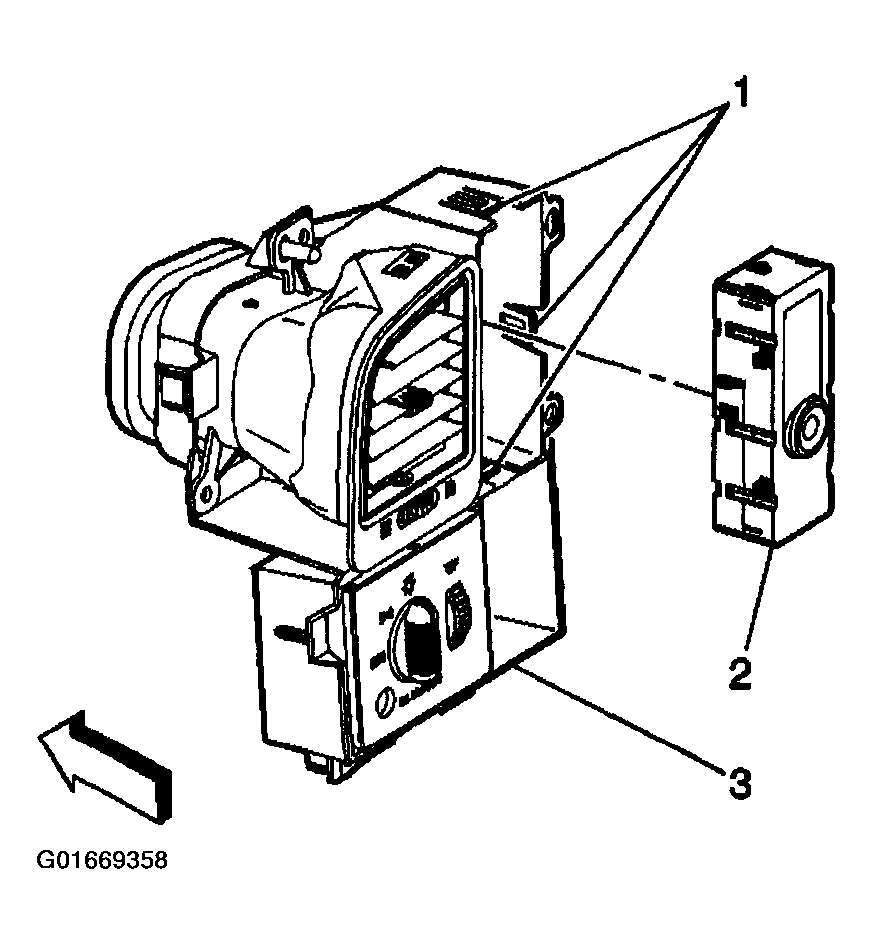

  2. Gently lift the switch retaining tabs (1) and remove the traction control switch (2) from the instrument panel (IP) assembly (3).
  3. Disconnect the harness connector from the traction control switch.
    Fig 1: Traction Control Switch
    G01669358Courtesy of GENERAL MOTORS CORP.
