Automatic Transmission Shift Lock Control Component Views
Automatic Transmission Shift Lock Control Component Views

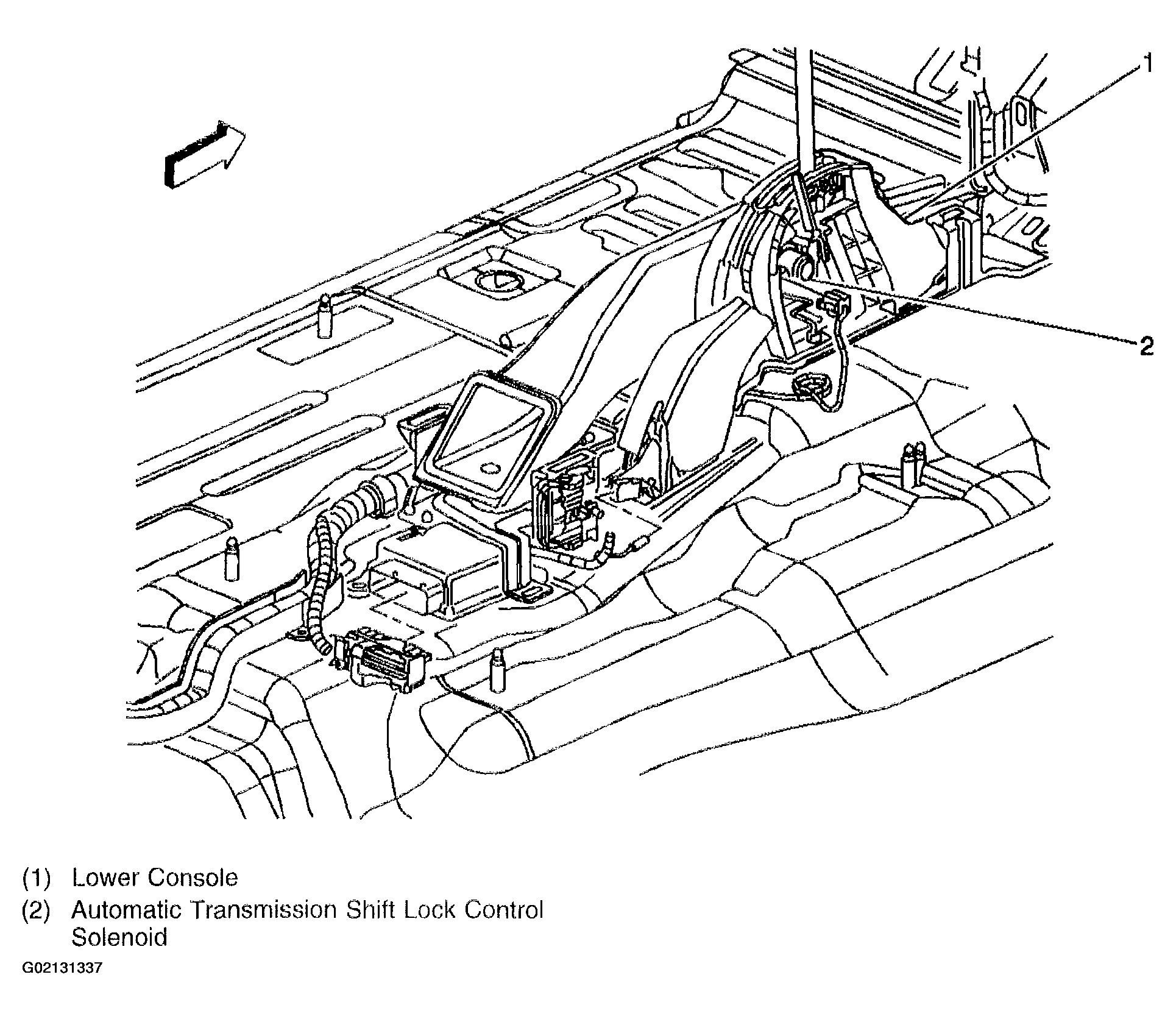

Fig 1: Locating Automatic Transmission Shift Lock Control Solenoid
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
