Installation Procedure

  1. Slide the memory seat module into the bracket until the module is seated.
    NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
  2. Install the memory seat module and bracket to the seat adjuster frame assembly with 2 screws.

    Tighten

    Tighten the memory seat module retaining screws to 3 N.m (26 lb in).

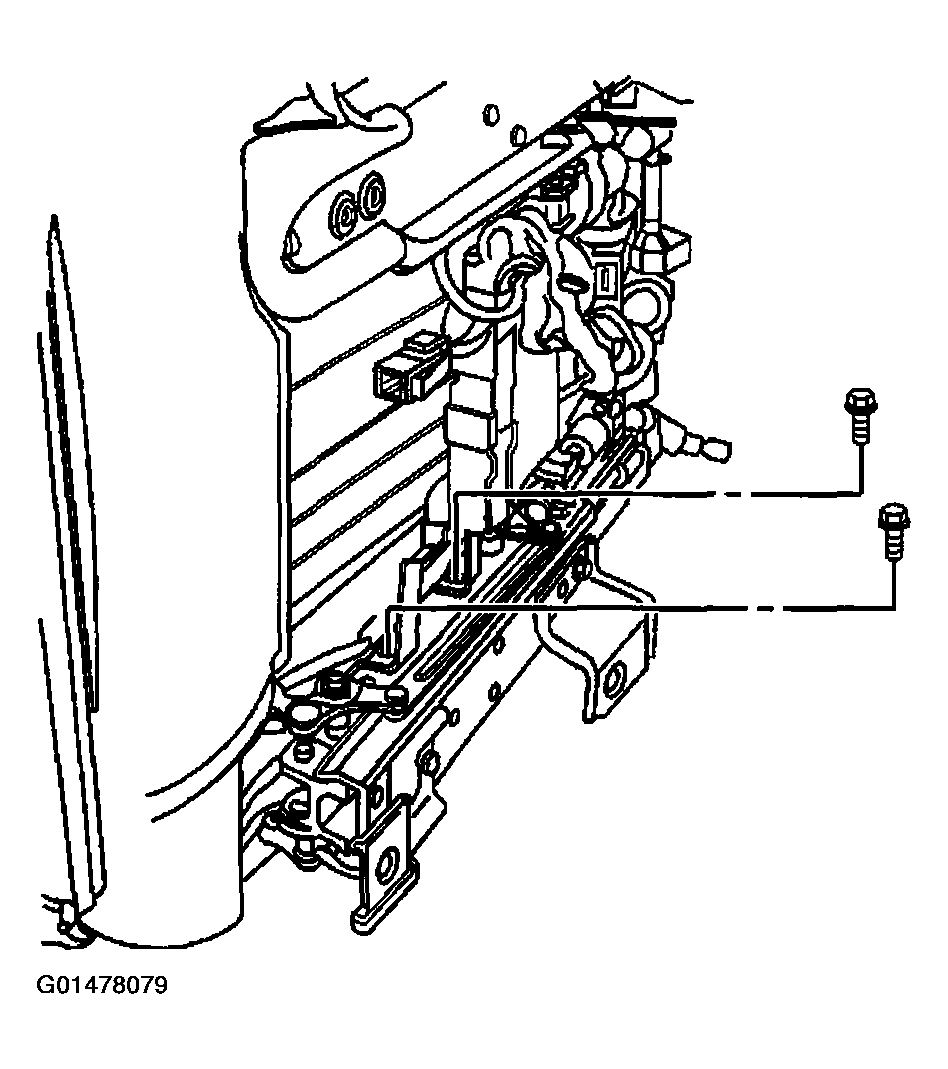

    Fig 1: Installing Memory Seat Module & Bracket To Seat Adjuster Frame Assembly With Screws
    G01478079Courtesy of GENERAL MOTORS CORP.
  3. Install the memory seat module harness connectors.
  4. Install the front seat to the vehicle. Refer to SEAT REPLACEMENT - Bucket .

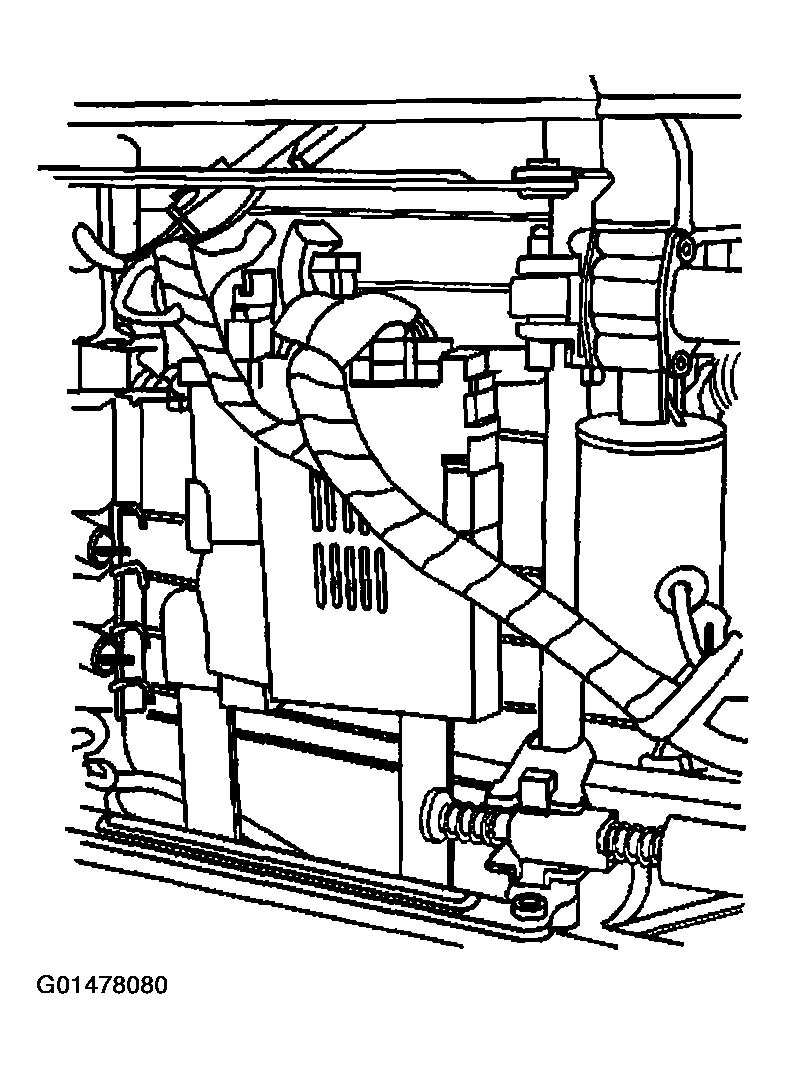

    Fig 2: Memory Seat Module Harness Connectors
    G01478080Courtesy of GENERAL MOTORS CORP.
