Installation Procedure

Important:  Do not reuse the old mounting screws. Always install new mounting screws with the new EBCM.

Important:  Do not use RTV or any other type of sealant on the EBCM gasket or mating surfaces.

1. Install EBCM (2) on to the BPMV (3).
   NOTE: Refer to FASTENER NOTICE in Cautions and Notices.
2. Install the four new T-25 TORX® screws (1) in the EBCM (2).

   Tighten

   Tighten the four T-25 TORX® screws to 5 N.m (39 lb in) in an X-pattern.

3. Connect the electrical connectors to the EBCM (2).
4. Revise the tire calibration using the Scan Tool Tire Size Calibration function.

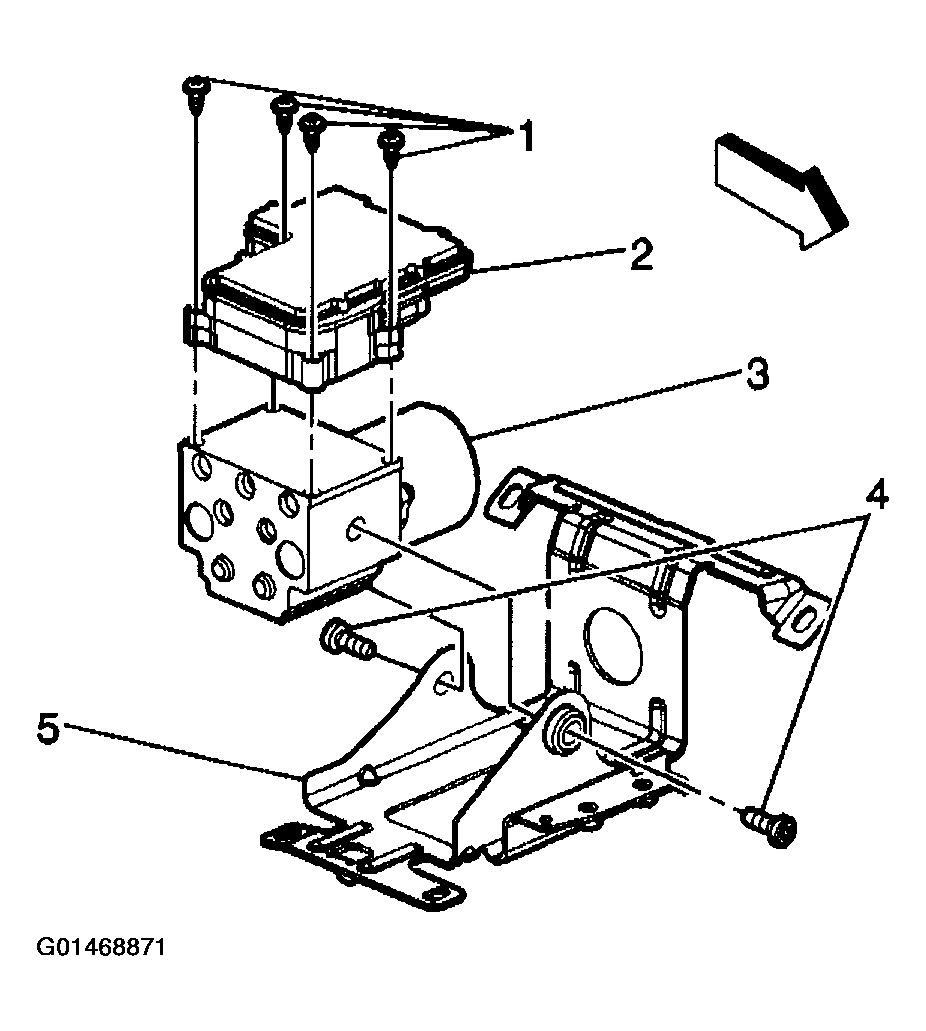

   Fig 1: Installing EBCM

   Courtesy of GENERAL MOTORS CORP.
