GMC
>>
2003
>>
Jimmy 2D Utility, Part Time, Automatic
>>
Repair and Diagnosis
>>
Electrical
>>
Body Electrical
>>
OEM Connector End Views
>>
Connector End Views
>>
Transfer Case Shift Control Module C2 Connector End View
Transfer Case Shift Control Module C2 Connector End View

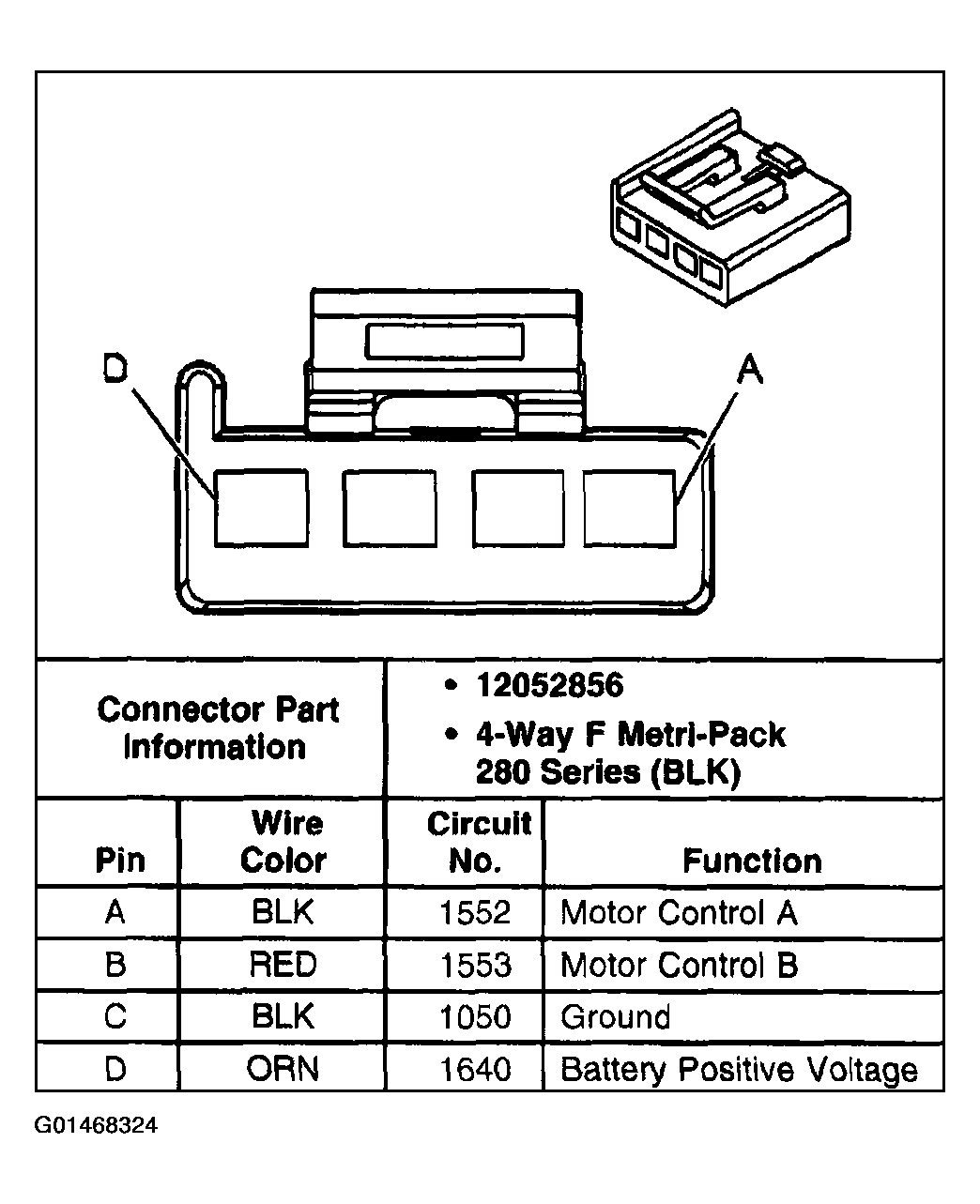

Fig 1: Transfer Case Shift Control Module C2 Connector End View
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
