ABS Component Views

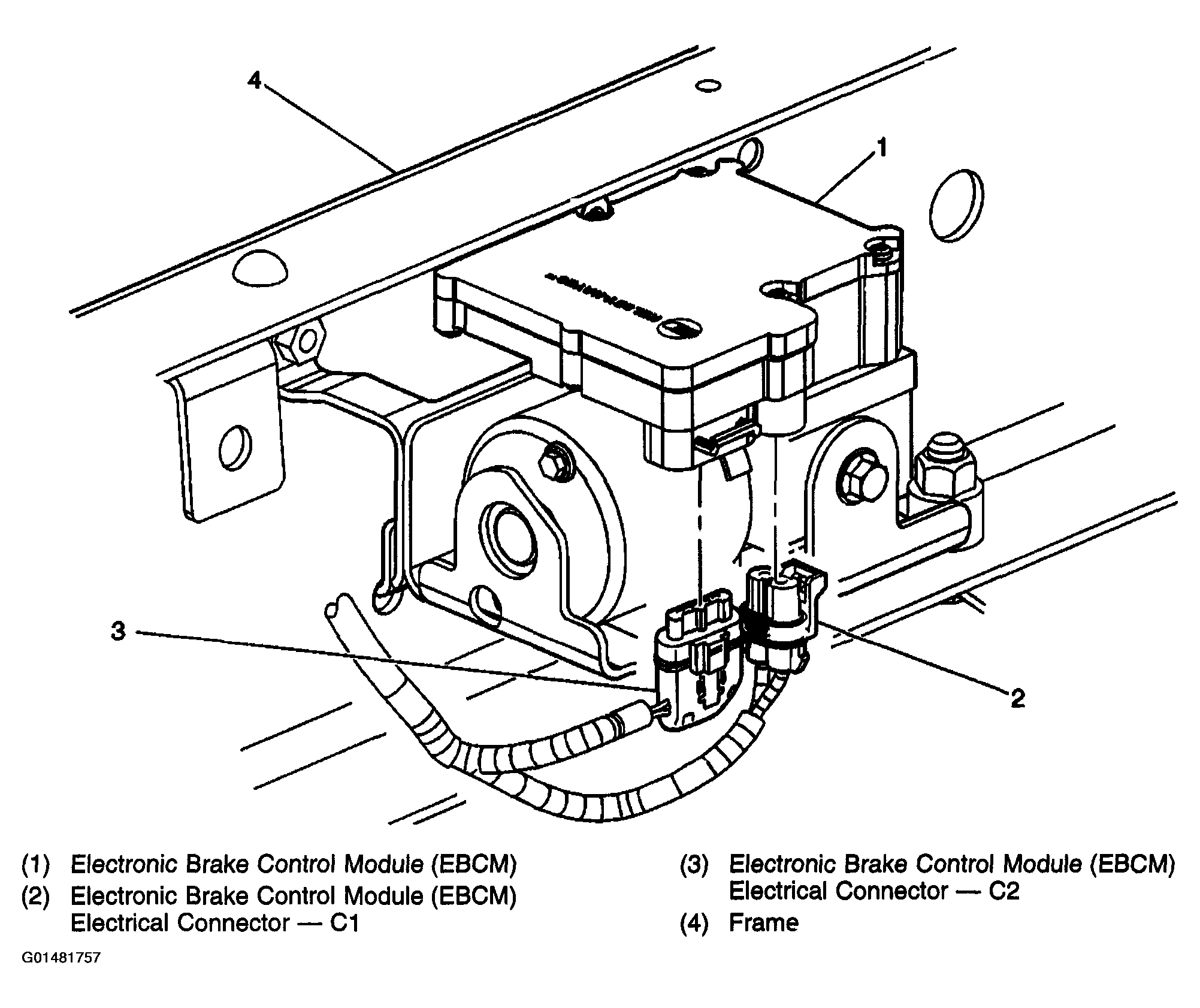

Fig 1: Electronic Brake Control Module (EBCM) Component View
G01481757Courtesy of GENERAL MOTORS CORP.

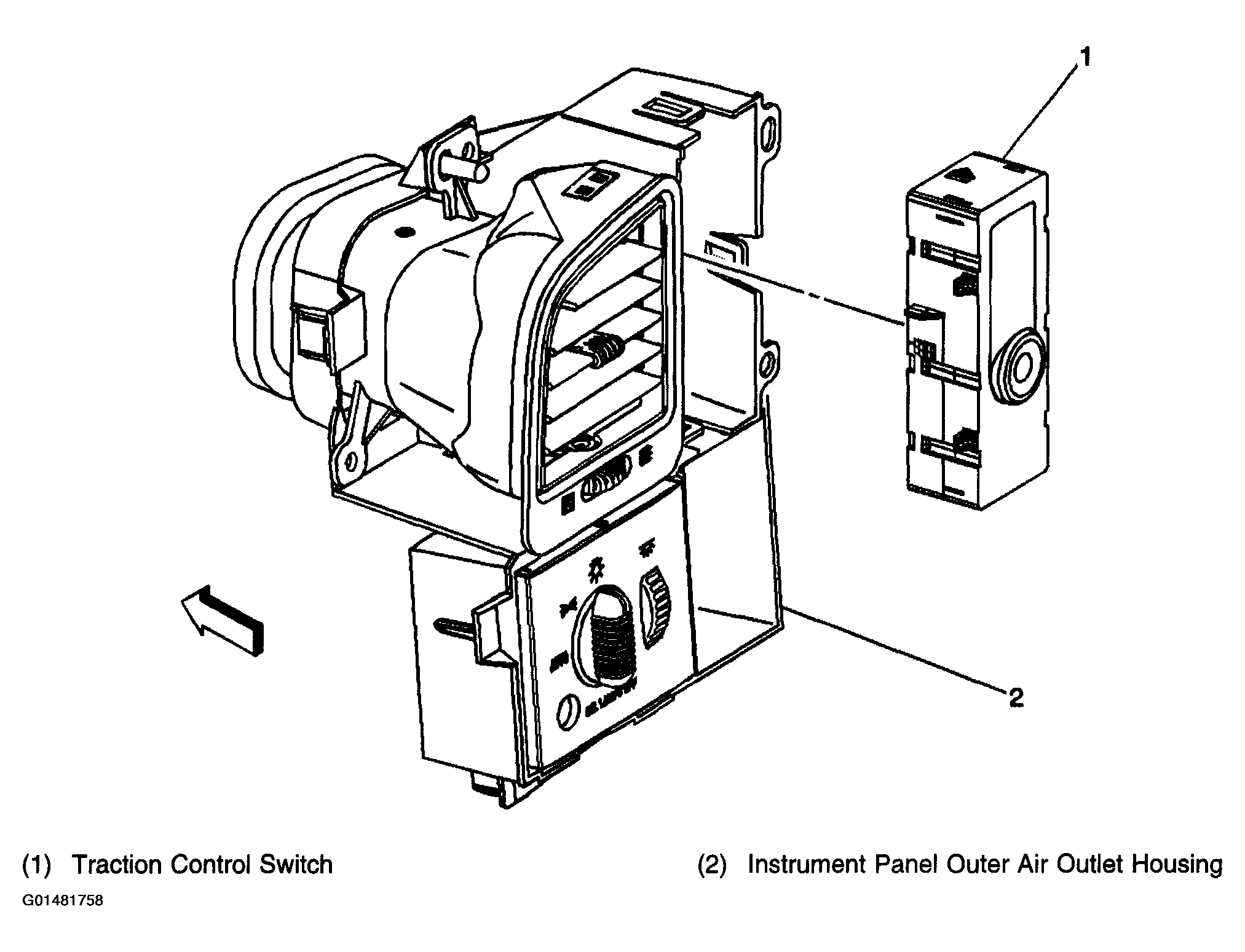

Fig 2: Traction Control Switch Component View
G01481758Courtesy of GENERAL MOTORS CORP.

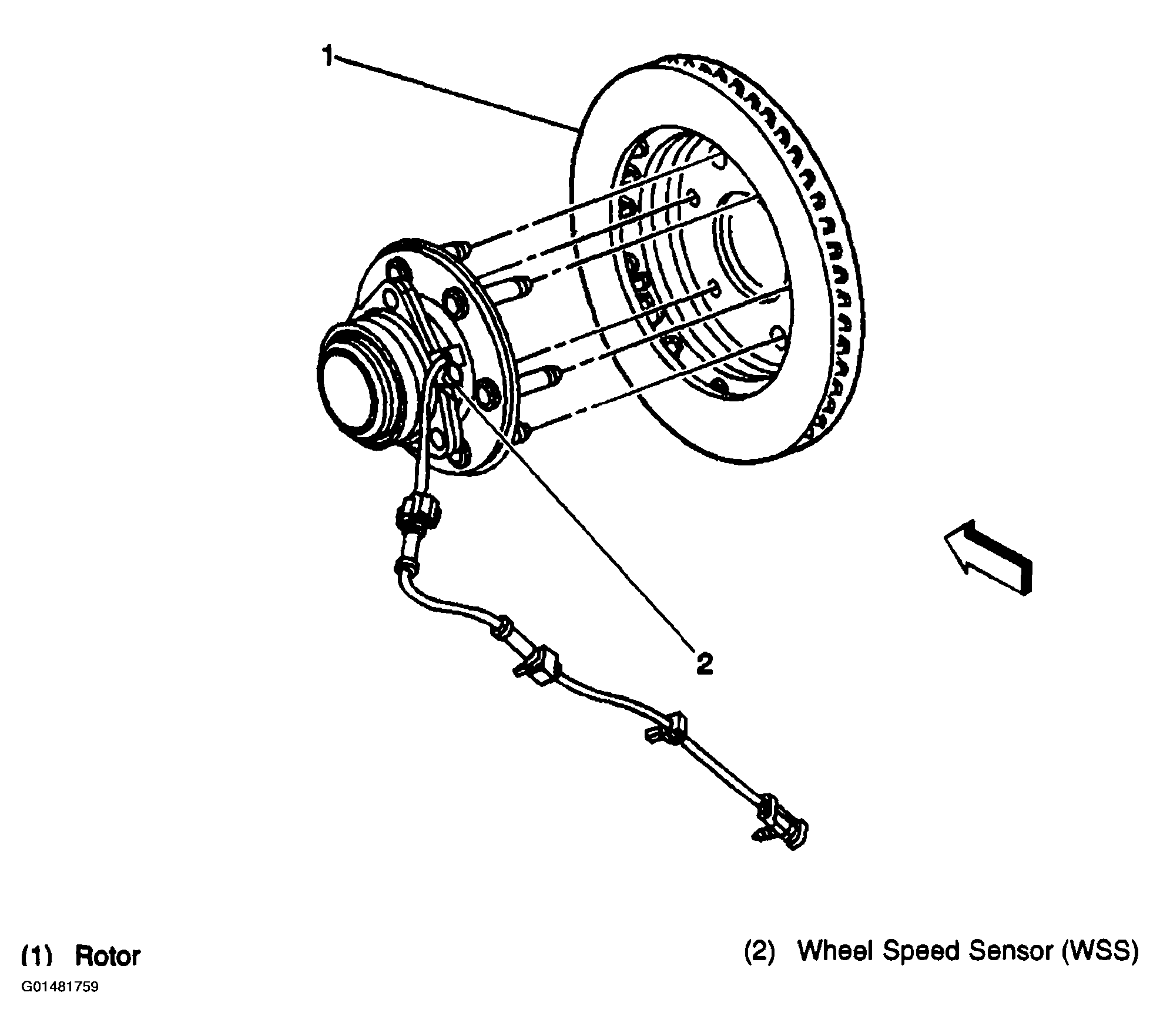

Fig 3: Wheel Speed Sensor - RF Component View (2WD)
G01481759Courtesy of GENERAL MOTORS CORP.

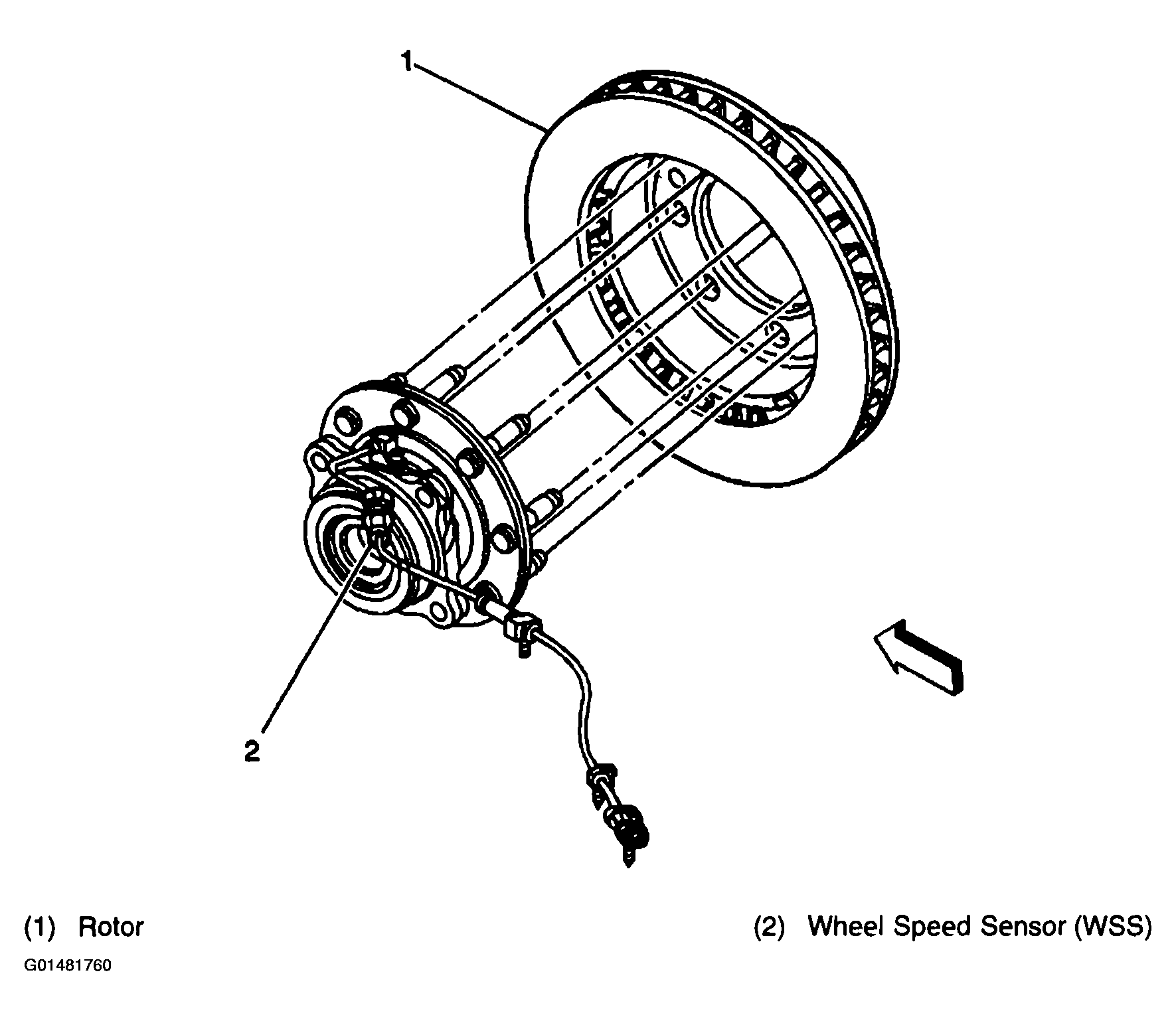

Fig 4: Wheel Speed Sensor - RF Component View (4WD)
G01481760Courtesy of GENERAL MOTORS CORP.

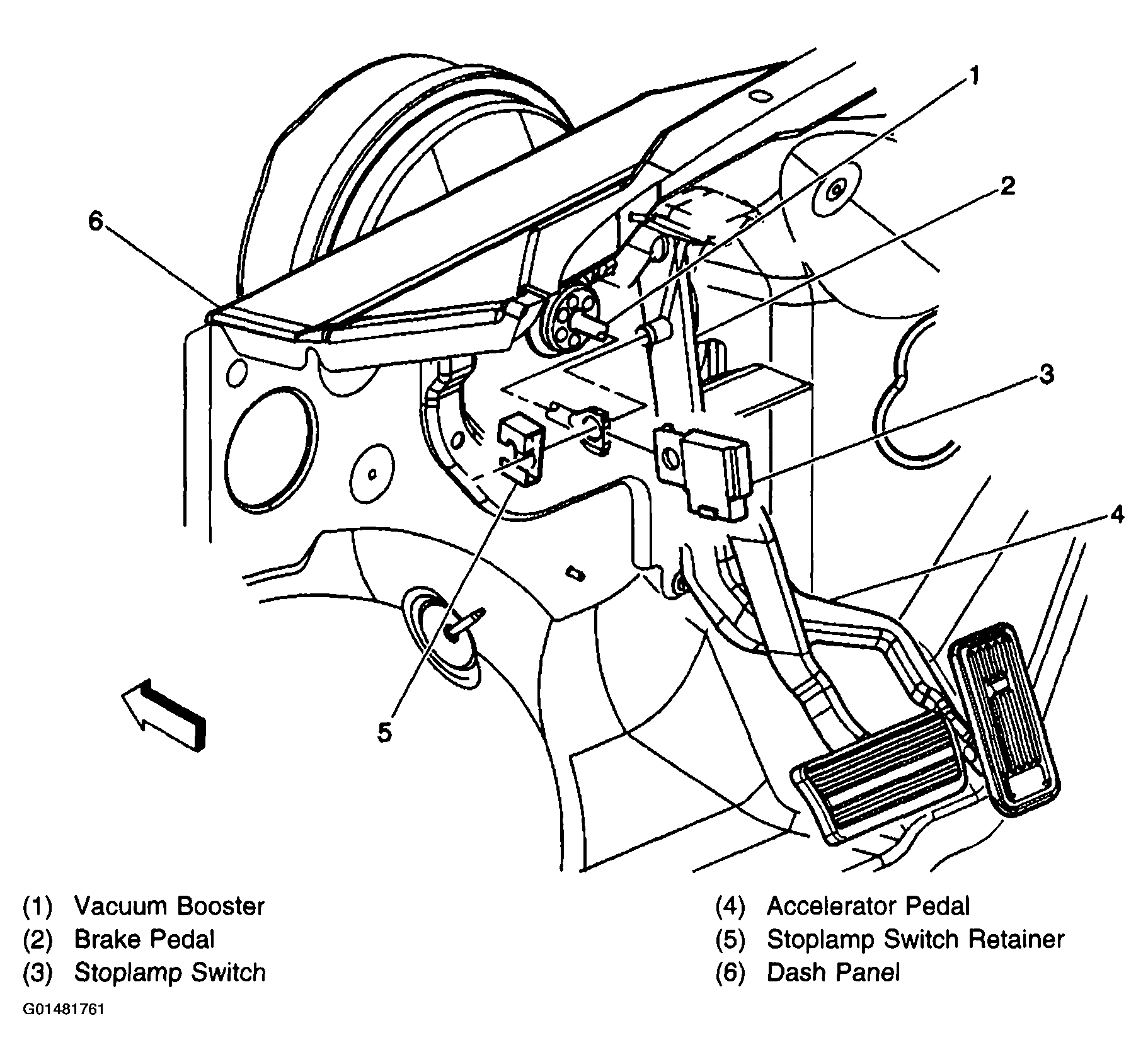

Fig 5: Stoplamp Switch Component View
G01481761Courtesy of GENERAL MOTORS CORP.
