Engine Electrical Component Views

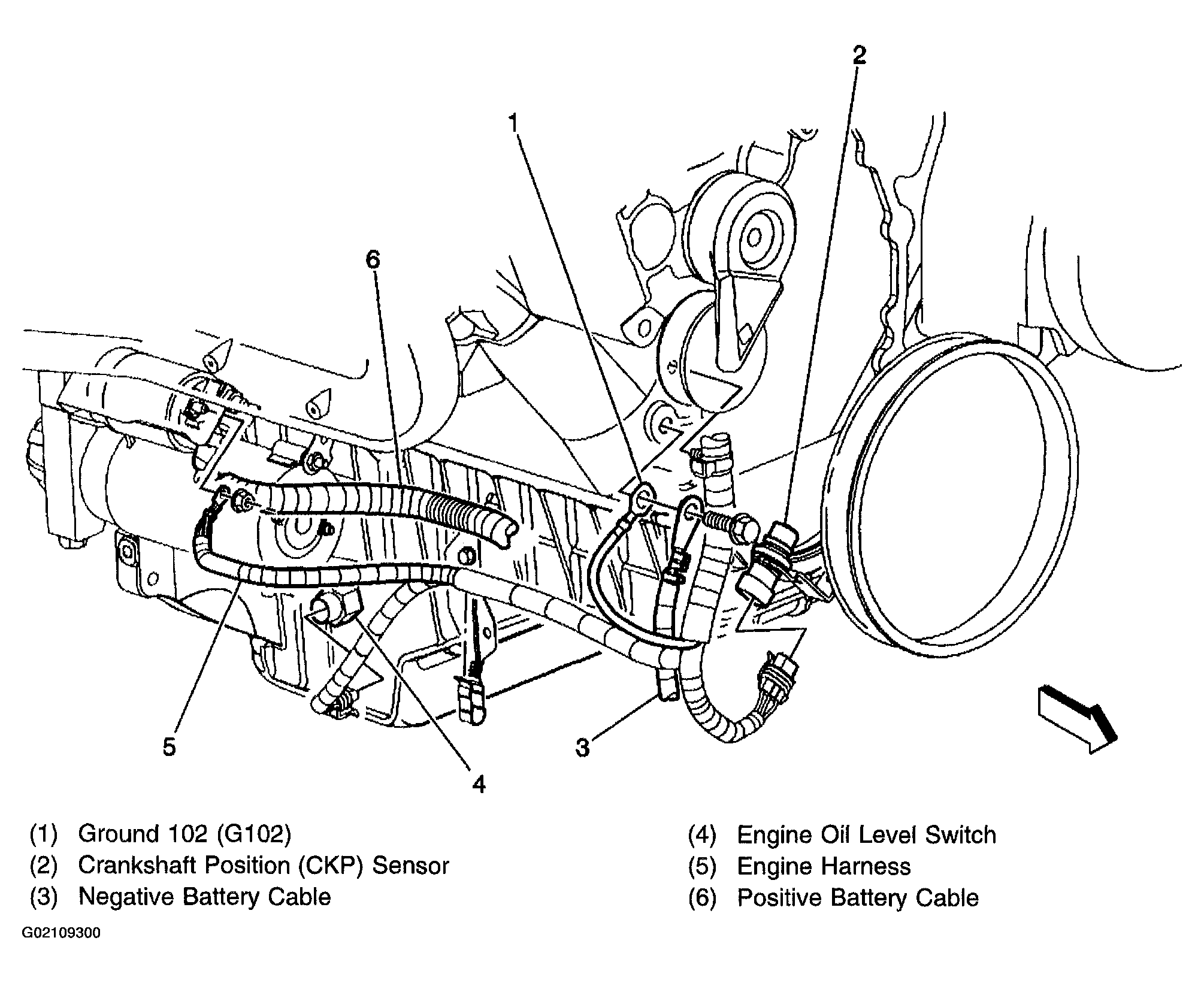

Fig 1: RH Front Of 4.3L Engine
G02109300Courtesy of GENERAL MOTORS CORP.

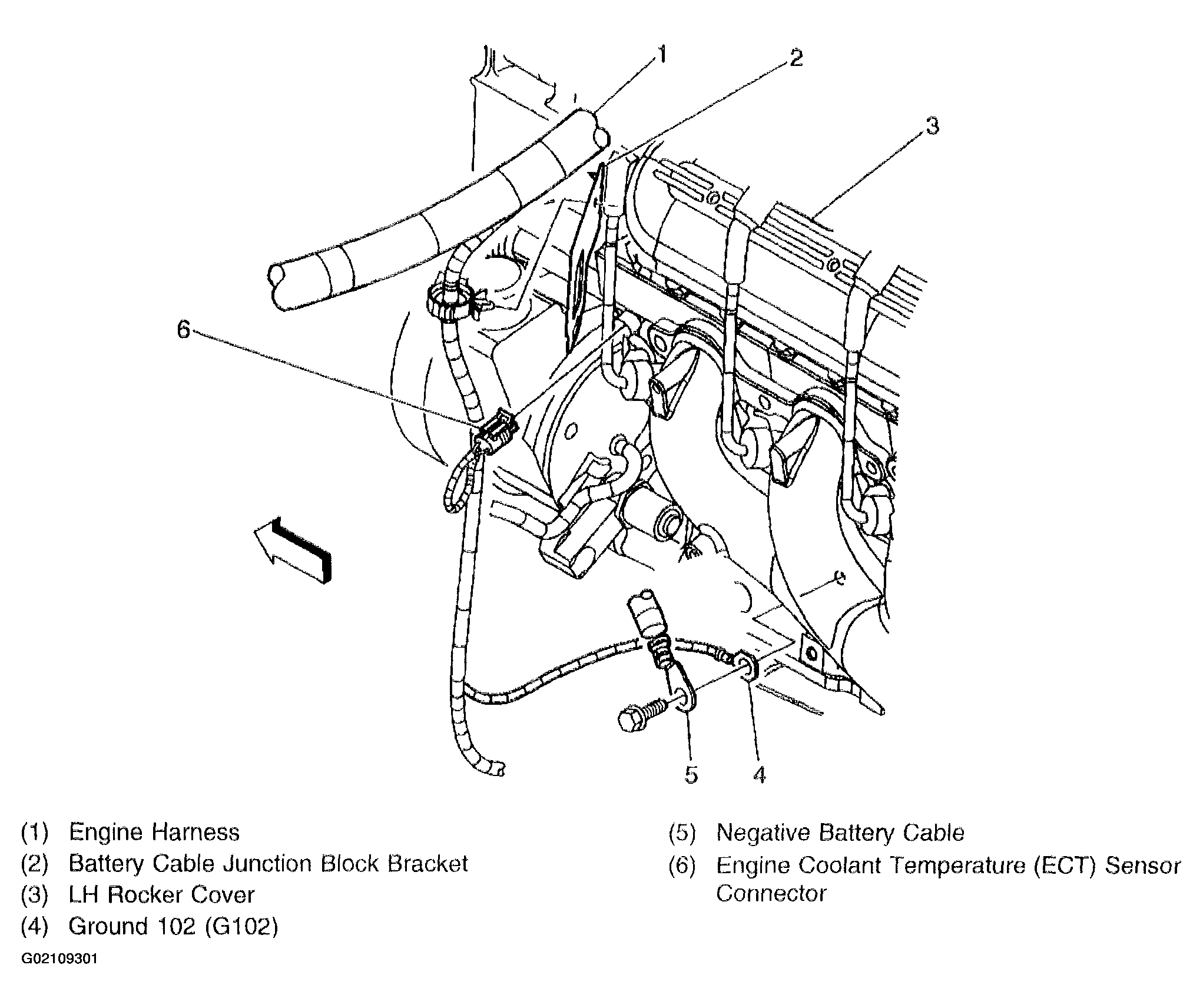

Fig 2: LH Side Of Engine 4.8L, 5.3L, 6.0L
G02109301Courtesy of GENERAL MOTORS CORP.

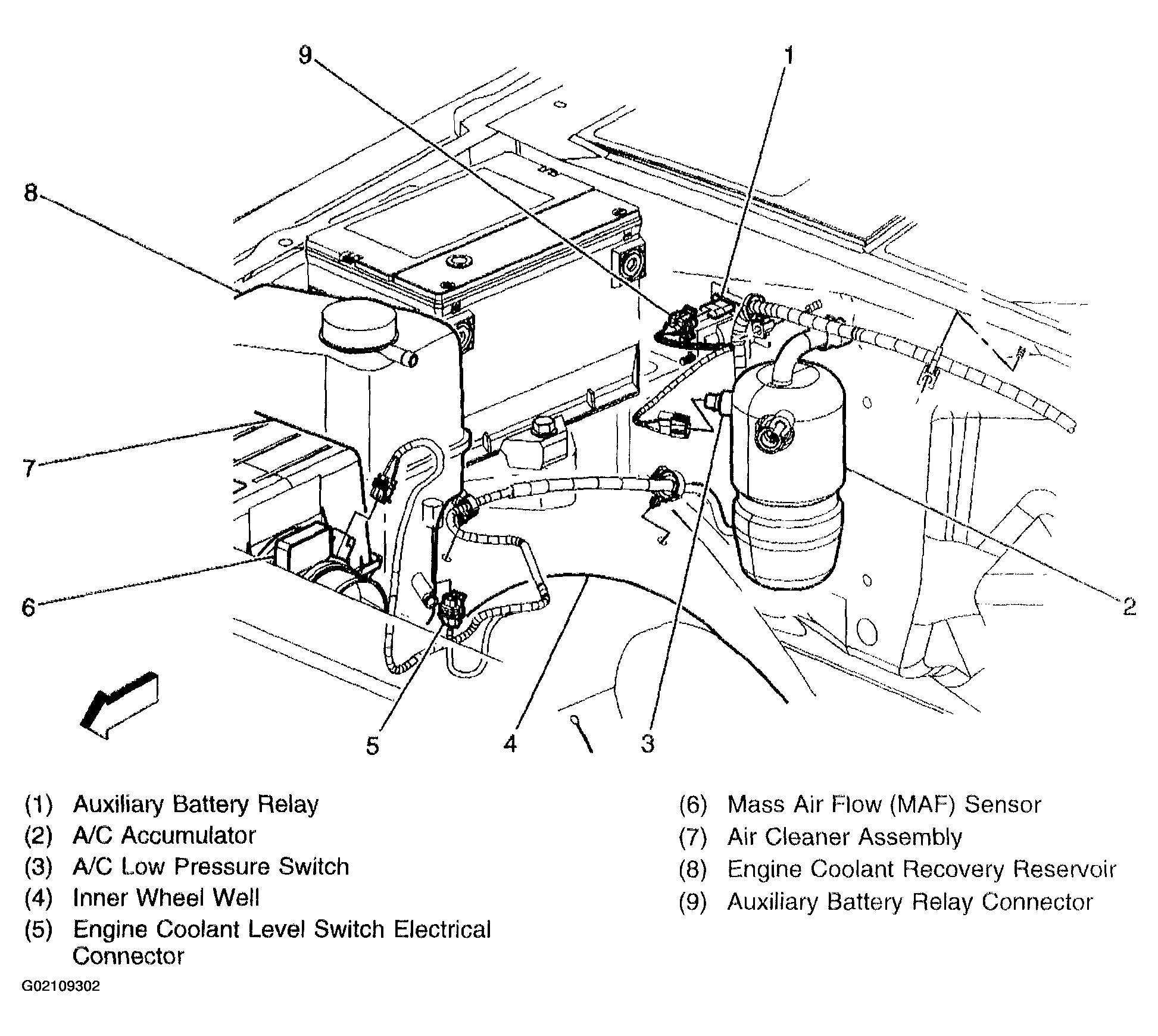

Fig 3: Auxiliary Battery Relay
G02109302Courtesy of GENERAL MOTORS CORP.

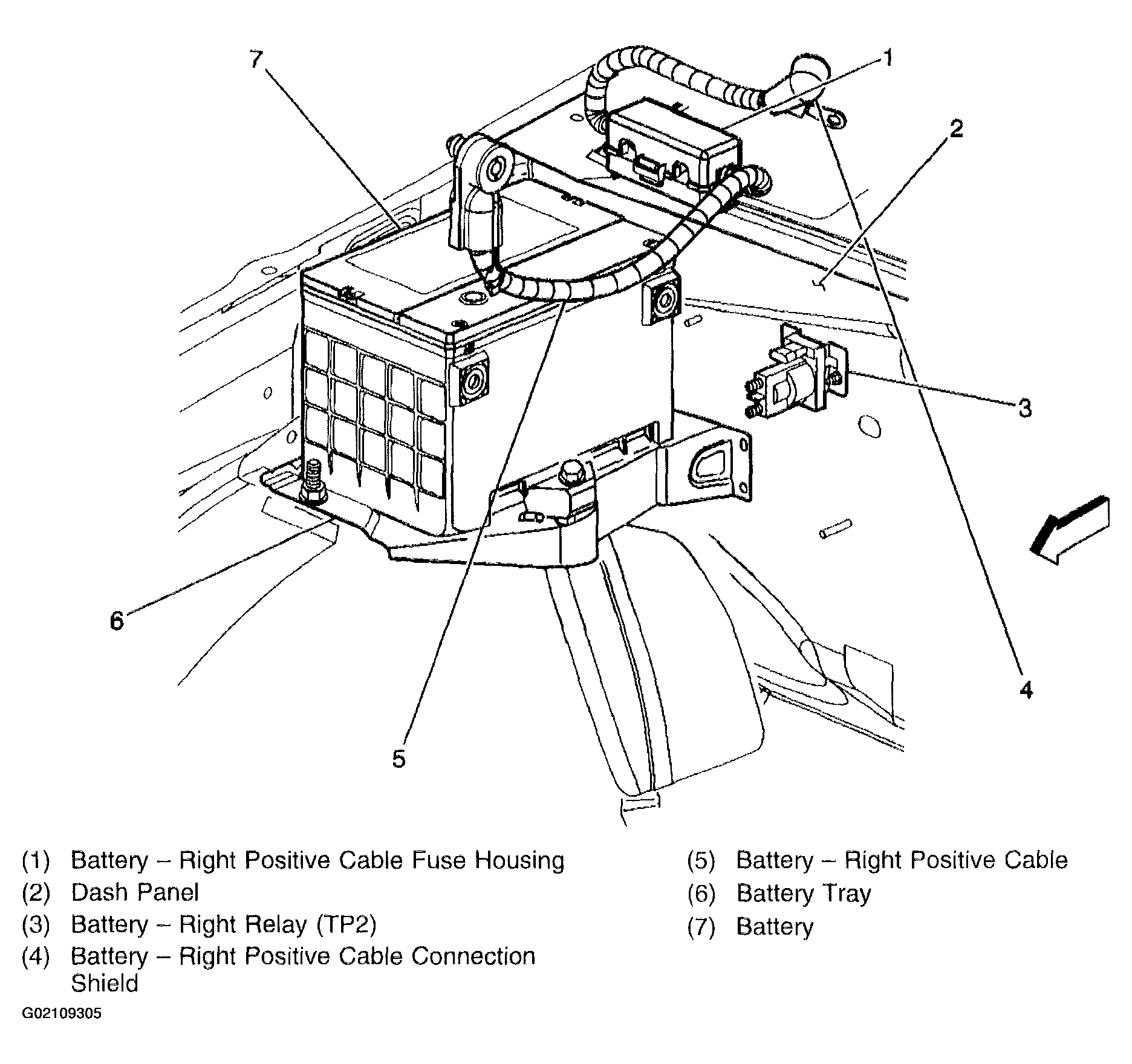

Fig 4: Auxiliary Battery
G02109305Courtesy of GENERAL MOTORS CORP.
