Installation Procedure

WARNING: This page is about a different car, the 2004 GMC Sierra, 2004 GMC Cab & Chassis Sierra, 2004 Chevrolet Silverado, and 2004 Chevrolet Cab & Chassis Silverado. However, it is still accessible from the selected car via links, so may be relevant.
  1. Position the inflatable restraint module to the steering wheel.

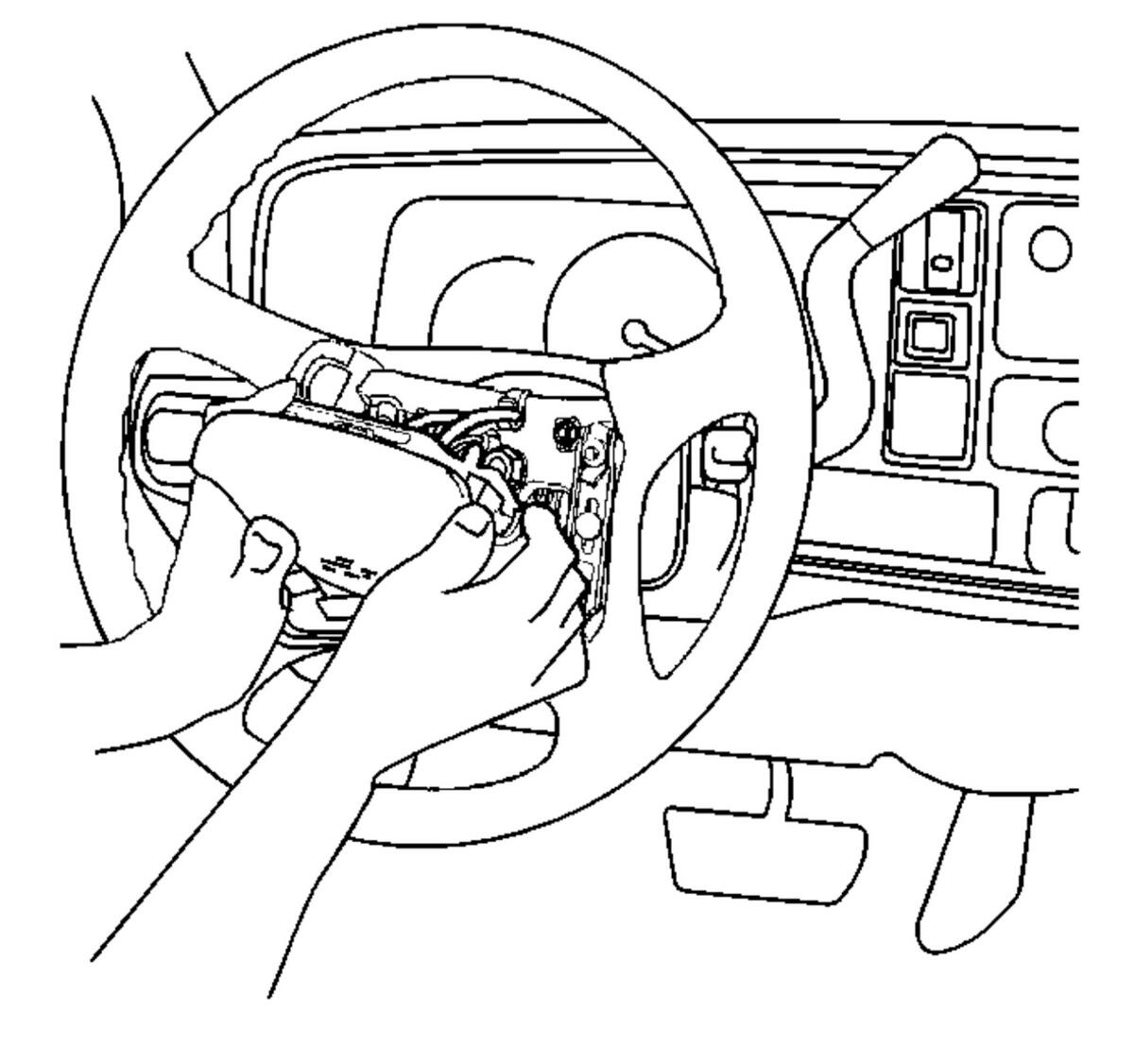

    Fig 1: Inflatable Restraint Steering Wheel Module
    GM245799Courtesy of GENERAL MOTORS CORP.
  2. Connect the electrical connectors to the inflatable restraint steering wheel module.
  3. Connect the CPA retainers into the electrical connectors. Seat and lock the connections.

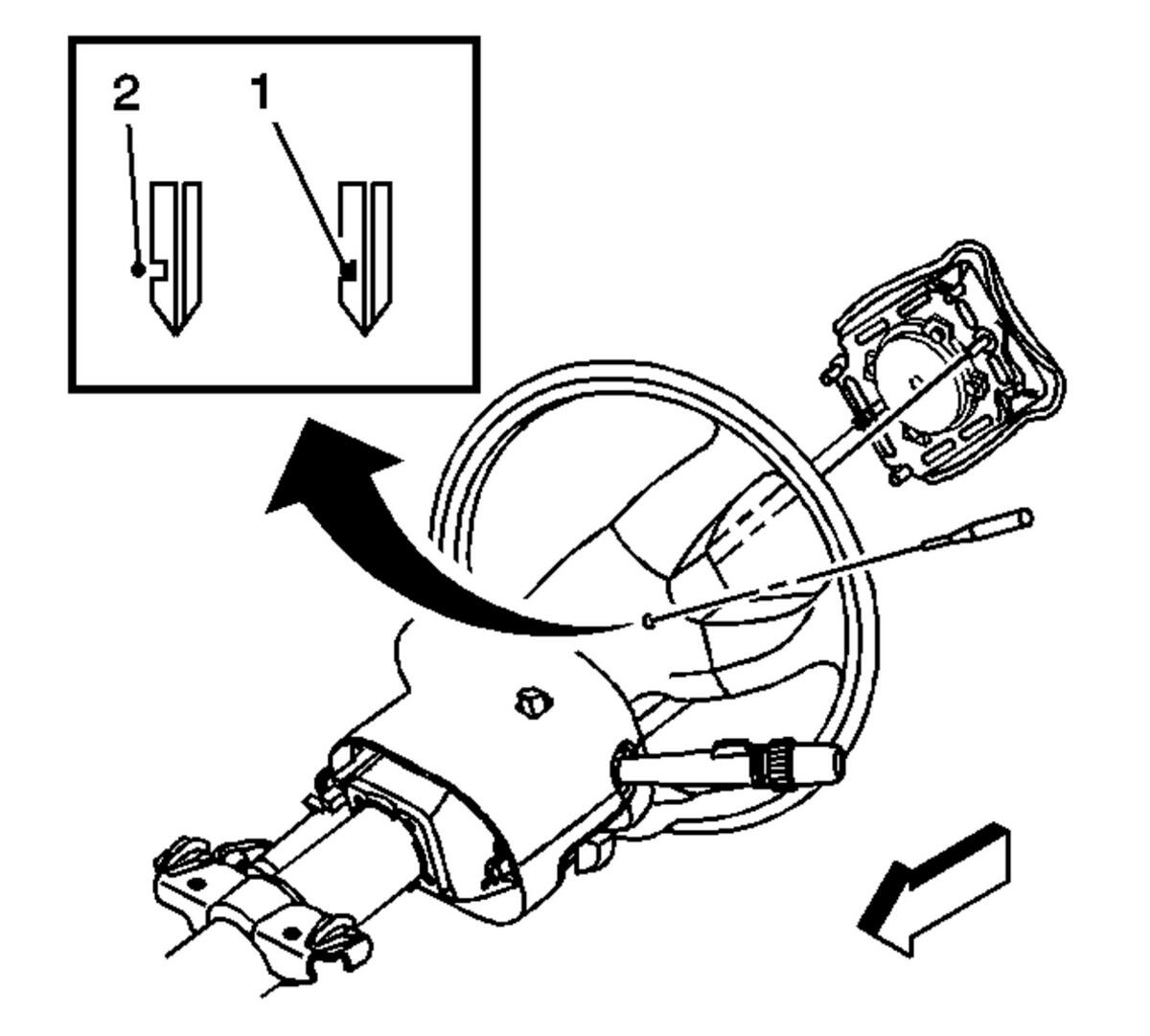

    4. Fig 2: Removing/Installing Leaf Spring Fasteners
    GM760459Courtesy of GENERAL MOTORS CORP.
  4. Position the alignment posts of the inflatable restraint module to the holes that are located on the steering wheel housing.
  5. Push the inflatable restraint module into the steering wheel in order to engage and in order to latch the 2 leaf spring fasteners (1).
  6. After installation, pull the sides of the inflatable restraint module in order to ensure that both leaf spring fasteners are engaged.
  7. Enable the inflatable restraint steering wheel module. Refer to SIR Disabling and Enabling Zone 3 .
