Component Location Graphics
Component Location Graphics
NOTE:
Figures may show multiple component locations. Refer to appropriate table for proper figure references.
Fig 1: Underhood Fuse Block
Courtesy of GENERAL MOTORS CORP.

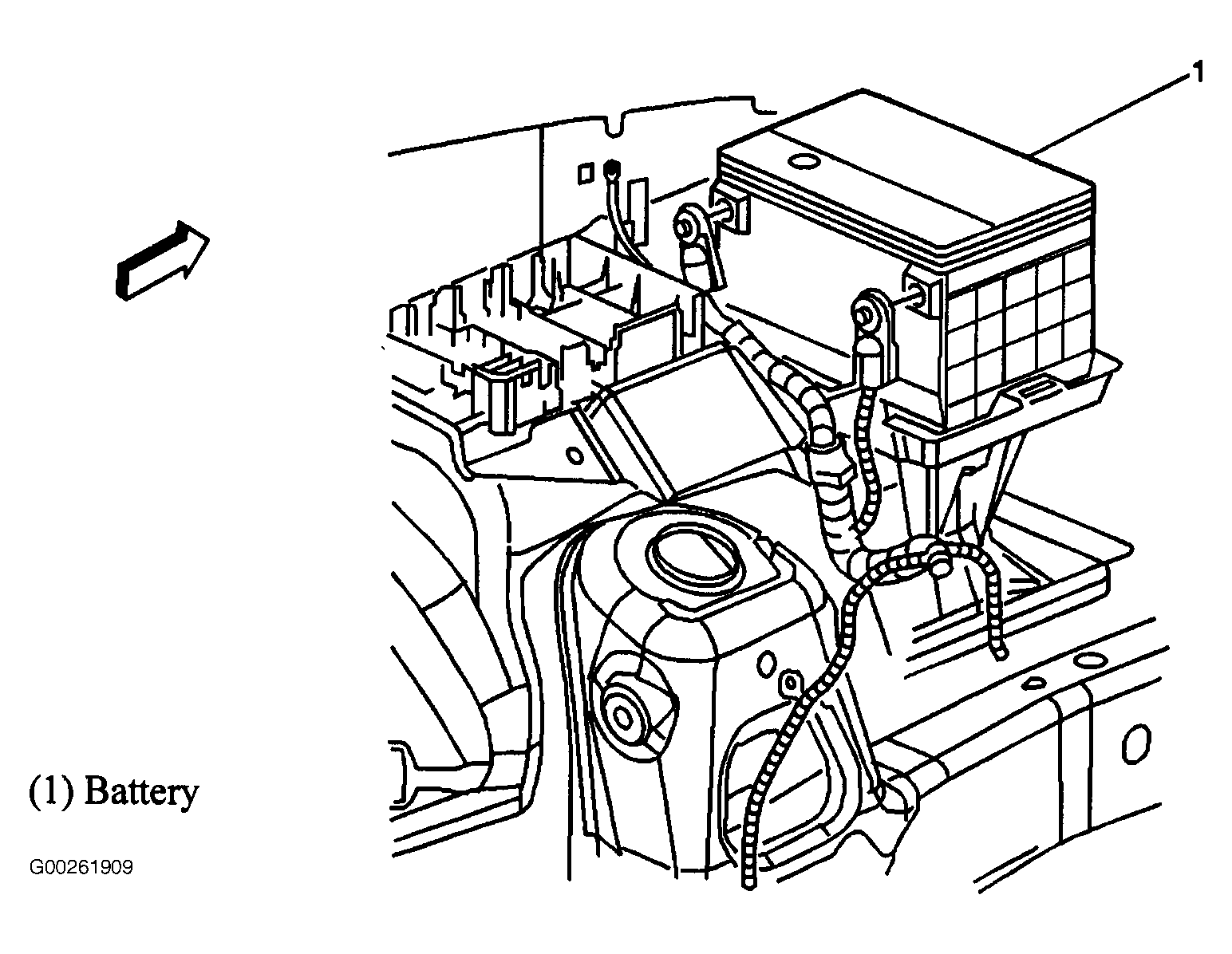

Fig 2: Left Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 3: Left Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.

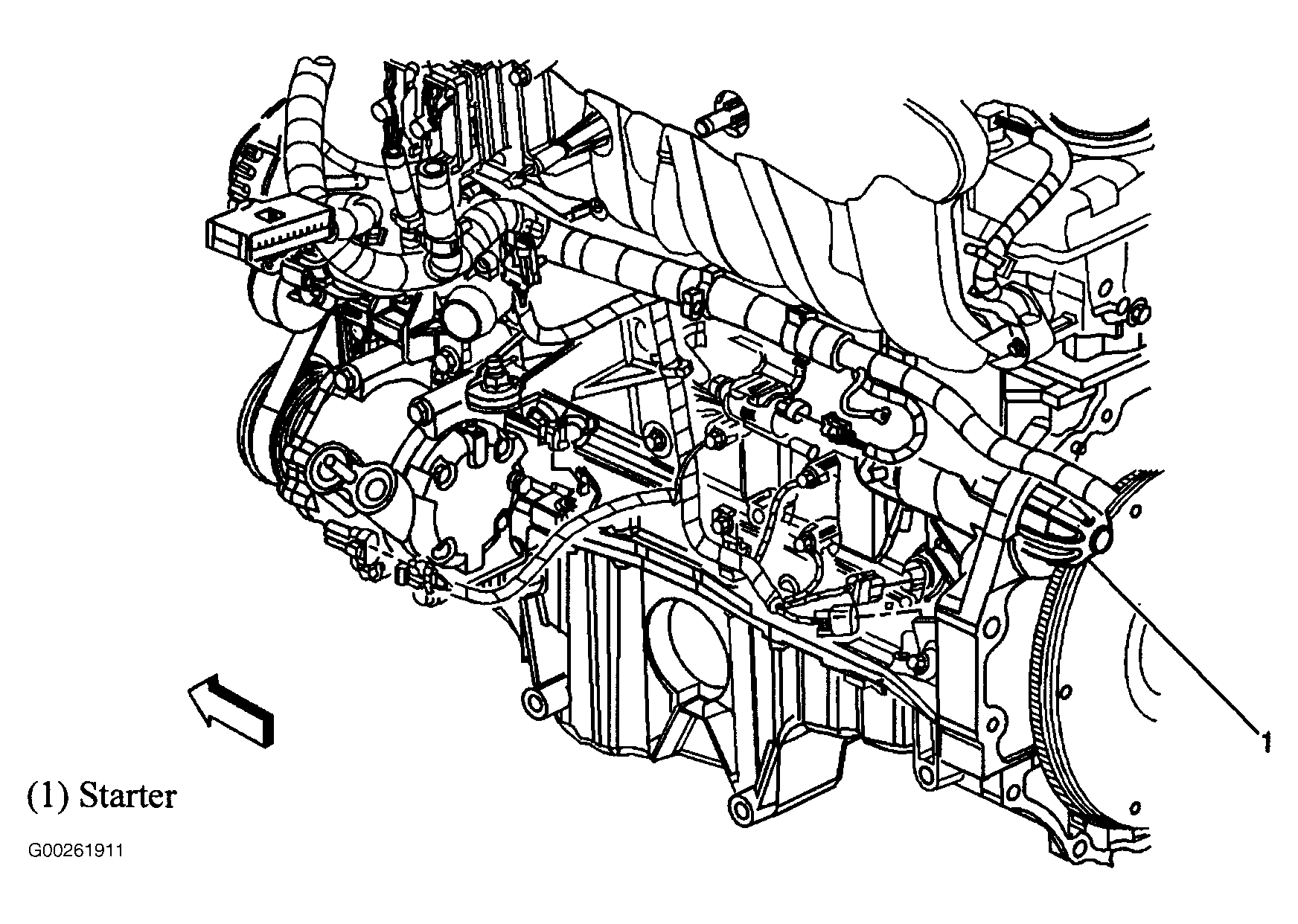

Fig 4: Left Front Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 5: Vehicle Floor Pan
Courtesy of GENERAL MOTORS CORP.

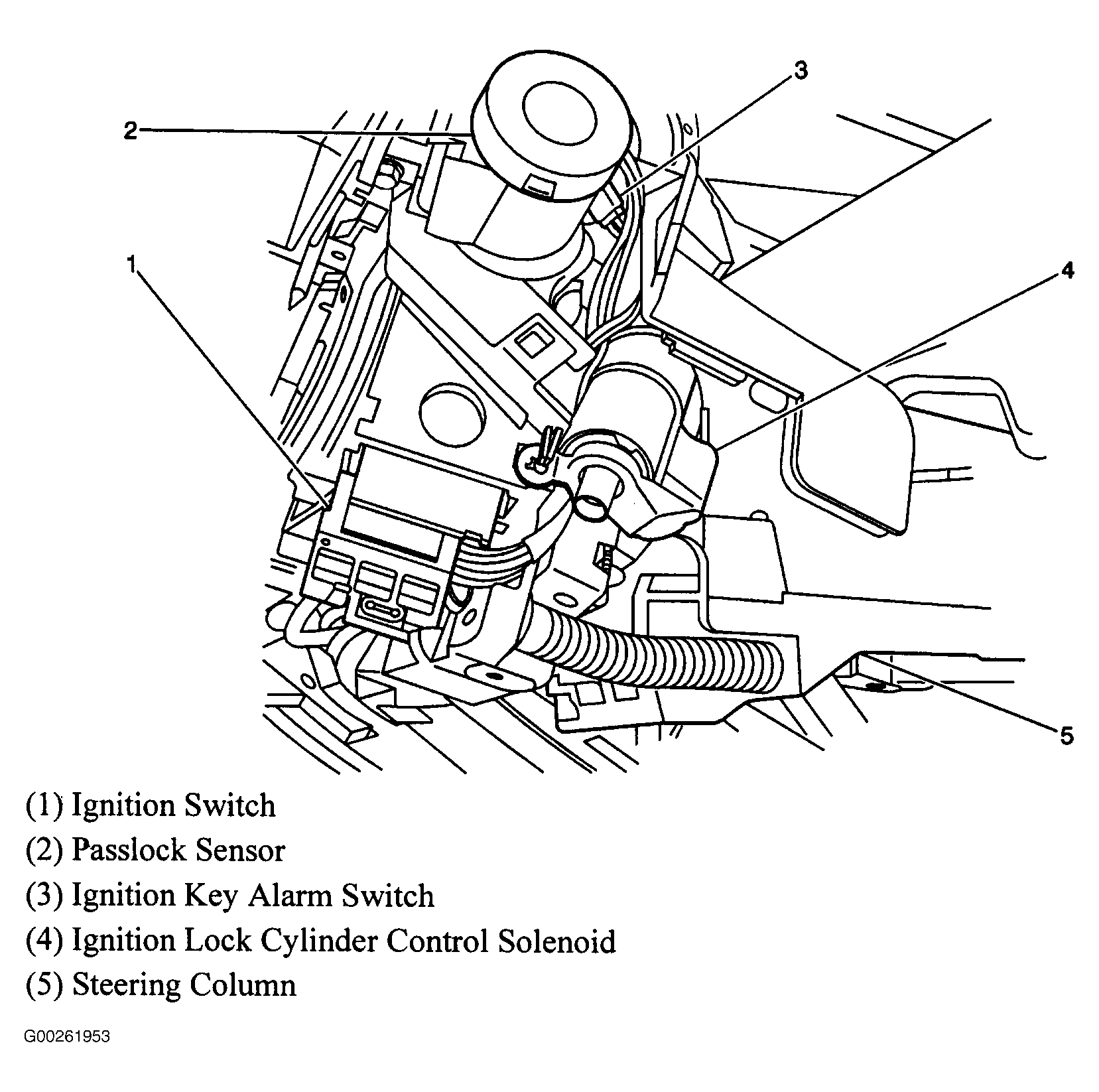

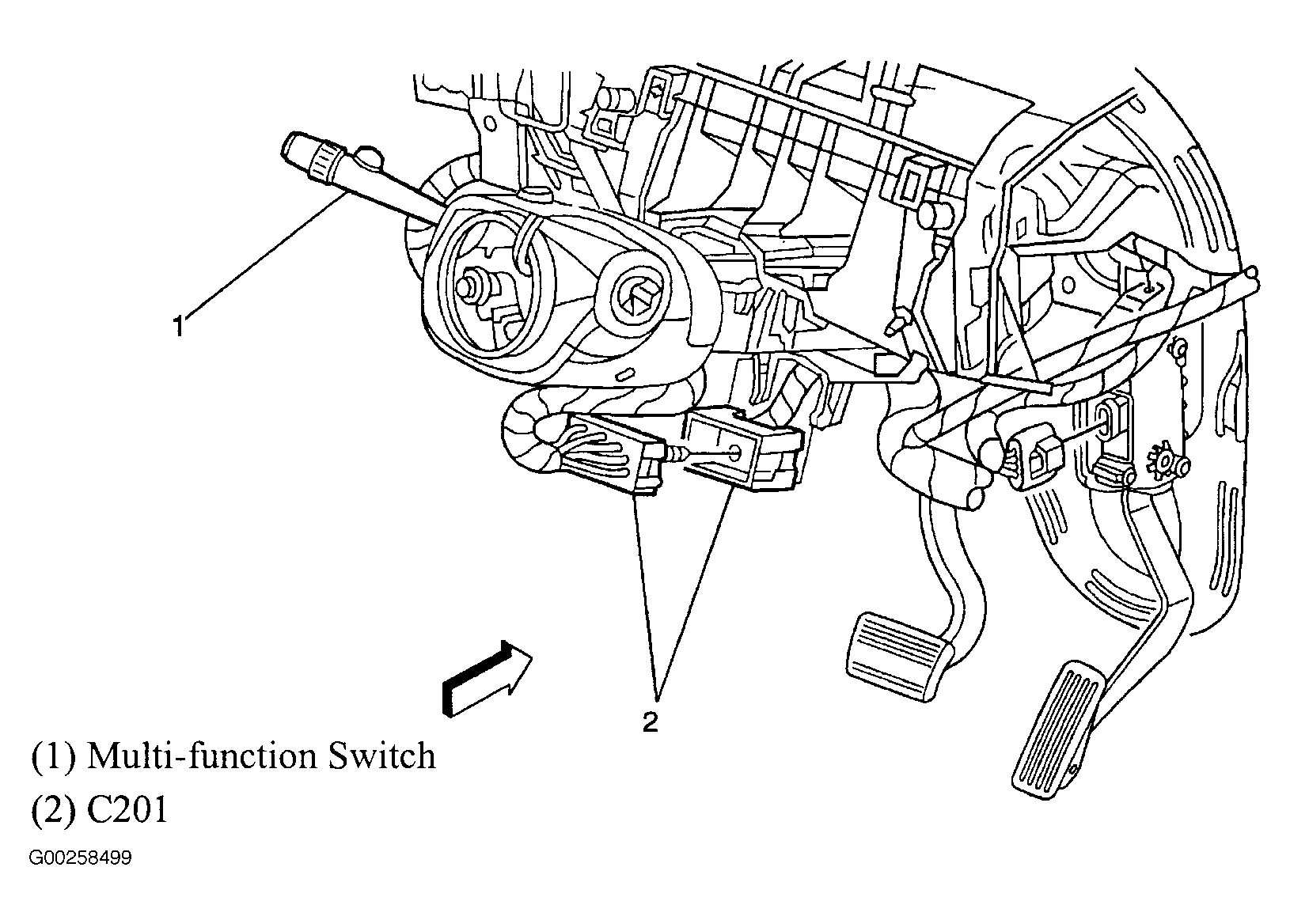

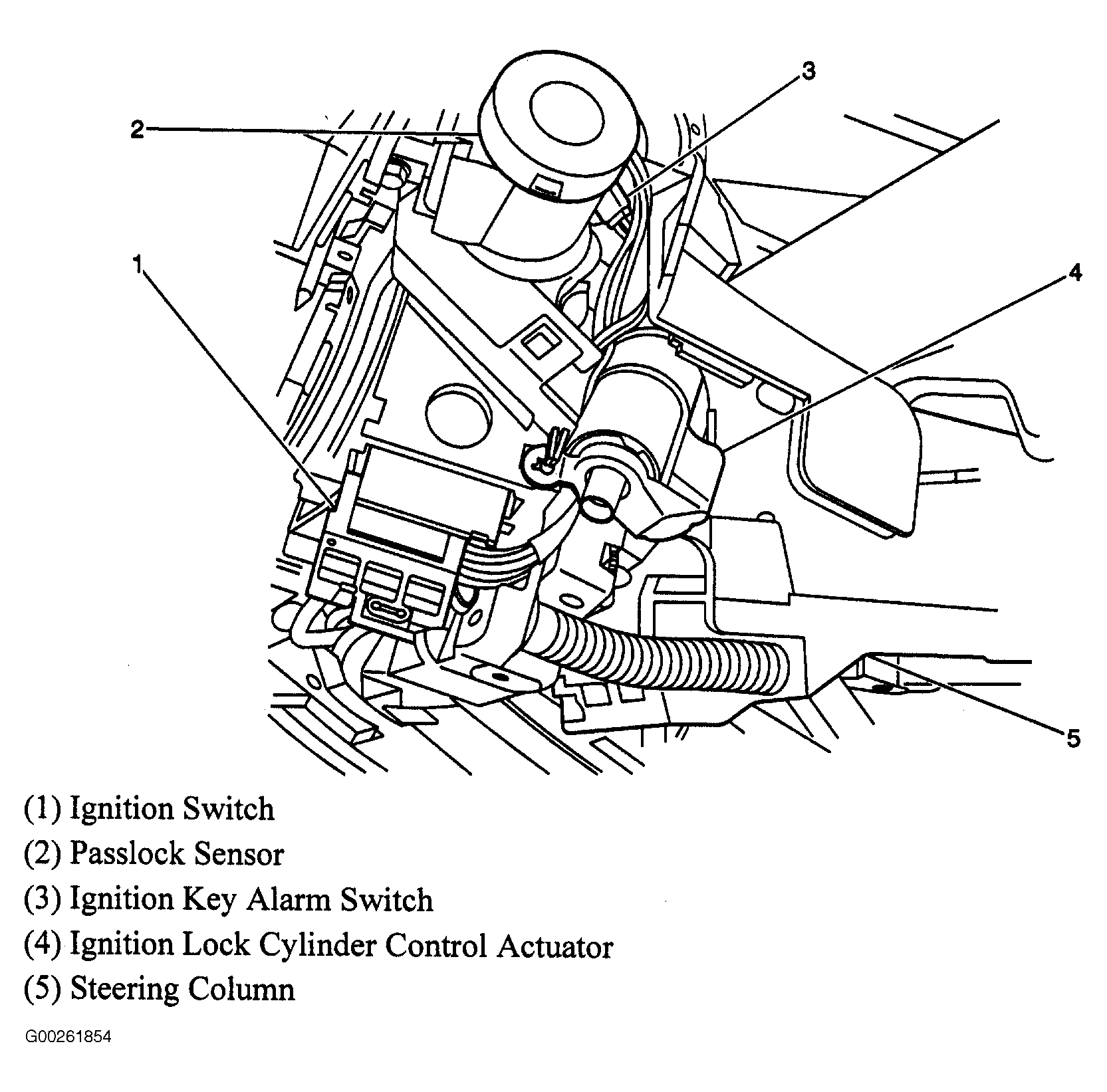

Fig 6: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 7: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 8: Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 9: Vehicle Frame
Courtesy of GENERAL MOTORS CORP.

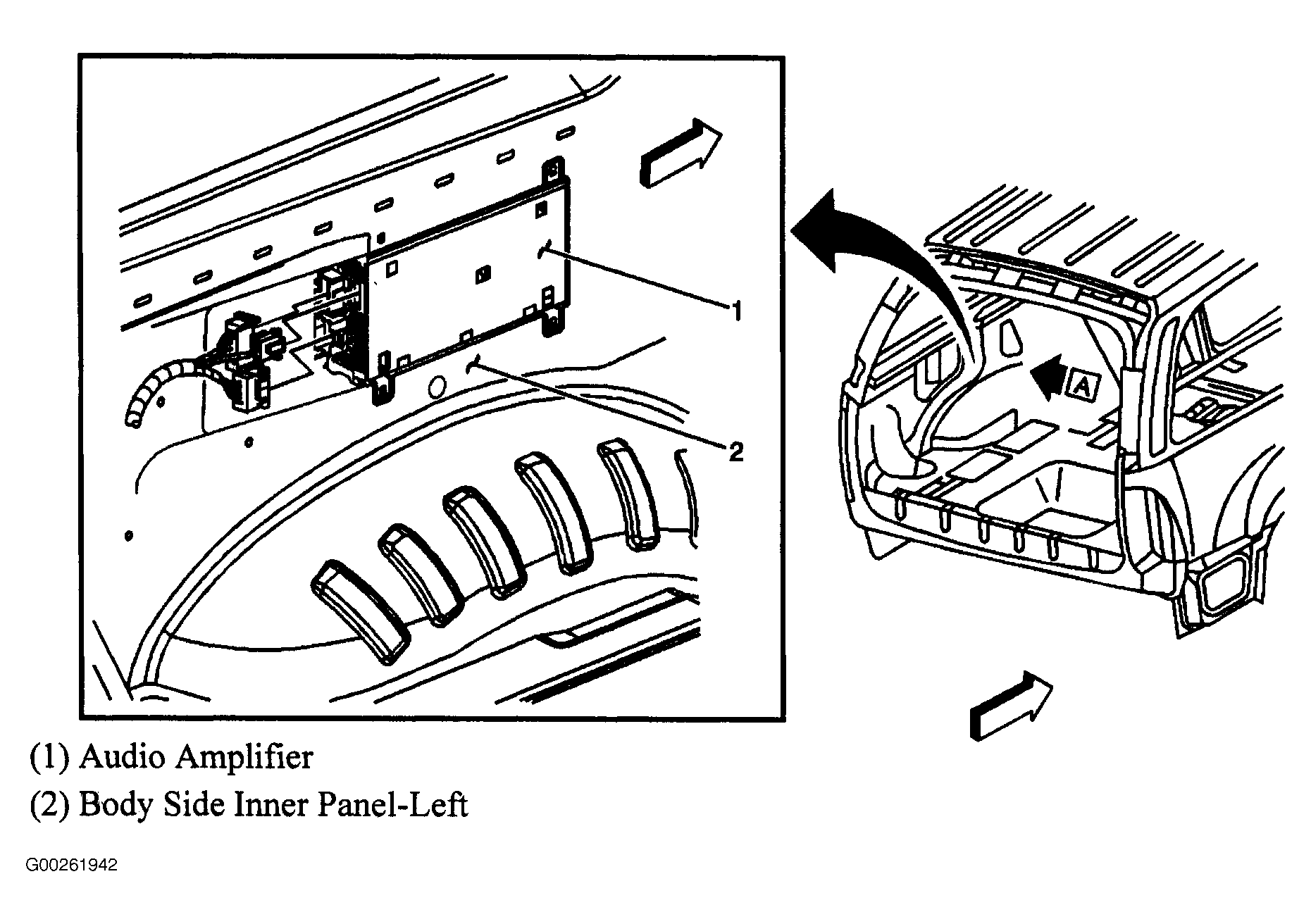

Fig 10: Left Rear Of Luggage Compartment
Courtesy of GENERAL MOTORS CORP.

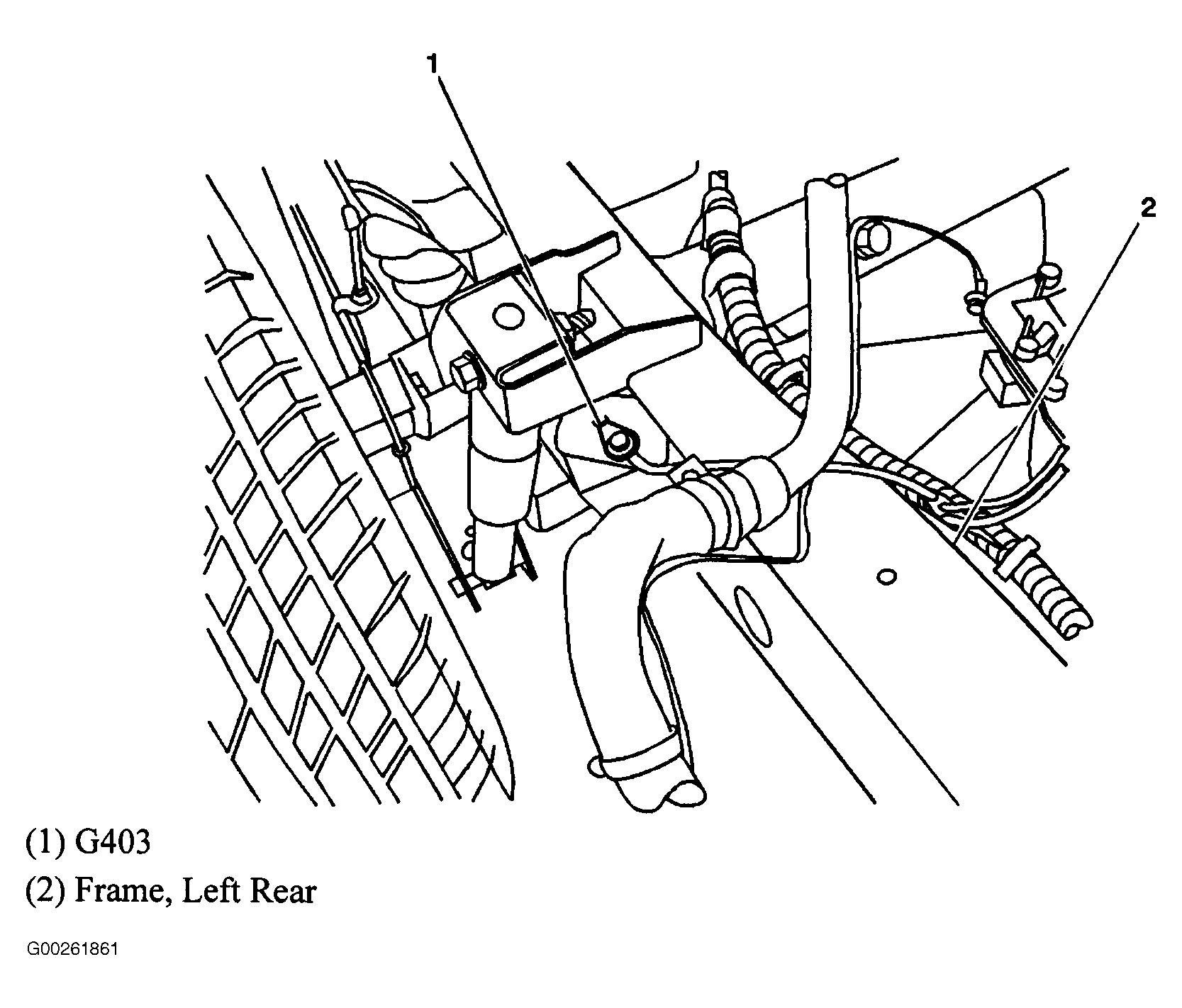

Fig 11: Left Rear Frame (Short Wheelbase, Body Type VIN 3)
Courtesy of GENERAL MOTORS CORP.
Fig 12: Left Rear Frame (Long Wheelbase, Body Type VIN 6)
Courtesy of GENERAL MOTORS CORP.
Fig 13: Left Rear Body Side Panel (XUV)
Courtesy of GENERAL MOTORS CORP.
Fig 14: Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 15: Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.

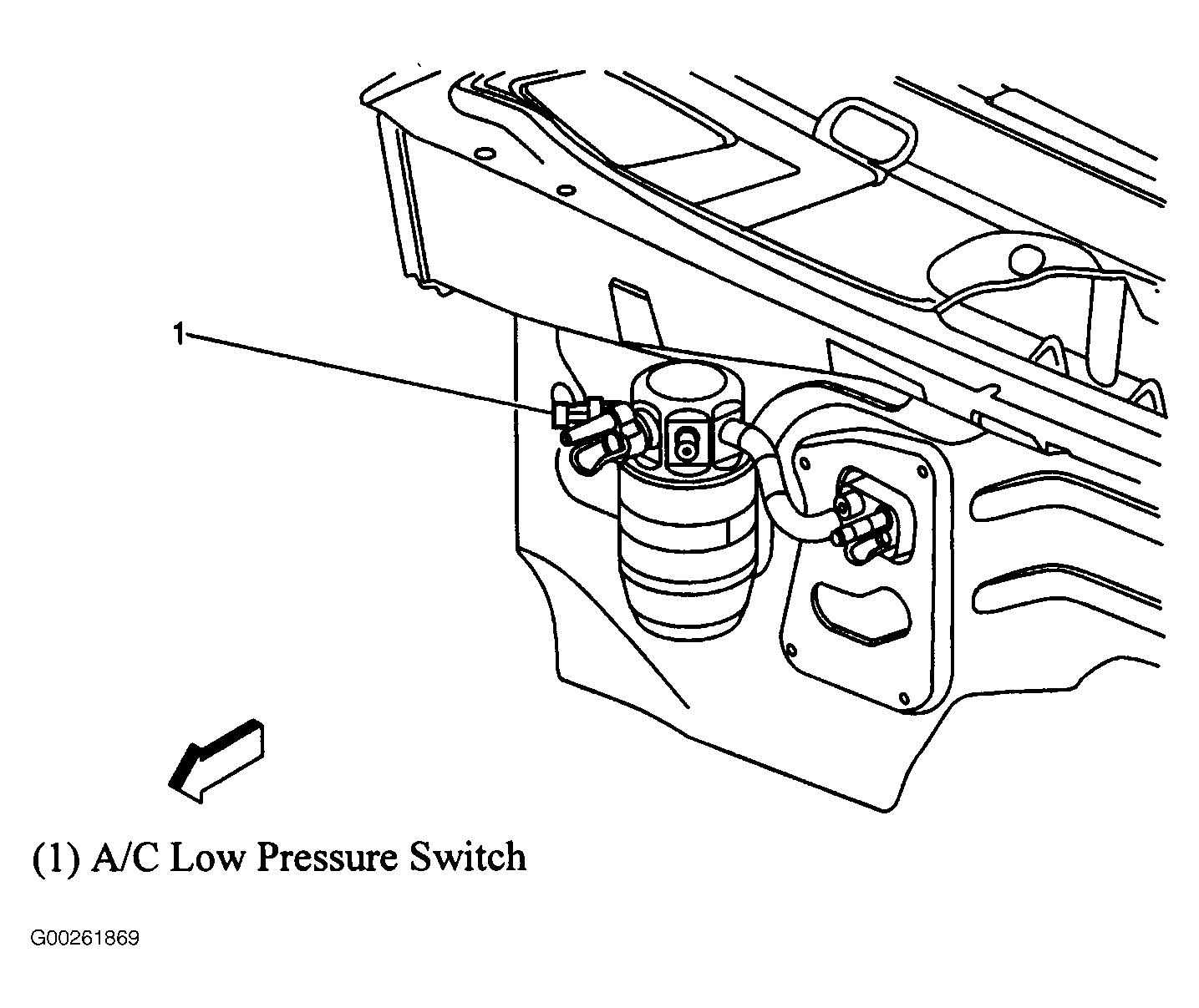

Fig 16: Right Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 17: Left & Right Instrument Panel Carrier
Courtesy of GENERAL MOTORS CORP.
Fig 18: Dash Panel Carrier
Courtesy of GENERAL MOTORS CORP.

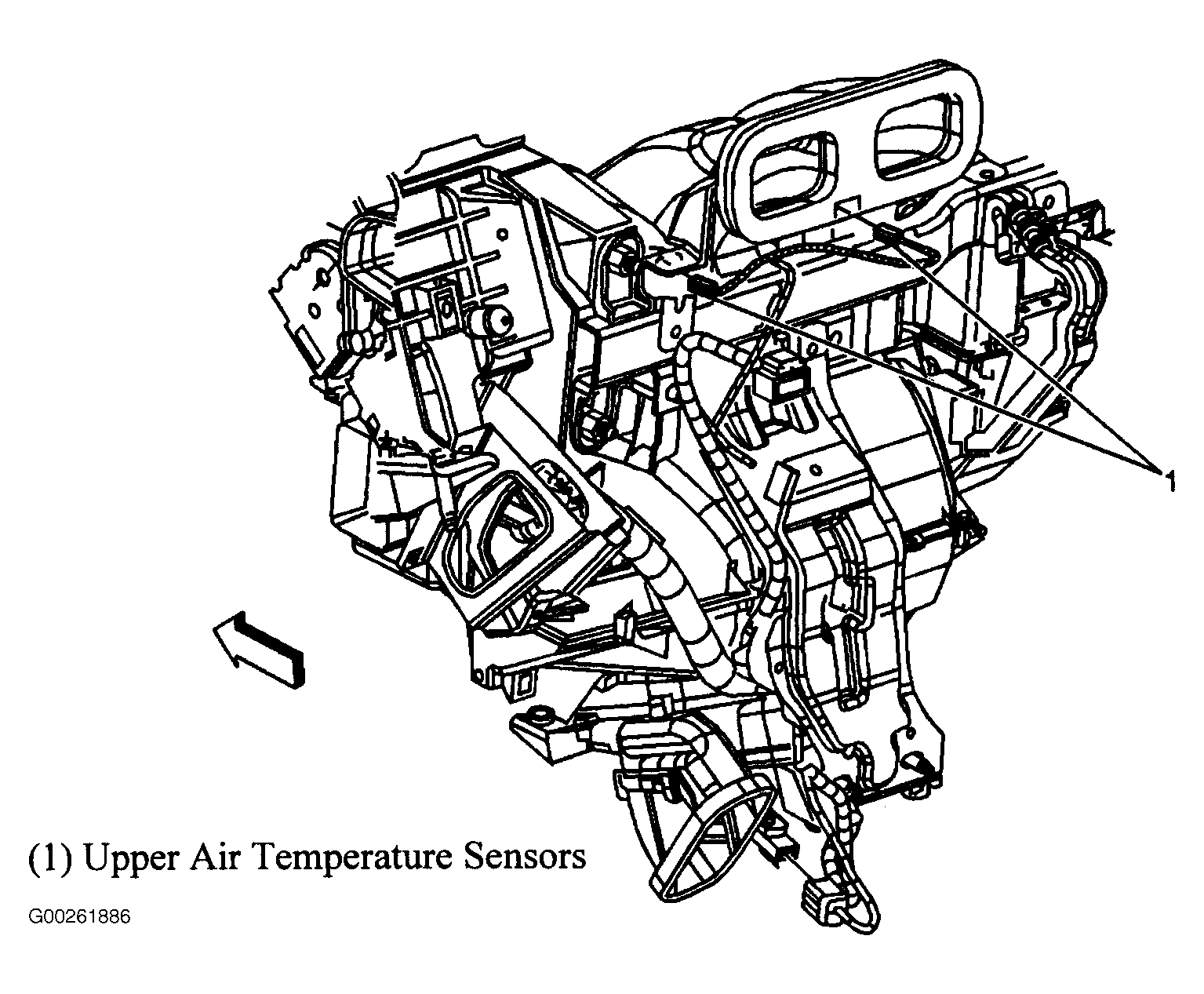

Fig 19: Center Of Dash
Courtesy of GENERAL MOTORS CORP.

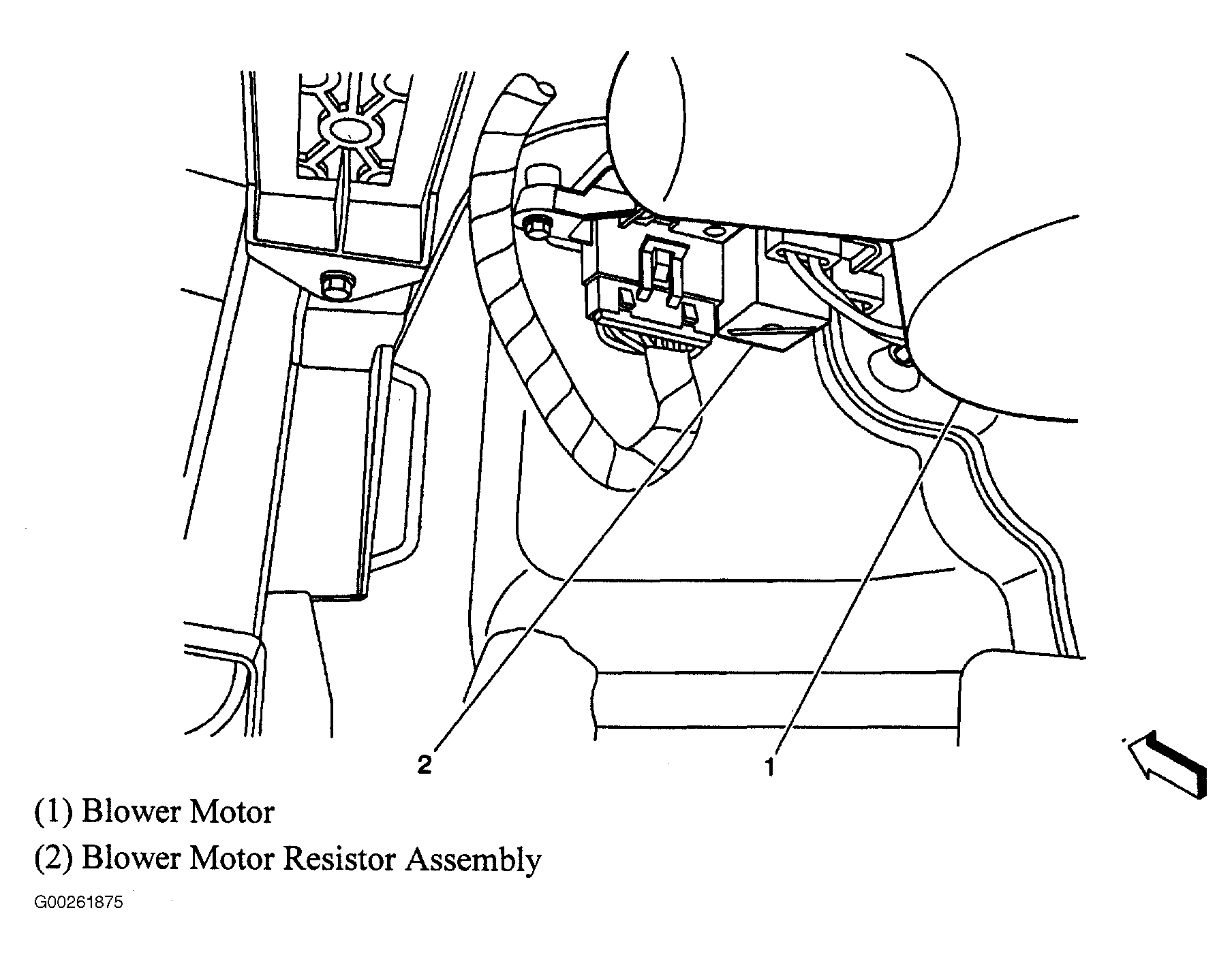

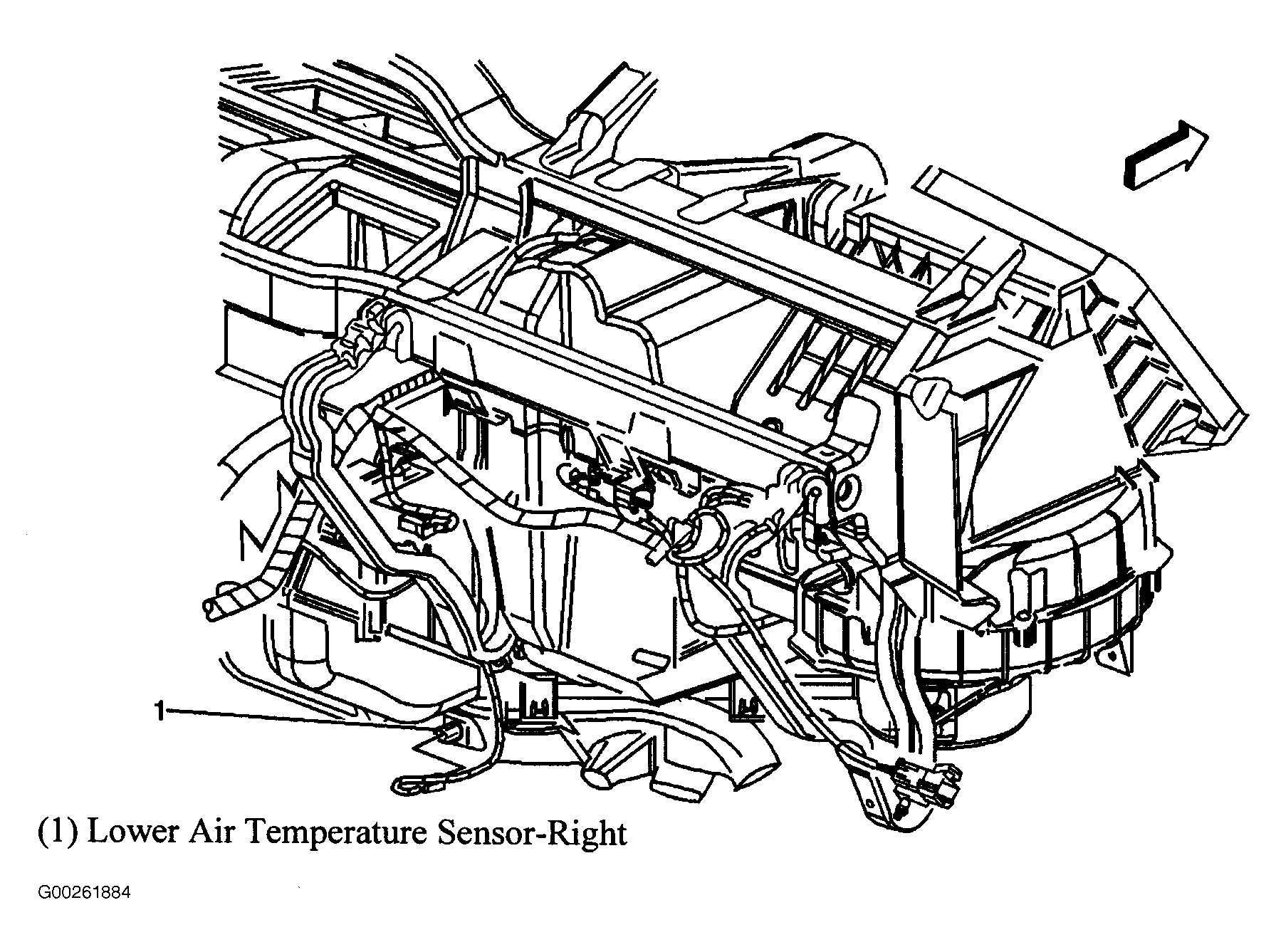

Fig 20: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 21: Lower Console
Courtesy of GENERAL MOTORS CORP.

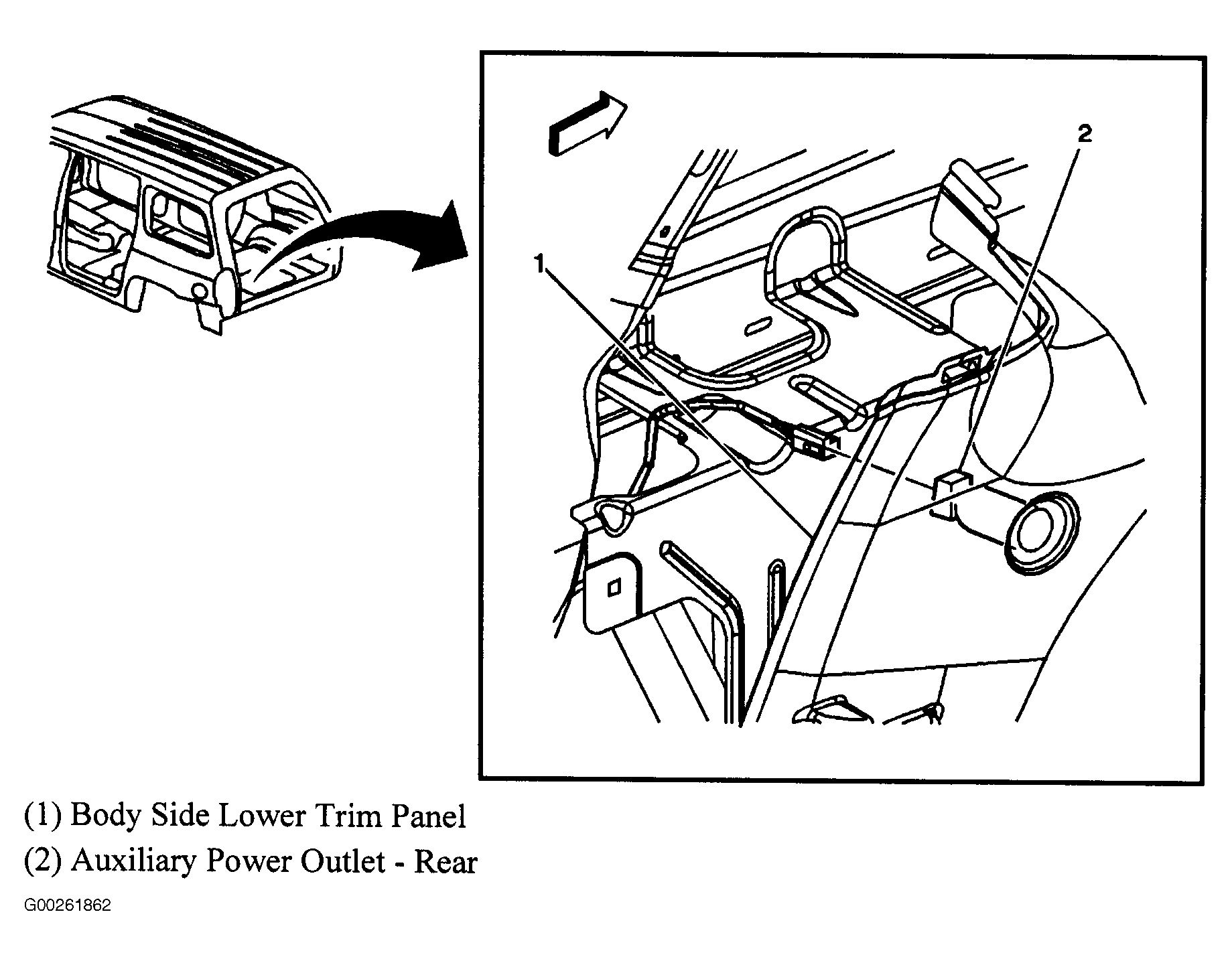

Fig 22: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 23: Right Front Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 24: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 25: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 26: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 27: Dash
Courtesy of GENERAL MOTORS CORP.

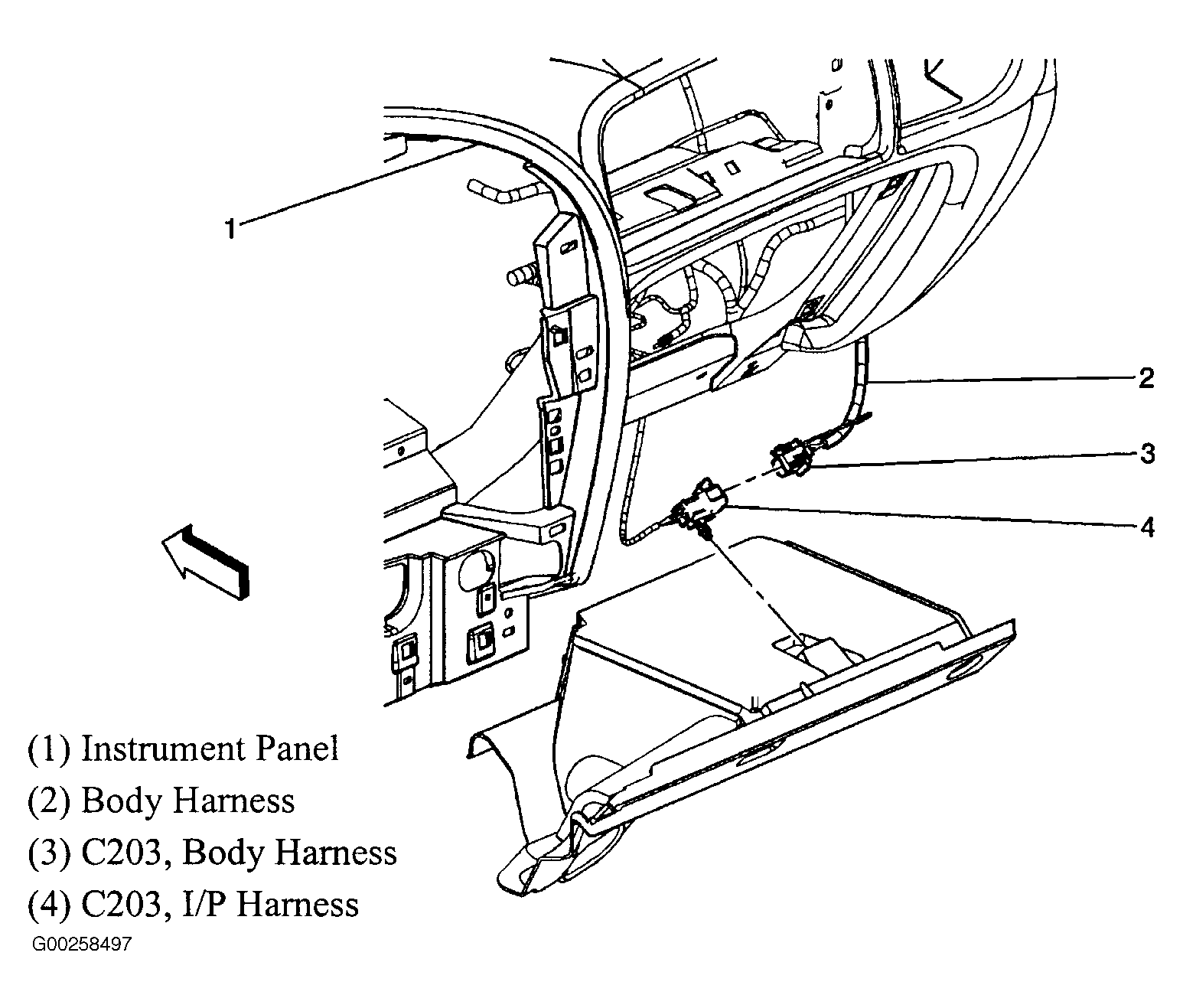

Fig 28: Lower Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 29: Left "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 30: Right Rear Of Vehicle Chassis (Long Wheelbase, Except XUV)
Courtesy of GENERAL MOTORS CORP.

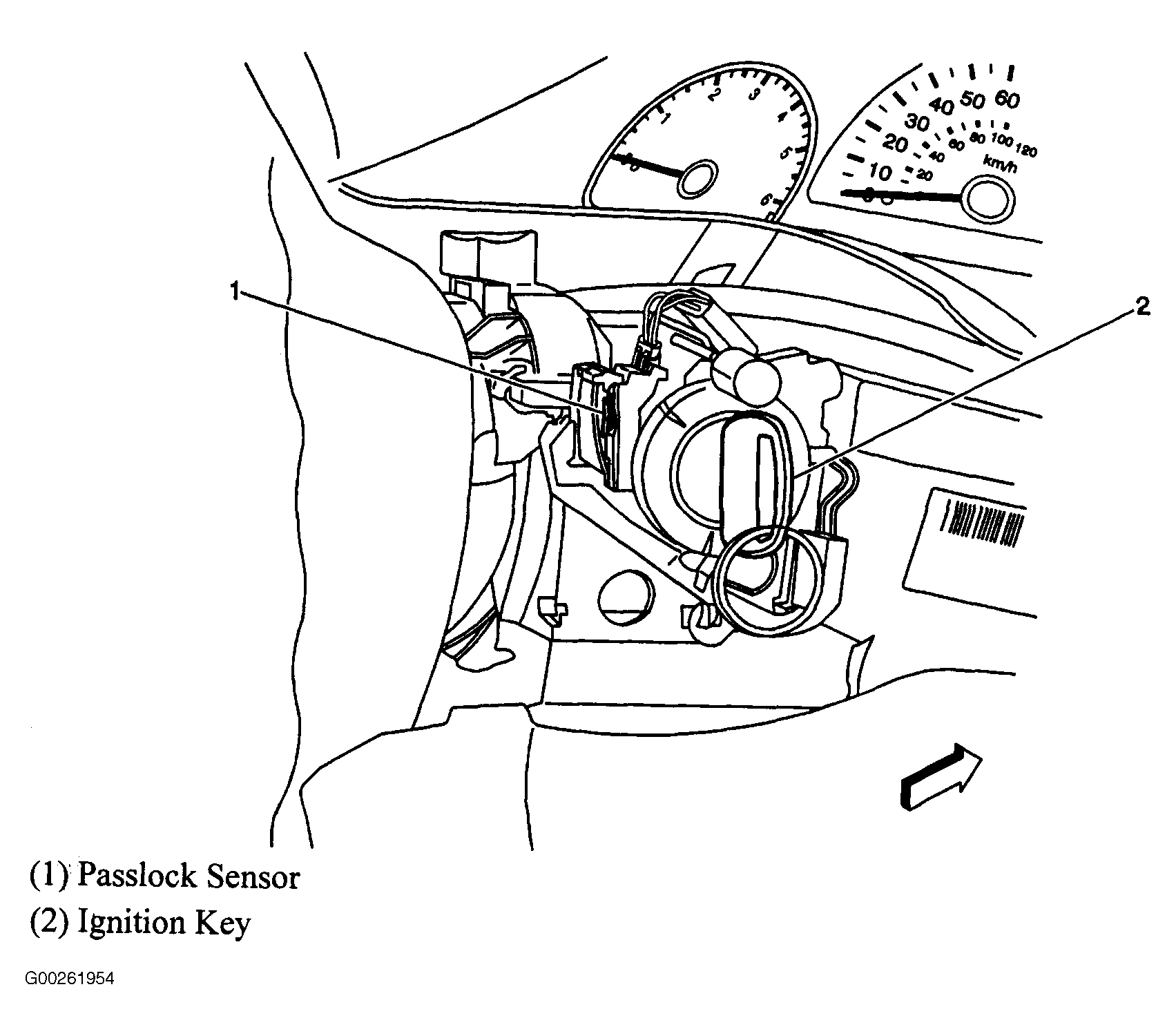

Fig 31: Steering Column Components
Courtesy of GENERAL MOTORS CORP.

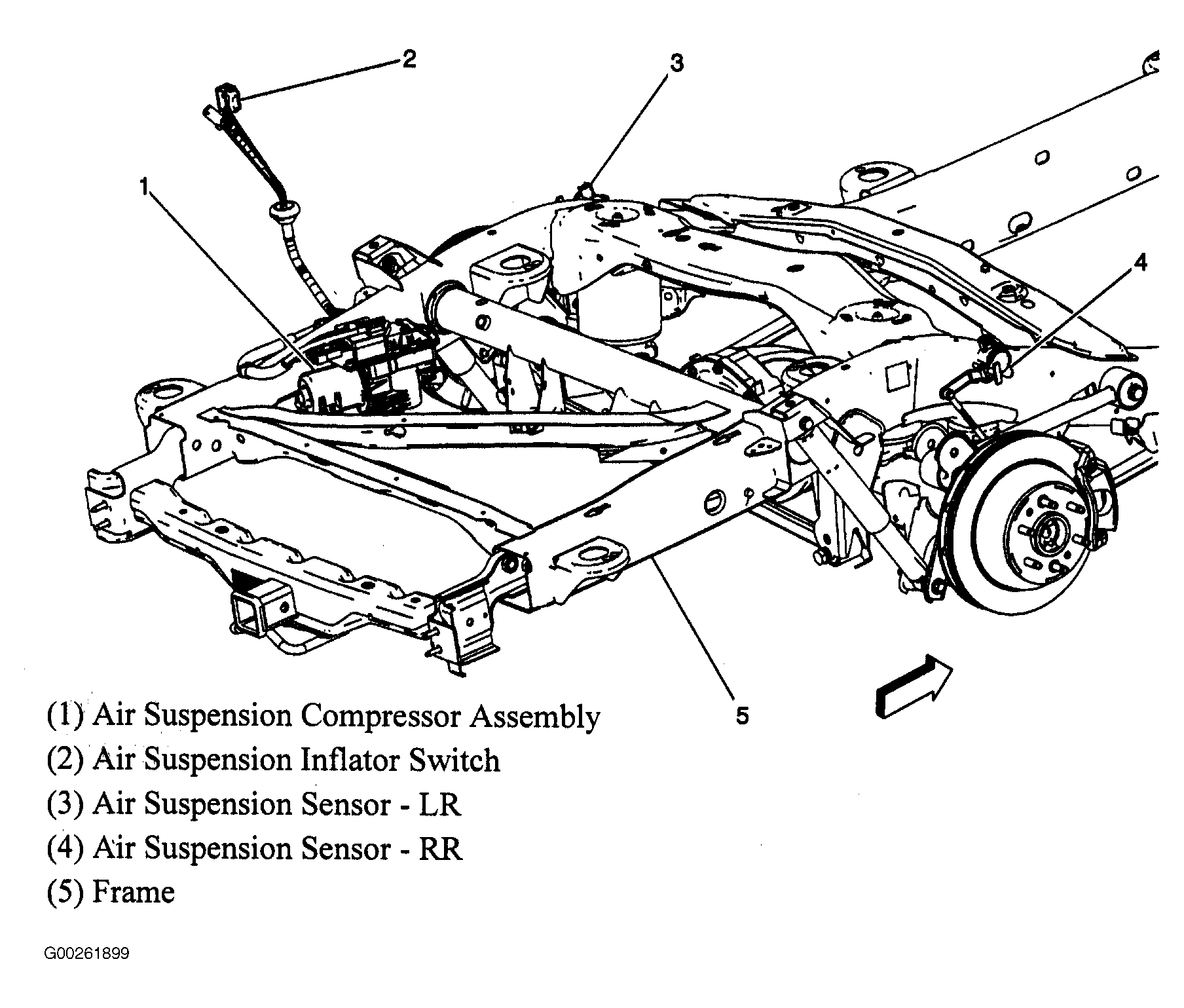

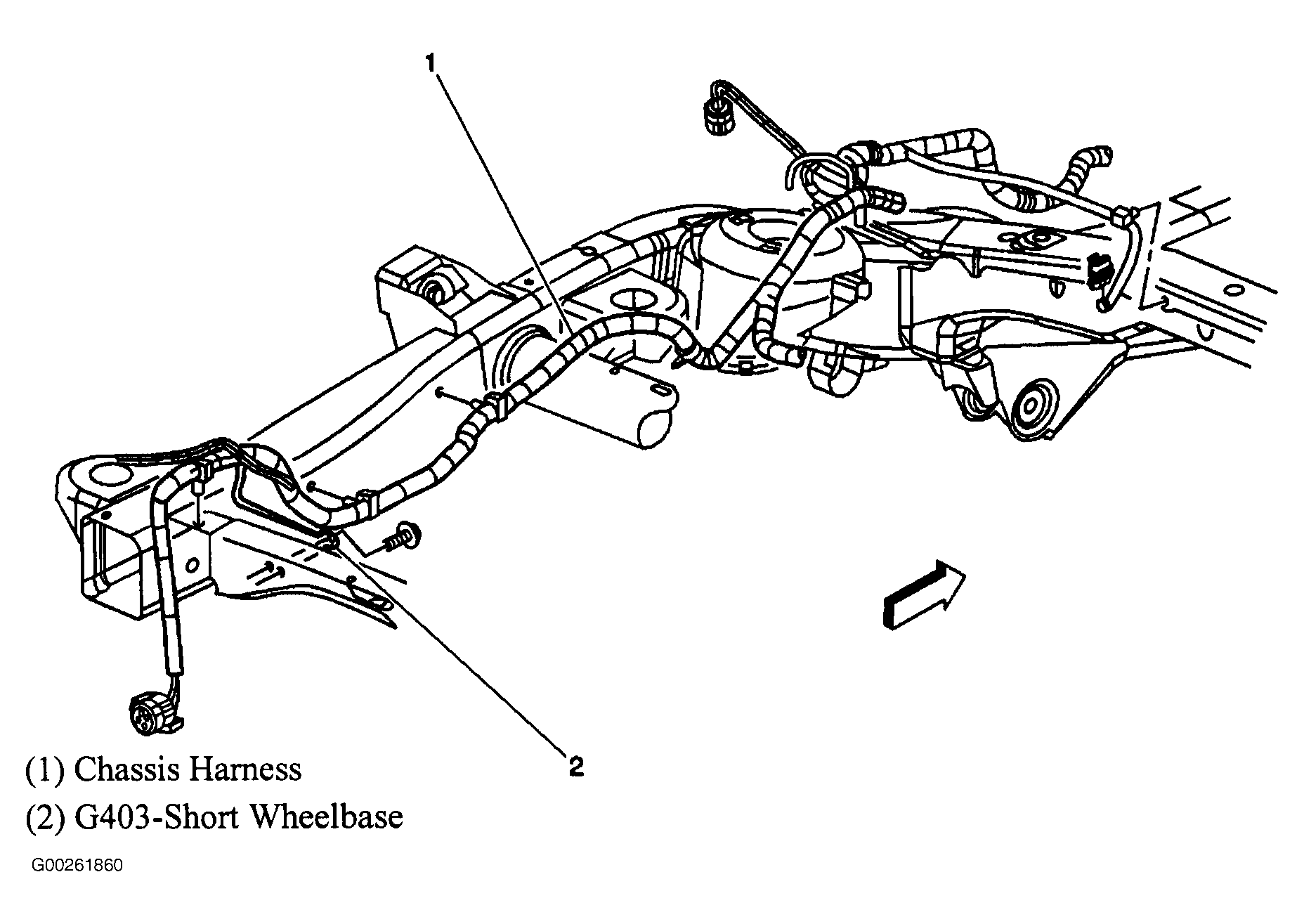

Fig 32: Rear Frame & Underbody (Short Wheelbase)
Courtesy of GENERAL MOTORS CORP.
Fig 33: Rear Frame & Underbody (Long Wheelbase)
Courtesy of GENERAL MOTORS CORP.

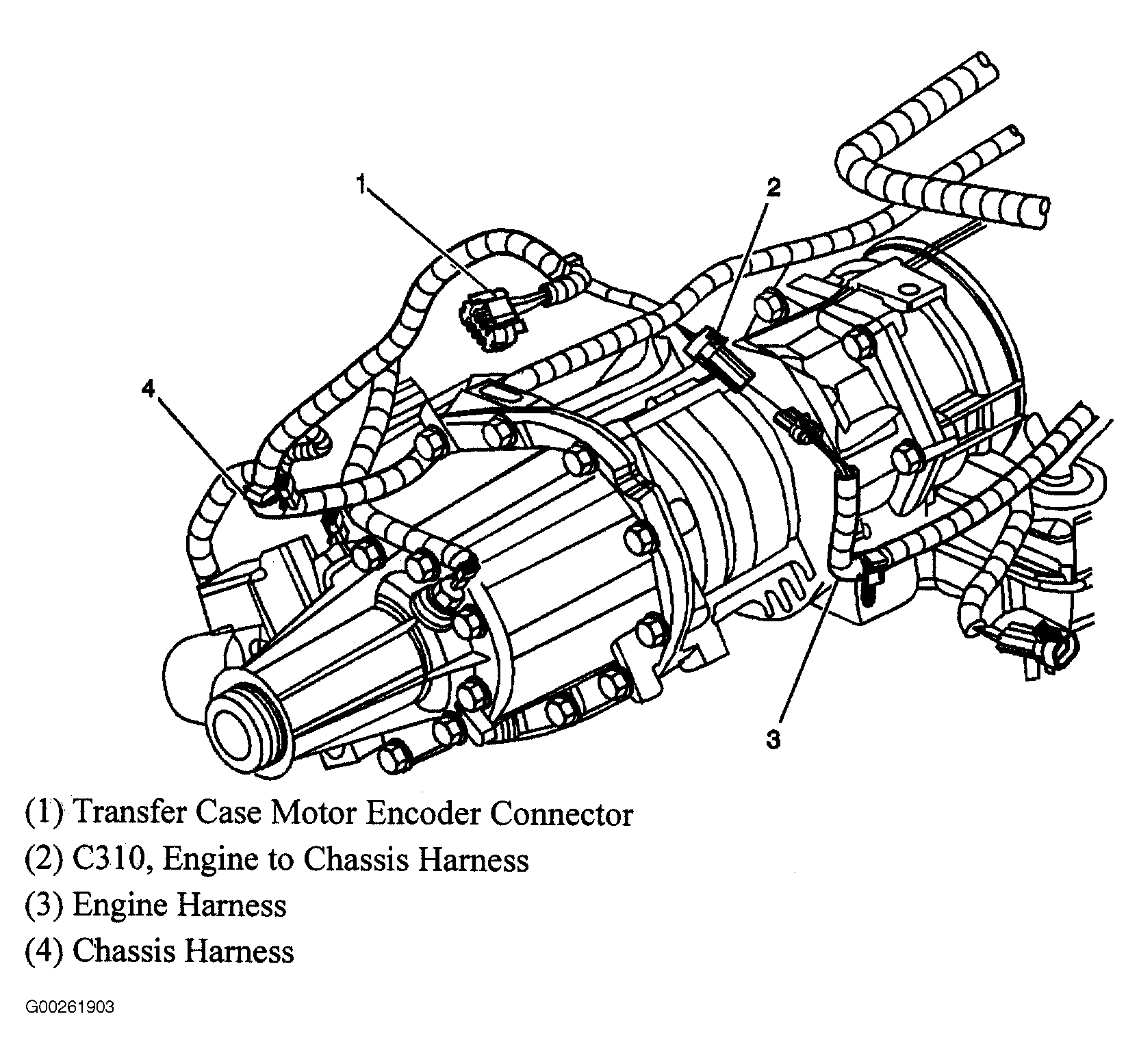

Fig 34: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 35: Right Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 36: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 37: Center Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 38: Front Hubs & Rotors
Courtesy of GENERAL MOTORS CORP.
Fig 39: Inner Left Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 40: Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 41: Left Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 42: Left Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 43: Left Side Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 44: Top Front Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 45: Right Side Of Engine (5.3L)
Courtesy of GENERAL MOTORS CORP.
Fig 46: Center Of Floor Pan
Courtesy of GENERAL MOTORS CORP.

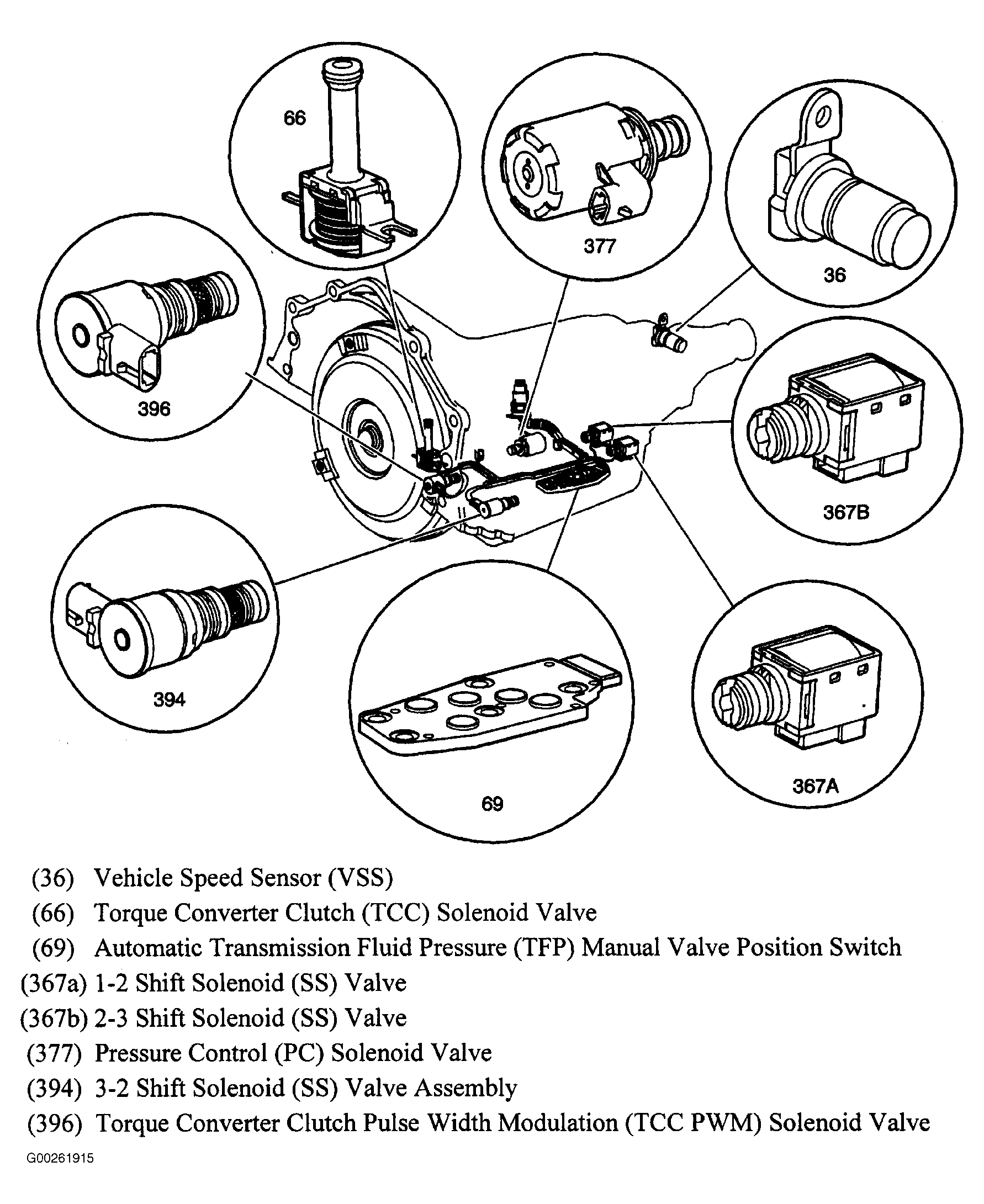

Fig 47: Automatic Transmission Components (4L60-E)
Courtesy of GENERAL MOTORS CORP.
Fig 48: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 49: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 50: Transfer Case
Courtesy of GENERAL MOTORS CORP.
Fig 51: Valve Body Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 52: Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 53: Left Front Seat Assembly
Courtesy of GENERAL MOTORS CORP.

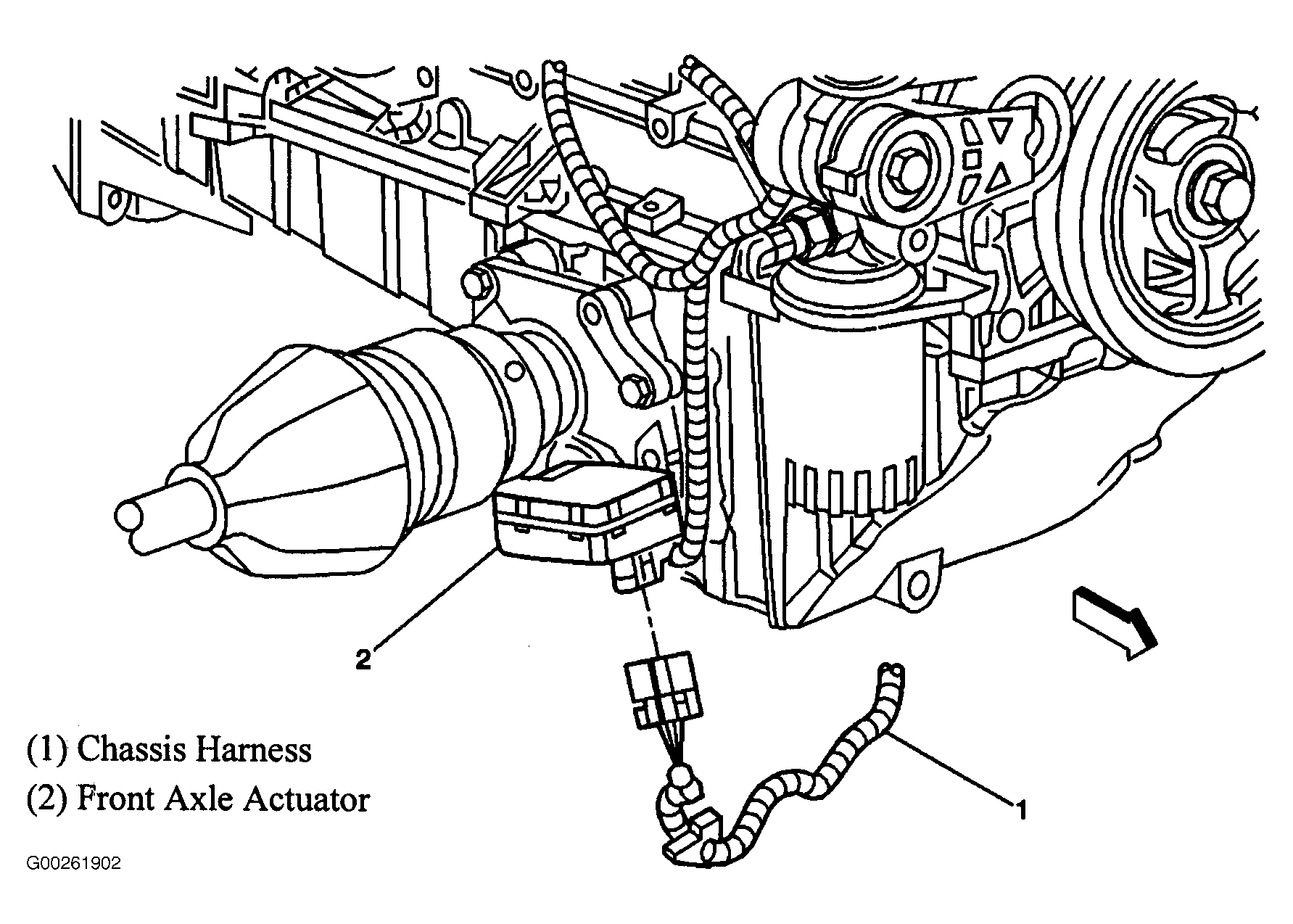

Fig 54: Front Of Vehicle Frame
Courtesy of GENERAL MOTORS CORP.
Fig 55: Dash Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 56: Steering Wheel Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 57: Right Front Seat Assembly
Courtesy of GENERAL MOTORS CORP.

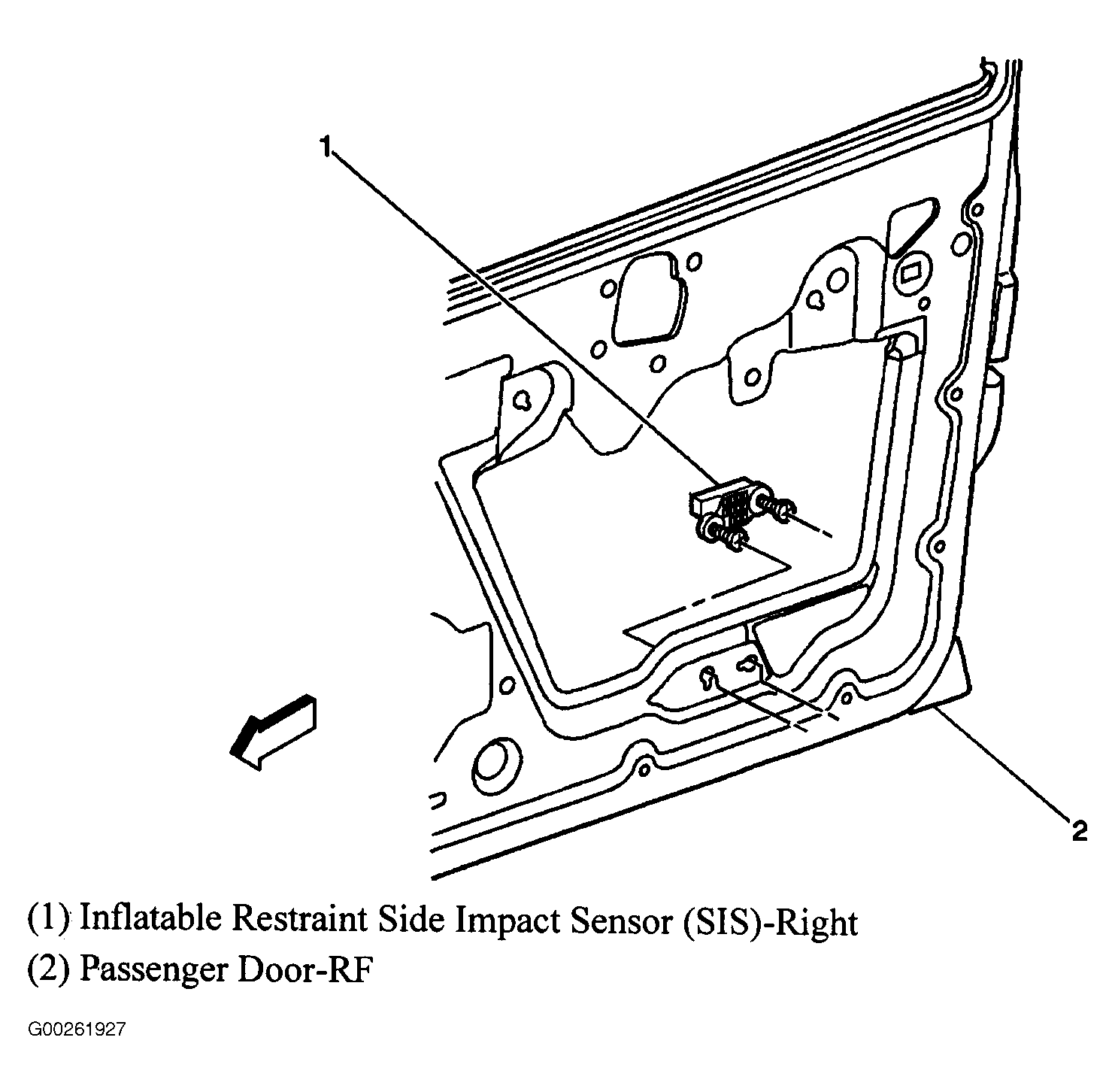

Fig 58: Right Front Passenger's Door
Courtesy of GENERAL MOTORS CORP.
Fig 59: Lower Console
Courtesy of GENERAL MOTORS CORP.
Fig 60: Inflatable Restraints System Components
Courtesy of GENERAL MOTORS CORP.

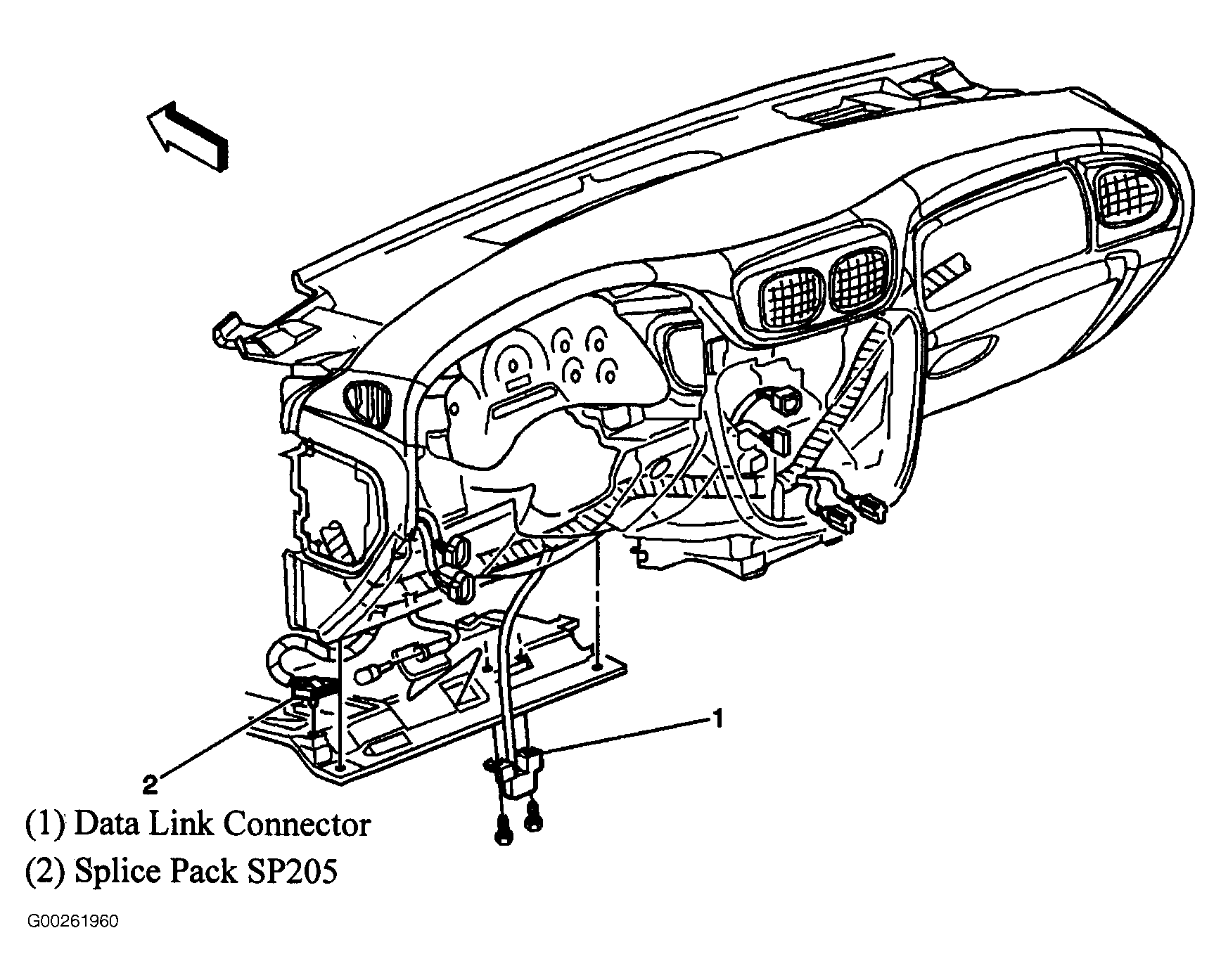

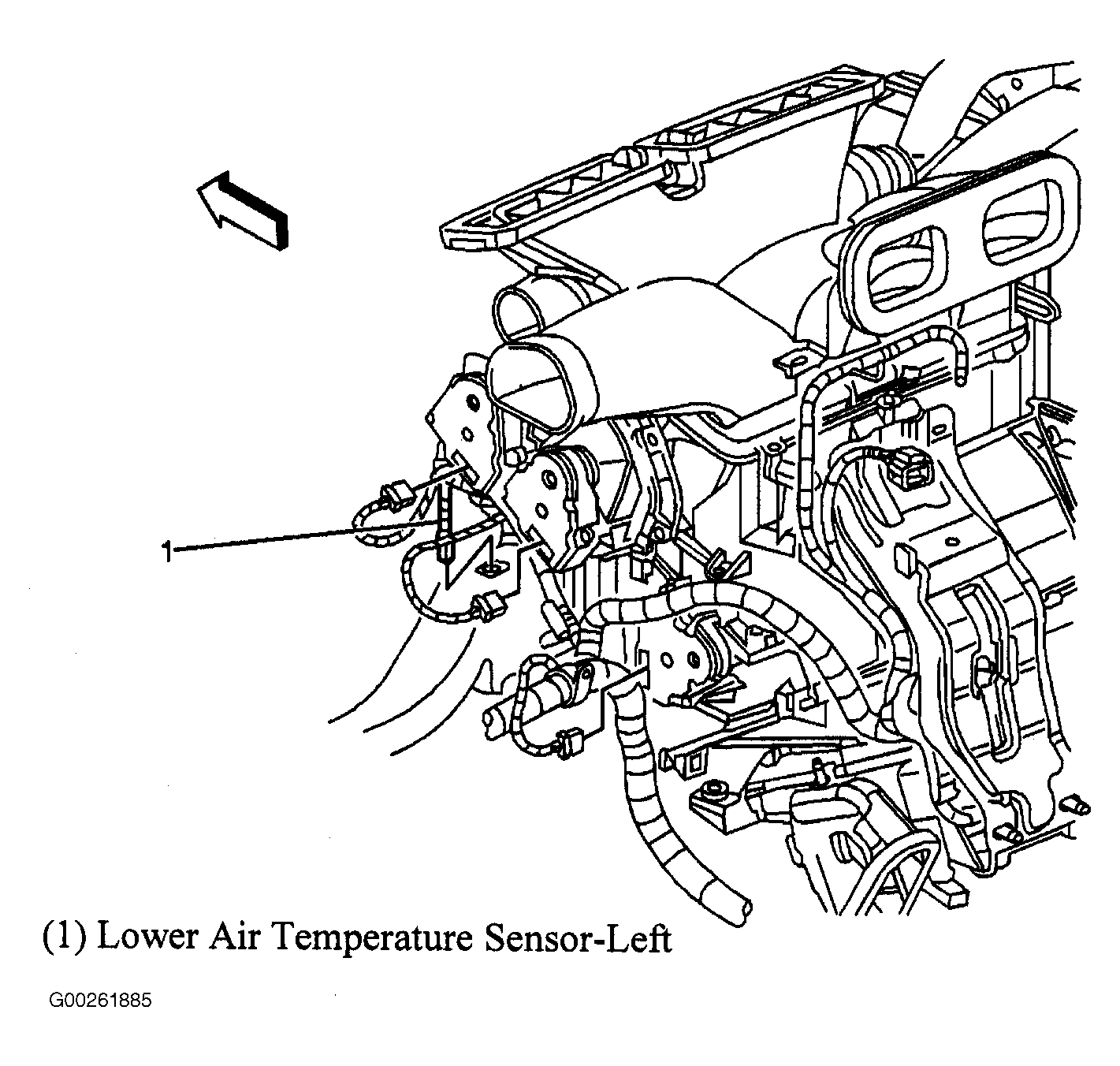

Fig 61: Lower Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

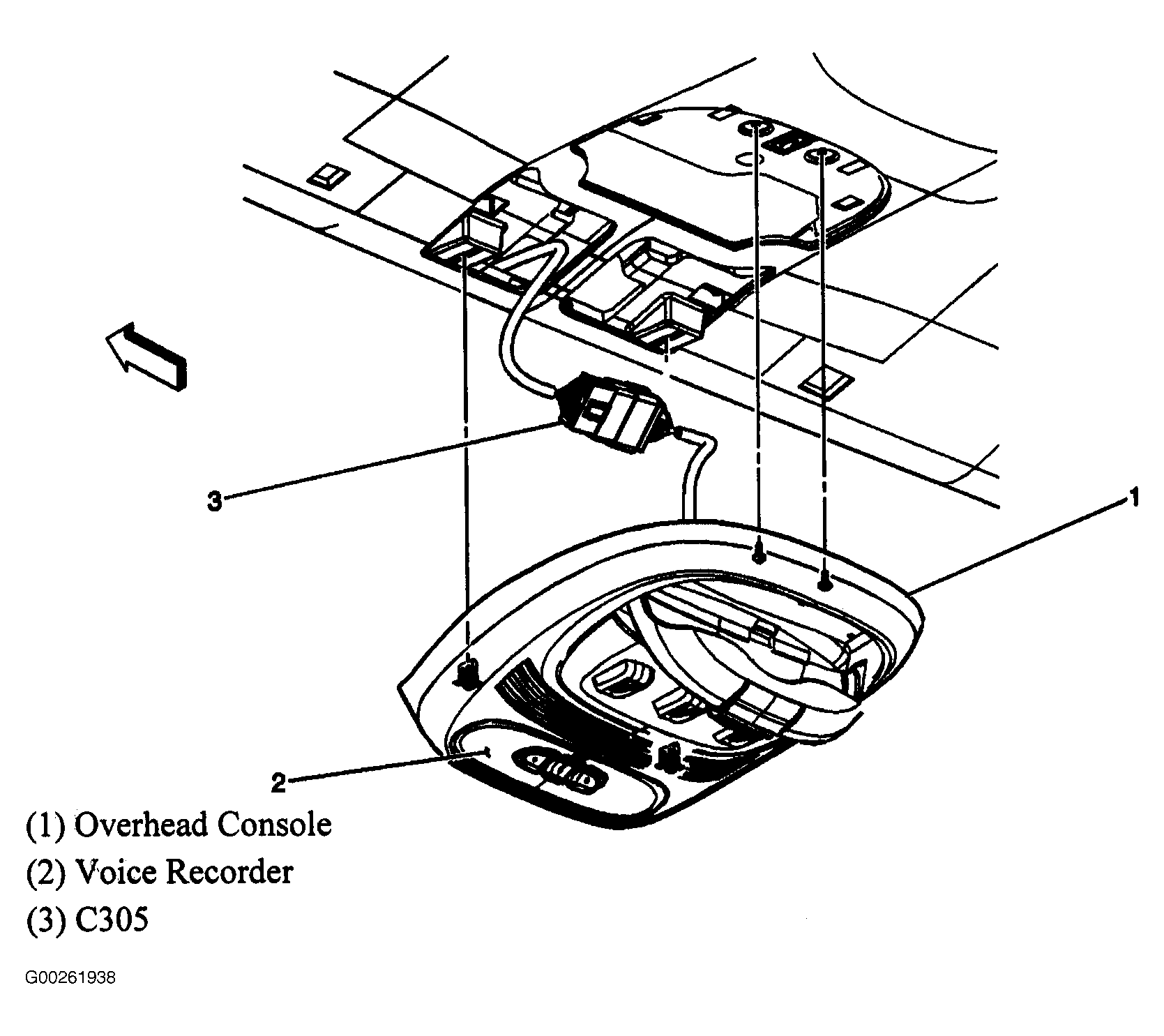

Fig 62: Overhead Console
Courtesy of GENERAL MOTORS CORP.

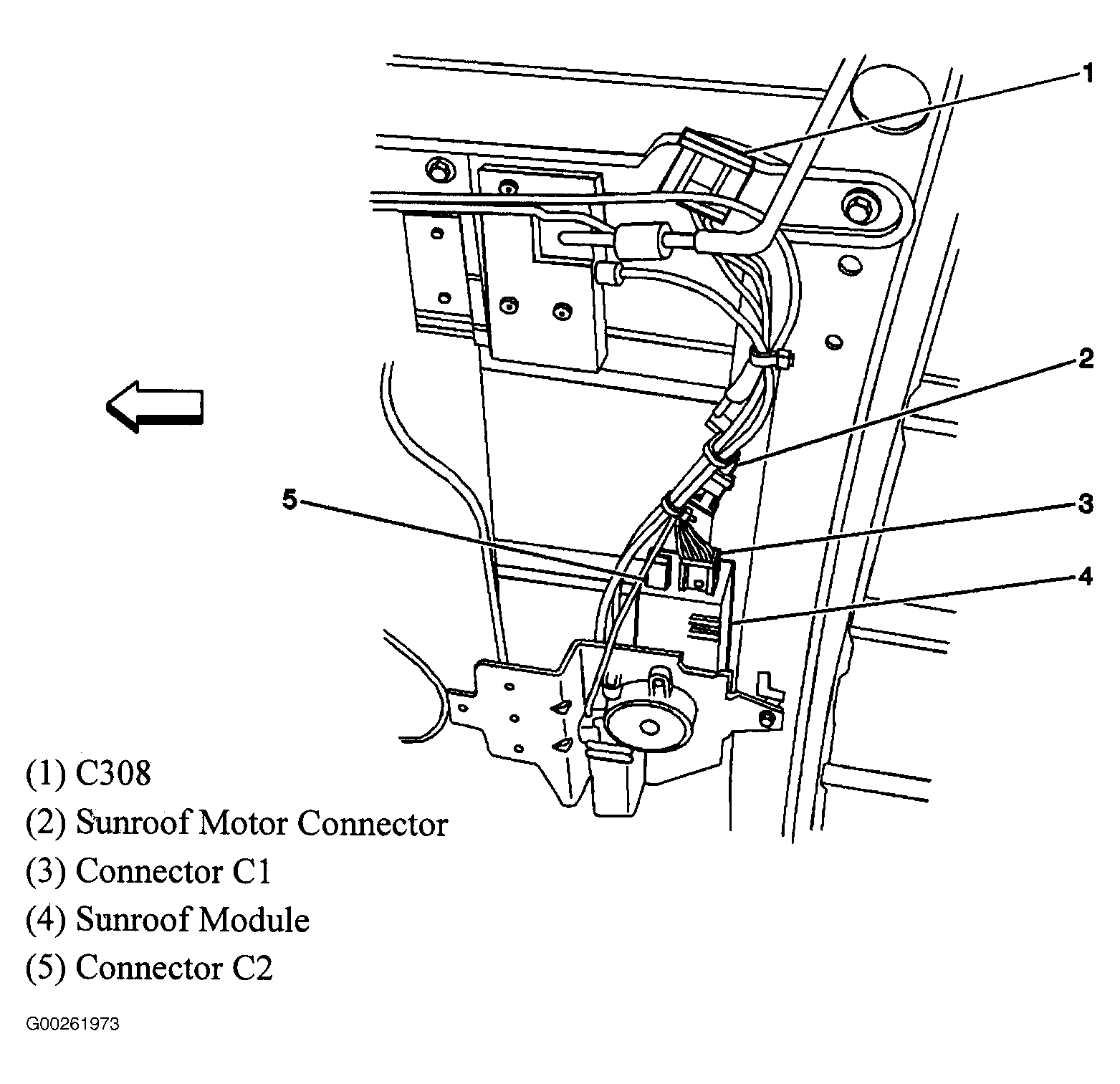

Fig 63: Front Roof Panel
Courtesy of GENERAL MOTORS CORP.

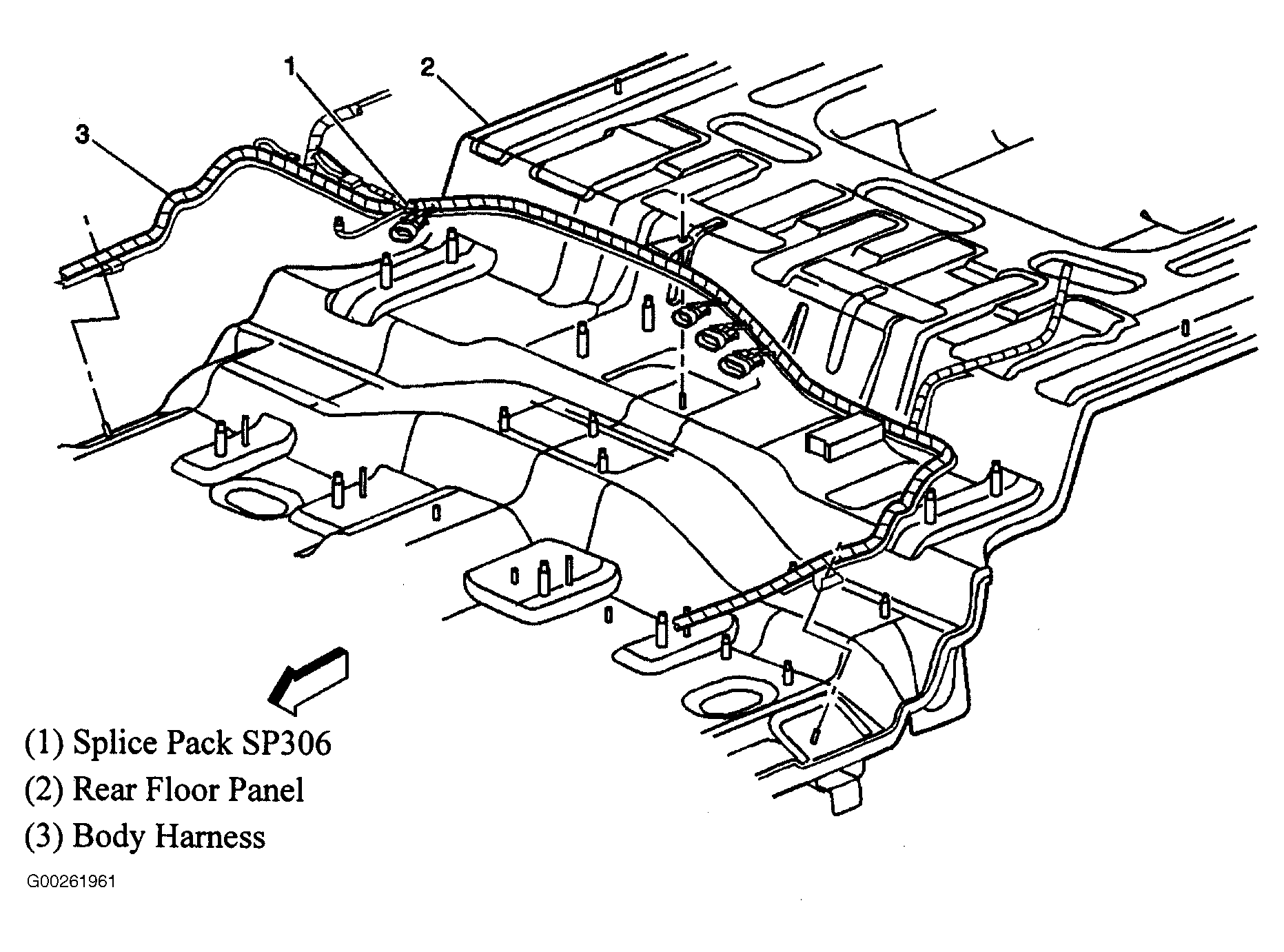

Fig 64: Rear Floor Panel
Courtesy of GENERAL MOTORS CORP.
Fig 65: Rear Floor
Courtesy of GENERAL MOTORS CORP.
Fig 66: Right Side Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 67: Overhead Console
Courtesy of GENERAL MOTORS CORP.
Fig 68: Center Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 69: Overhead Console
Courtesy of GENERAL MOTORS CORP.

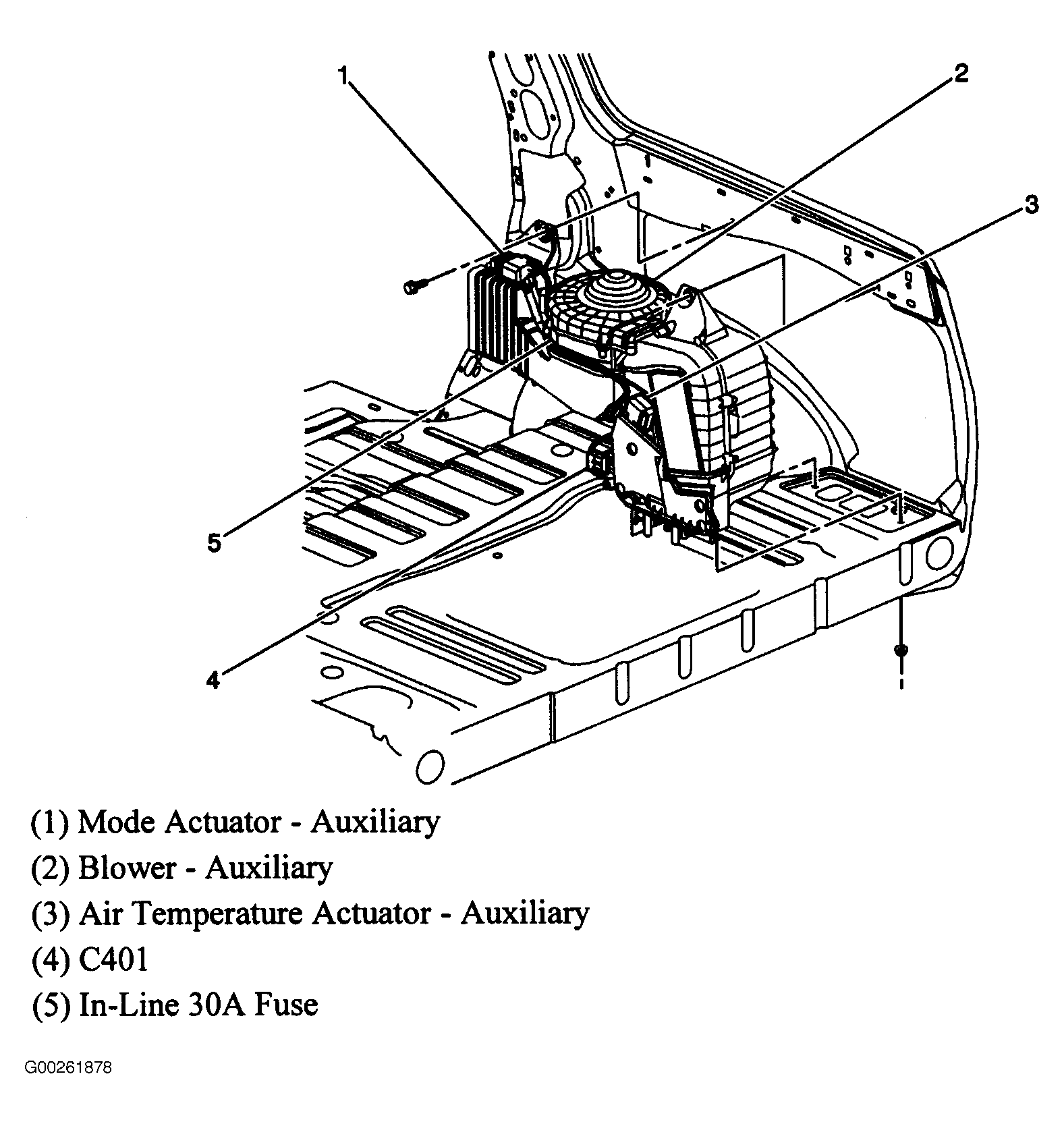

Fig 70: Right Body Side Inner Lower Panel
Courtesy of GENERAL MOTORS CORP.
Fig 71: Left Body Side Inner Panel
Courtesy of GENERAL MOTORS CORP.
Fig 72: Front Center Of Roof
Courtesy of GENERAL MOTORS CORP.
Fig 73: Right Rear Of Vehicle
Courtesy of GENERAL MOTORS CORP.
Fig 74: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 75: Steering Column
Courtesy of GENERAL MOTORS CORP.
Fig 76: Floor Pan
Courtesy of GENERAL MOTORS CORP.

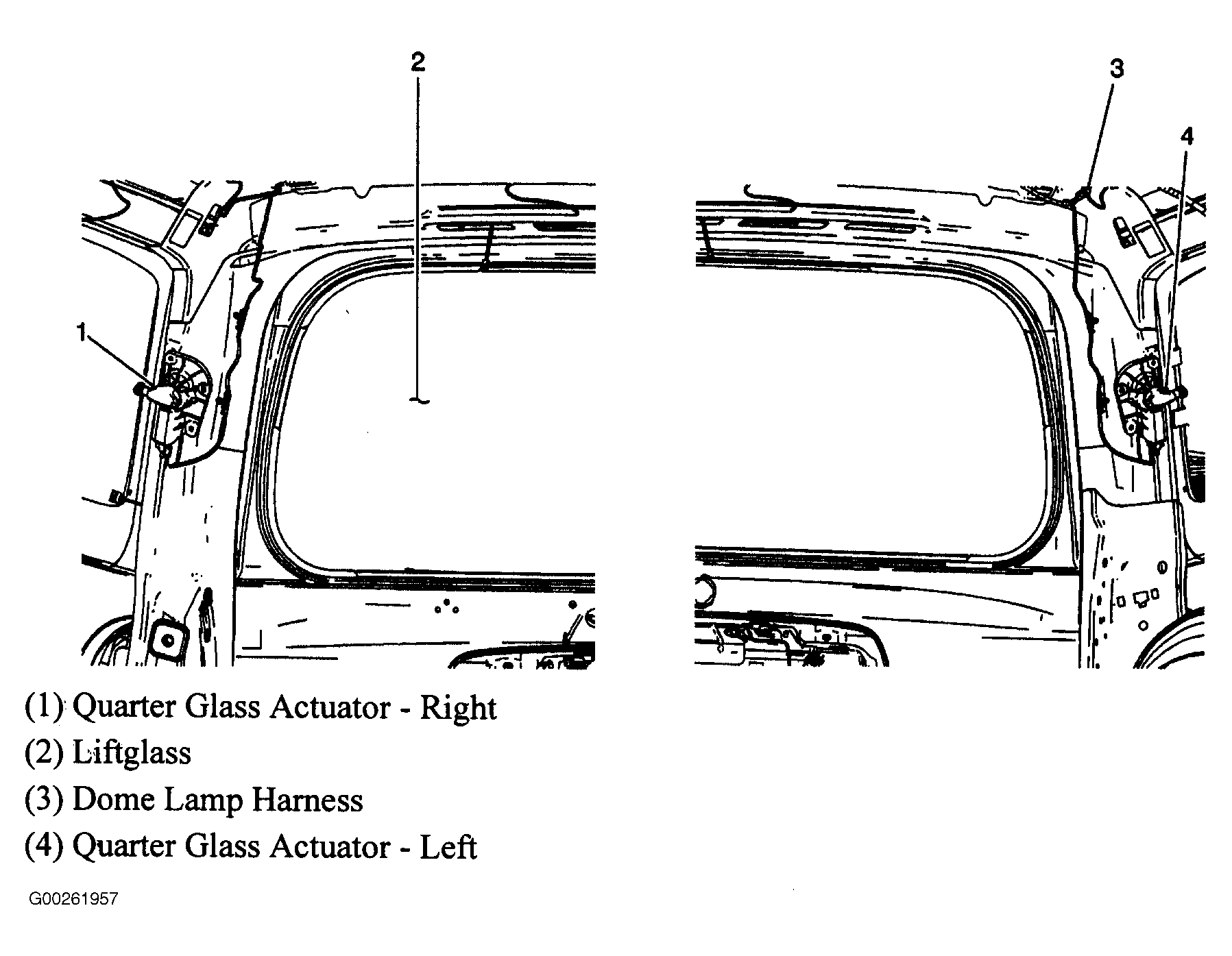

Fig 77: Quarter Glass (Long Wheel Base, Except XUV)
Courtesy of GENERAL MOTORS CORP.
Fig 78: Liftgate (Except XUV)
Courtesy of GENERAL MOTORS CORP.
Fig 79: Endgate (XUV)
Courtesy of GENERAL MOTORS CORP.
Fig 80: Dash Assembly
Courtesy of GENERAL MOTORS CORP.
Fig 81: Rear Floor Pan
Courtesy of GENERAL MOTORS CORP.
Fig 82: Passenger Door Trim Panel
Courtesy of GENERAL MOTORS CORP.
Fig 83: Driver's Door Trim Panel
Courtesy of GENERAL MOTORS CORP.

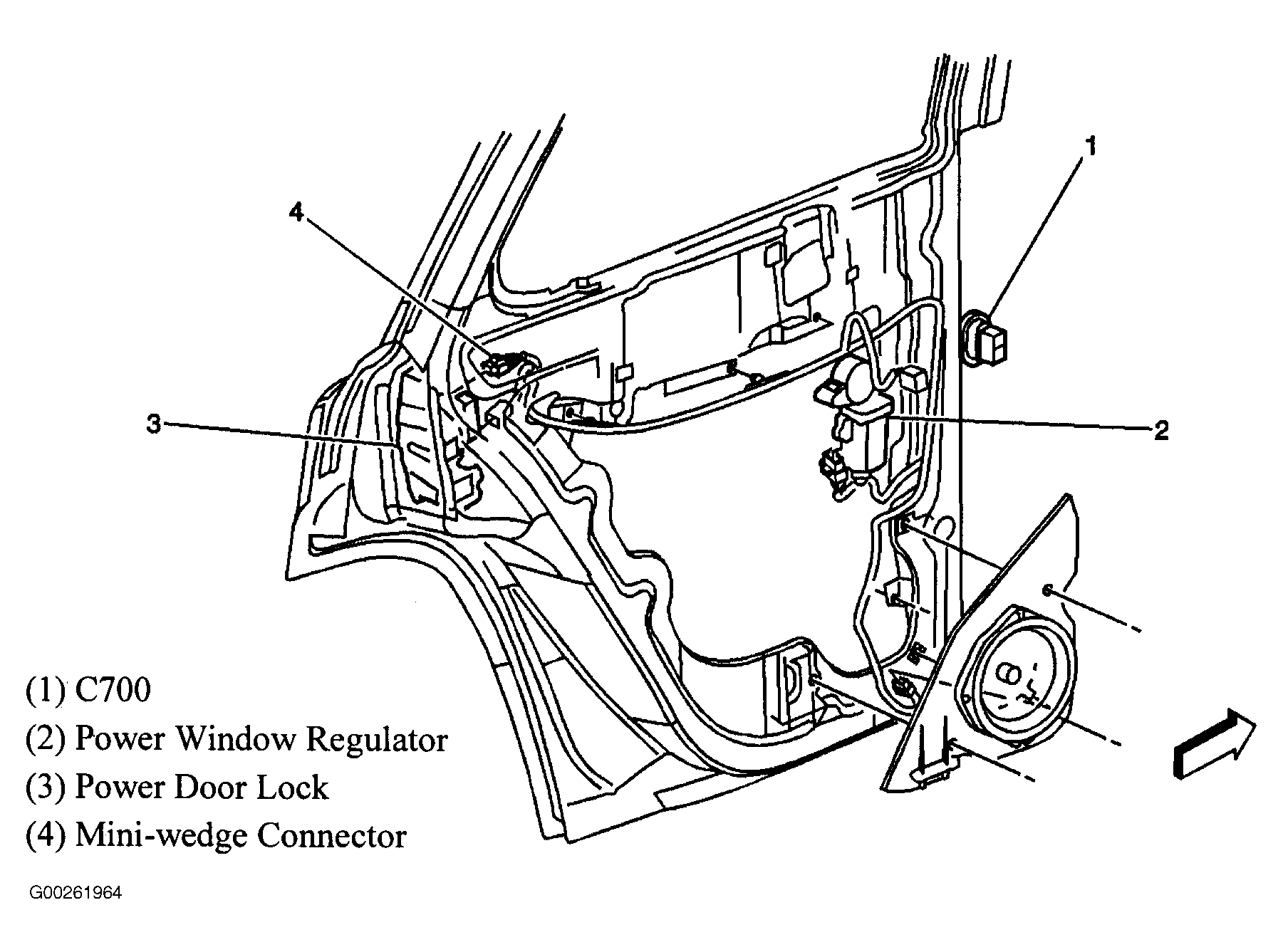

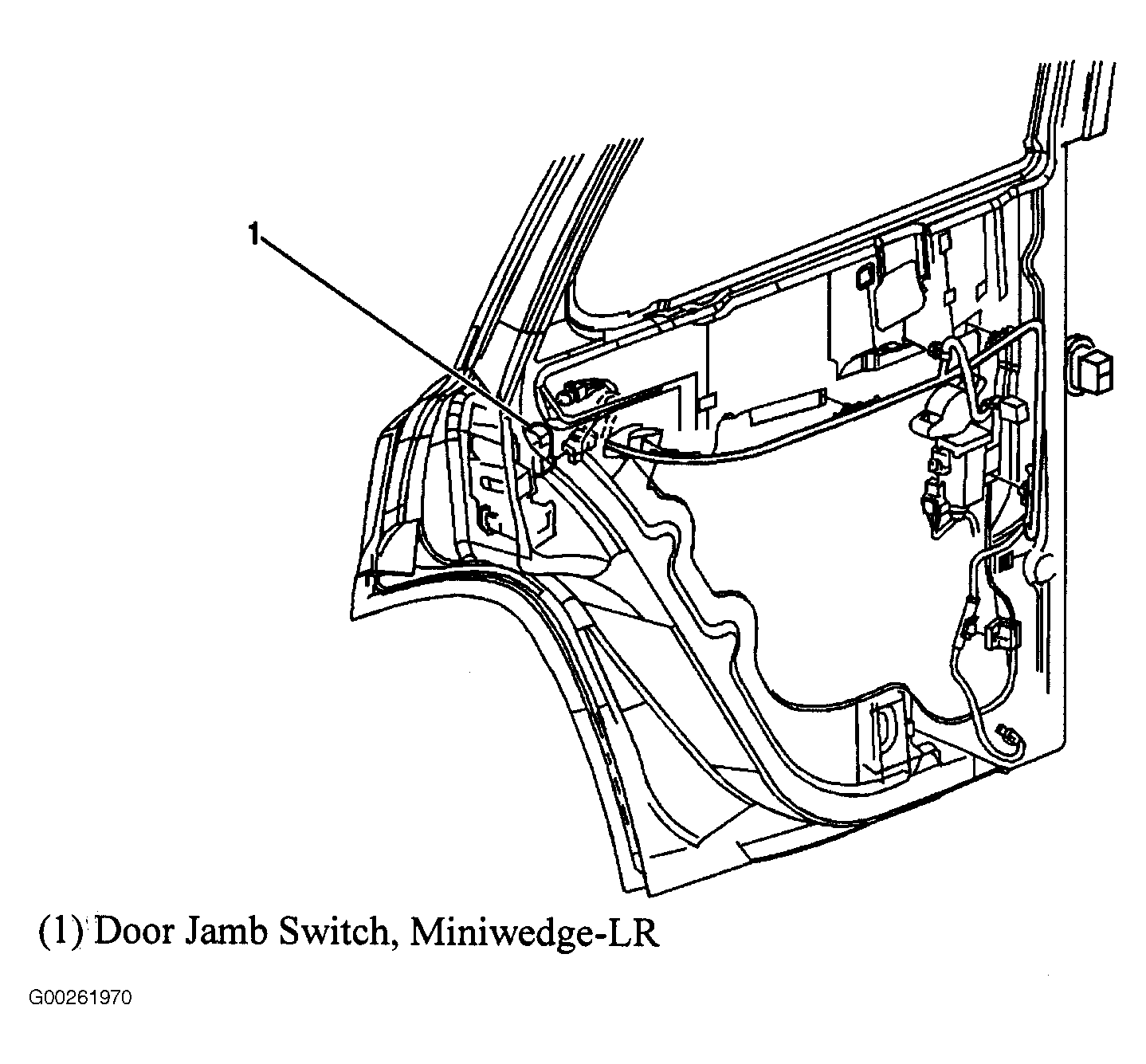

Fig 84: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 85: Left Front Door
Courtesy of GENERAL MOTORS CORP.
Fig 86: Front Frame Rail
Courtesy of GENERAL MOTORS CORP.
Fig 87: Right Front Of Engine (4.2L)
Courtesy of GENERAL MOTORS CORP.
Fig 88: Left Side Of Automatic Transmission
Courtesy of GENERAL MOTORS CORP.
Fig 89: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

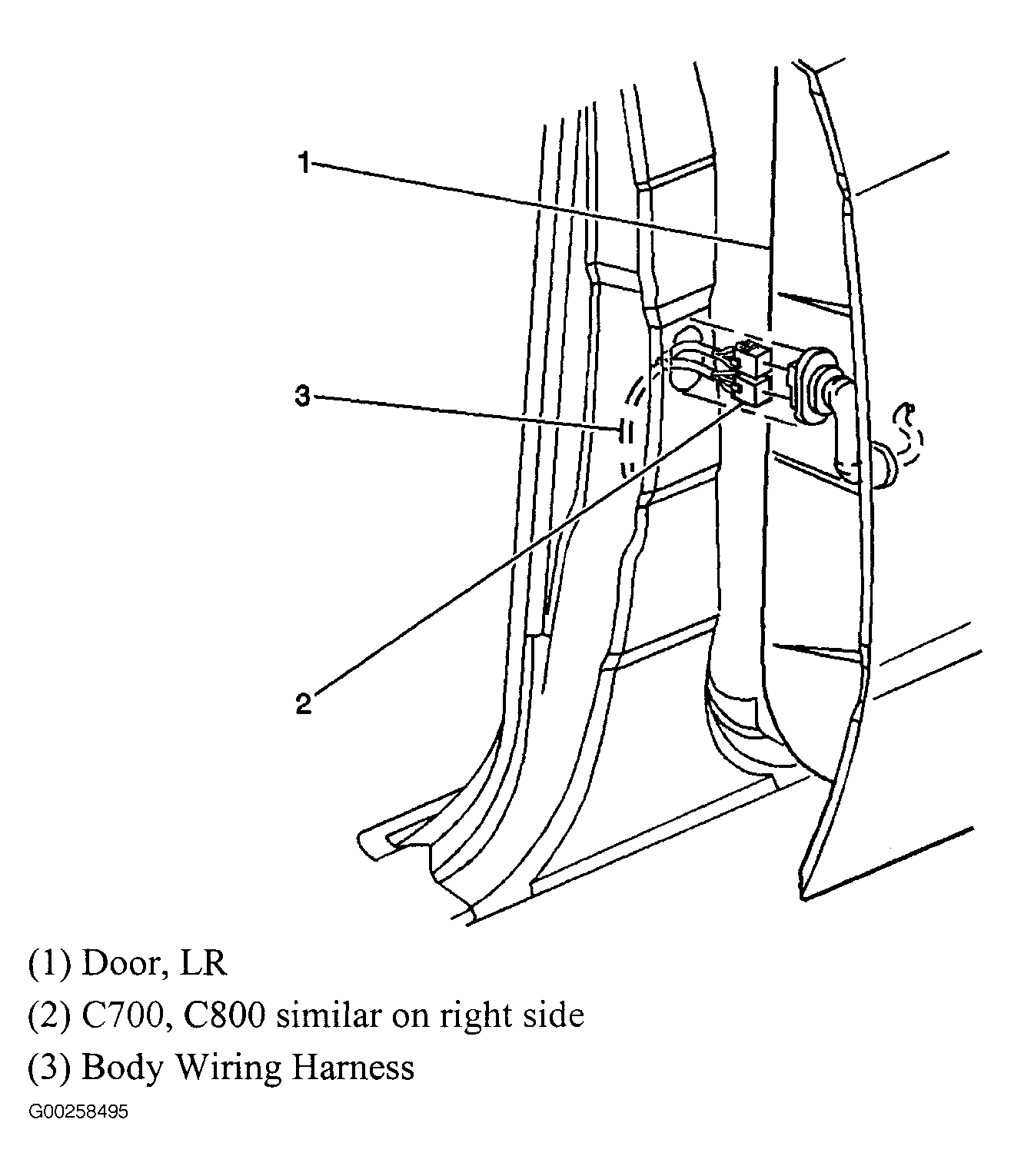

Fig 90: Left Rear Door
Courtesy of GENERAL MOTORS CORP.
Fig 91: Rear Of Vehicle Frame
Courtesy of GENERAL MOTORS CORP.
Fig 92: Roof
Courtesy of GENERAL MOTORS CORP.
Fig 93: Front Of Roof
Courtesy of GENERAL MOTORS CORP.

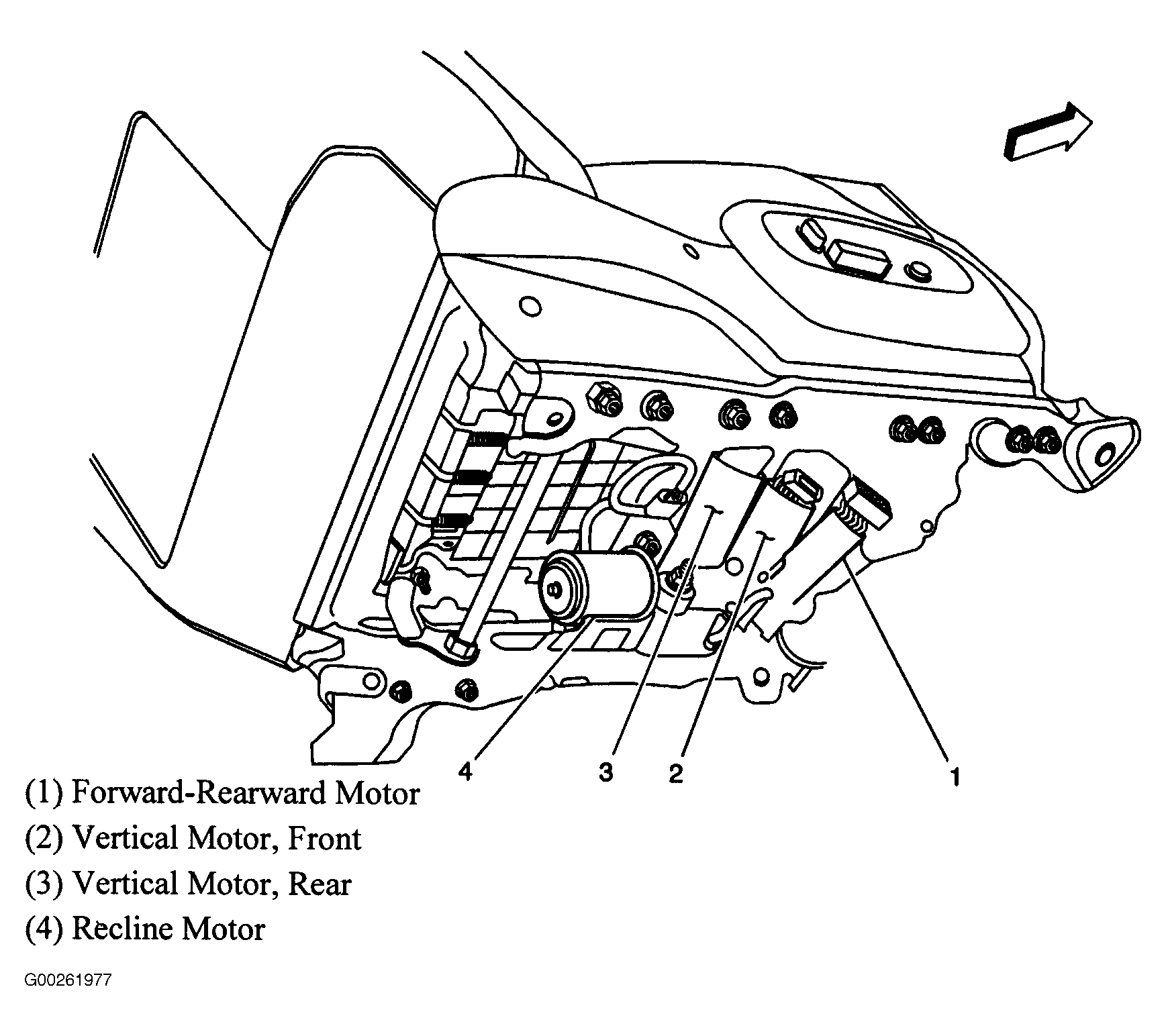

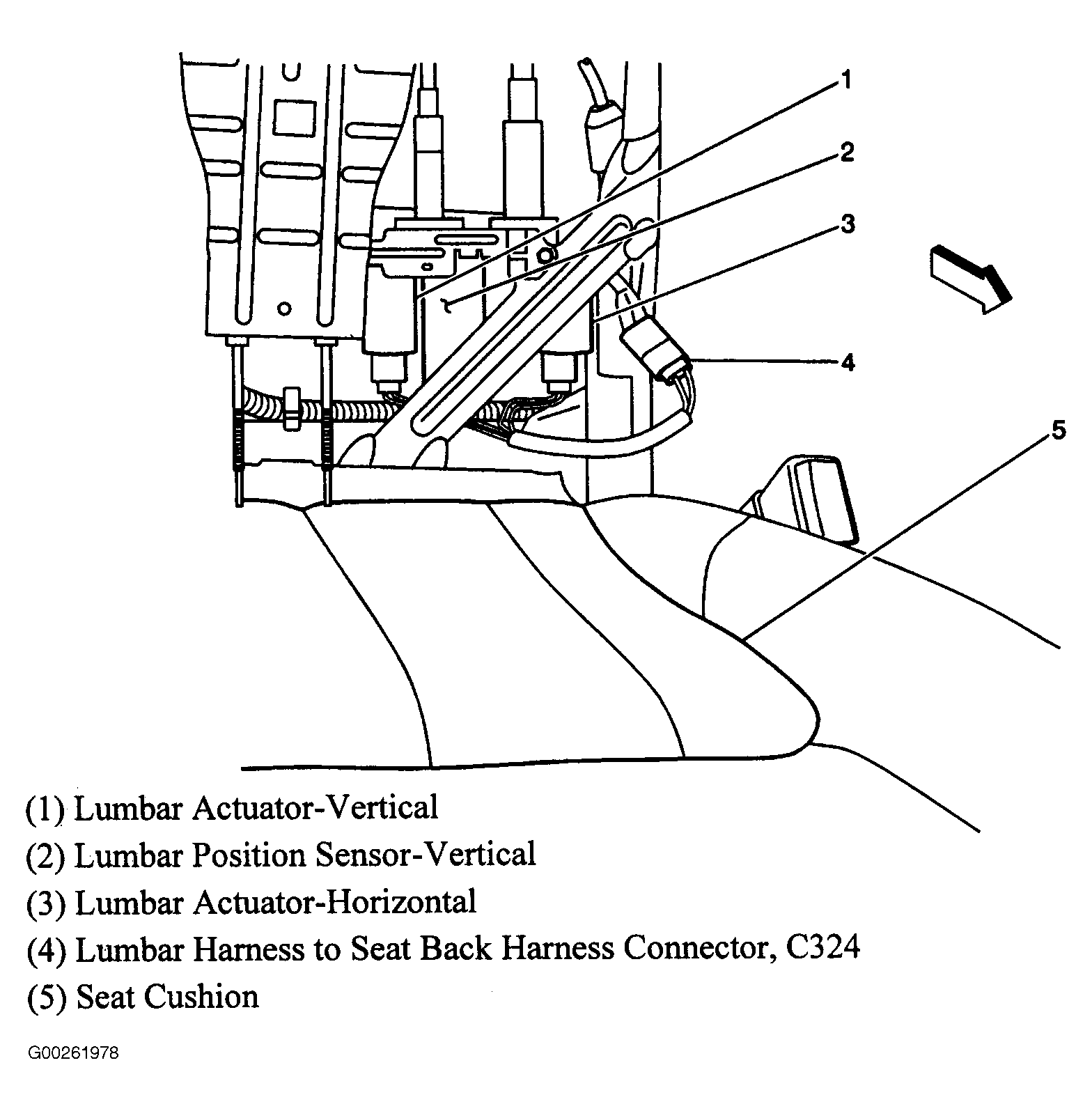

Fig 94: Left Front Power Seat
Courtesy of GENERAL MOTORS CORP.
Fig 95: Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

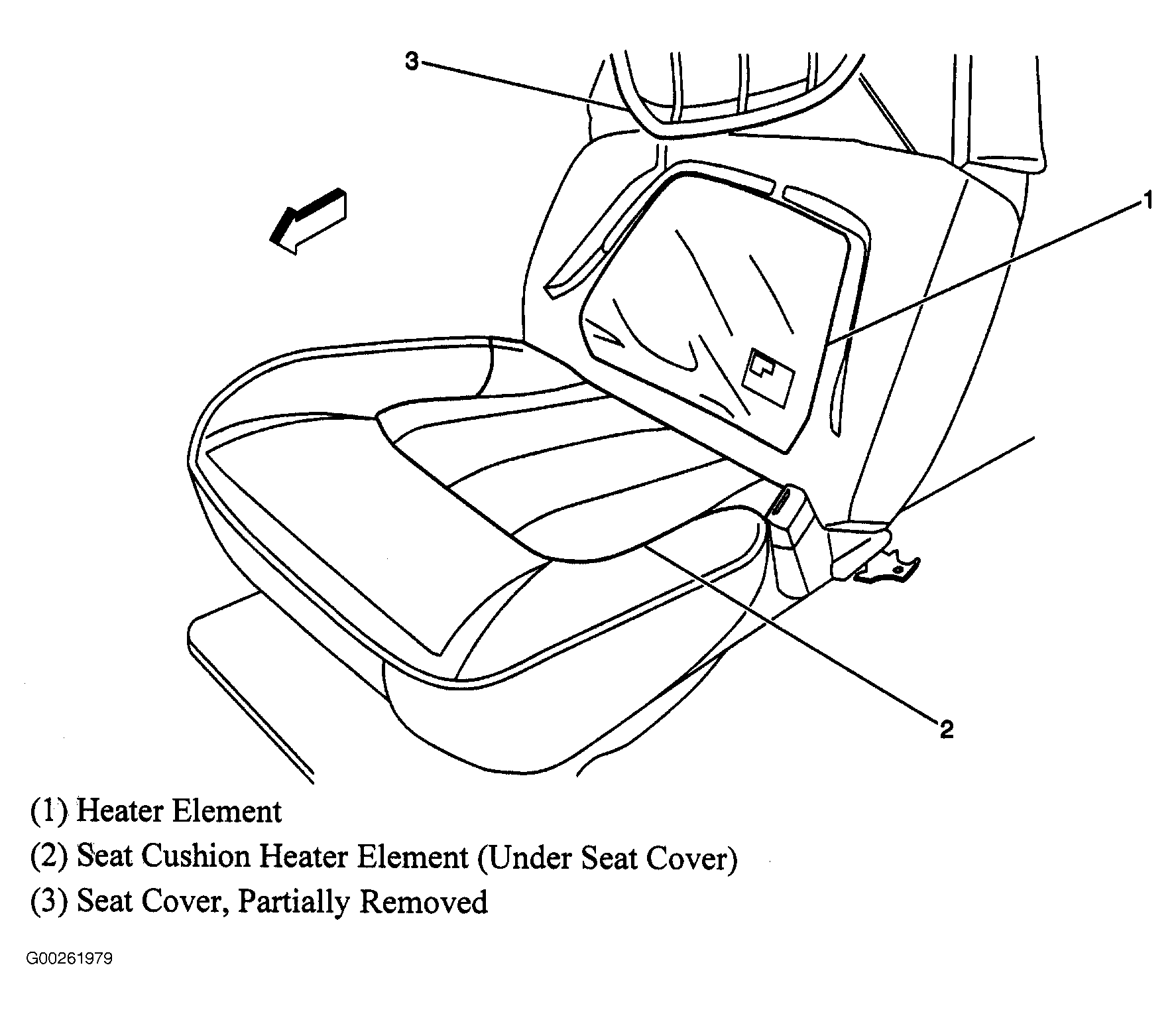

Fig 96: Passenger's Seat Cushion
Courtesy of GENERAL MOTORS CORP.
Fig 97: Passenger's Seat
Courtesy of GENERAL MOTORS CORP.

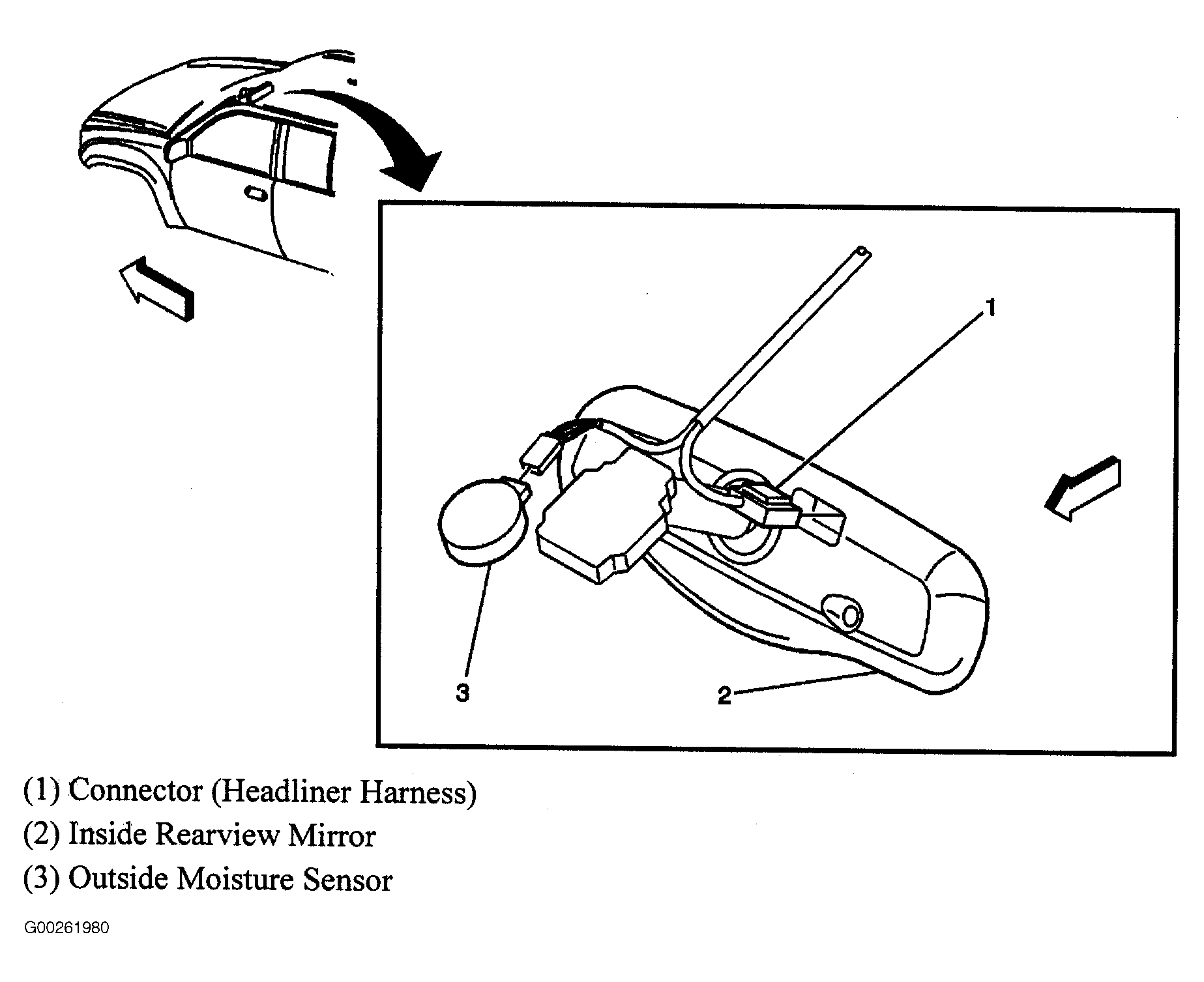

Fig 98: Inside Rearview Mirror
Courtesy of GENERAL MOTORS CORP.

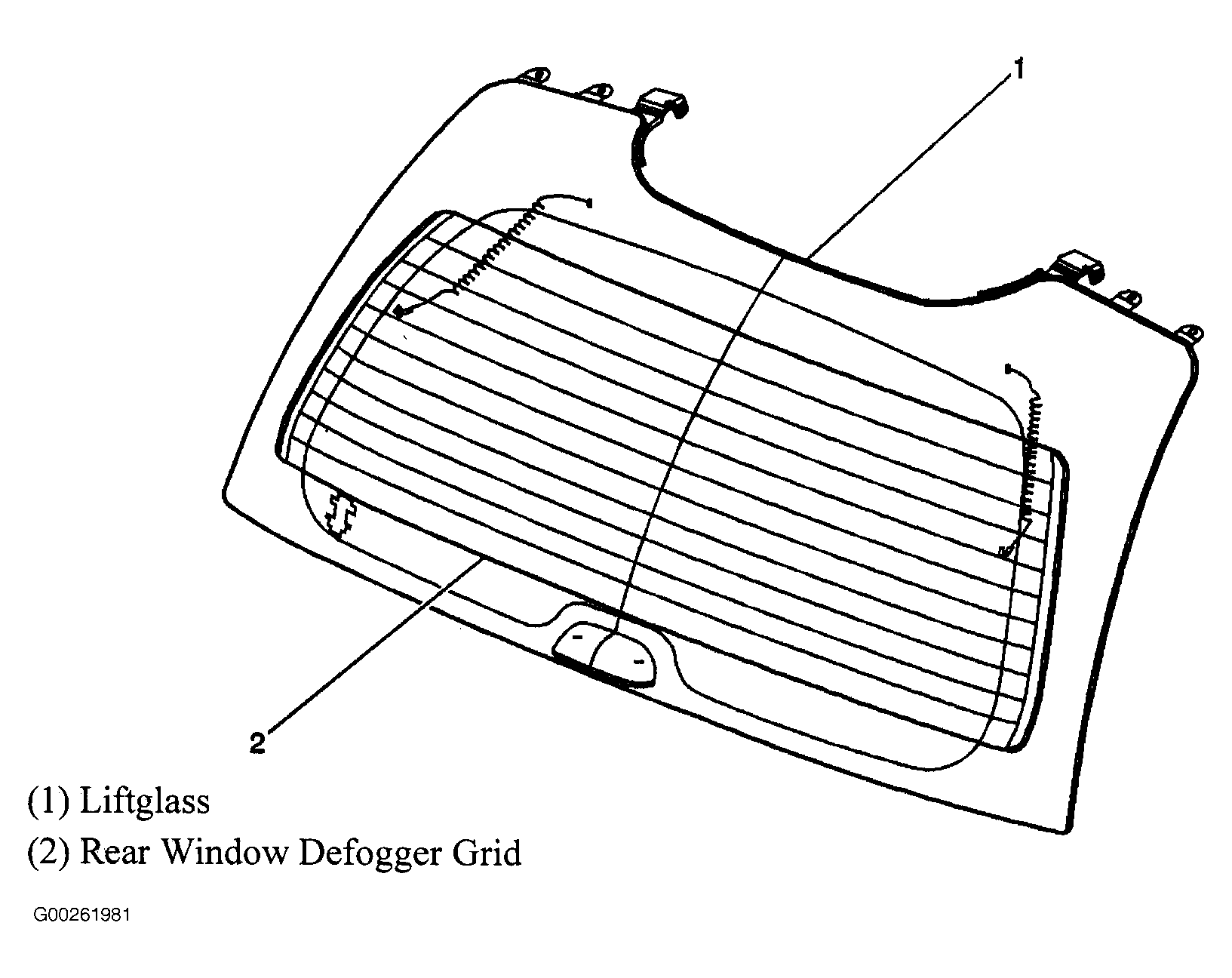

Fig 99: Rear Window Defogger
Courtesy of GENERAL MOTORS CORP.
Fig 100: Right Front Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 101: Center Rear Of Engine Compartment
Courtesy of GENERAL MOTORS CORP.
Fig 102: "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 103: "B" Pillar
Courtesy of GENERAL MOTORS CORP.
Fig 104: Right Side Of Dash
Courtesy of GENERAL MOTORS CORP.
Fig 105: Left Side Of Dash
Courtesy of GENERAL MOTORS CORP.

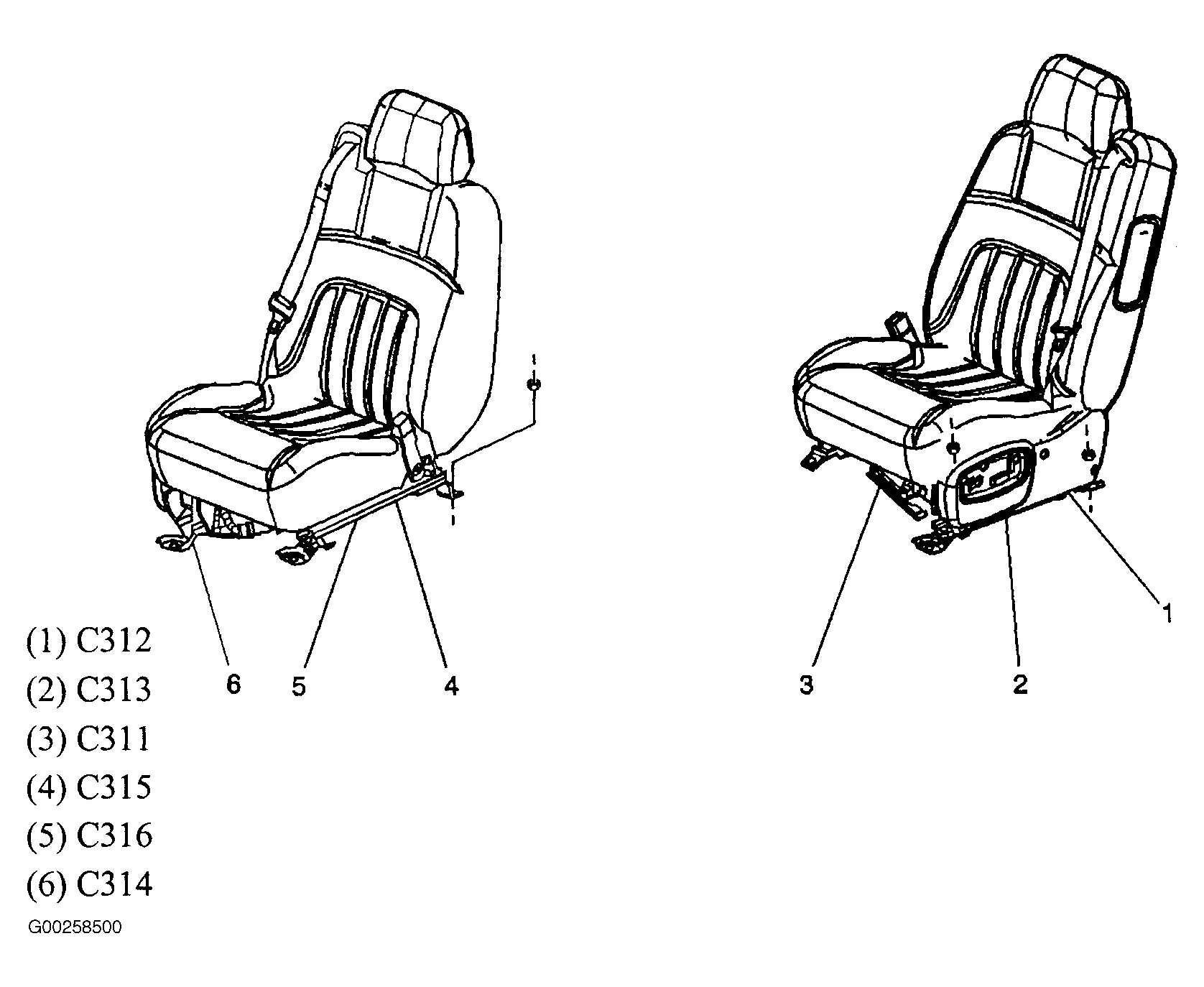

Fig 106: Driver's & Front Passenger's Seat
Courtesy of GENERAL MOTORS CORP.
Fig 107: Right Rear Of Cargo Area (Long Wheel Base)
Courtesy of GENERAL MOTORS CORP.
