Installation Procedure

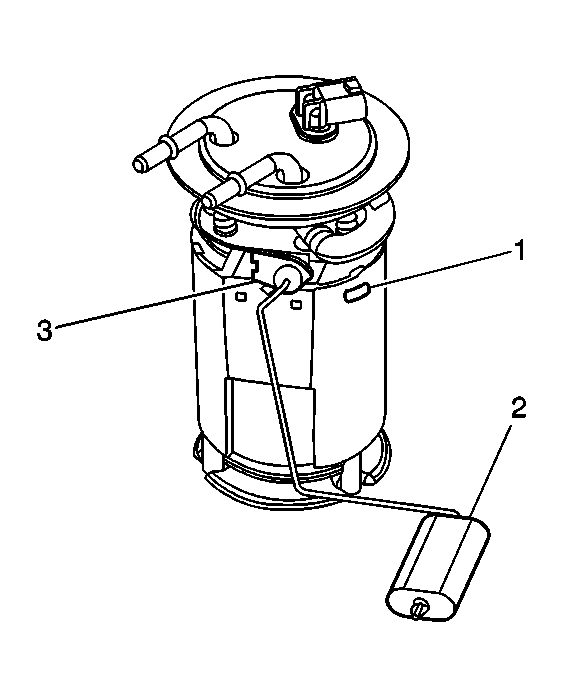

    Fig 1: Identifying Fuel Tank Module
    GM734434Courtesy of GENERAL MOTORS CORP.
  1. Install the fuel level sensor (3).
  2. Install the sensor retaining clip.
  3. Connect the electrical connector to the fuel level sensor.
  4. Install the retaining clip to the fuel level sensor electrical connector.
  5. Connect the fuel pump electrical connector.
  6. Install the fuel sender assembly. Refer to Fuel Sender Assembly Replacement .
