Installation Procedure

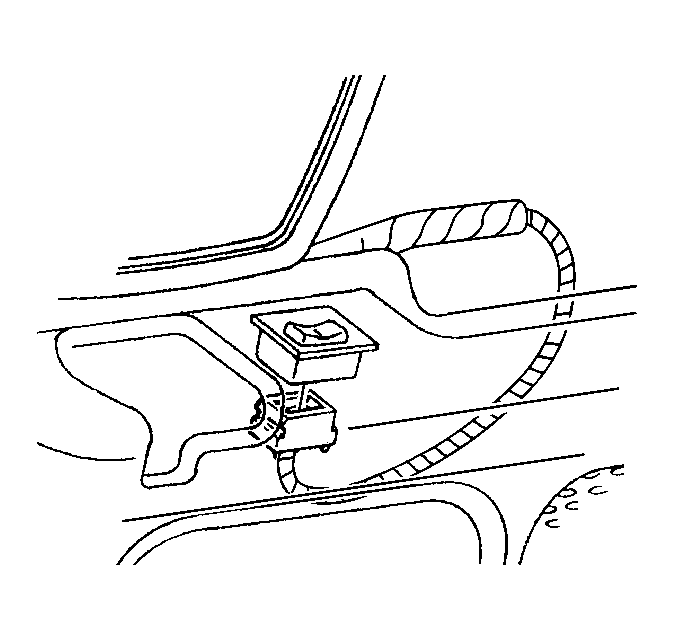

    Fig 1: View Of Power Window Switch Electrical Connector
    GM294622Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connector to the switch.

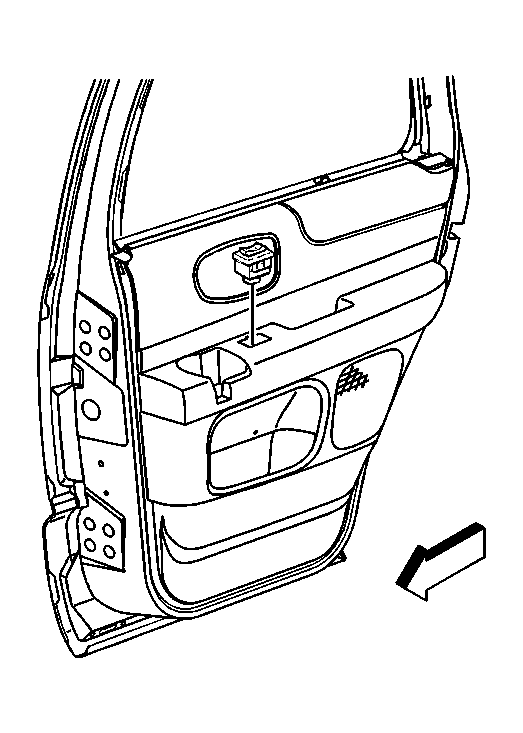

    2. Fig 2: View Of Power Window Switch
    GM294607Courtesy of GENERAL MOTORS CORP.
  2. Install the power window switch to the trim panel by pressing down. Ensure that the retainers lock into place.
