Installation Procedure

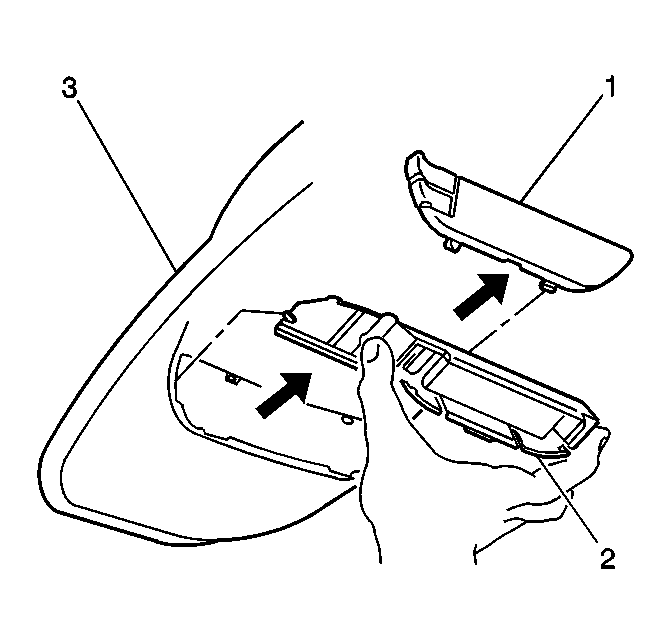

    Fig 1: Location Of Temperature/Compass Electronic Display Module
    GM299158Courtesy of GENERAL MOTORS CORP.
  1. Connect the electrical connection.
  2. Install the electronic display module (2) to the overhead console (3).
  3. Install the display lens (1) by snapping the lens into place.
  4. Calibrate the compass. Refer to Electronic Compass Calibration .
