Object Detection Component Views
WARNING: This page is about a different car, the 2007 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS CORP.

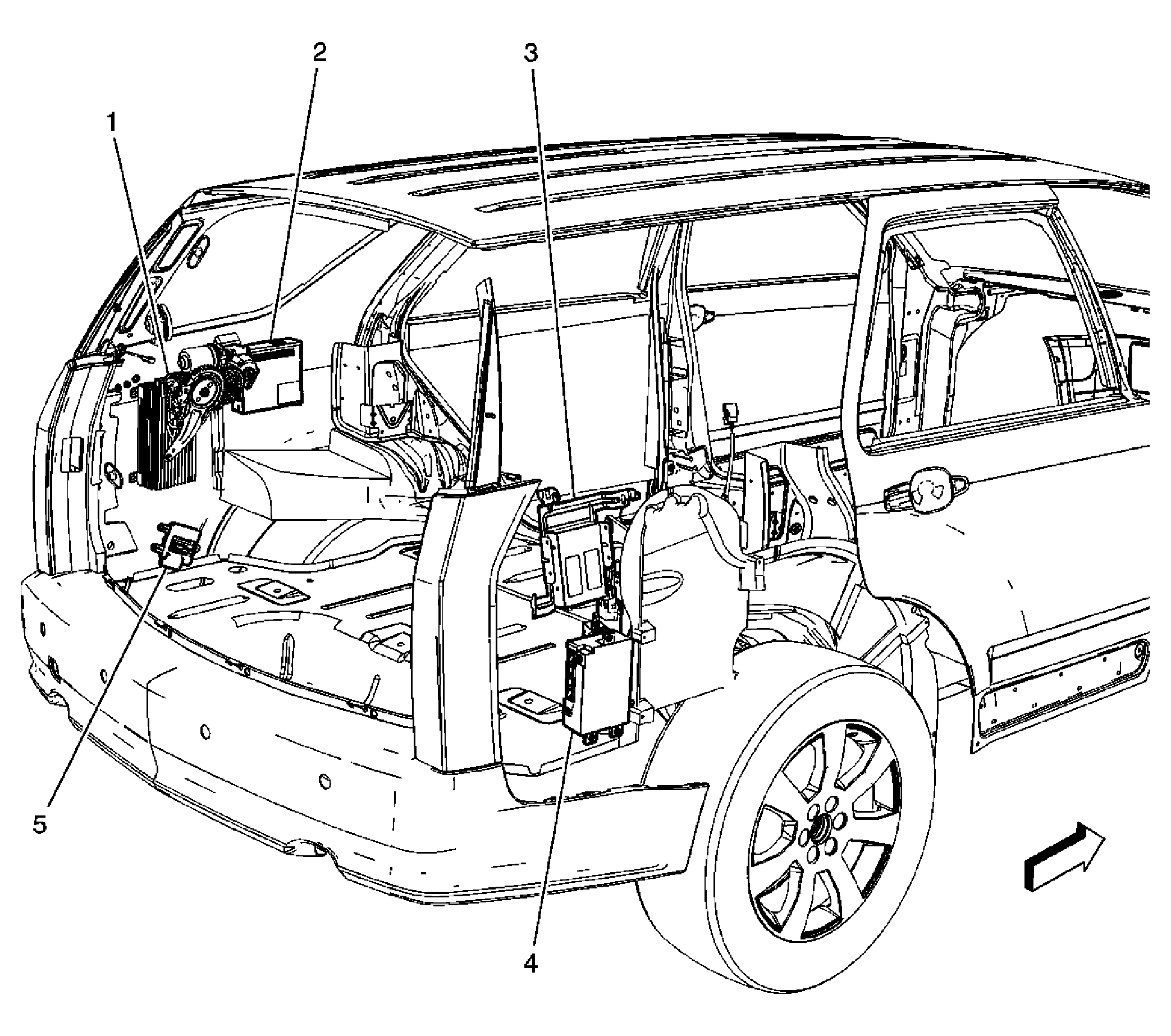

| Callout |
Component Name |
| 1 |
Audio Amplifier (UQA/UQS) |
| 2 |
TV Tuner Module (U2Y/U2X) |
| 3 |
Digital Radio Receiver (U2K) |
| 4 |
Vehicle Communication Interface Module (VCIM) (UE1)/Traffic Information Receiver (U2X) |
| 5 |
Rear Object Sensor Control Module |
Courtesy of GENERAL MOTORS CORP.

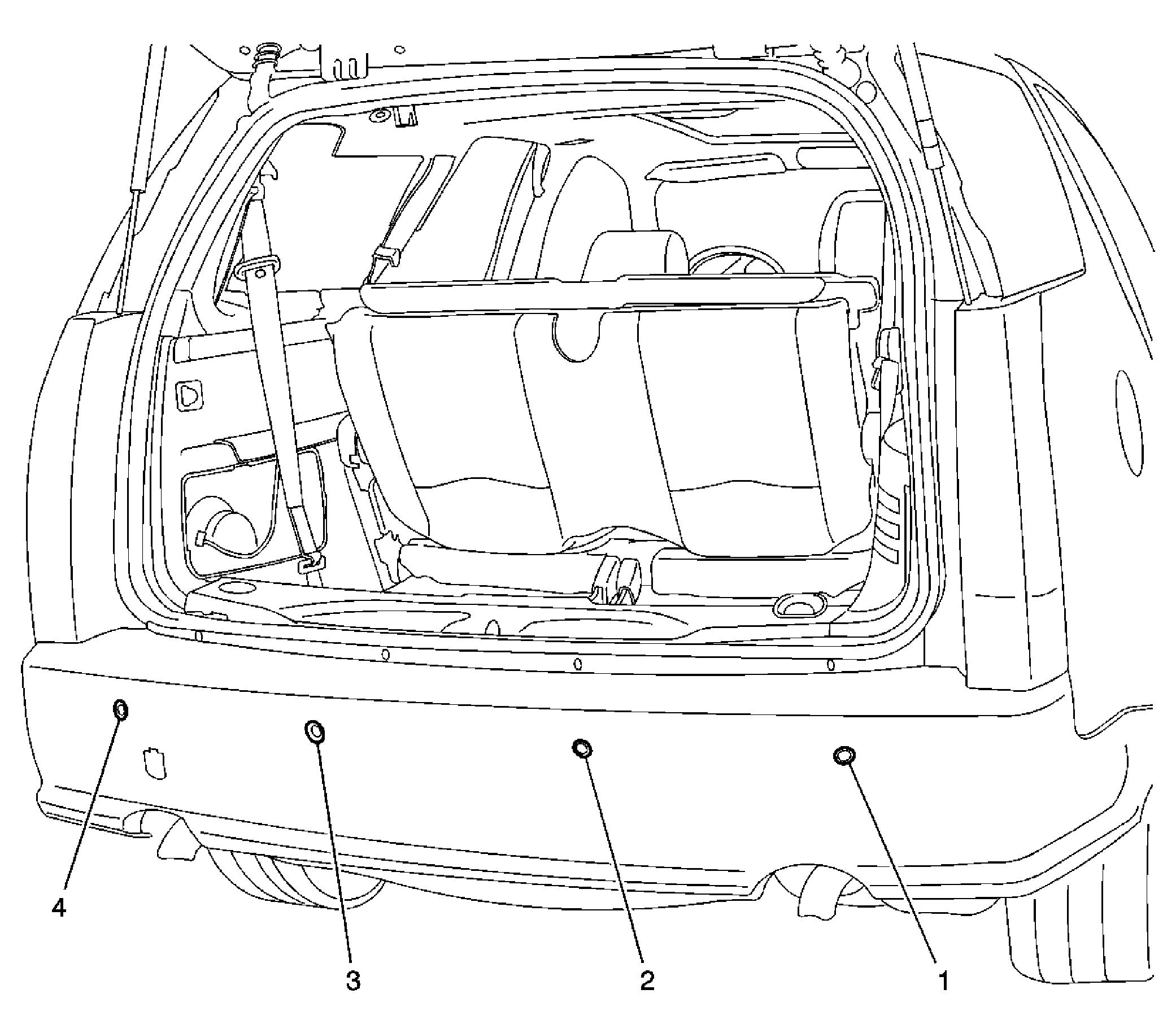

| Callout |
Component Name |
| 1 |
Rear Parking Assist (RPA) Object Sensor - Right Rear Corner |
| 2 |
Rear Parking Assist (RPA) Object Sensor - Right Rear Middle |
| 3 |
Rear Parking Assist (RPA) Object Sensor - Left Rear Middle |
| 4 |
Rear Parking Assist (RPA) Object Sensor - Left Rear Corner |
Courtesy of GENERAL MOTORS CORP.

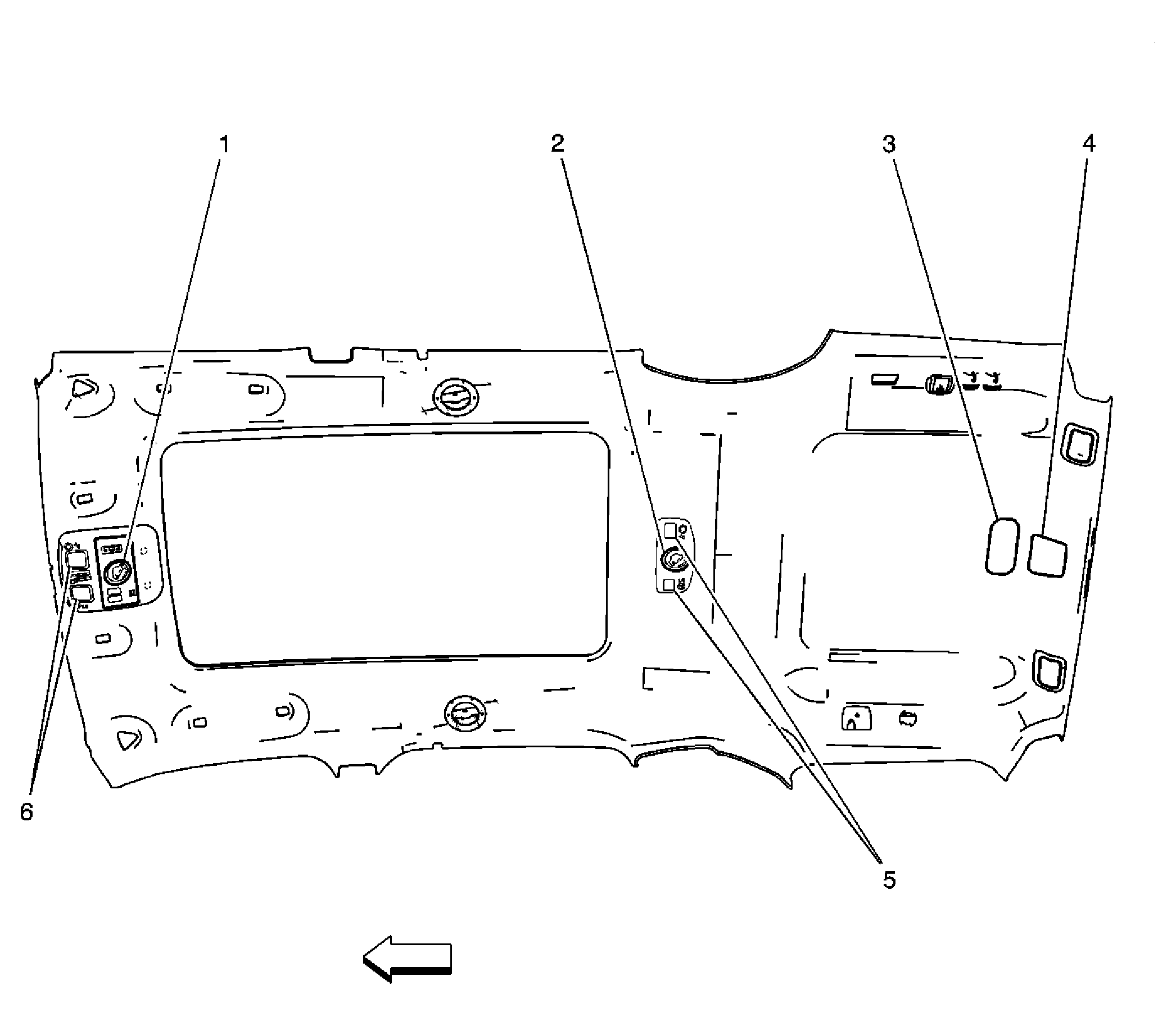

| Callout |
Component Name |
| 1 |
Blower Motor Switch - Front Auxiliary (C57) |
| 2 |
Blower Motor Switch - Rear Auxiliary (C57) |
| 3 |
Courtesy/Reading Lamp - Rear |
| 4 |
Rear Parking Assist (RPA) Display |
| 5 |
Courtesy/Reading Lamp - Center |
| 6 |
Courtesy/Reading Lamp - Front |
