Component Locator
>>
Remote Function Component Views
Remote Function Component Views

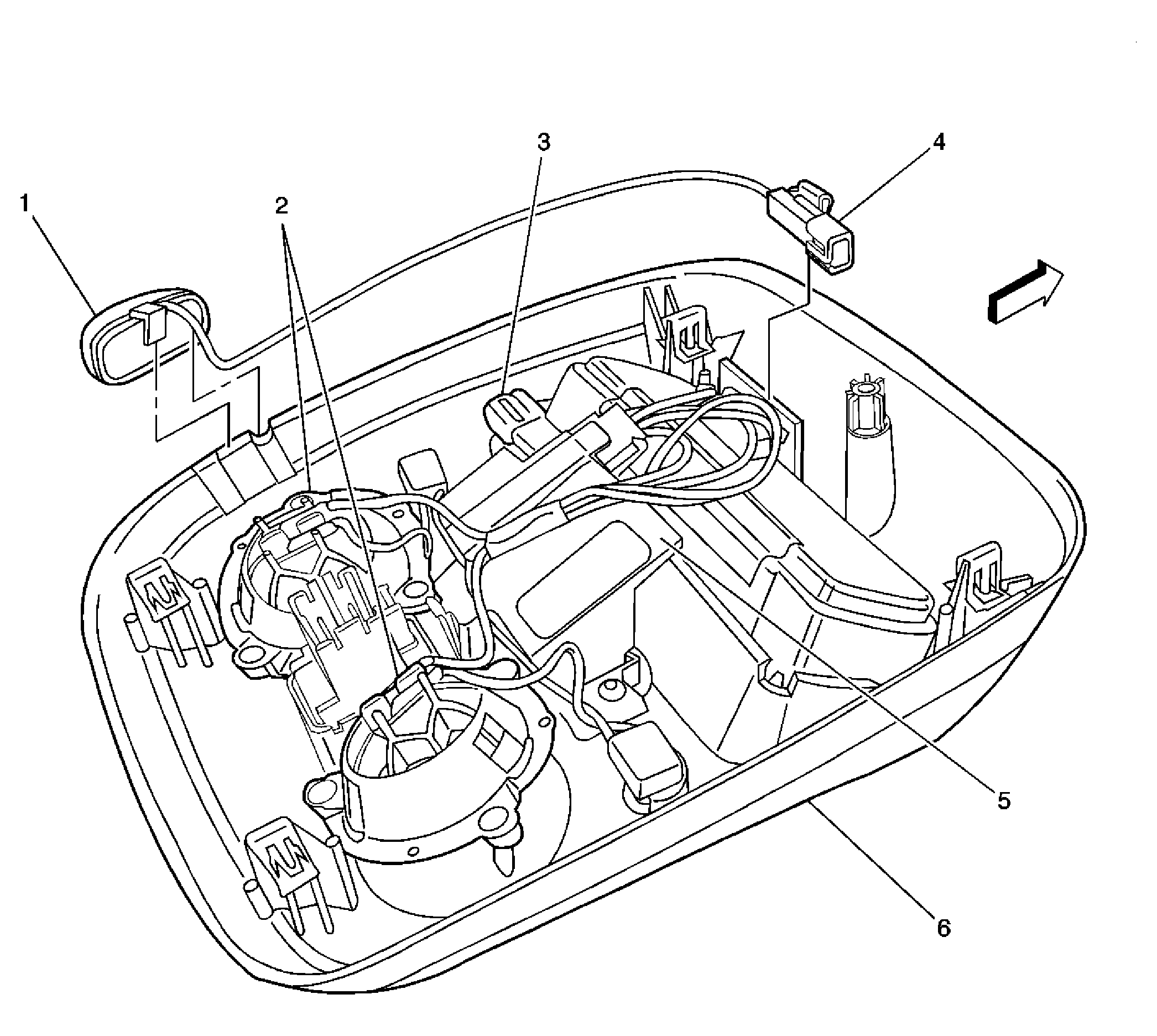

Fig 1: Overhead Console Component Views
Courtesy of GENERAL MOTORS CORP.
Callout
Component Name
1
Cellular Microphone (UE1)
2
Courtesy Map/Reading Lamps Front
3
C355
4
Cellular Microphone (UE1)
5
Garage Door Opener
6
Overhead Console
