Powertrain Component Views

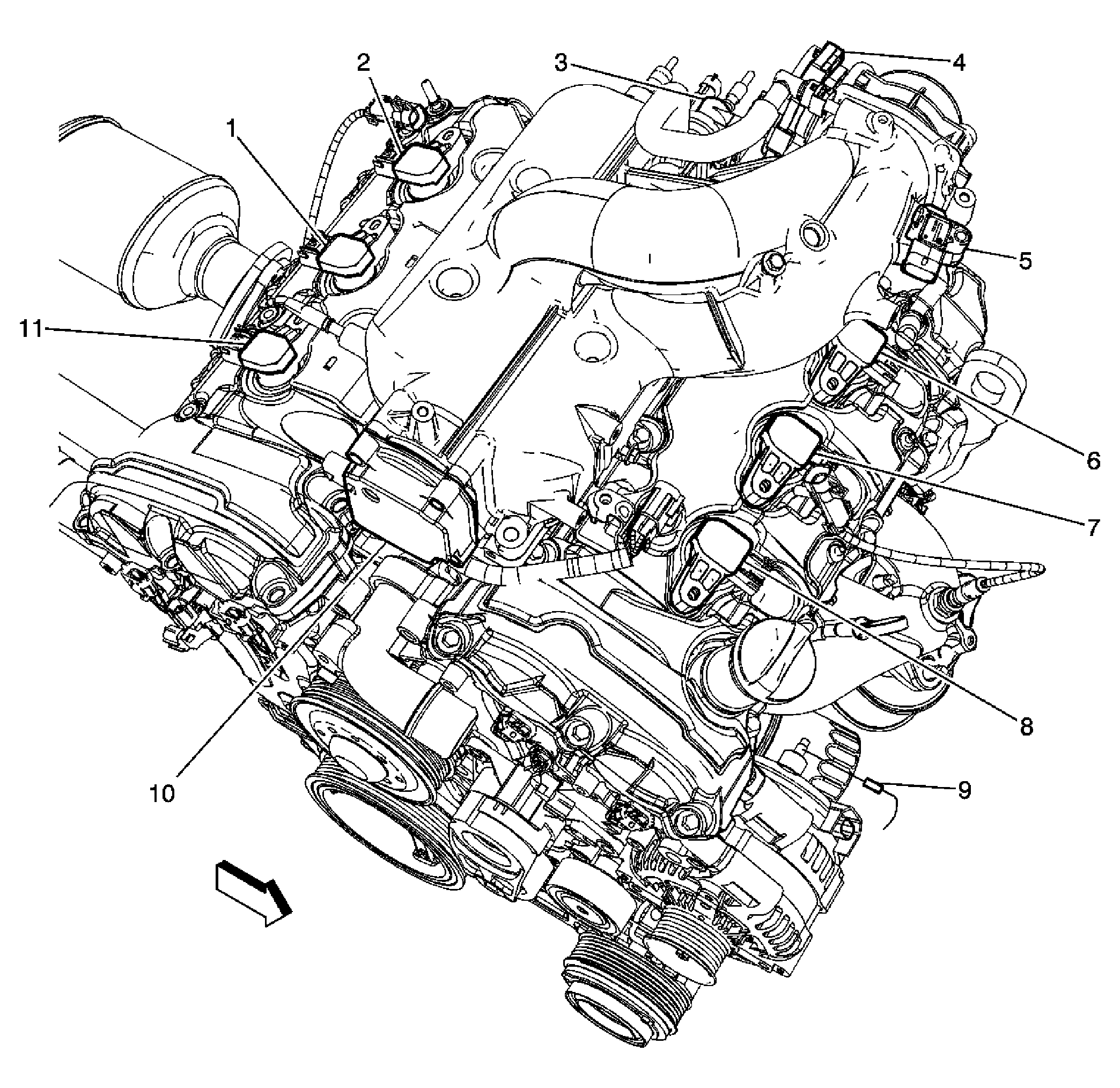

Fig 1: View Of Engine Components - Top
GM1863182Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Ignition Coil 3
2 Ignition Coil 5
3 Evaporative Emission (EVAP) Canister Purge Solenoid Valve
4 Throttle Body
5 Barometric Pressure (BARO) Sensor
6 Ignition Coil 6
7 Ignition Coil 4
8 Ignition Coil 2
9 Generator Inline Fuse
10 Intake Manifold Tuning (IMT) Solenoid Valve
11 Ignition Coil 1

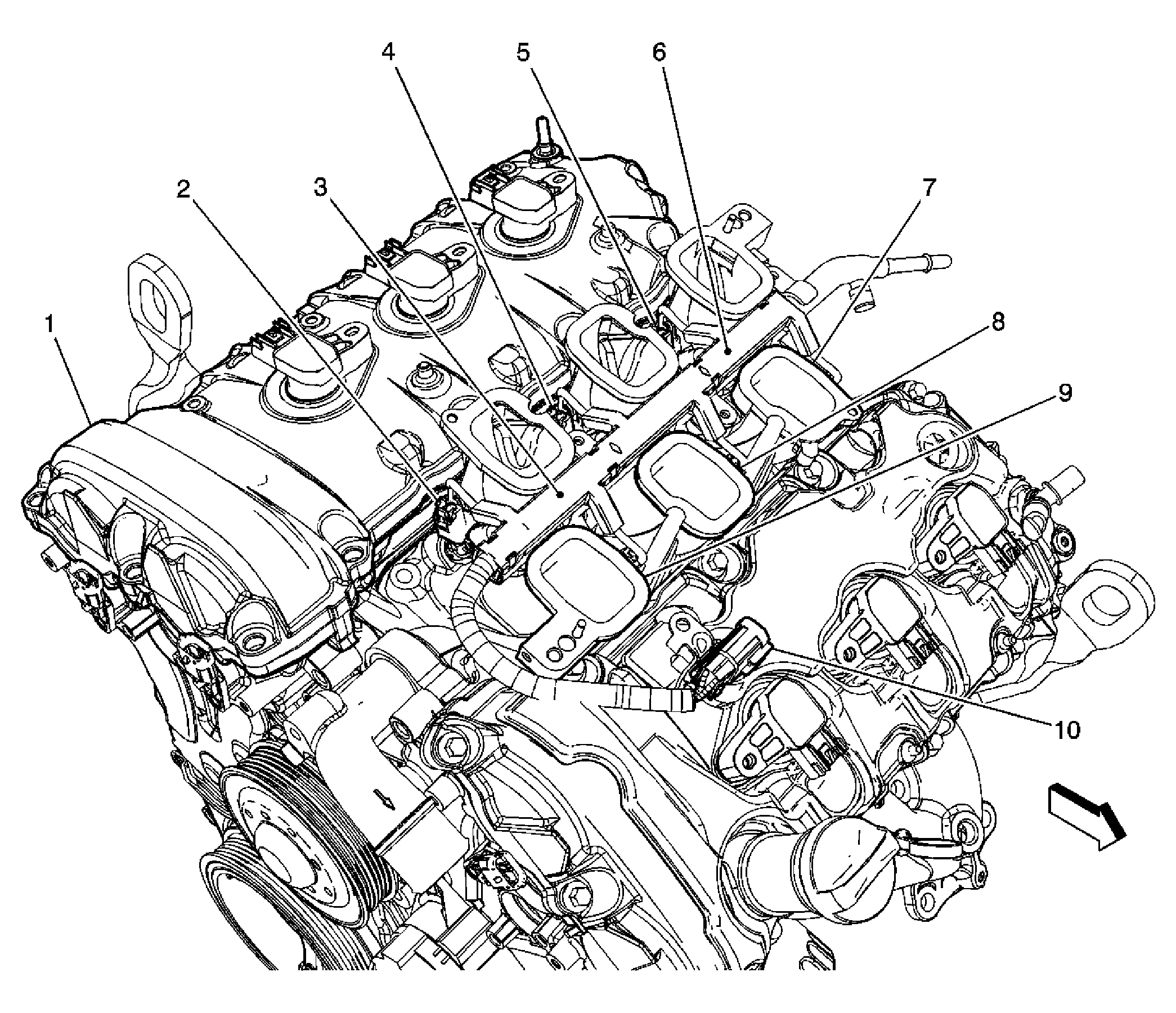

Fig 2: Identifying Fuel Injectors
GM1877321Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Valve Cover
2 Fuel Injector 1
3 J135
4 Fuel Injector 3
5 Fuel Injector 5
6 J137
7 Fuel Injector 6
8 Fuel Injector 4
9 Fuel Injector 2
10 X101

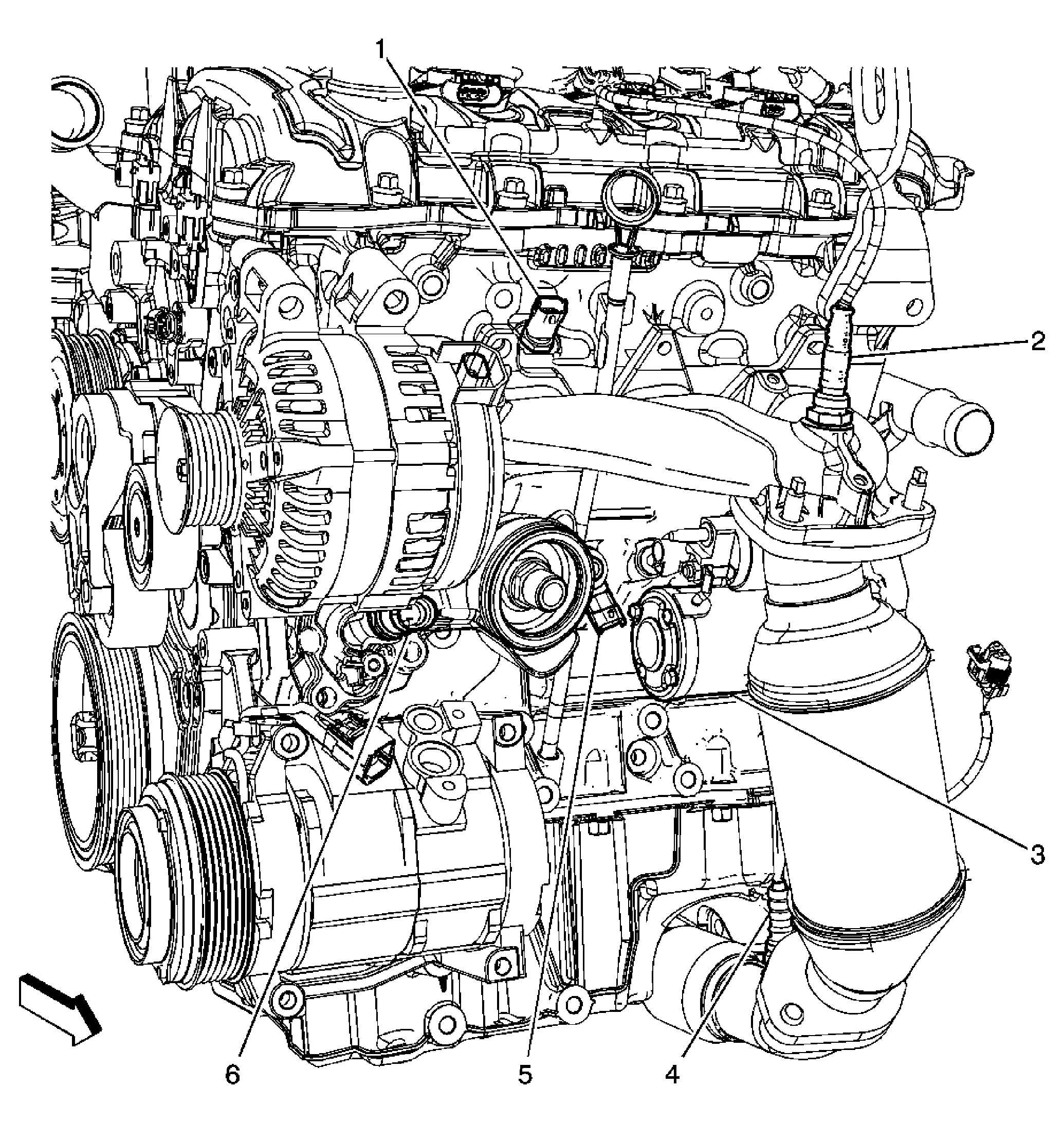

Fig 3: View Of Engine Components - Front
GM1863184Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine Coolant Temperature (ECT) Sensor
2 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 1
3 Starter Motor
4 Heated Oxygen Sensor (HO2S) Bank 2 Sensor 2
5 Knock Sensor (KS) 2
6 Engine Oil Pressure (EOP) Switch

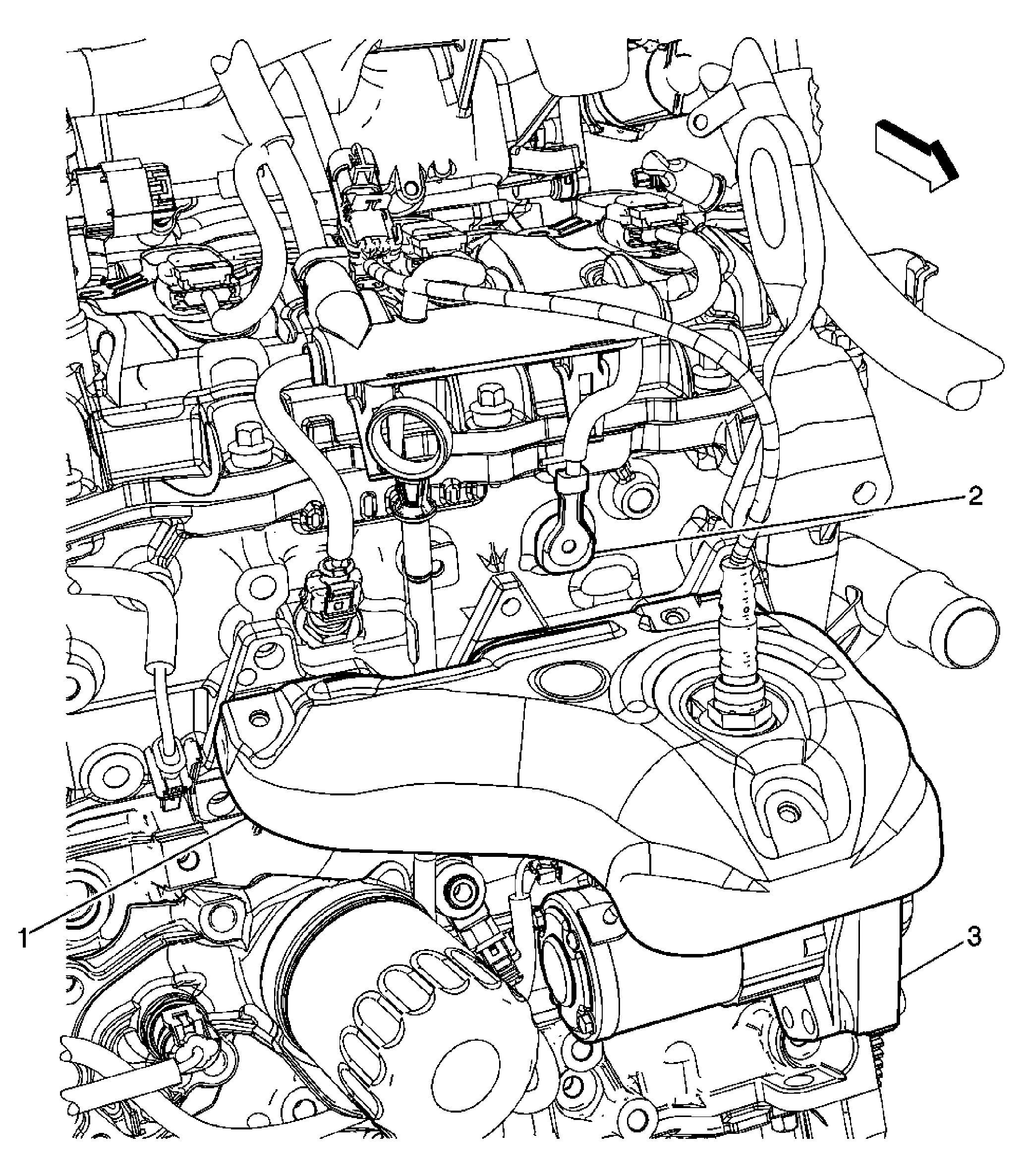

Fig 4: View Of Left Rear Of Engine
GM1863198Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Exhaust Manifold
2 G114
3 Starter Motor

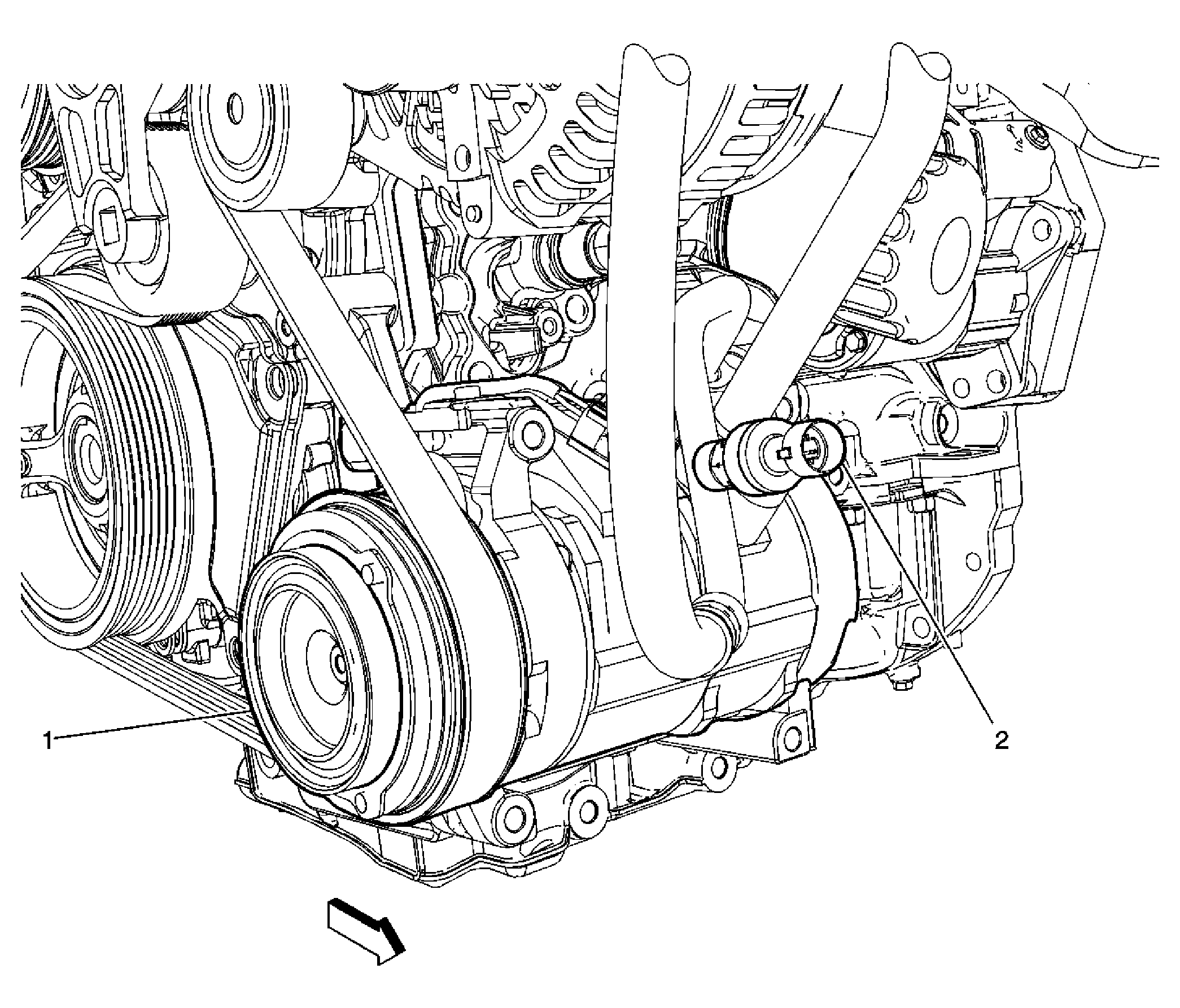

Fig 5: Identifying A/C Refrigerant Pressure Sensor
GM1867824Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 A/C Compressor
2 A/C Refrigerant Pressure Sensor

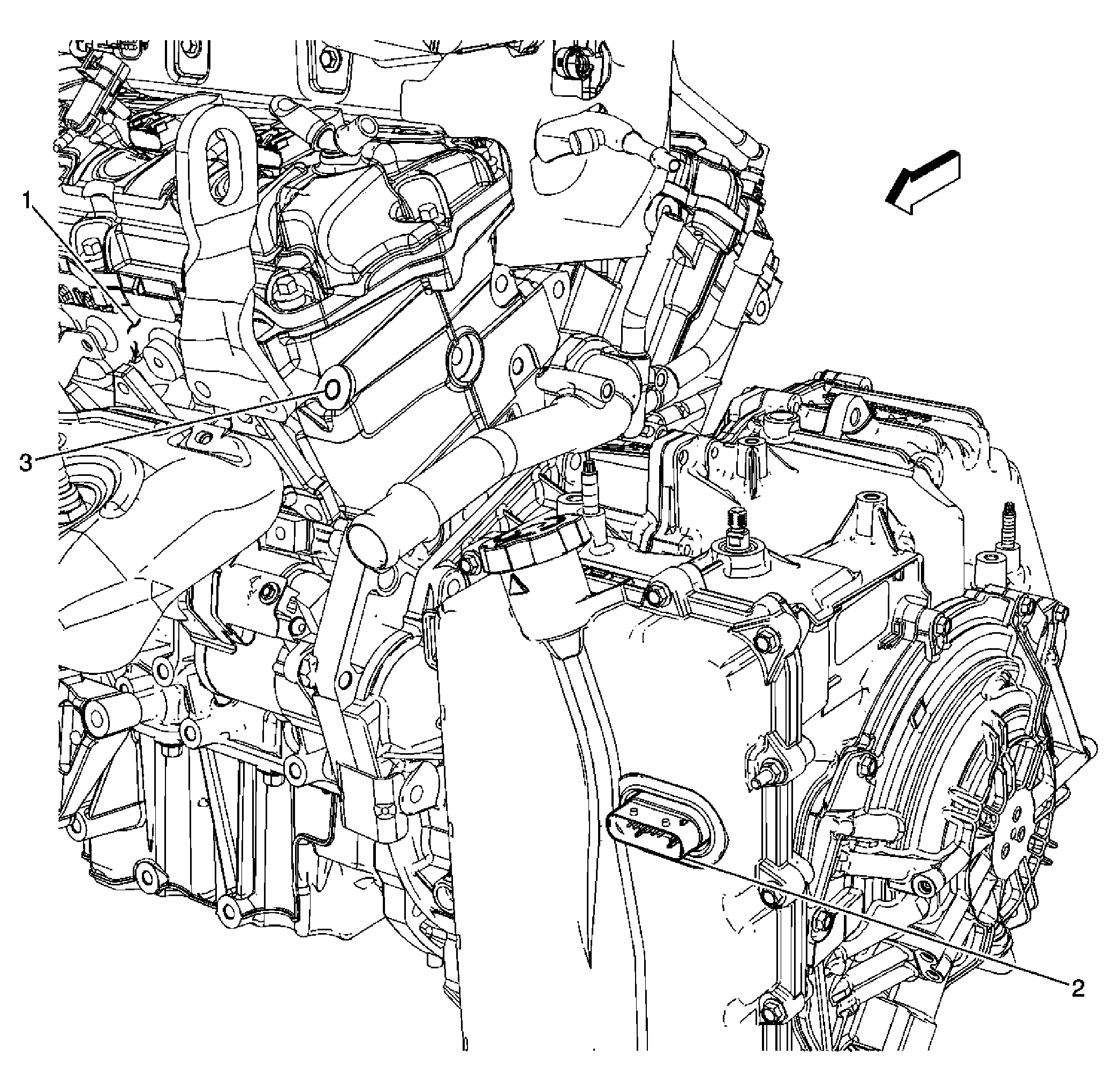

Fig 6: View Of G113
GM1867860Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Engine
2 Automatic Transmission
3 G113

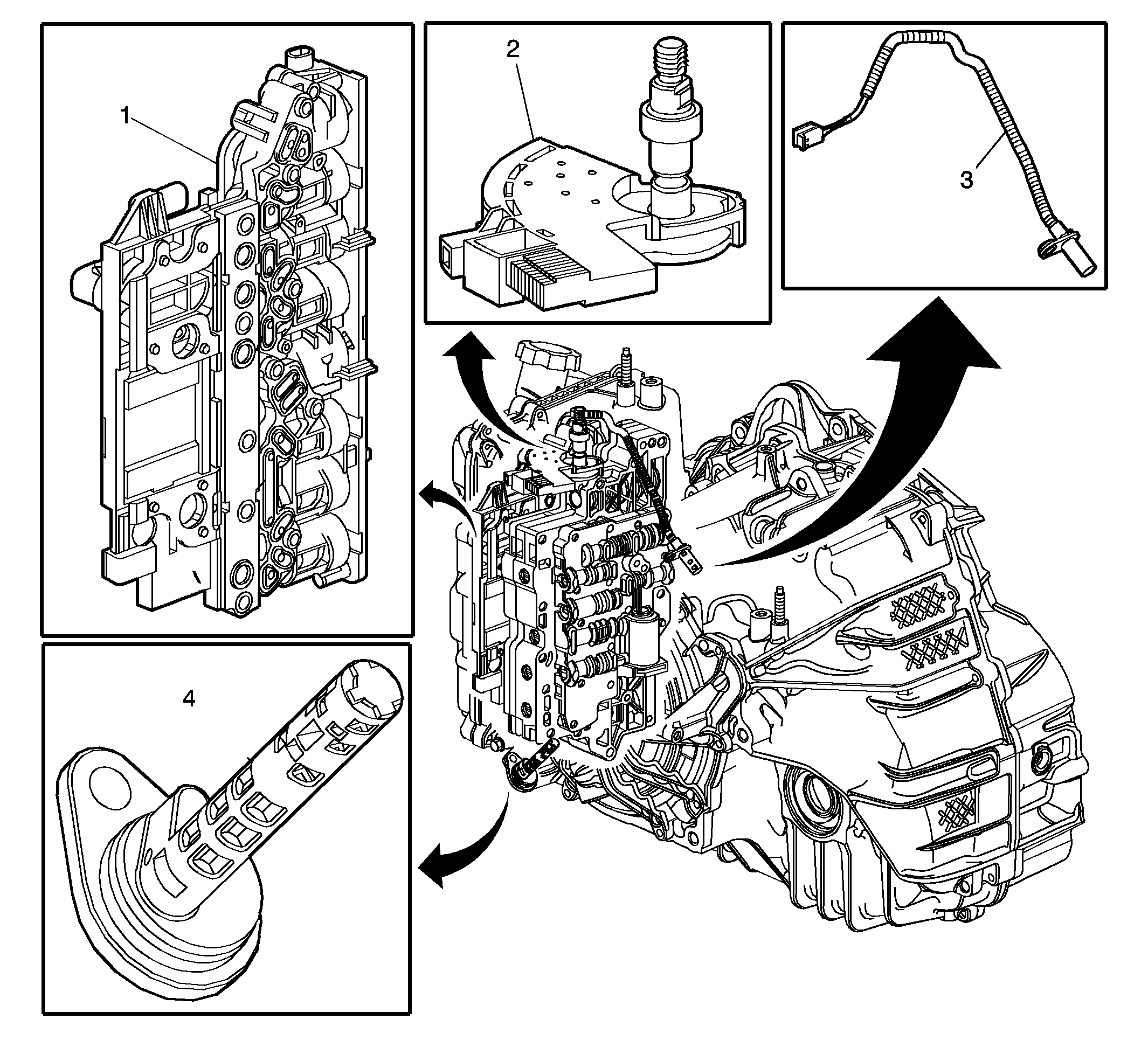

Fig 7: Automatic Transmission Electronic Components
GM1910851Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Control Solenoid Valve Assembly
2 Internal Mode Switch
3 Output Speed Sensor (OSS)
4 Input Speed Sensor (ISS)

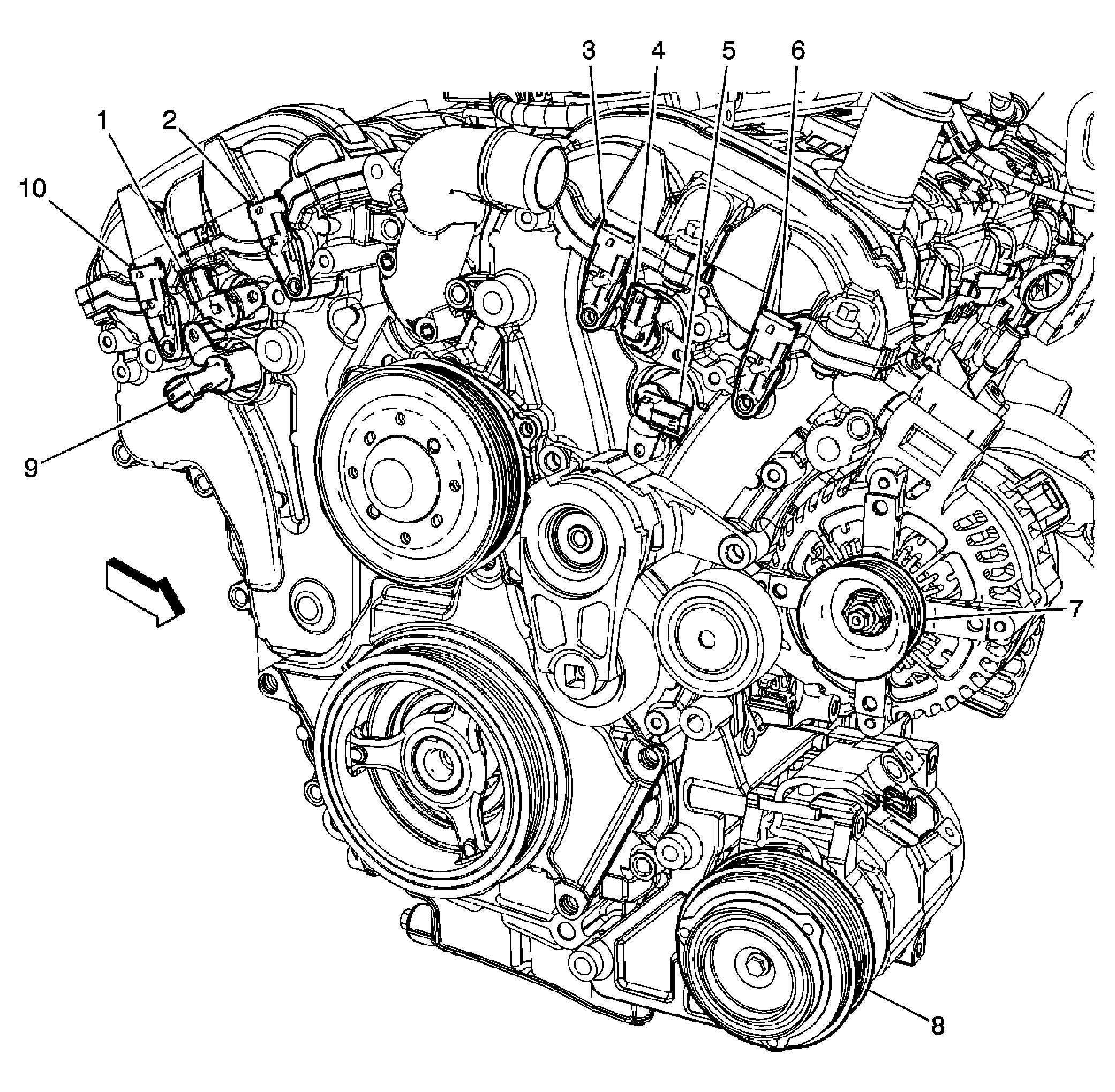

Fig 8: View Of Camshaft Position (CMP) Actuator Solenoids And Sensors
GM1863192Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Camshaft Position (CMP) Actuator Solenoid - Intake Bank 1
2 Camshaft Position (CMP) Sensor - Intake Bank 1
3 Camshaft Position (CMP) Sensor - Intake Bank 2
4 Camshaft Position (CMP) Actuator Solenoid - Intake Bank 2
5 Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 2
6 Camshaft Position (CMP) Sensor - Exhaust Bank 2
7 Generator
8 A/C Compressor Clutch
9 Camshaft Position (CMP) Actuator Solenoid - Exhaust Bank 1
10 Camshaft Position (CMP) Sensor - Exhaust Bank 1

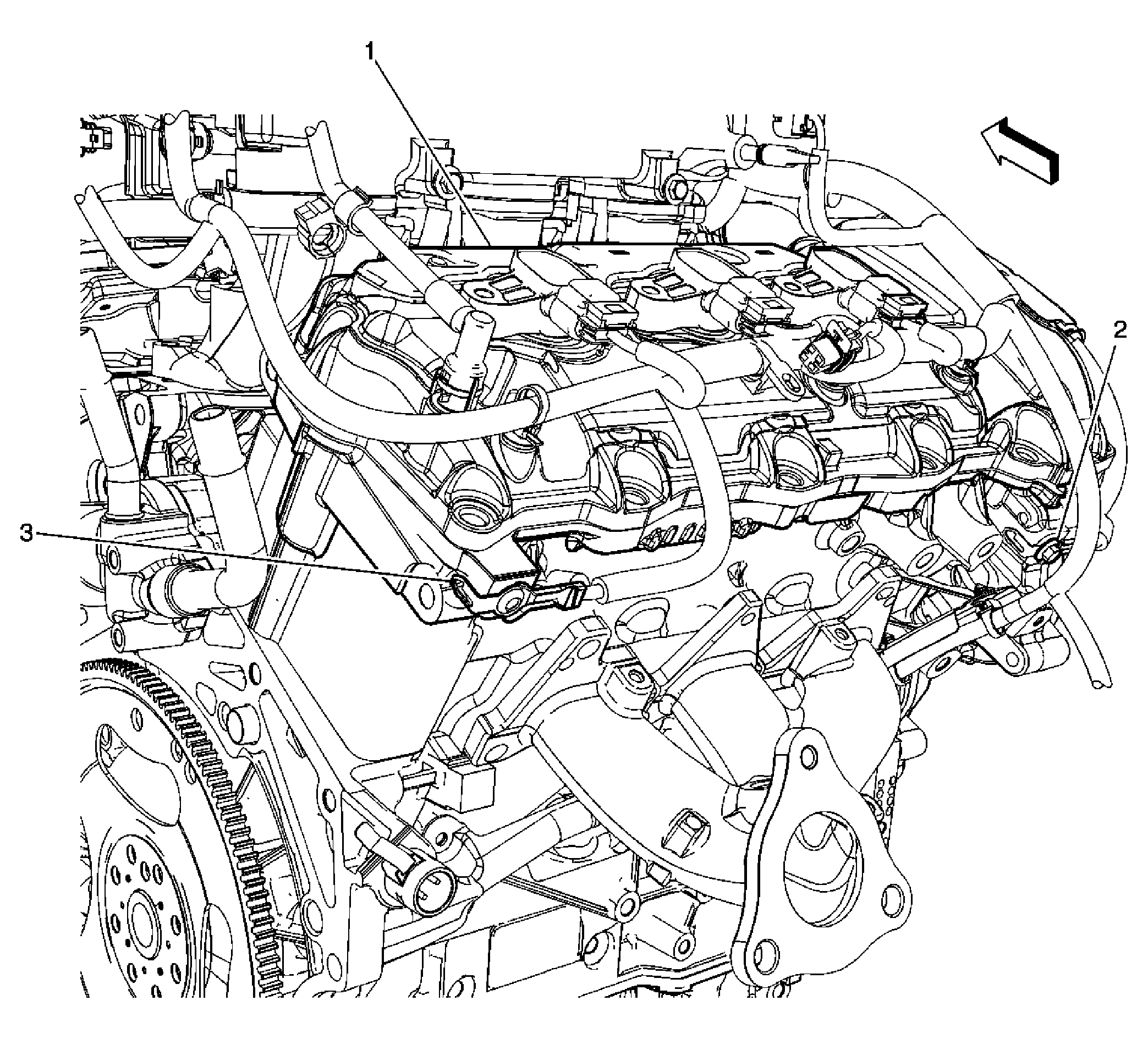

Fig 9: View Of G110 & G112
GM1863197Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Valve Cover
2 G110
3 G112

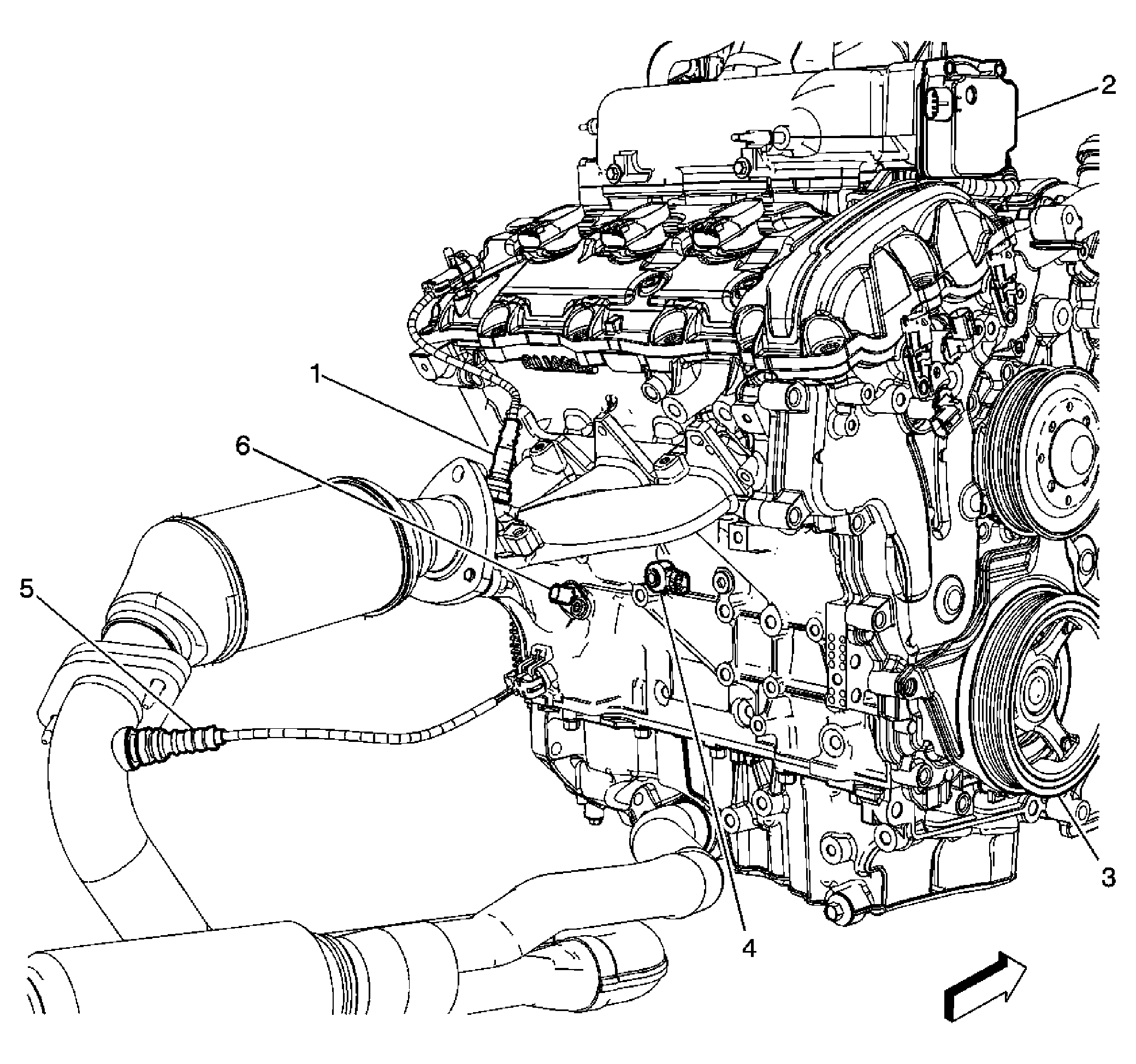

Fig 10: View Of Engine Components - Rear
GM1863183Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 1
2 Intake Manifold Tuning (IMT) Solenoid Valve
3 Crankshaft Pully
4 Knock Sensor (KS) 1
5 Heated Oxygen Sensor (HO2S) Bank 1 Sensor 2
6 Crankshaft Position (CKP) Sensor

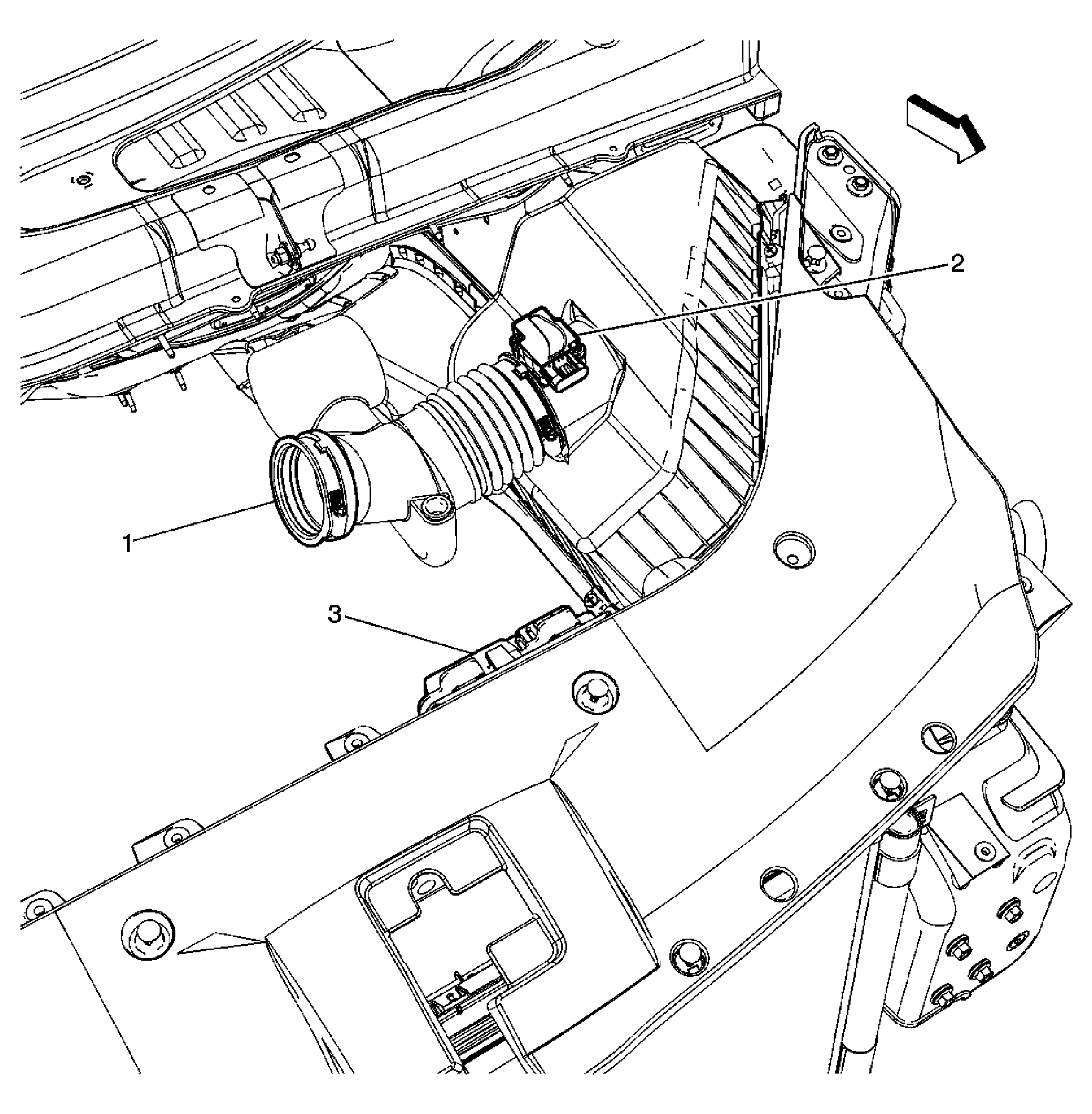

Fig 11: Identifying Left Front Of Engine Compartment
GM1863193Courtesy of GENERAL MOTORS CORP.
Callout Component Name
1 Air Intake
2 Mass Air Flow (MAF)/Intake Air Temperature (IAT) Sensor
3 Engine Control Module (ECM)
