Front of Vehicle/Engine Compartment Component Views

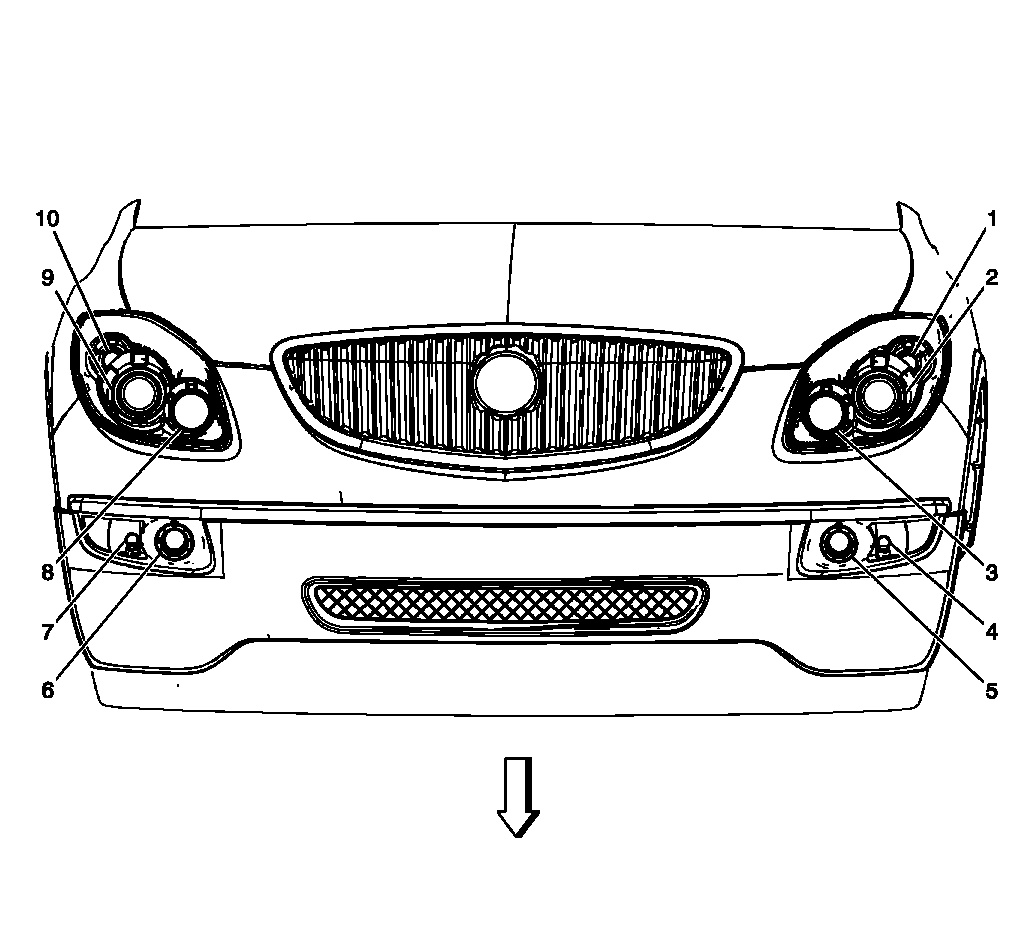

Fig 1: Front Of Vehicle (W49)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Marker Lamp - LF
2	Headlamp - Left
3	Park/Turn Signal Lamp - LF
4	Daytime Running Lamp (DRL) - Left
5	Fog Lamp - Left
6	Fog Lamp - Right
7	Daytime Running Lamp (DRL) - Right
8	Park/Turn Signal Lamp - Right
9	Headlamp - Right
10	Marker Lamp - Right

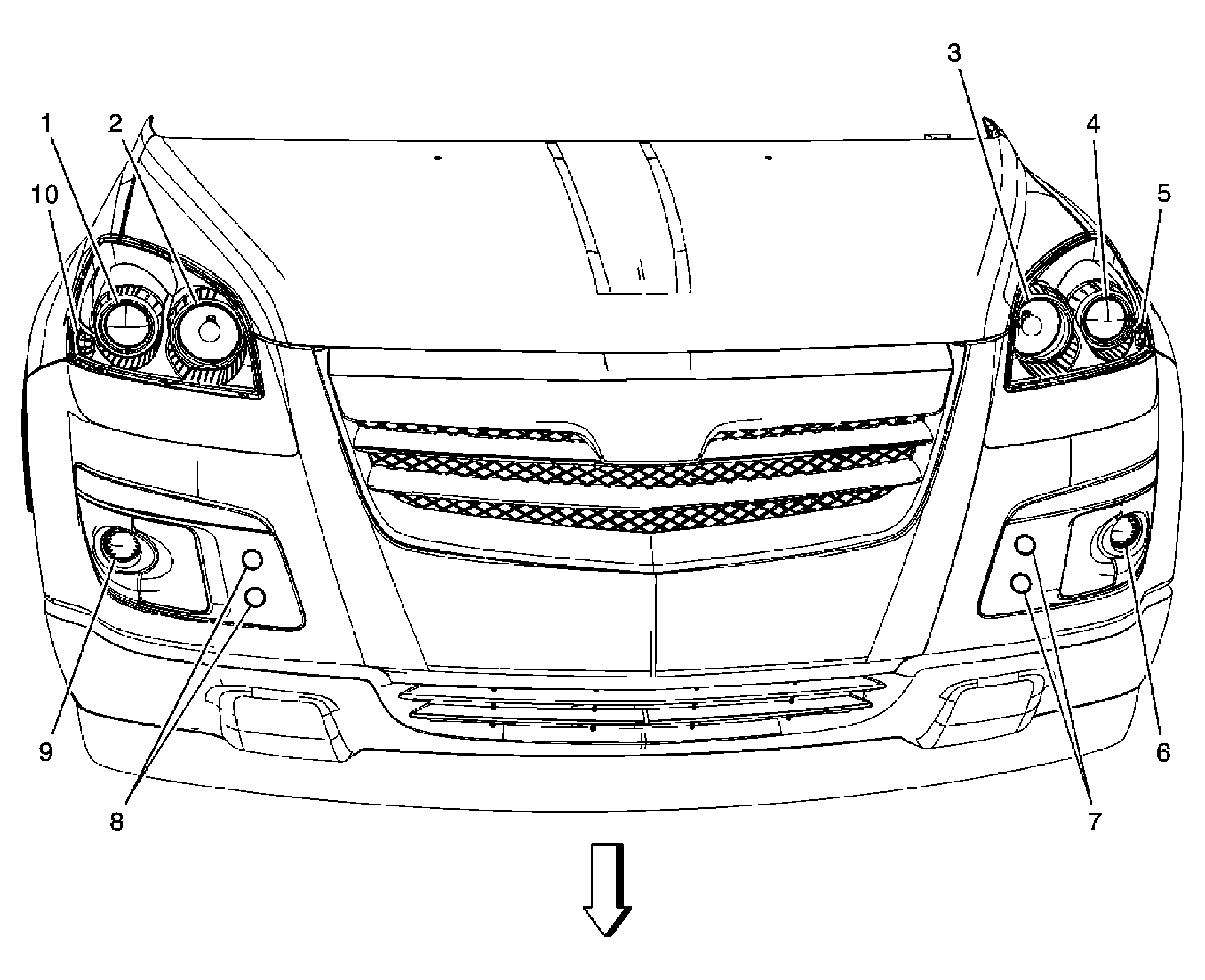

Fig 2: View Of Front Lights (WDA)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Headlamp - High Beam - Left
4	Headlamp - Low Beam - Left
5	Marker Lamp - Left Front
6	Fog Lamp - Left
7	Turn Signal Lamp - Left Front Lower/Turn Signal Lamp - Left Front Upper
8	Turn Signal Lamp - Right Front Lower/Turn Signal Lamp - Right Front Upper
9	Fog Lamp - Right
10	Marker Lamp - Right Front

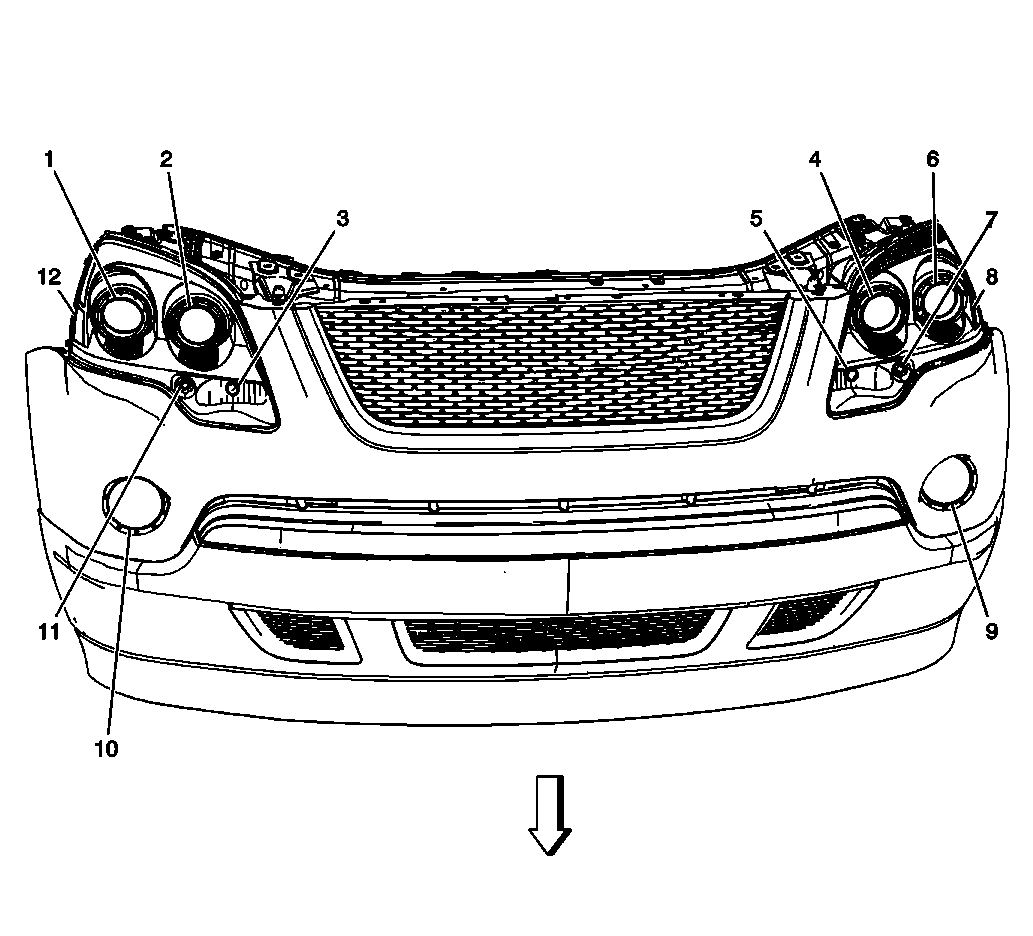

Fig 3: Identifying Front Lights (Z88)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Headlamp - Low Beam - Right
2	Headlamp - High Beam - Right
3	Turn Signal Lamp - Right Front
4	Headlamp - High Beam - Left
5	Turn Signal Lamp - Left Front
6	Headlamp - Low Beam - Left
7	Marker Lamp - Left Front
8	Side Marker Lamp - Left Front
9	Fog Lamp - Left
10	Fog Lamp - Right
11	Marker Lamp - Right Front
12	Side Marker Lamp - Right Front

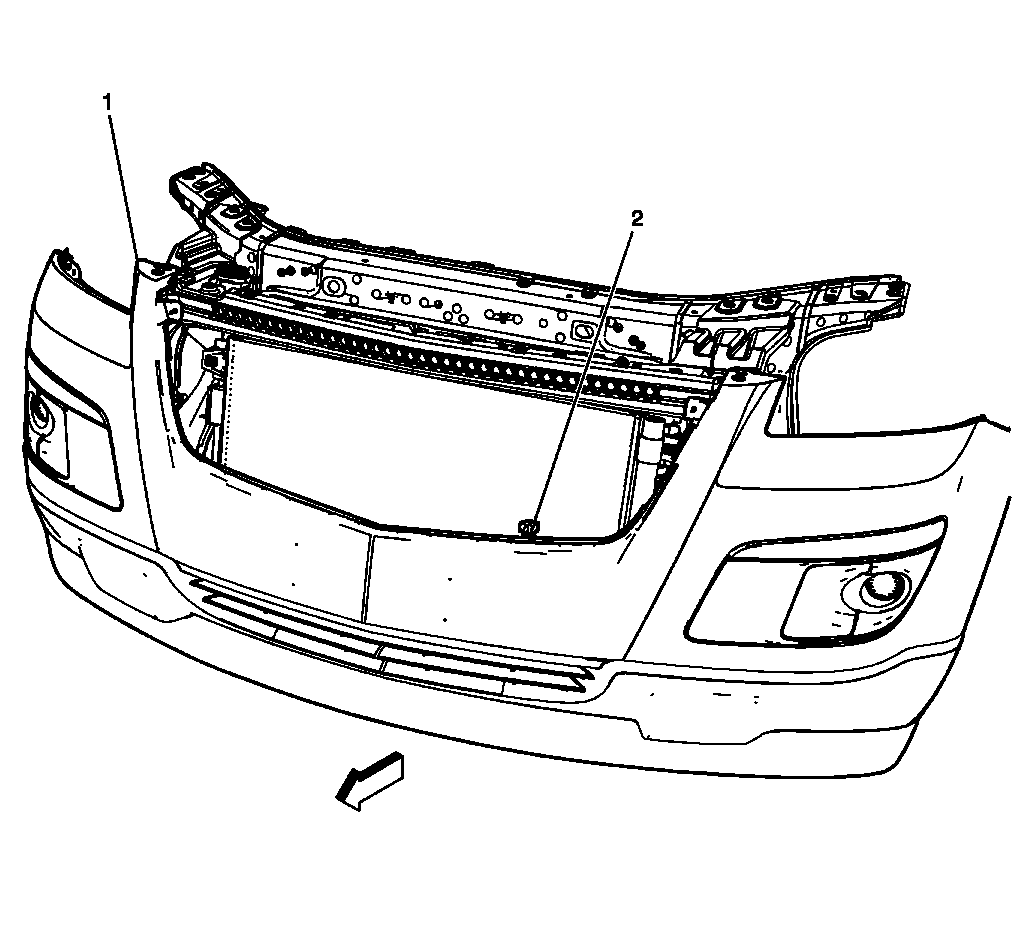

Fig 4: Identifying Ambient Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Front Fascia
2	Ambient Temperature Sensor

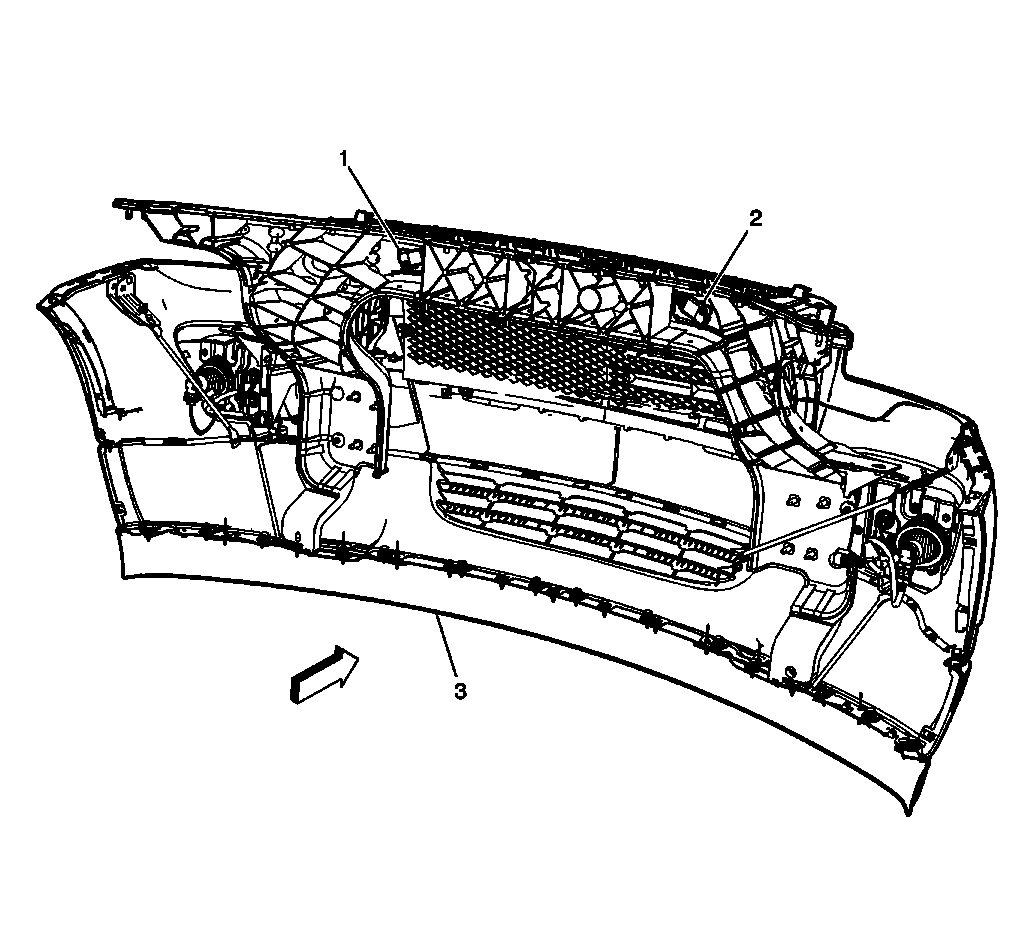

Fig 5: Identifying Front Sensors

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Inflatable Restraint Front End Sensor - Left
2	Inflatable Restraint Front End Sensor - Right
3	Front Fascia

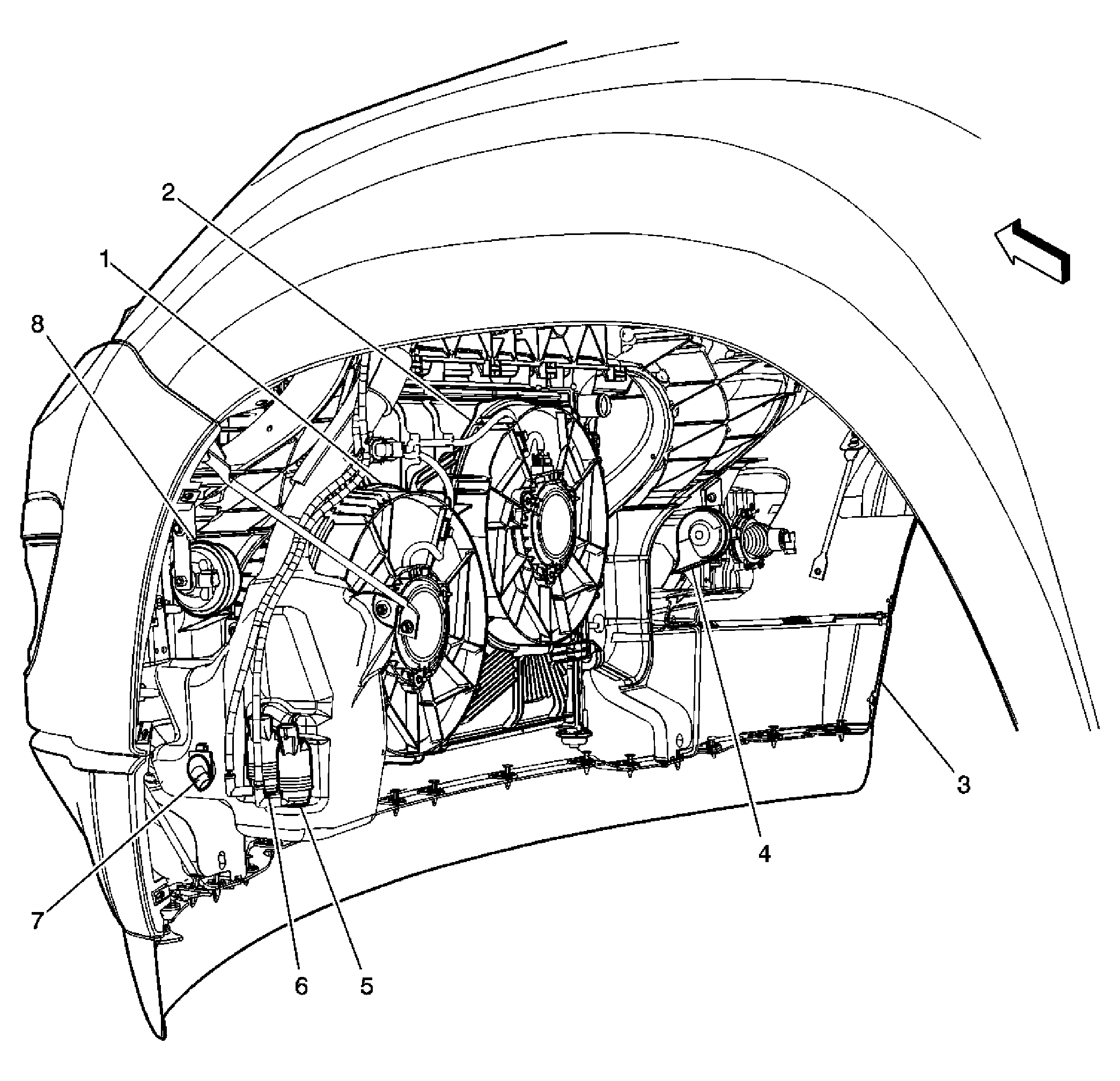

Fig 6: View Of Behind Front Fascia

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Cooling Fan - Left
2	Cooling Fan - Right
3	Left Front Fender
4	Horn - High Note
5	Windshield Washer Fluid Pump
6	Rear Window Washer Fluid Pump
7	Washer Fluid level Sensor
8	Horn - Low Note

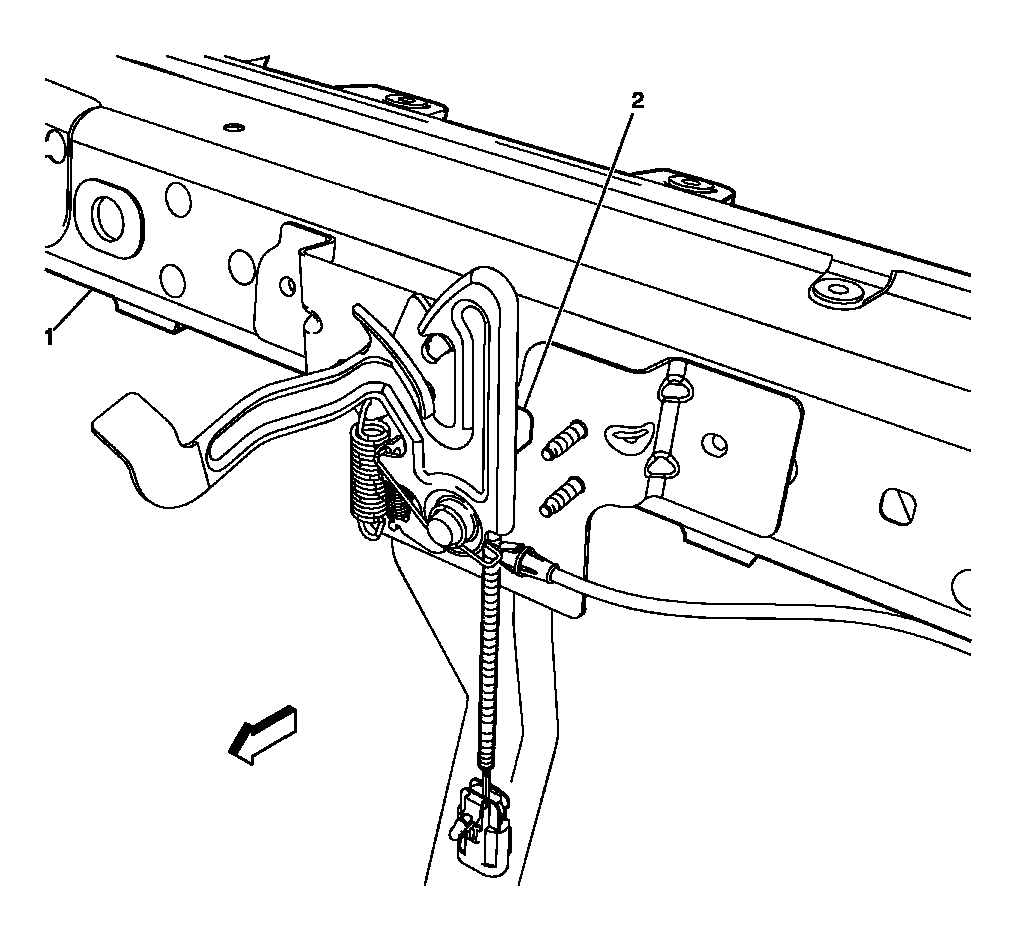

Fig 7: Identifying Hood Ajar Switch

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Upper Tie Bar
2	Hood Ajar Switch (AP3/AP8)

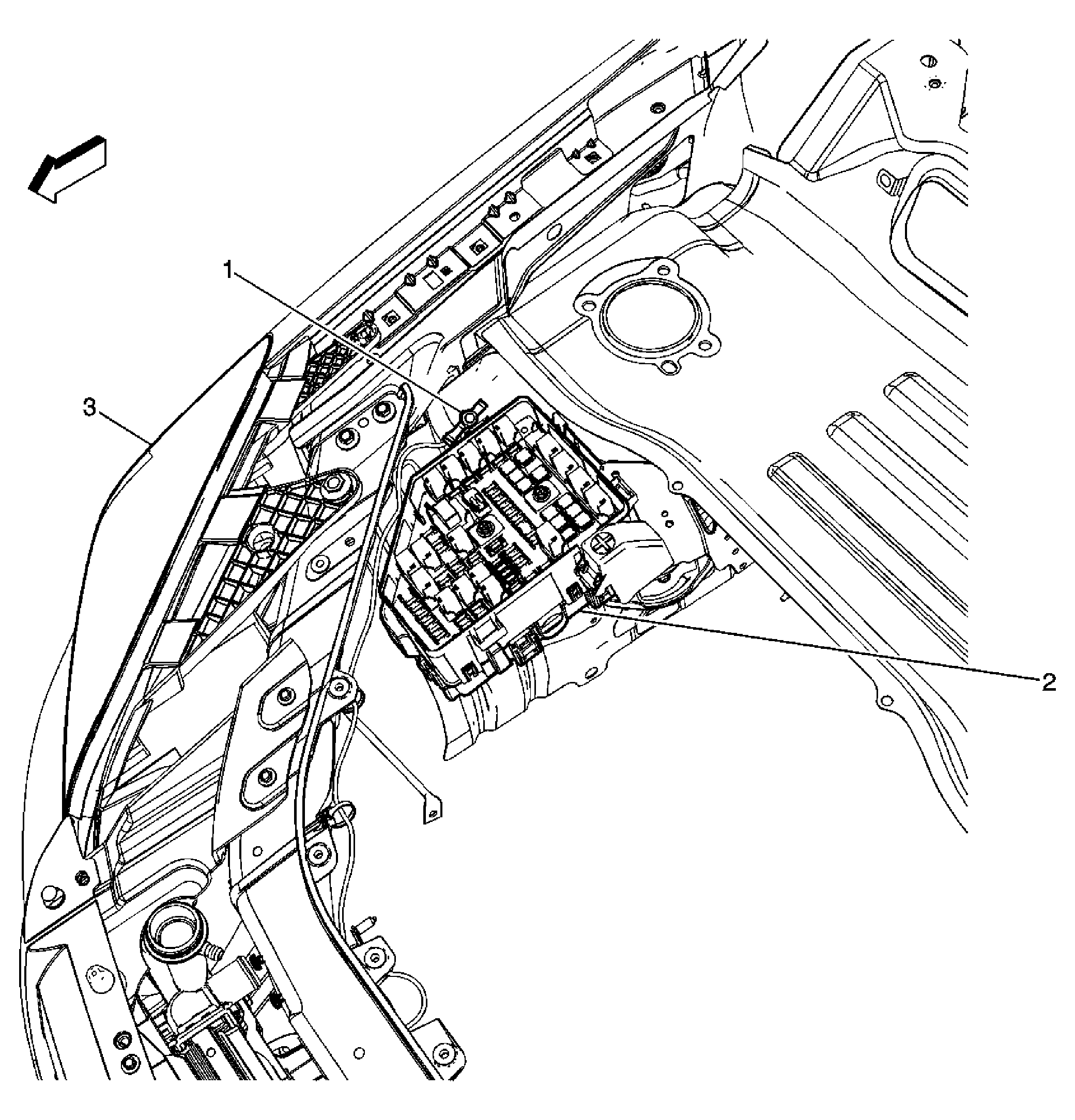

Fig 8: Identifying G102

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	G102
2	Fuse Block - Underhood
3	Right Front Headlamp

Fig 9: View Of Brake Booster

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Fluid Level Switch
2	Left Fender
3	G103
4	G101
5	G115
6	G105
7	Electronic Brake Control Module (EBCM)
8	Brake Booster Vacuum Sensor

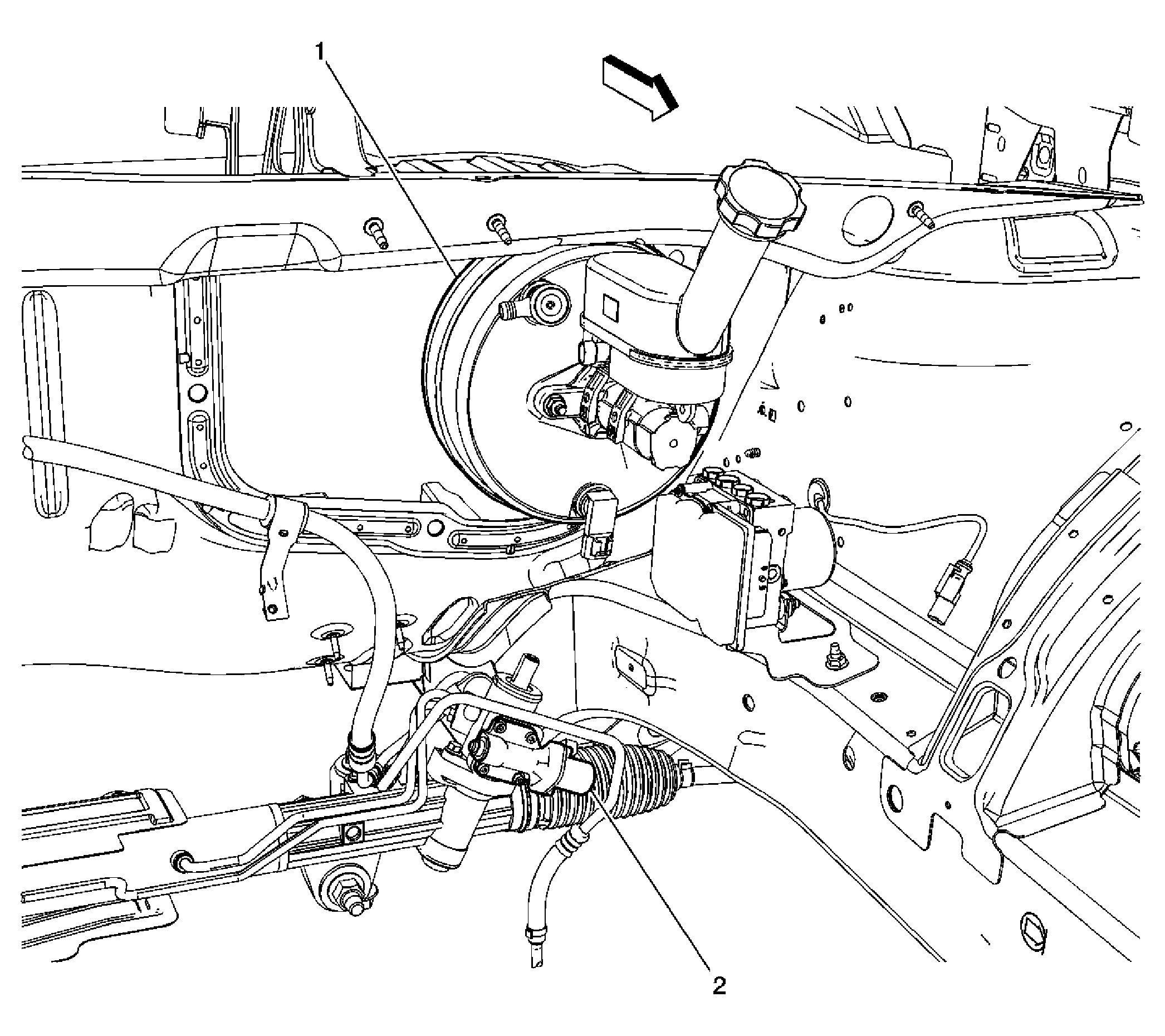

Fig 10: Identifying Steering Rack Components (NV7)

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Brake Vacuum Booster
2	Variable Effort Steering Actuator (NV7)

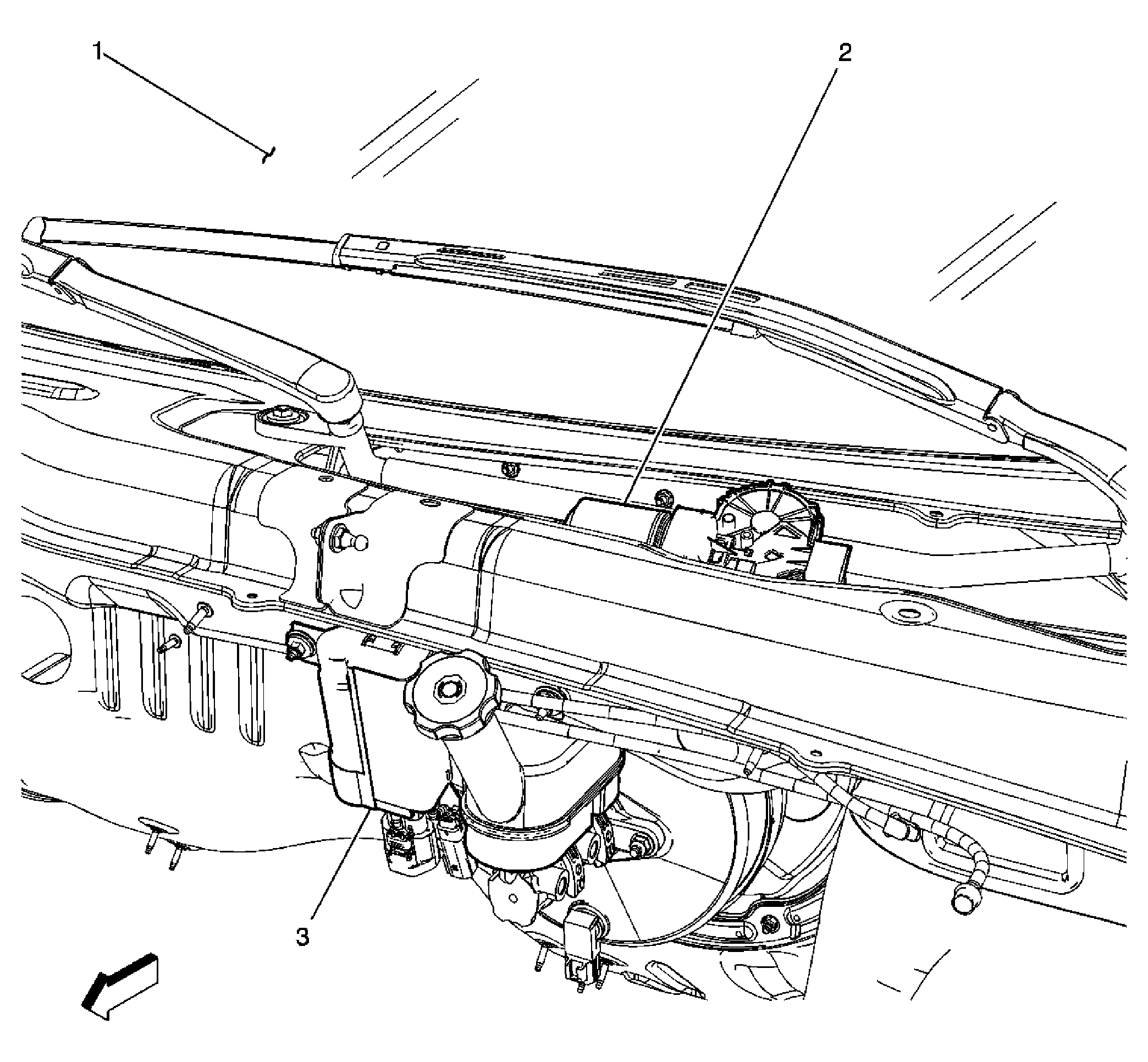

Fig 11: Identifying Wiper/Washer Components At Bottom Of Windshield

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
1	Windshield
2	Windshield Wiper Motor
3	Windshield Heated Washer Fluid Module (XA7)
