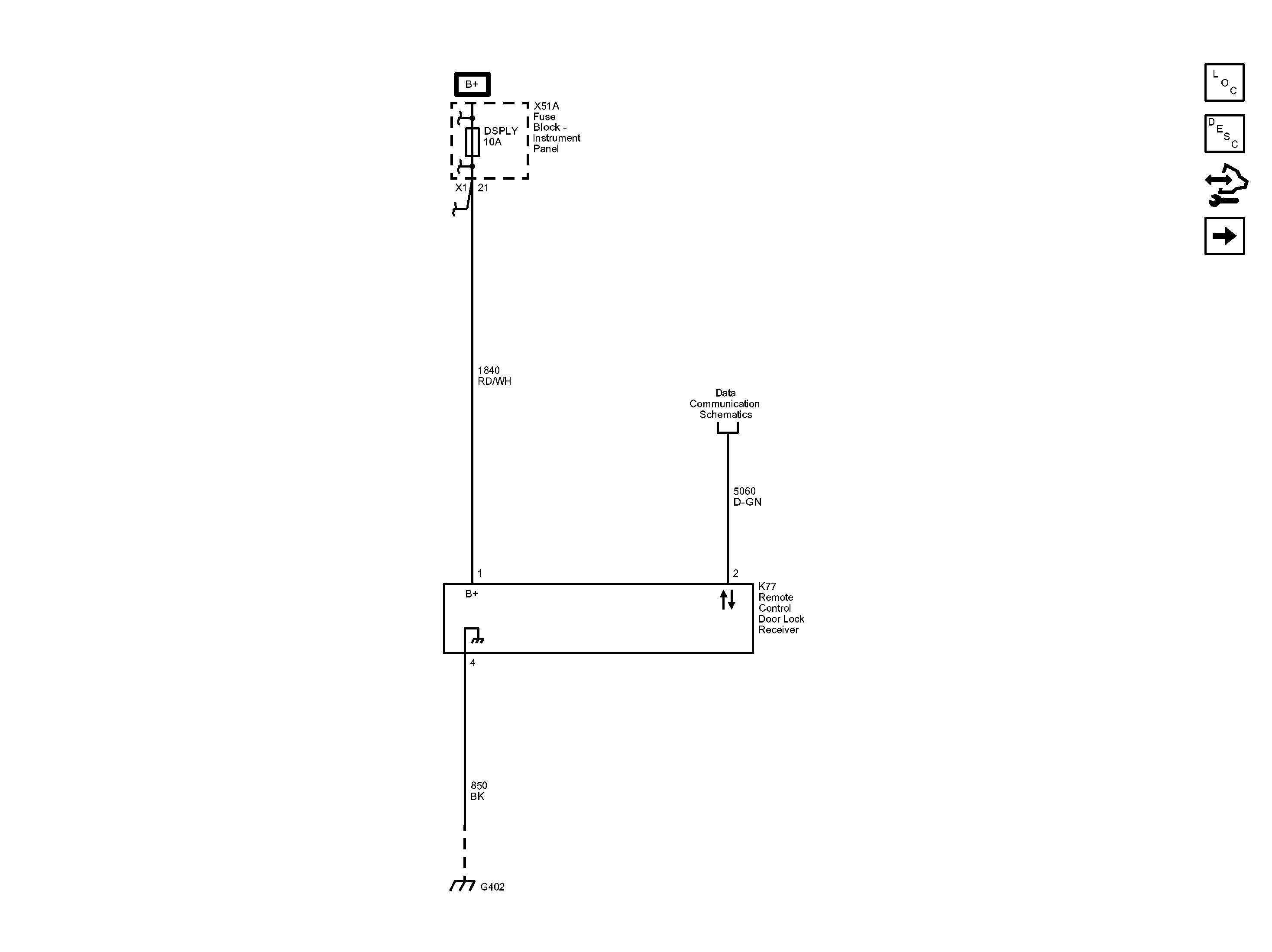

Home >> GMC >> 2013 >> Acadia SL >> Repair and Diagnosis >> Body & Frame >> Door Locks >> Keyless Entry System And Remote Functions >> Schematic and Routing Diagrams >> Remote Function Schematics >> Keyless Entry
