Installation Procedure

  1. Clean the sealing surfaces of the EBCM and the BPMV with denatured alcohol and allow to dry.

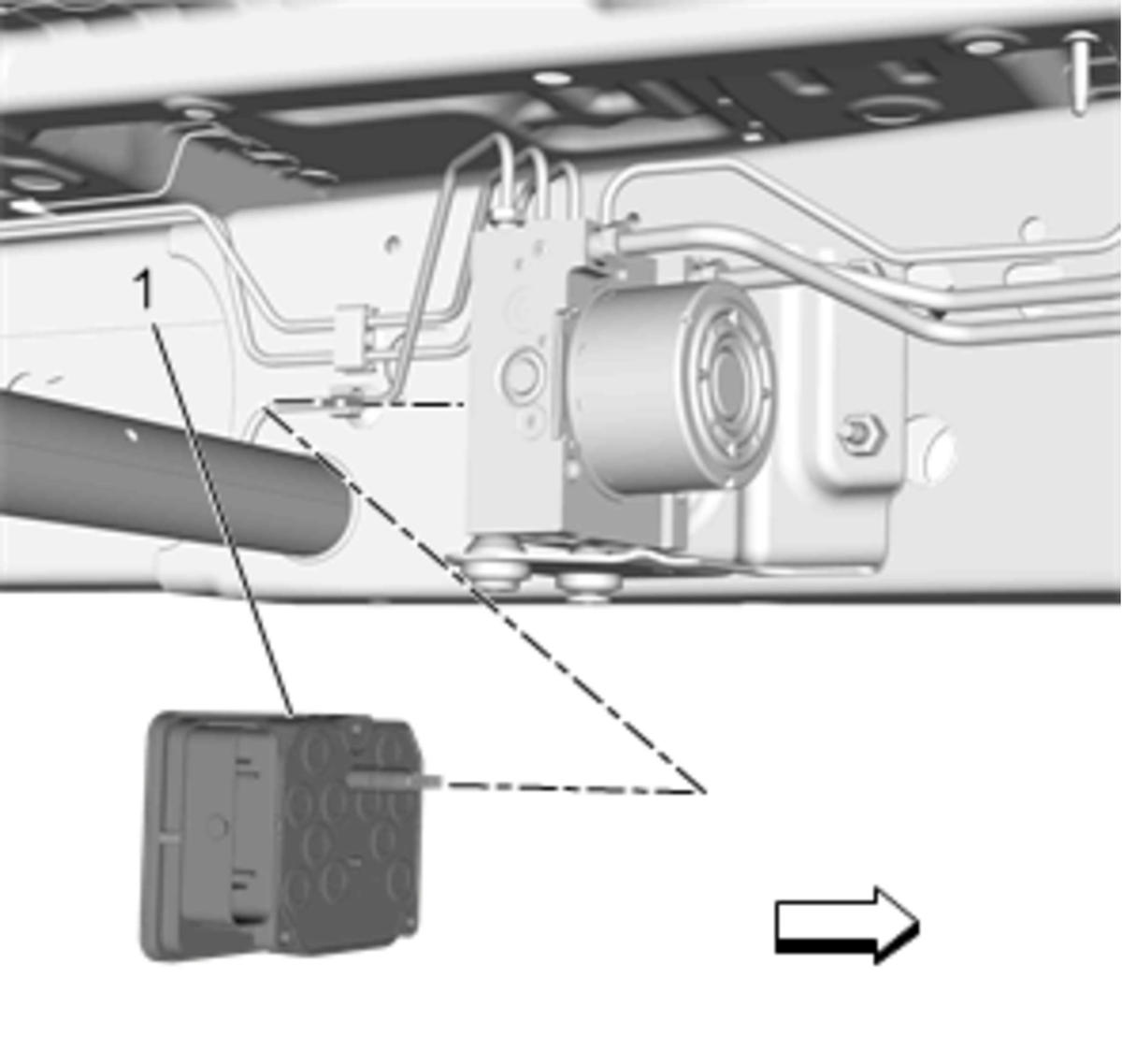

    2. Fig 1: EBCM
    GM3683617Courtesy of GENERAL MOTORS COMPANY
  2. Install the EBCM (1) to the BPMV.

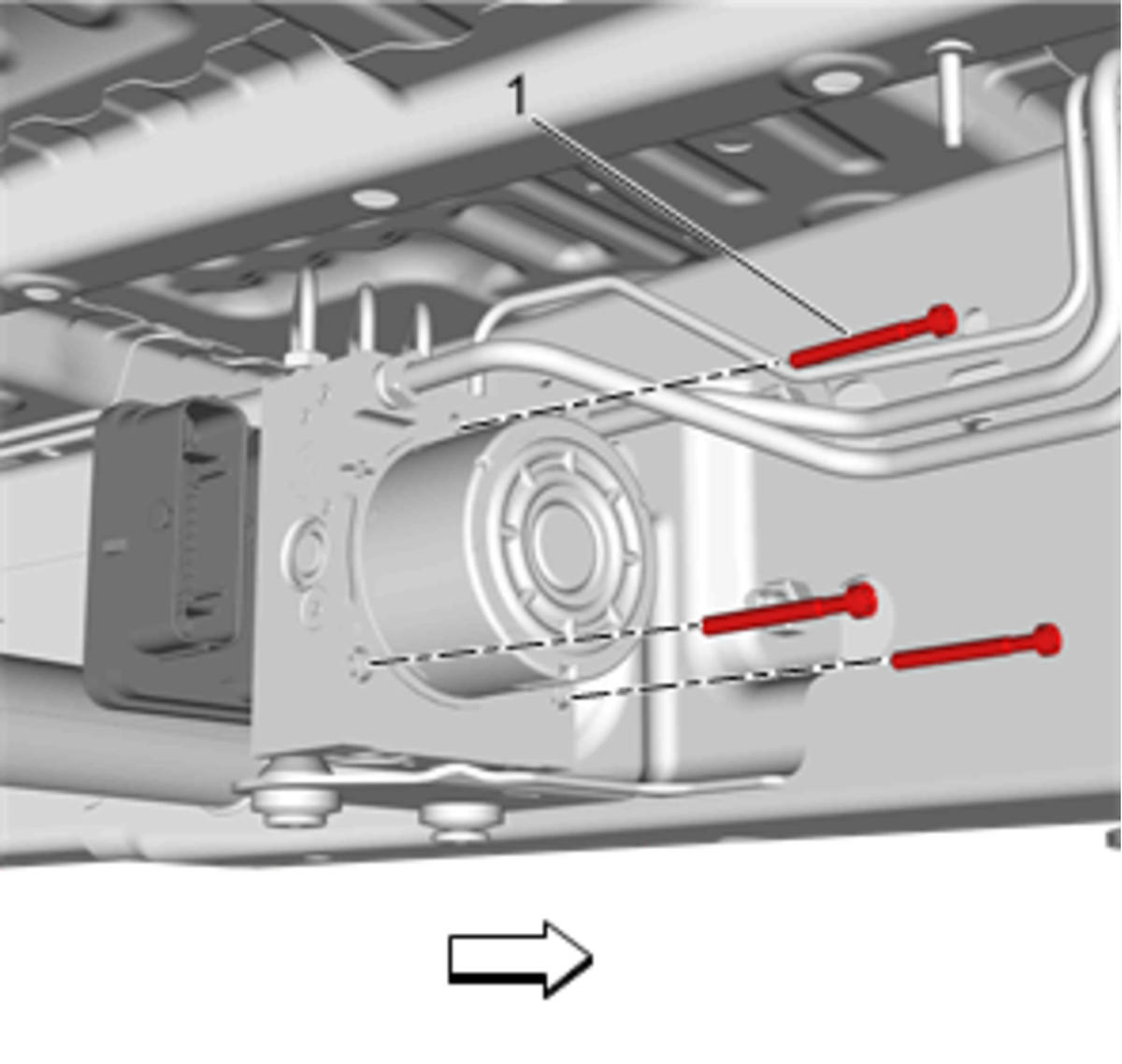

    3. Fig 2: EBCM Bolts
    GM3683615Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the EBCM bolts (1) and tighten in a cross pattern to 3 N.m (27 lb in).
  4. Connect the EBCM electrical connector.
  5. Install the transfer case skid shield, if equipped. Refer to Transfer Case Skid Shield Replacement .
  6. Program the EBCM. Refer to Electronic Brake Control Module Programming and Setup .
