Installation Procedure

  1. Install the wheel speed sensor to the suspension knuckle.

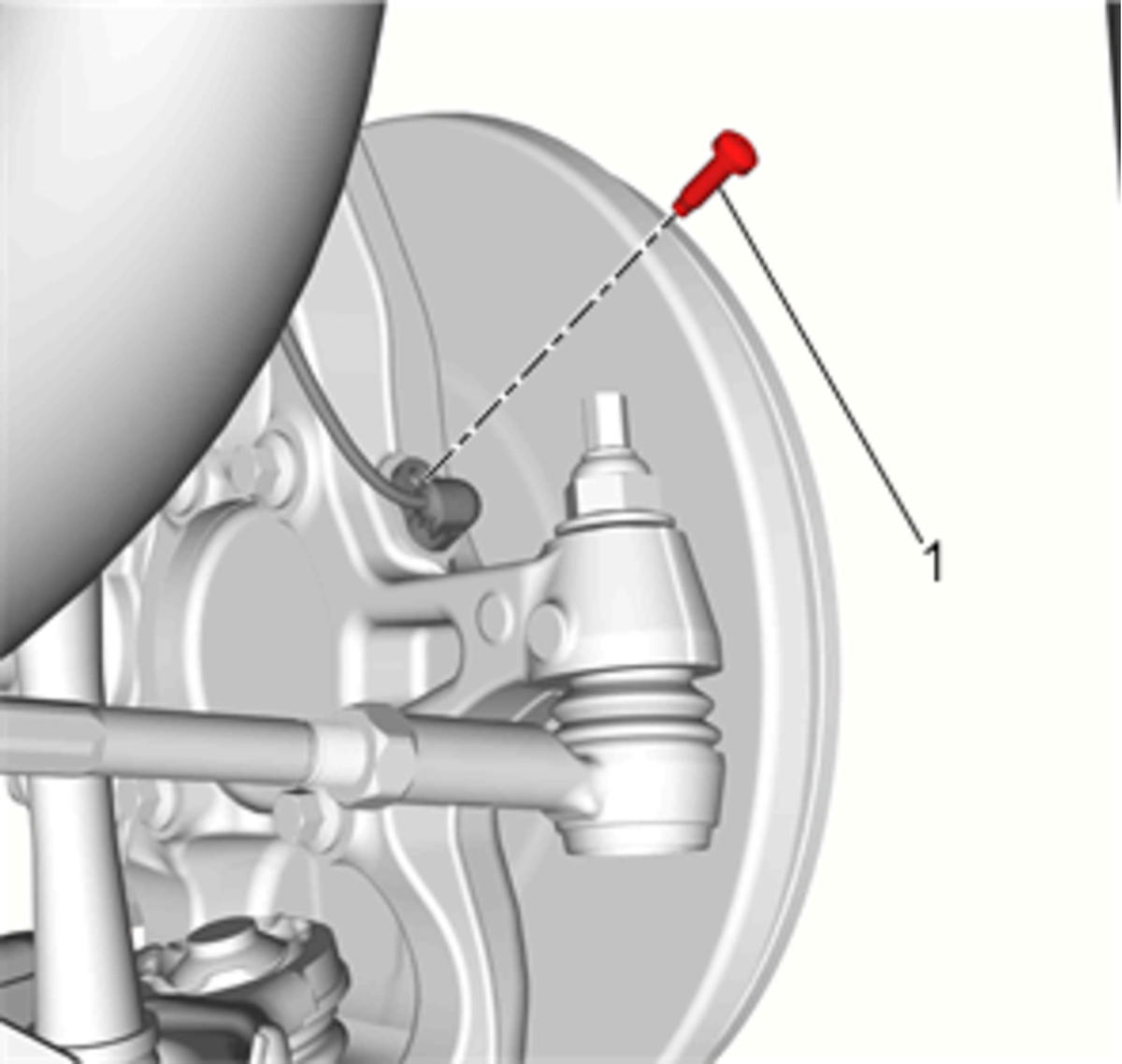

    2. Fig 1: Wheel Speed Sensor Bolt
    GM3683633Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  2. Install the front wheel speed sensor bolt (1) and tighten to 6 N.m (53 lb in).

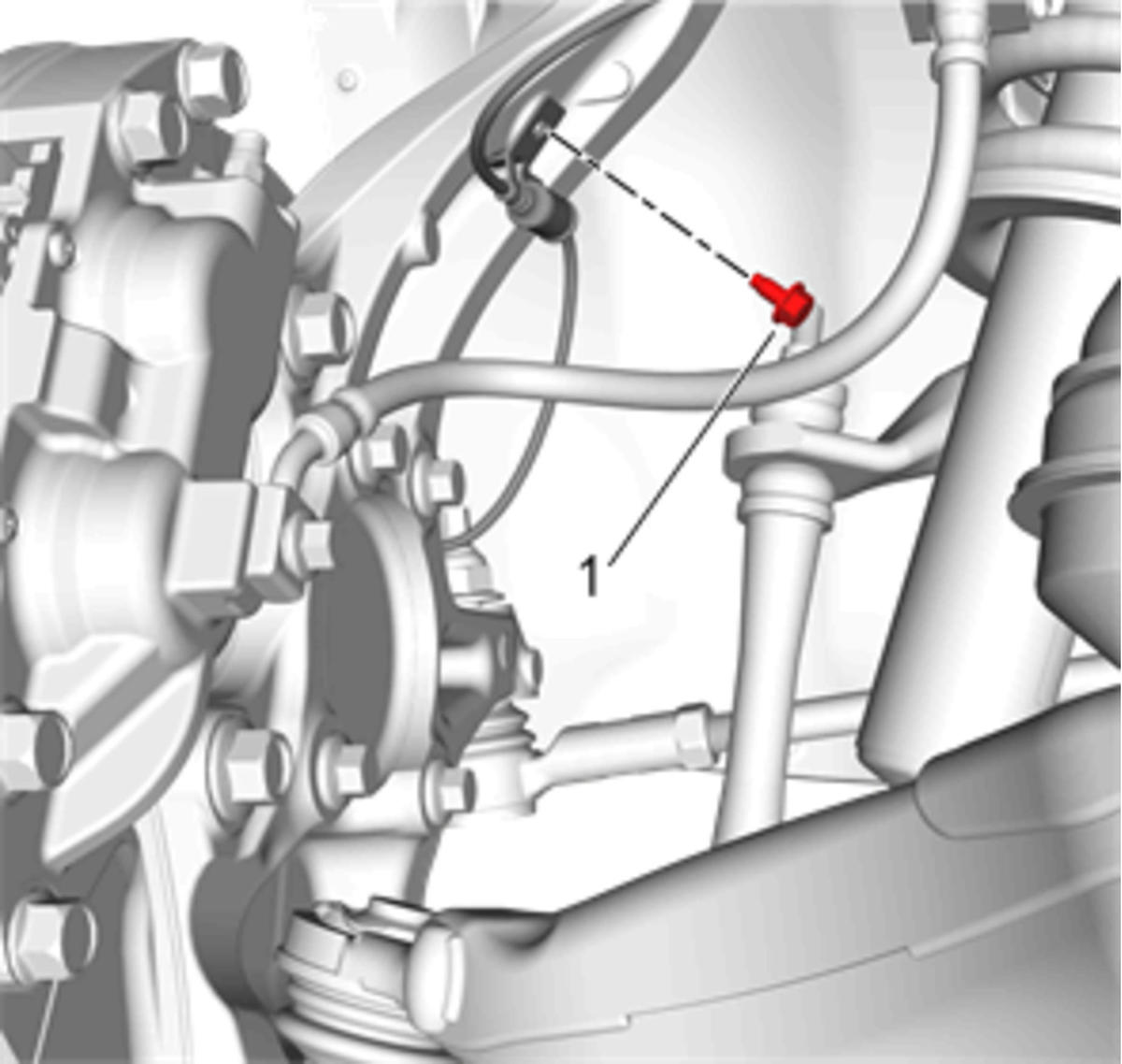

    3. Fig 2: Front Wheel Speed Sensor Harness Bracket Bolt
    GM3683627Courtesy of GENERAL MOTORS COMPANY
  3. Install the front wheel speed sensor bracket bolt (1) and tighten to 9 N.m (80 lb in).

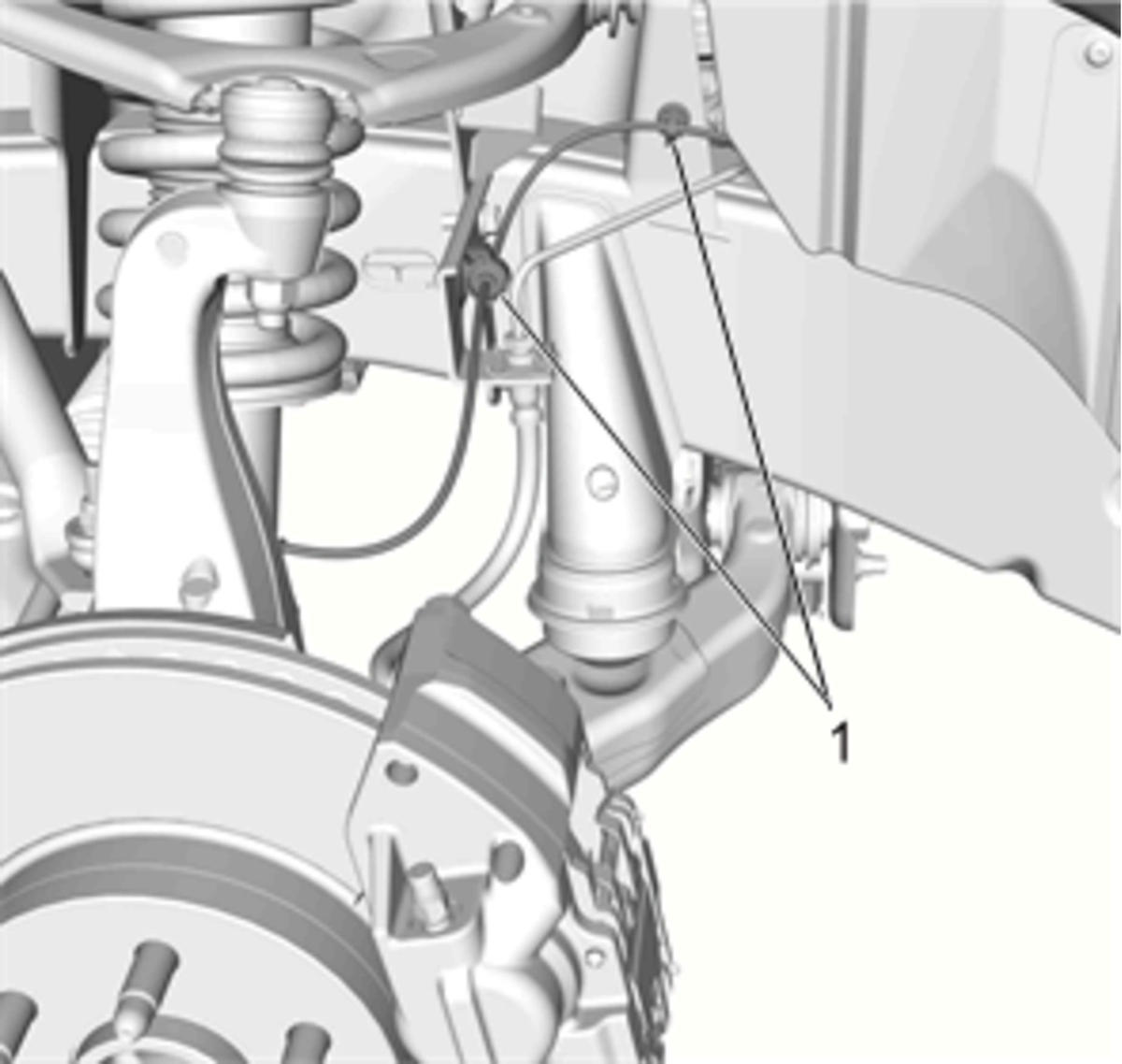

    4. Fig 3: Front Wheel Speed Sensor Harness Clips
    GM3683622Courtesy of GENERAL MOTORS COMPANY
  4. Install the front wheel speed sensor harness clips (1) to the vehicle frame.

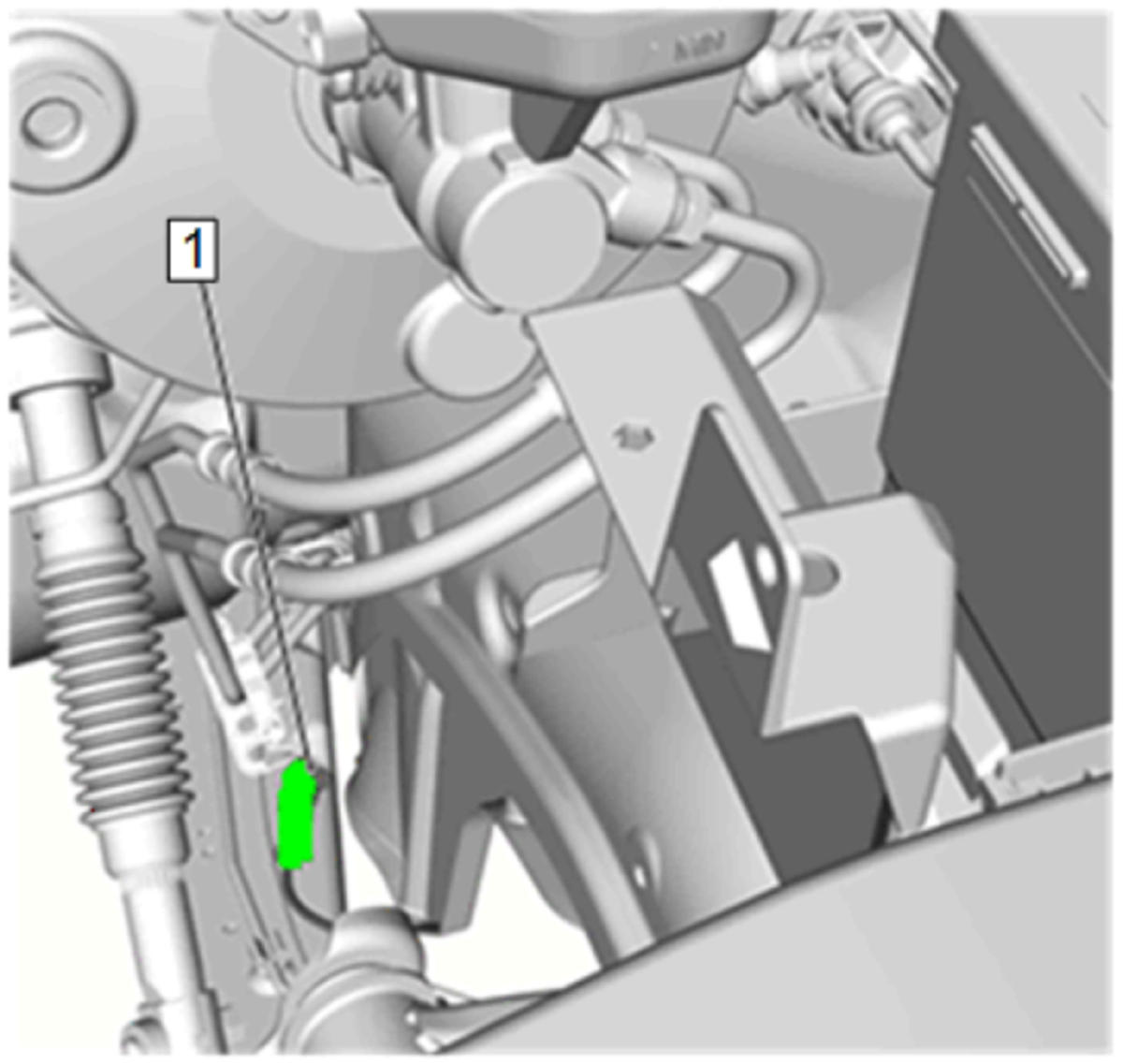

    5. Fig 4: Wheel Speed Sensor Electrical Connector
    GM3683620Courtesy of GENERAL MOTORS COMPANY
  5. Install the front wheel speed sensor harness connector retainer (1) to the vehicle frame.
  6. Connect the front wheel speed sensor electrical connector.
  7. Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation .
