Installation Procedure

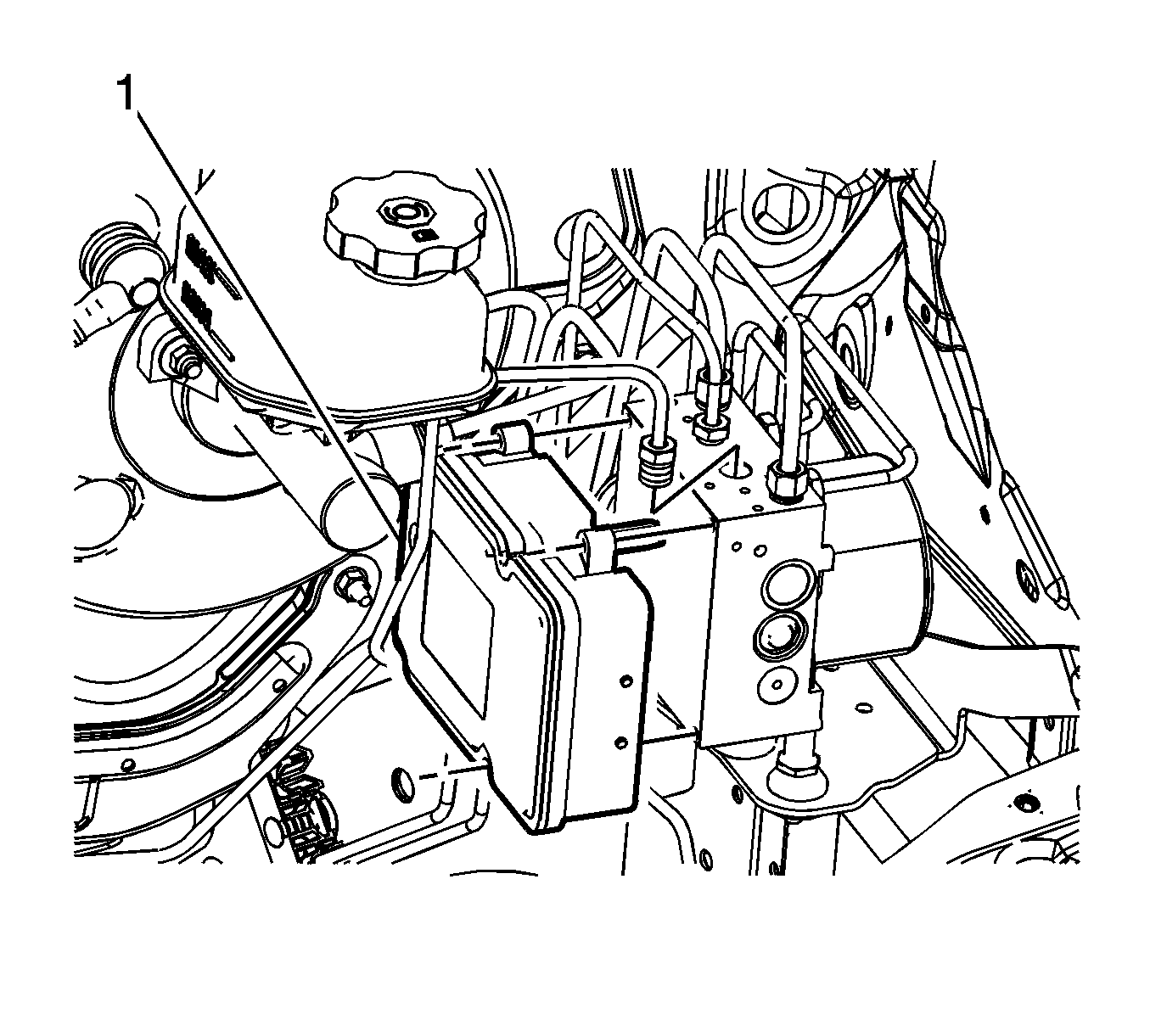

    Fig 1: EBCM
    GM1873923Courtesy of GENERAL MOTORS COMPANY
  1. Install the EBCM seals, if removed.
  2. Install the EBCM (1) to the BPMV.
    3. Fig 2: EBCM Bolts
    GM1873922Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  3. Install the 4 EBCM bolts (1) and tighten the bolts in a cross pattern to 3 N.m (27 lb in).
  4. Install the accessory wiring junction block. Refer to Accessory Wiring Junction Block Replacement .
  5. If installing a new EBCM, program the EBCM. Refer to Control Module References .
  6. Without starting the engine, place the ignition switch in the ON position.
  7. Perform the Diagnostic System Check - Vehicle .
