Installation Procedure

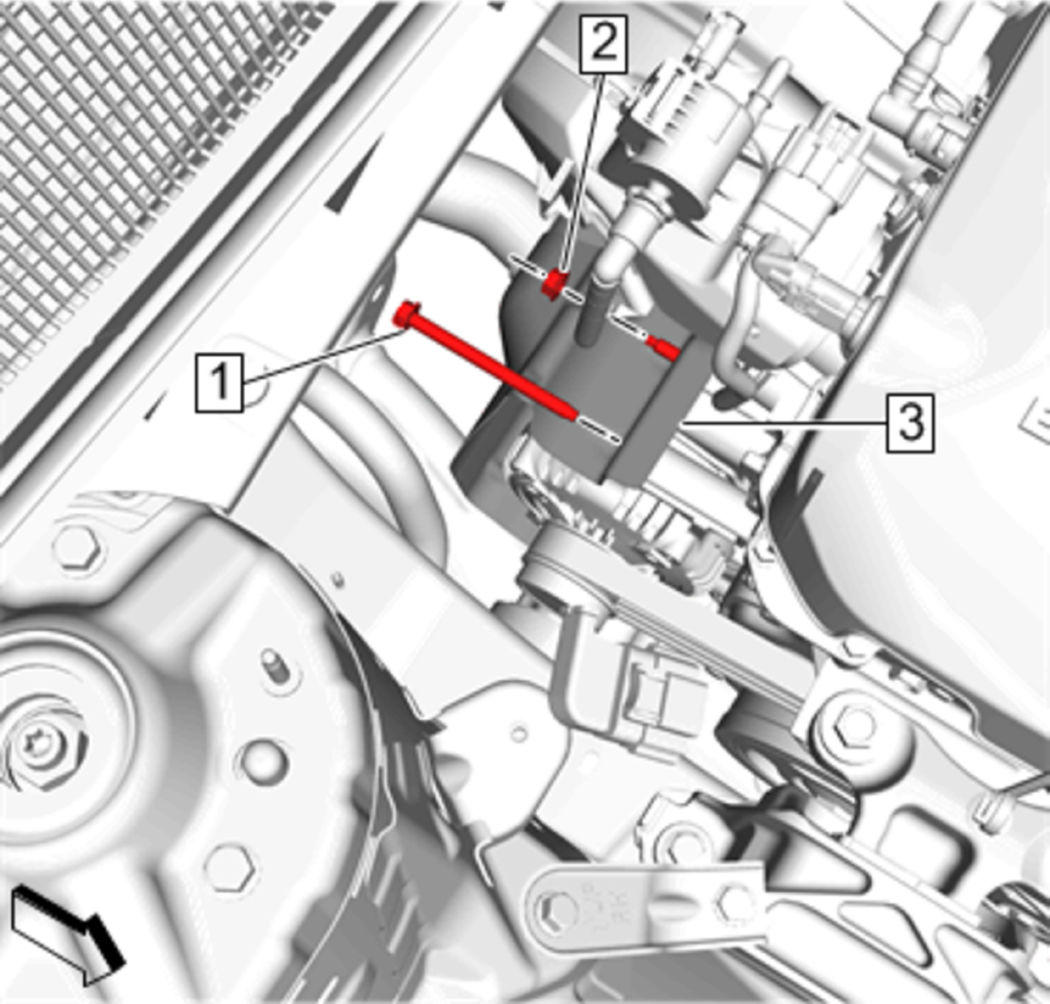

    Fig 1: Generator Shield
    GM4573536Courtesy of GENERAL MOTORS COMPANY
  1. Install Generator Splash Shield (3)
    2. CAUTION:

    Refer to Fastener Caution

  2. Install Generator Nut (2) and tighten 22 N.m (16 lb ft)
  3. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  4. Raise and support the vehicle. Lifting and Jacking the Vehicle

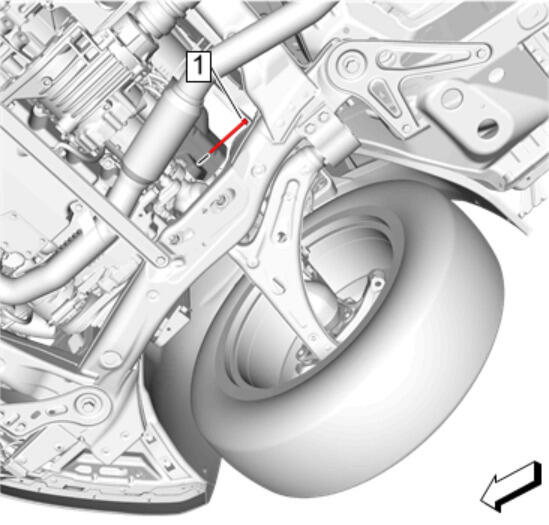

    5. Fig 2: Generator Bolt
    GM4573531Courtesy of GENERAL MOTORS COMPANY
  5. Install Generator Bolt (1) and tighten 22 N.m (16 lb ft)
  6. Lower the vehicle.

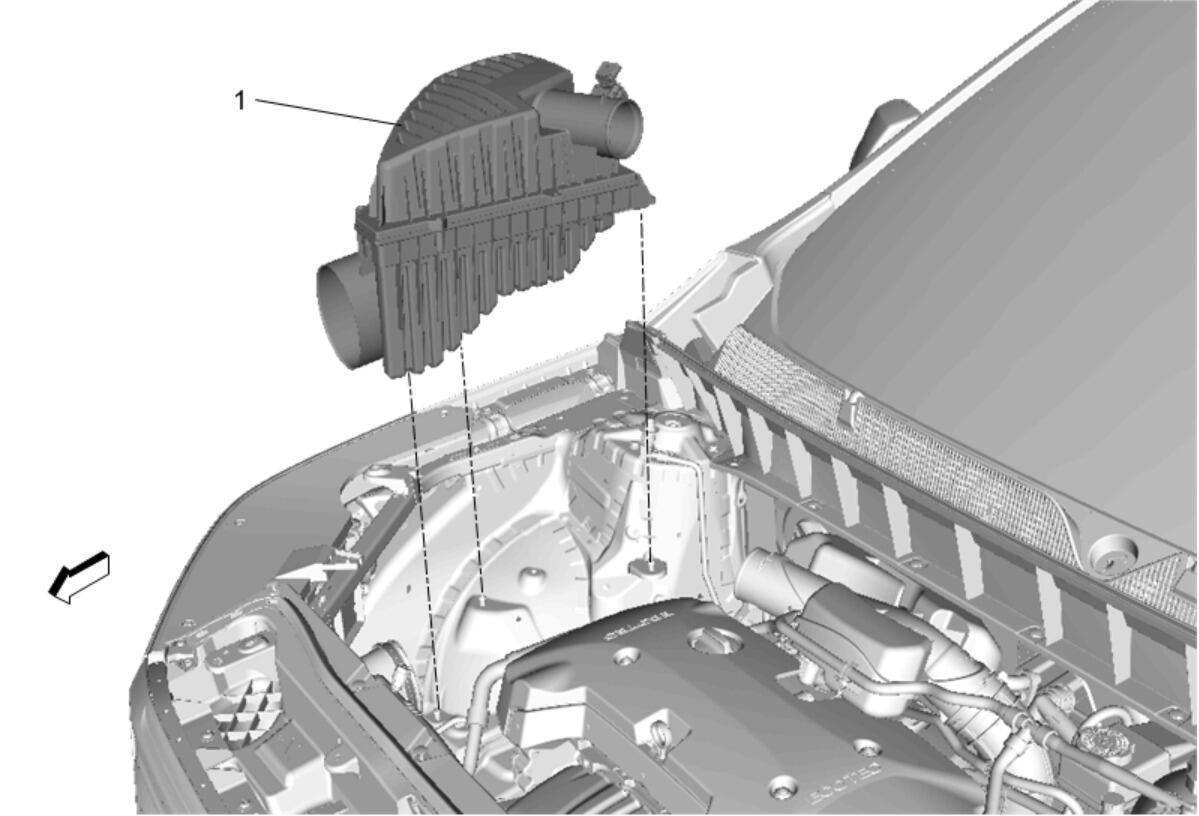

    7. Fig 3: Air Cleaner Assembly
    GM4363562Courtesy of GENERAL MOTORS COMPANY
  7. Install Air Cleaner Assembly (1) Air Cleaner Assembly Replacement

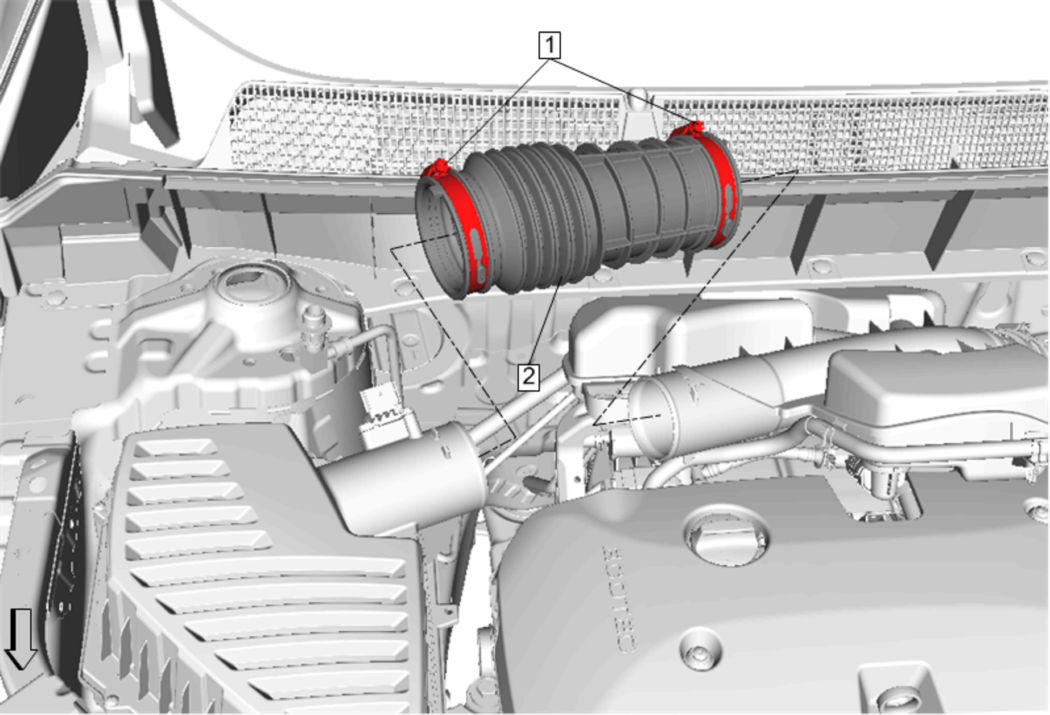

    8. Fig 4: Air Cleaner Outlet Front Duct
    GM4362656Courtesy of GENERAL MOTORS COMPANY
  8. Install Air Cleaner Outlet Front Duct (2)Air Cleaner Outlet Front Duct Replacement
  9. Connect the negative battery cable. Battery Negative Cable Disconnection and Connection (Without KL9) Battery Negative Cable Disconnection and Connection (With KL9)
